Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B340H

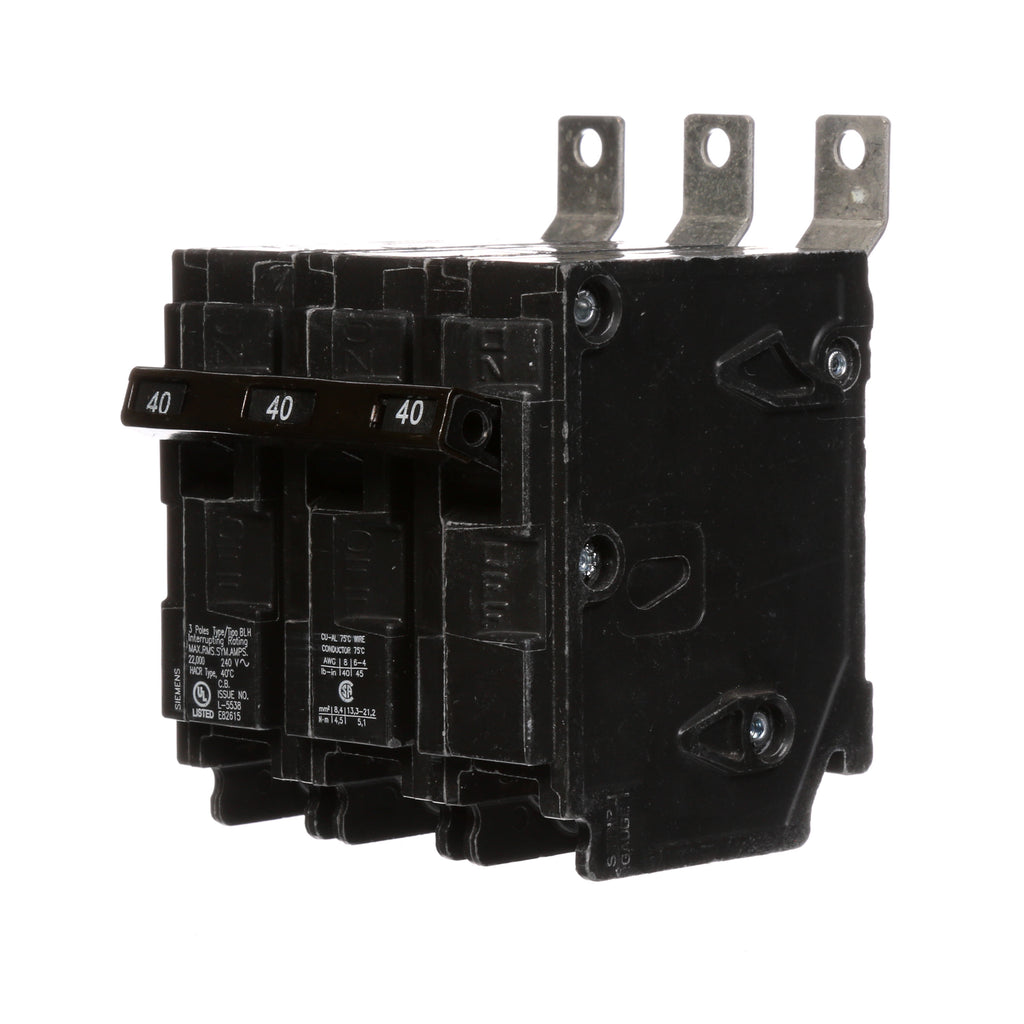

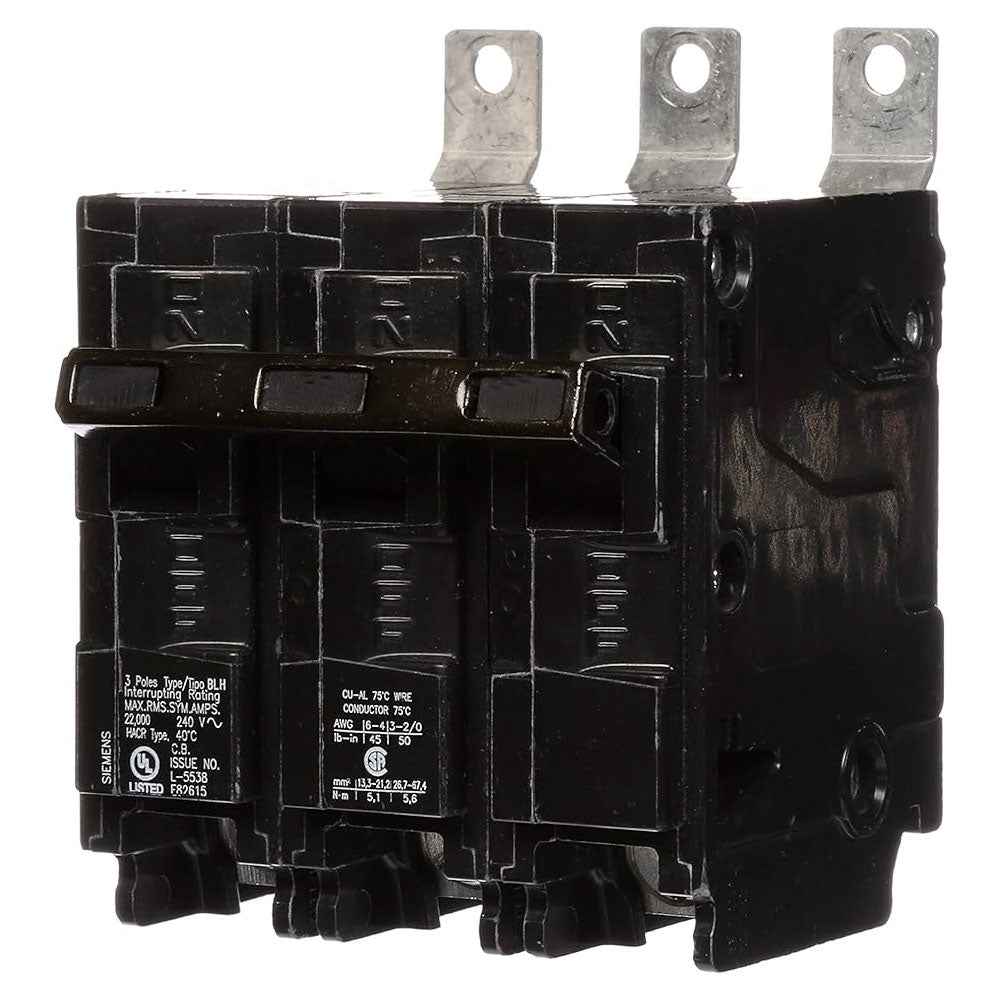

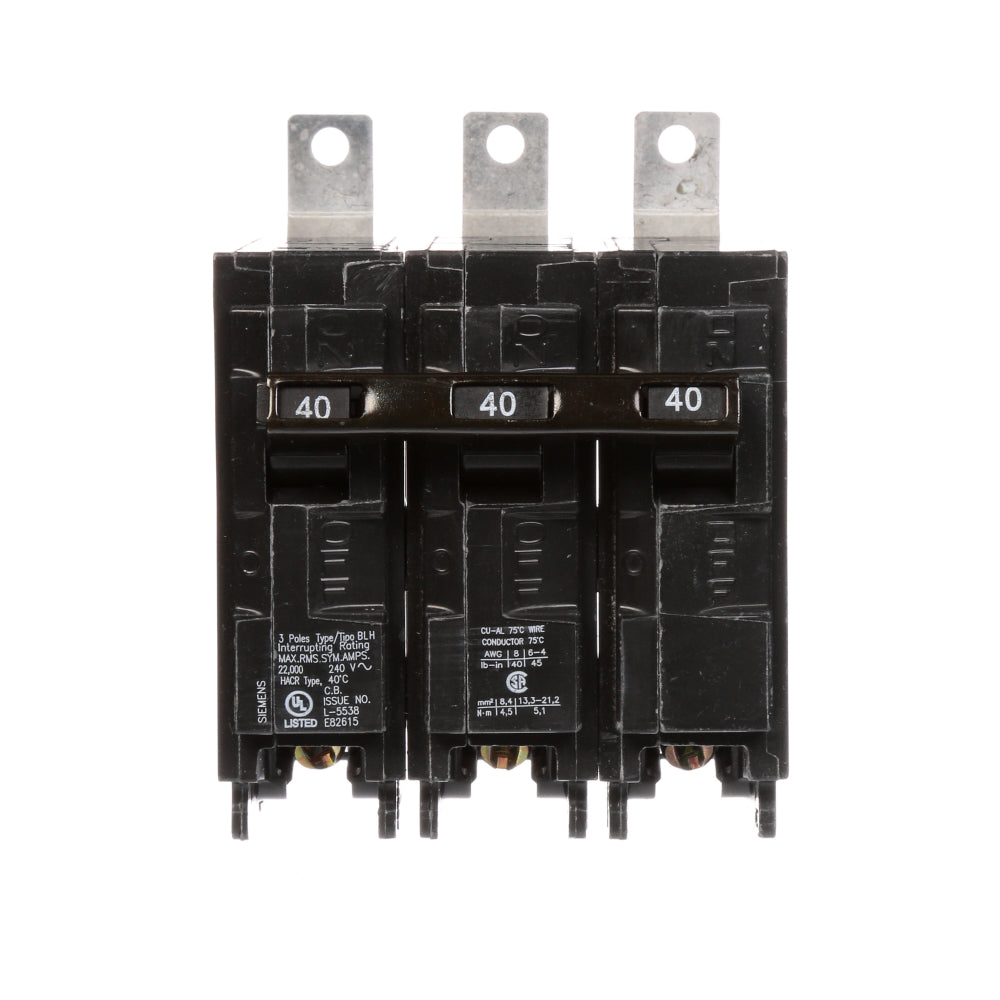

B340H is a Siemens 3-pole, 40 amp, 240 volt bolt-on circuit breaker designed for reliable electrical distribution protection.This Siemens Type BLH molded case circuit breaker features a thermal magnetic trip unit, 22 kiloamp interrupt rating, and common-trip functionality. It mounts via bolt-on style and is UL 489 certified for low voltage applications.
- Manufacturer: Siemens
- Part Number: B340H
- Amperage: 40A
- Voltage Rating: 240VAC
- Number of Poles: 3
- Mounting Type: Bolt-On
- Interrupt Rating: 22 kAIC
- Series/Frame: BLH
- Trip Unit: Thermal Magnetic
- Certifications: UL 489
- Common Trip: Yes
Specifications
- Part Number: B340H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLH
- Voltage : 240
- Amperage : 40
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643264014
- GTIN : 00783643264014
- Country of Origin : Mexico
- Dimensions : 2.563 x 3.00 x 3.122 inch
- Weight : 0.948
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
