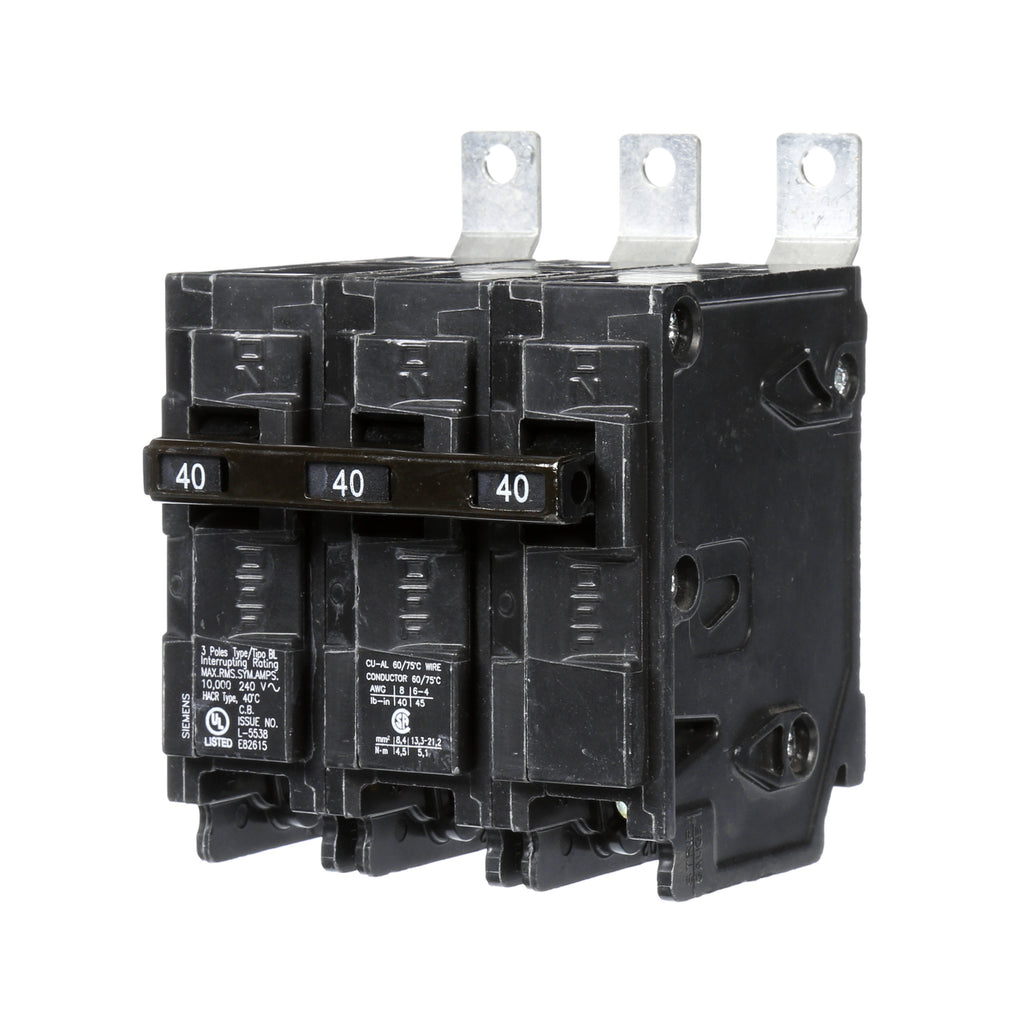

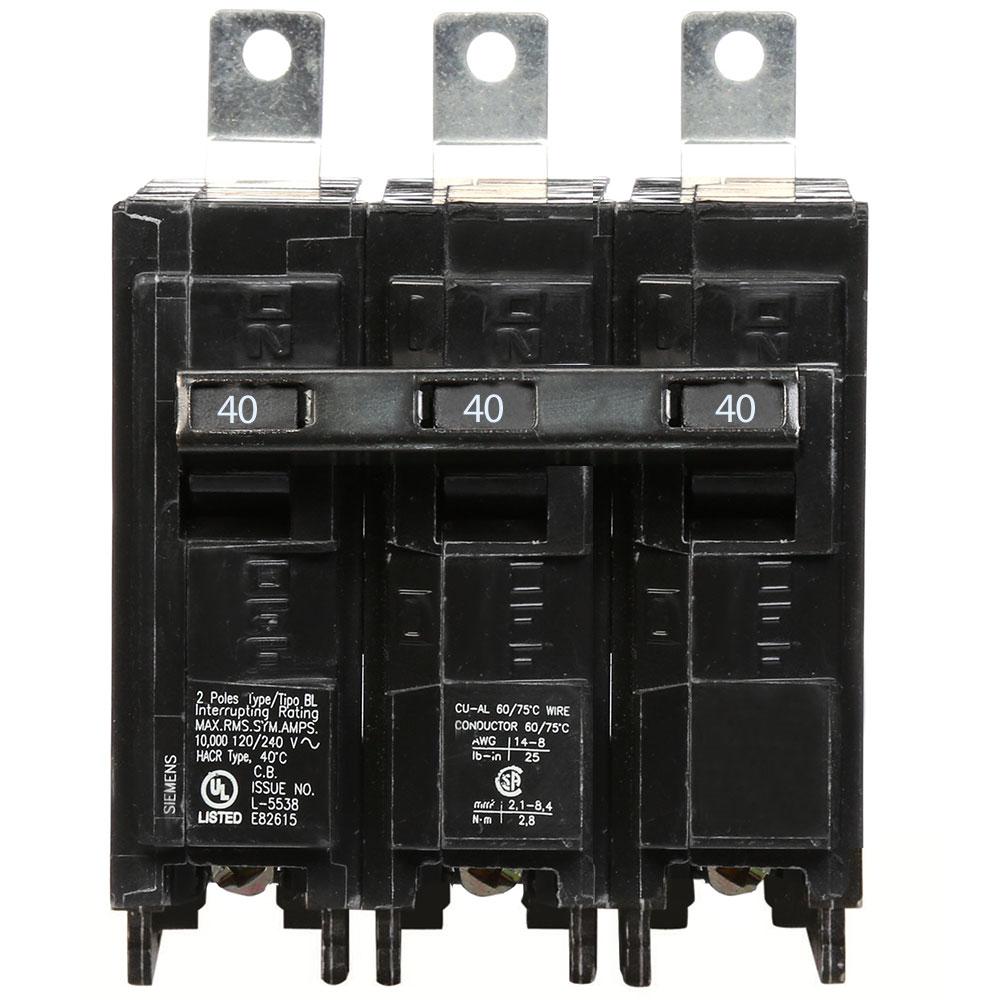

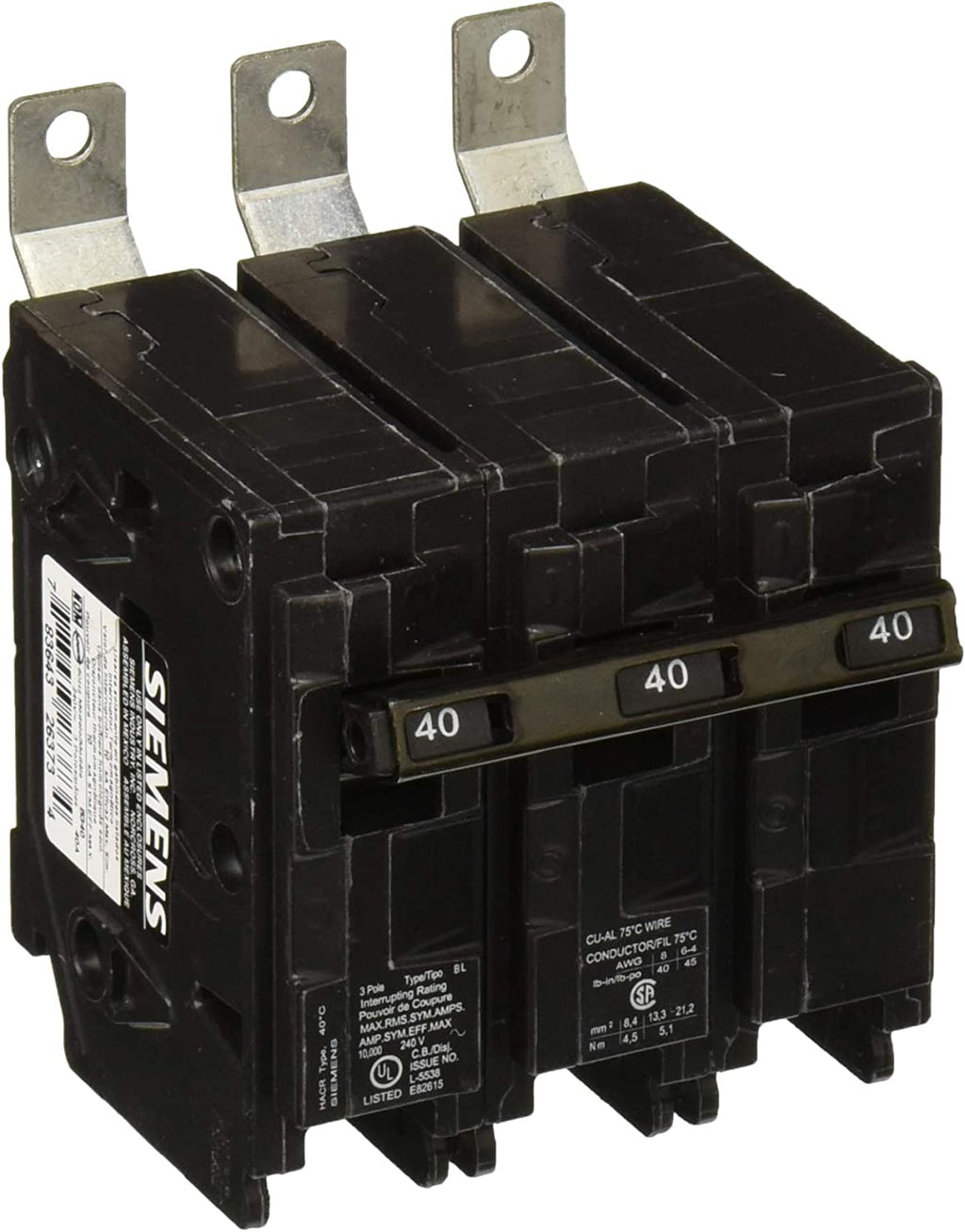

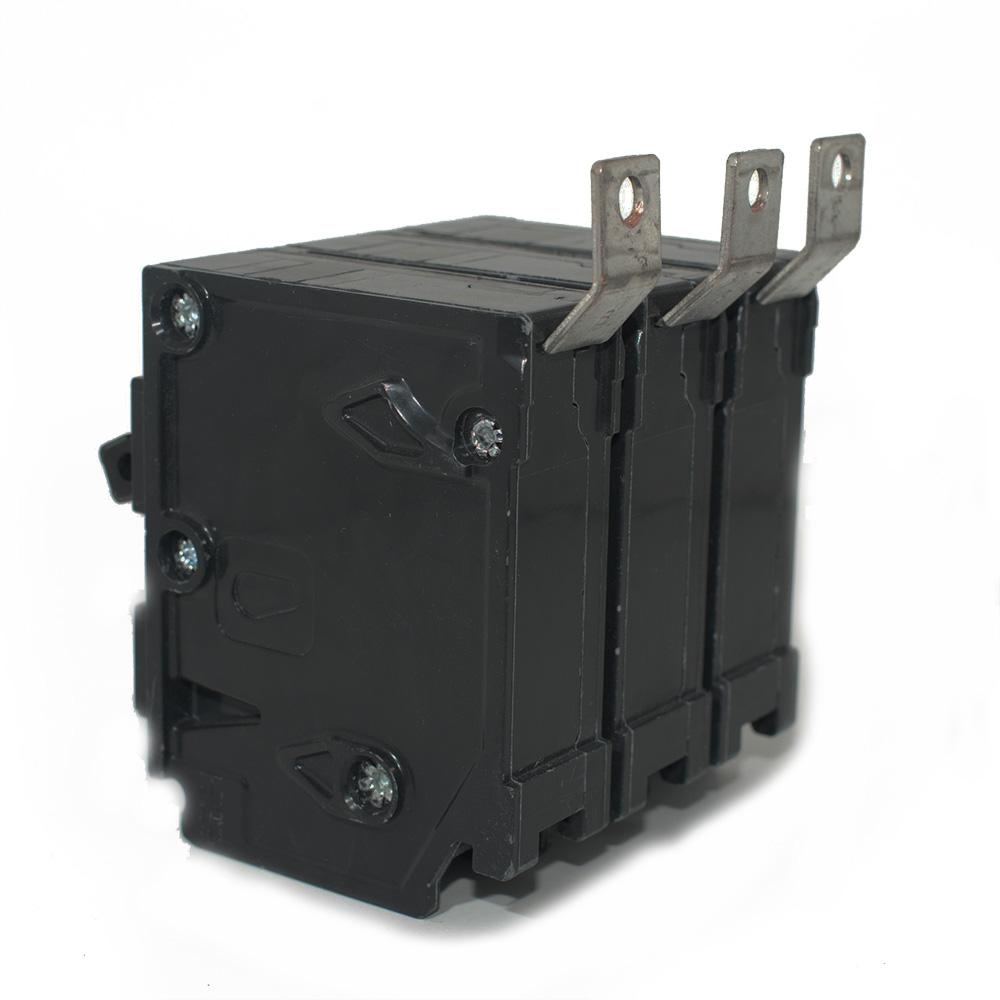

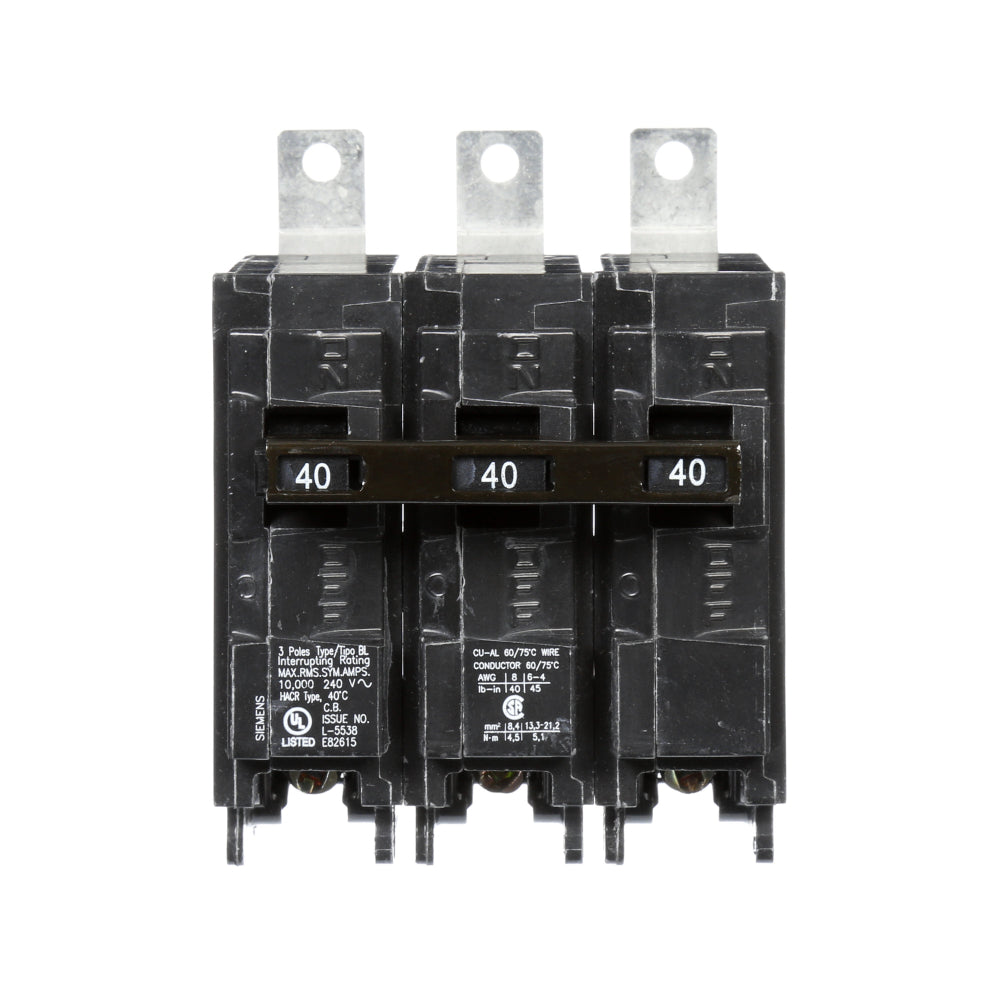

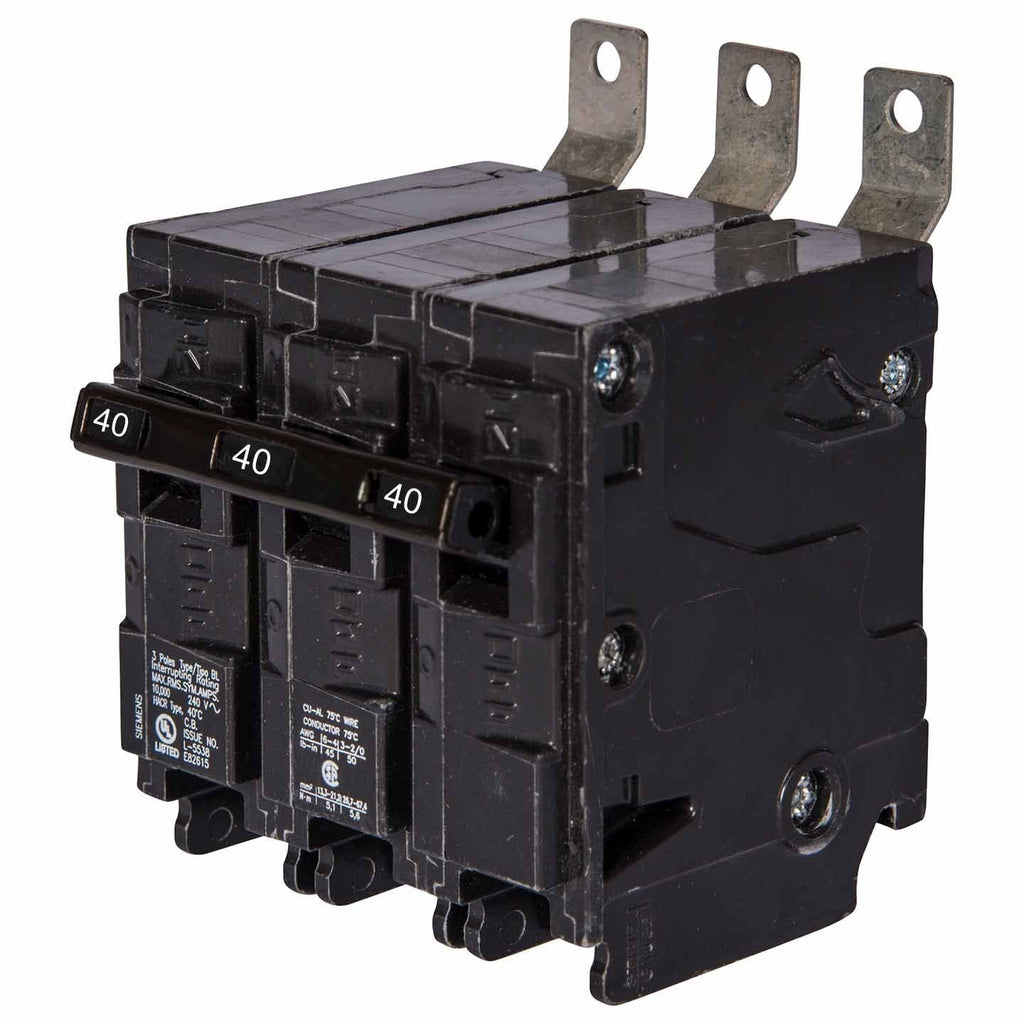

B340 - Siemens 40 Amp 3 Pole 240V Bolt-On Molded Case Circuit Breaker BL Series

B340

B340 is a Siemens 40 Amp 3 Pole molded case circuit breaker designed for panel board mounting with bolt-on connection.This Siemens B340 breaker features a thermal magnetic trip unit, 240 VAC voltage rating, and a 10,000 Amp interrupting rating. It belongs to the BL series and is UL listed, CSA certified, HACR rated, and NOM certified for safety and reliability. The breaker measures approximately 3" W x 3" D x 3-9/16" H and is suitable for three-phase applications.

• Manufacturer: Siemens
• Series: BL
• Amperage: 40A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Certified, HACR Rated, NOM Certified
• Dimensions: 3" W x 3" D x 3-9/16" H
• Connection: Terminal Load Lug

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B340
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 40
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263734
• GTIN : 00783643263734
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
