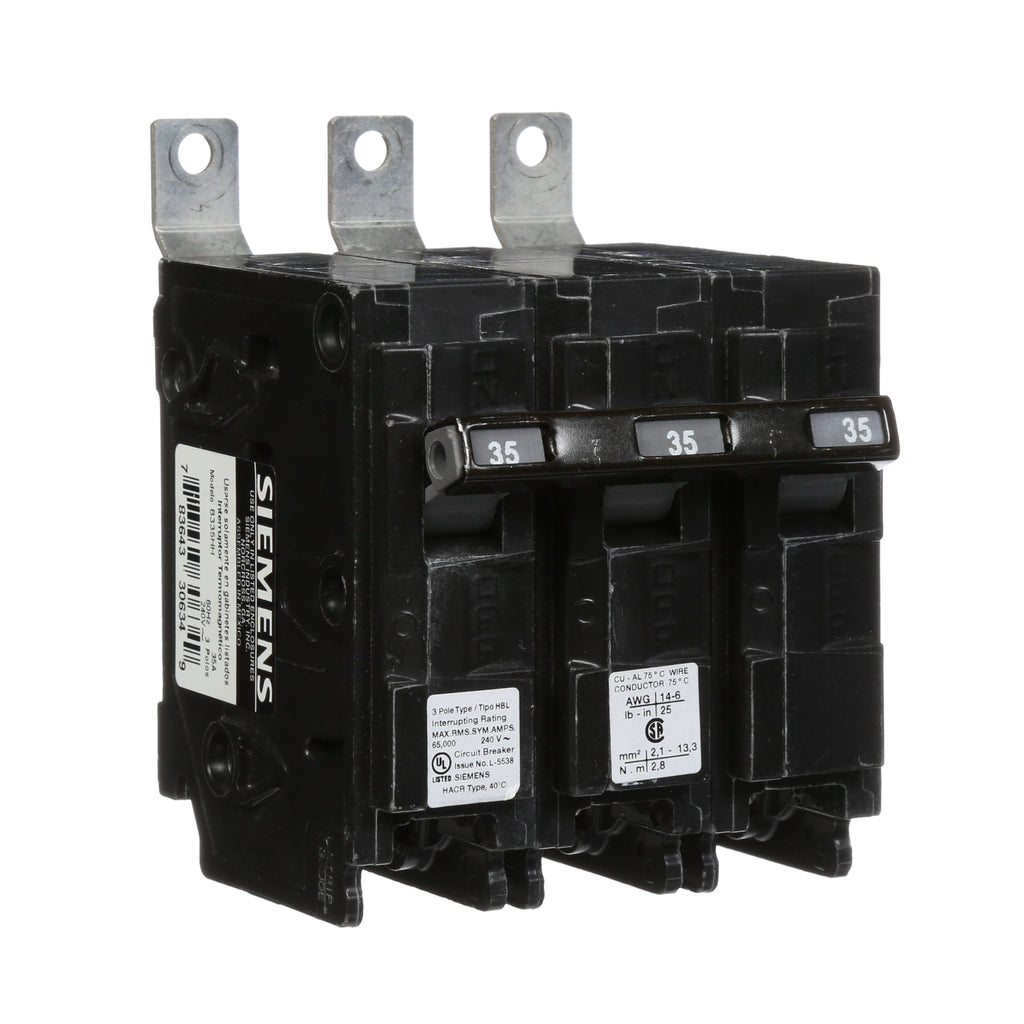

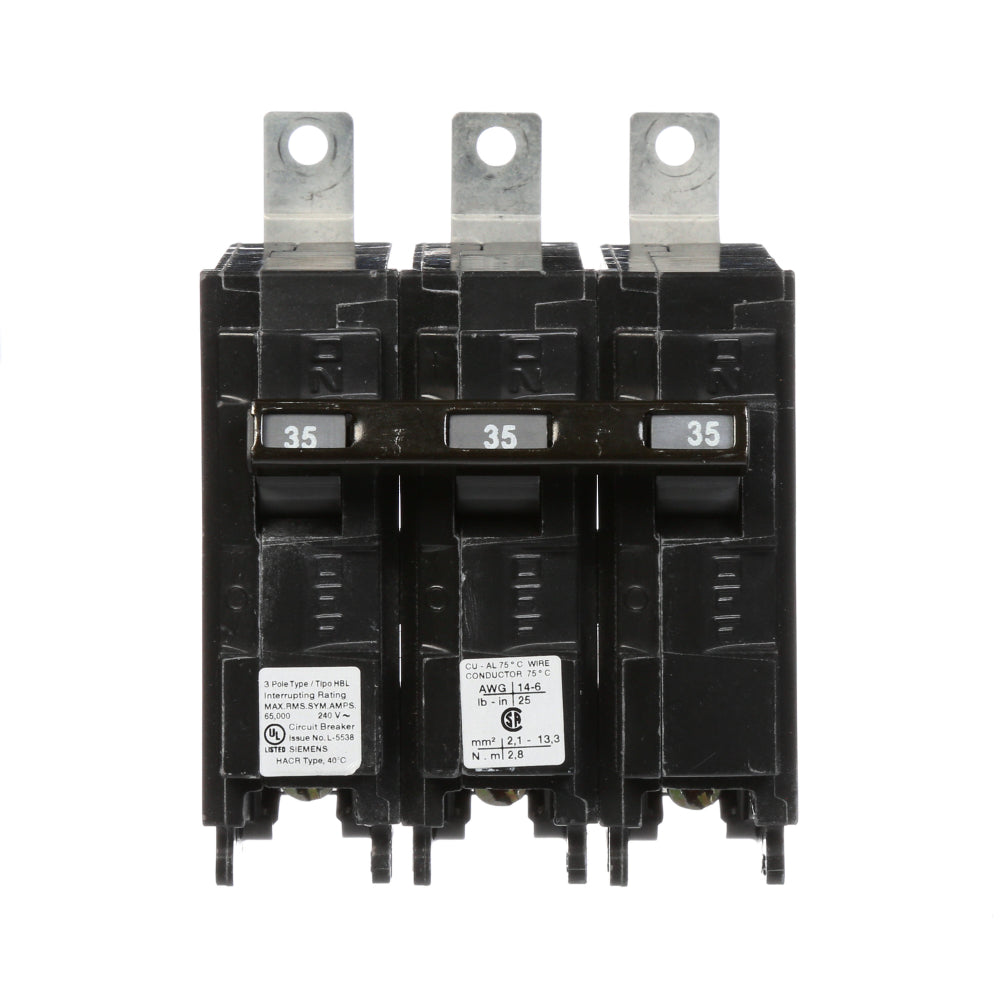

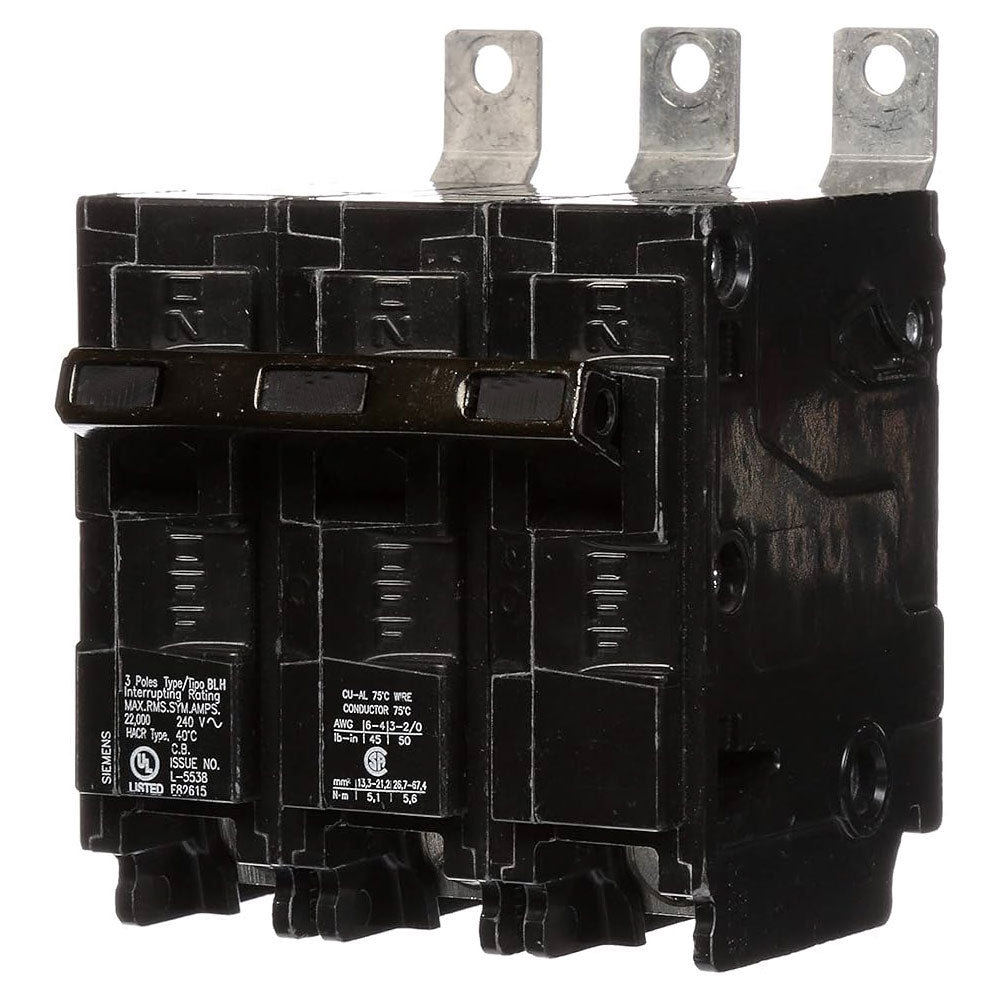

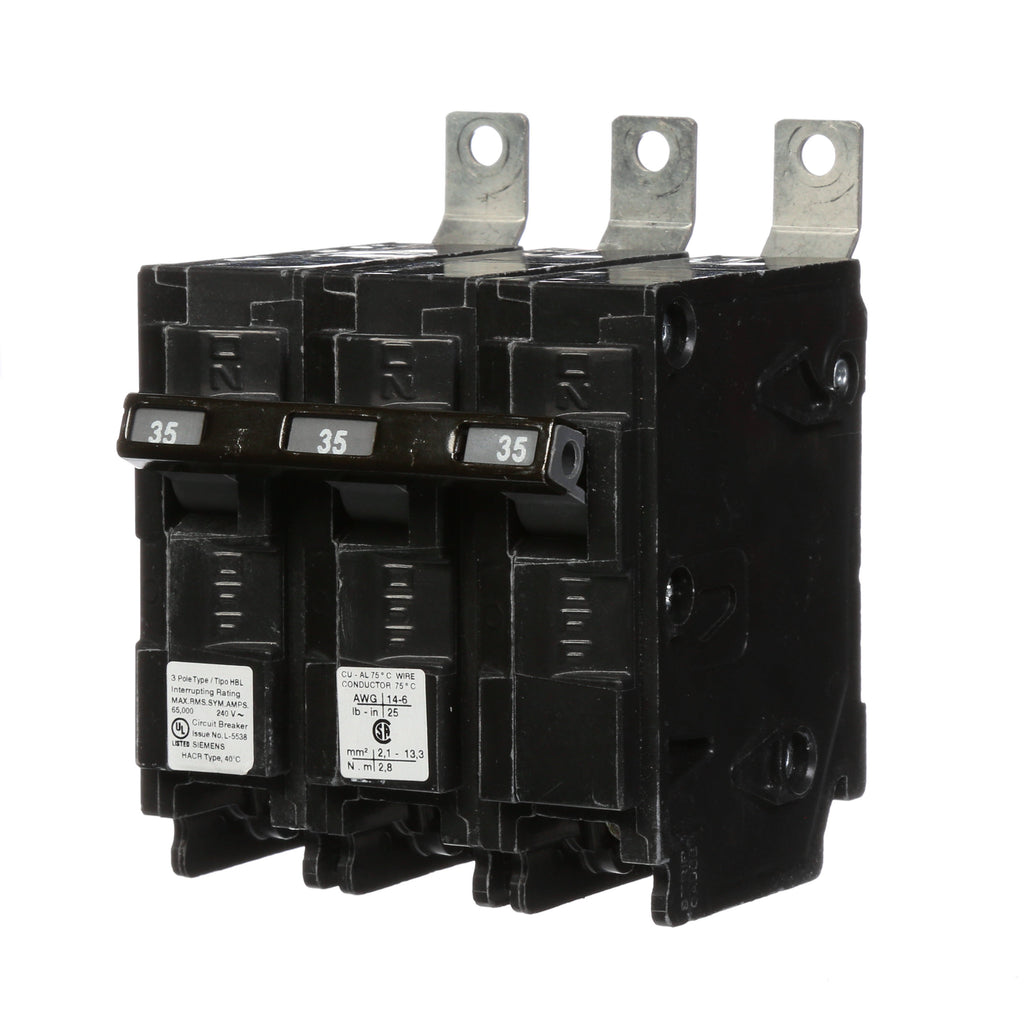

B335HH - Siemens 35A 240VAC 3-Pole Thermal Magnetic Molded Case Circuit Breaker, 65kA Interrupt

B335HH

This circuit breaker features a 65 kA interrupting rating and bolt-on mounting type. It is designed for low voltage applications and provides reliable protection with a thermal/magnetic trip mechanism. The breaker is part of Siemens' Type HBL series, suitable for panel and distribution board installations requiring high interrupt capacity and durability.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 240 VAC
• Poles: 3
• Interrupting Rating: 65 kA
• Trip Unit: Thermal Magnetic
• Mounting Type: Bolt-On
• Series/Frame: Type HBL
• Application: Low Voltage Molded Case Circuit Breaker
• Certifications: Siemens Standard Compliance

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.




Specifications

• Part Number: B335HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643306349
• GTIN : 00783643306349
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 3.937 inch
• Weight : 1.102
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
