B335H - Siemens 35 Amp 240V 3 Pole Molded Case Circuit Breaker Type BLH Bolt-On

B335H

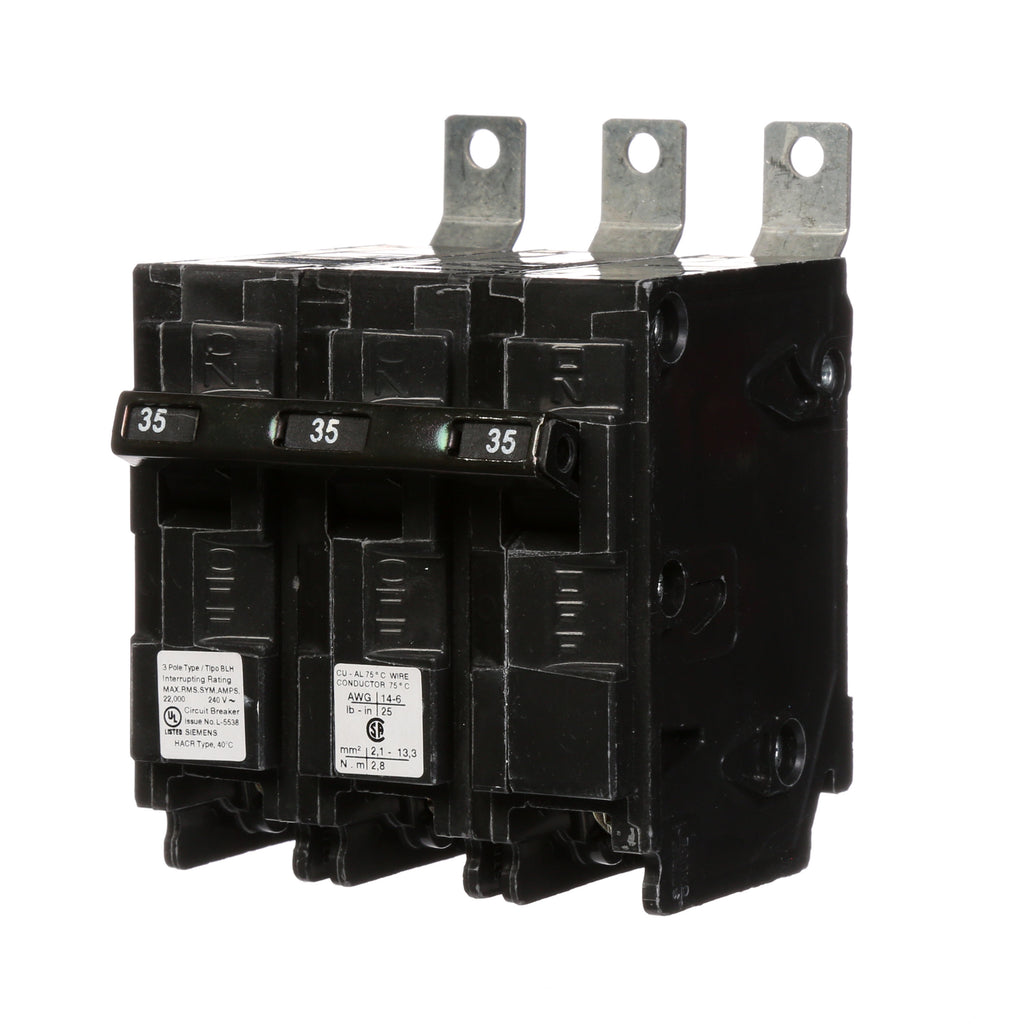

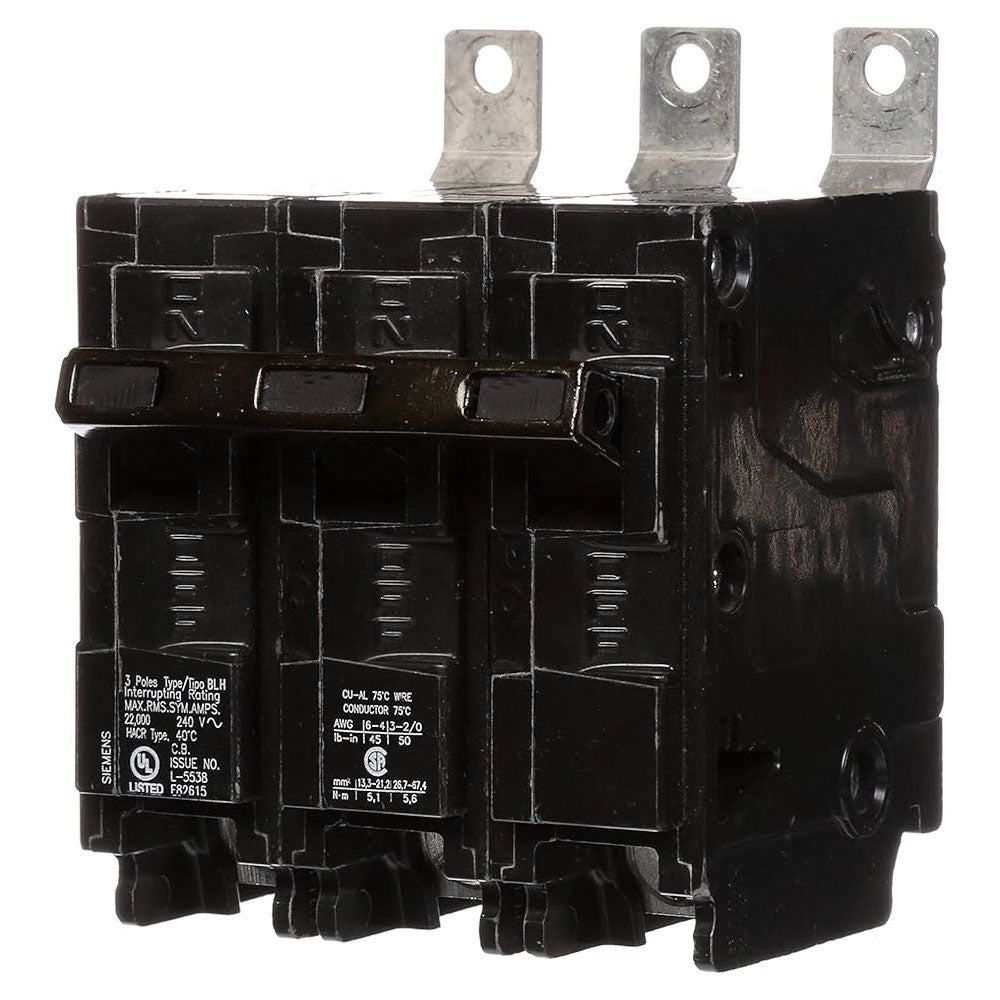

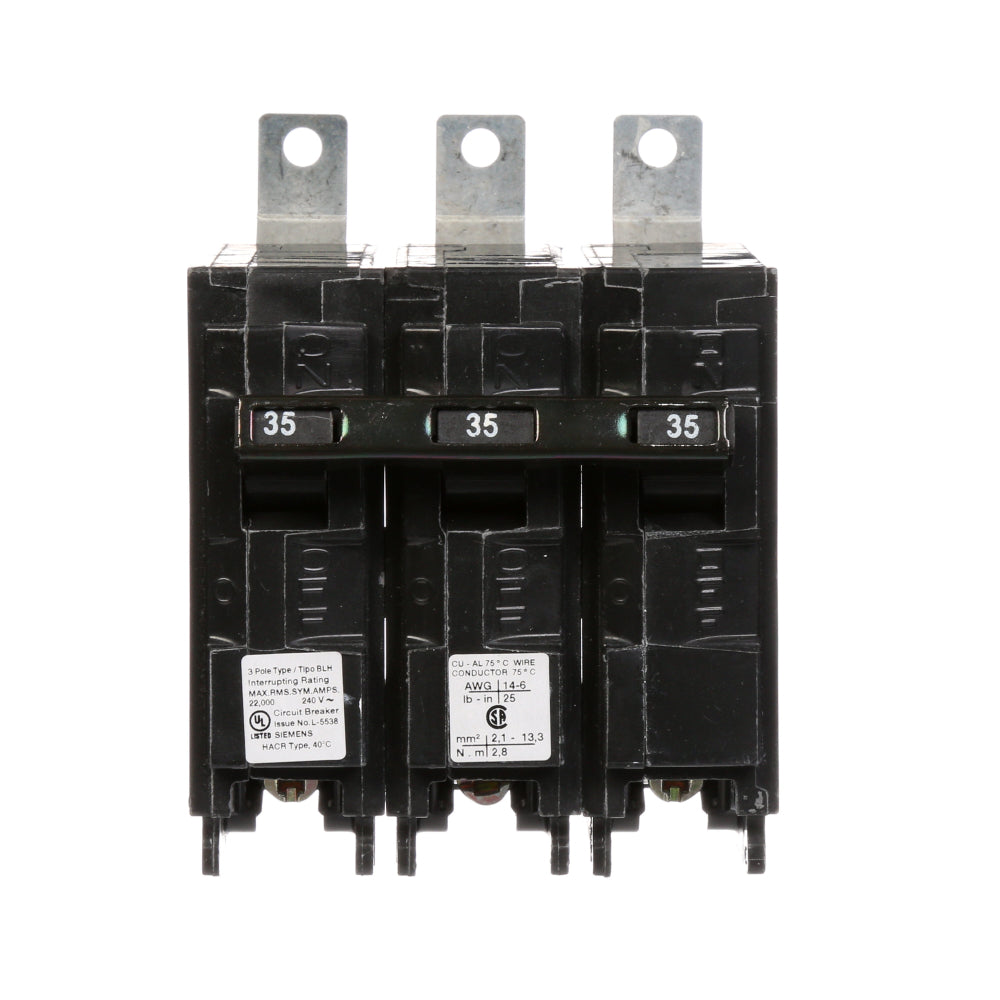

B335H is a Siemens 3 Pole, 35 Amp, 240 Volt AC molded case circuit breaker designed for panelboard mounting with a bolt-on frame.This Type BLH breaker features a thermal magnetic trip unit and a high interrupt rating of 22,000 amps at 240 VAC, ensuring reliable circuit protection. It is part of Siemens' B series frame and supports lug load side and busbar line side terminations.

Key Specifications
• Amperage: 35 Amps
• Voltage Rating: 240 VAC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 240 VAC
• Series/Frame: B Series (Type BLH)
• Trip Unit: Thermal Magnetic
• Load Side Termination: Lug (included)
• Line Side Termination: Busbar
• Certifications: UL Listed, CSA Certified (typical for Siemens MCCBs)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: B335H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 240
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643306332
• GTIN : 00783643306332
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
