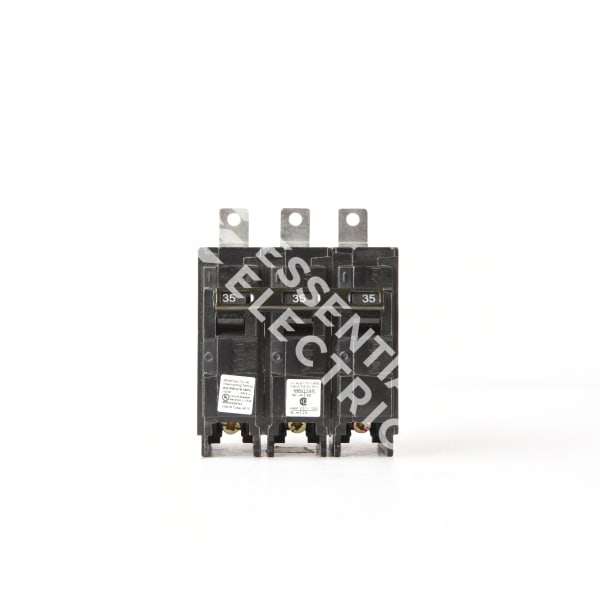

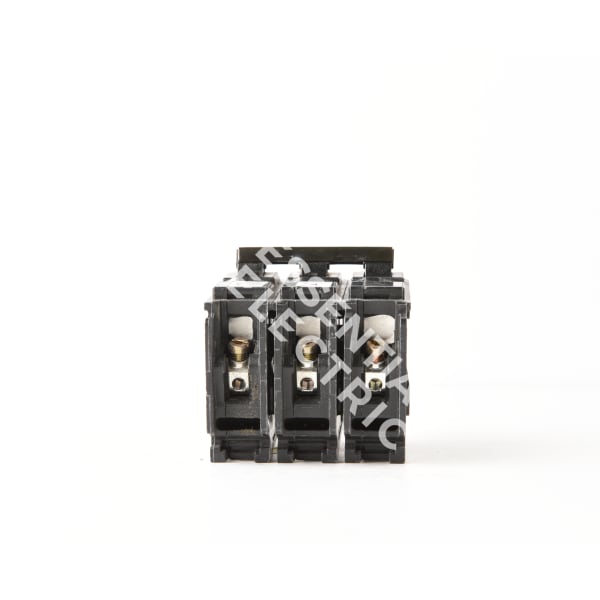

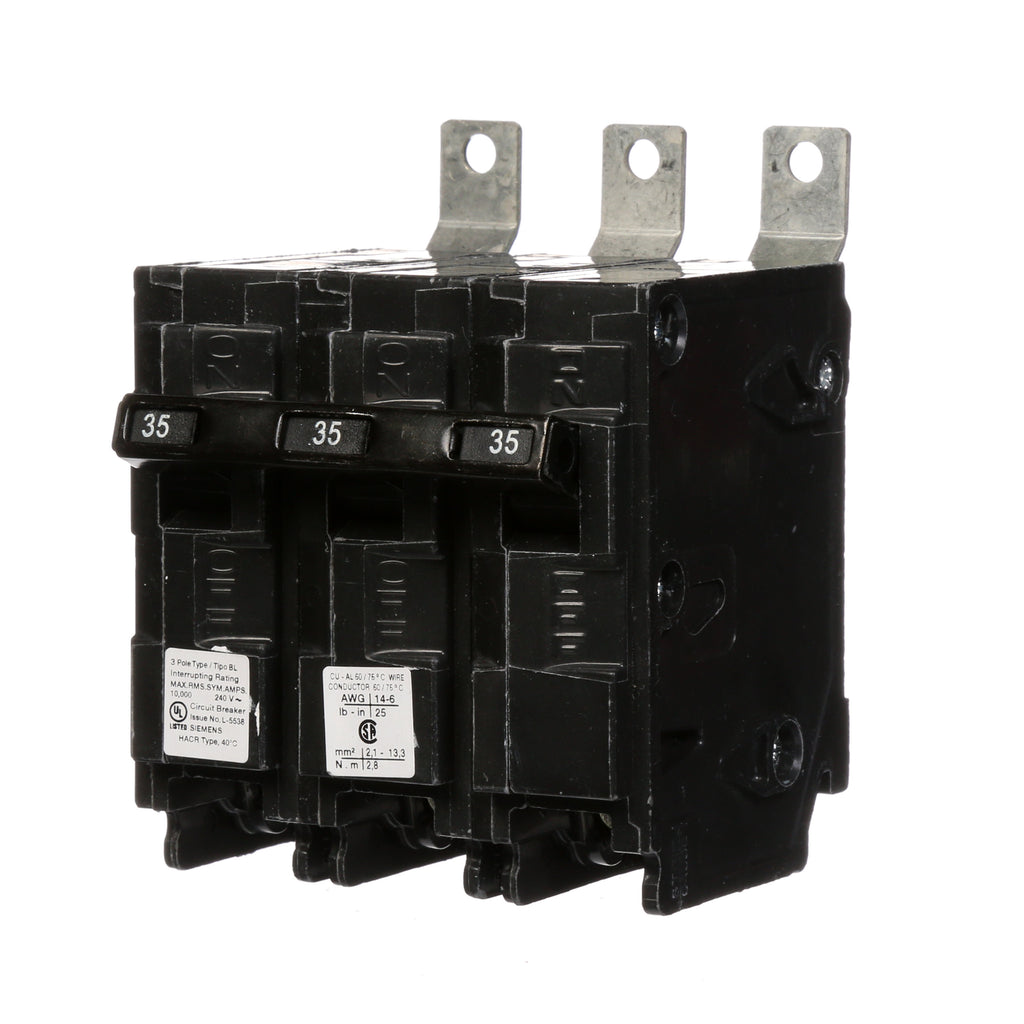

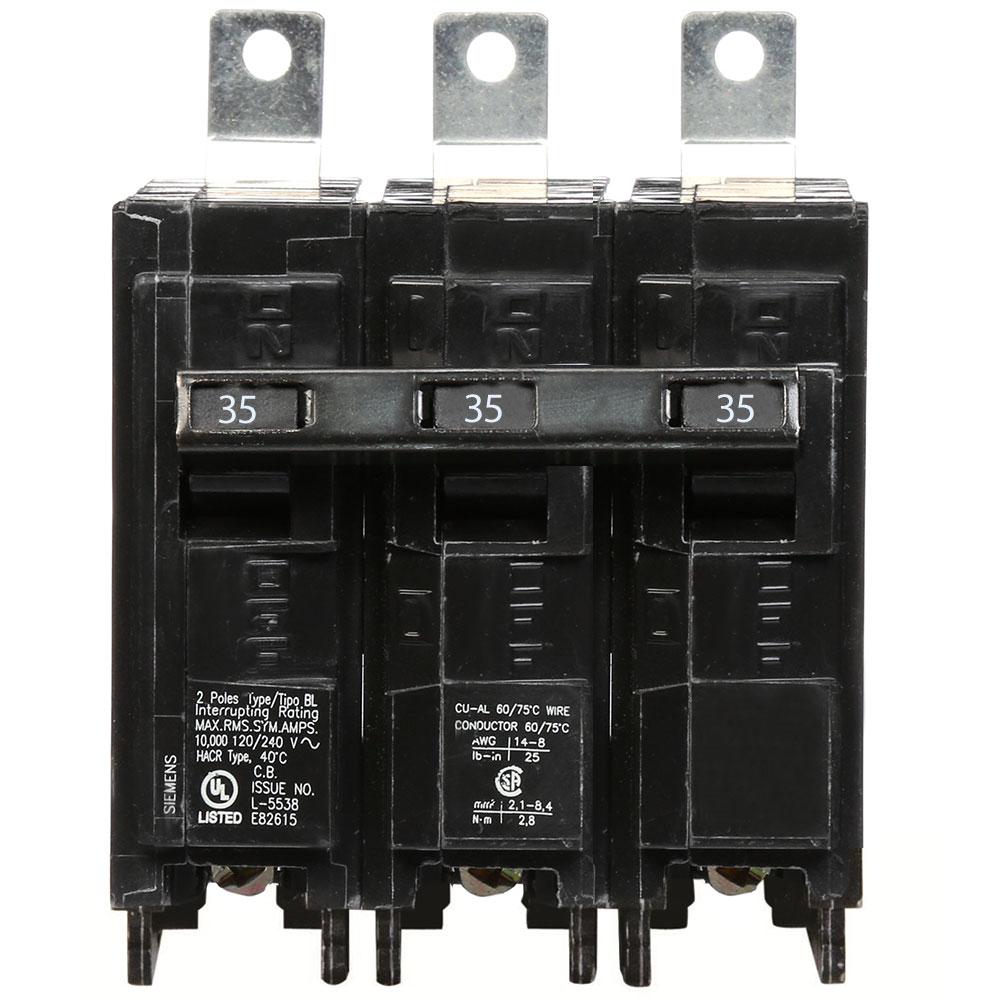

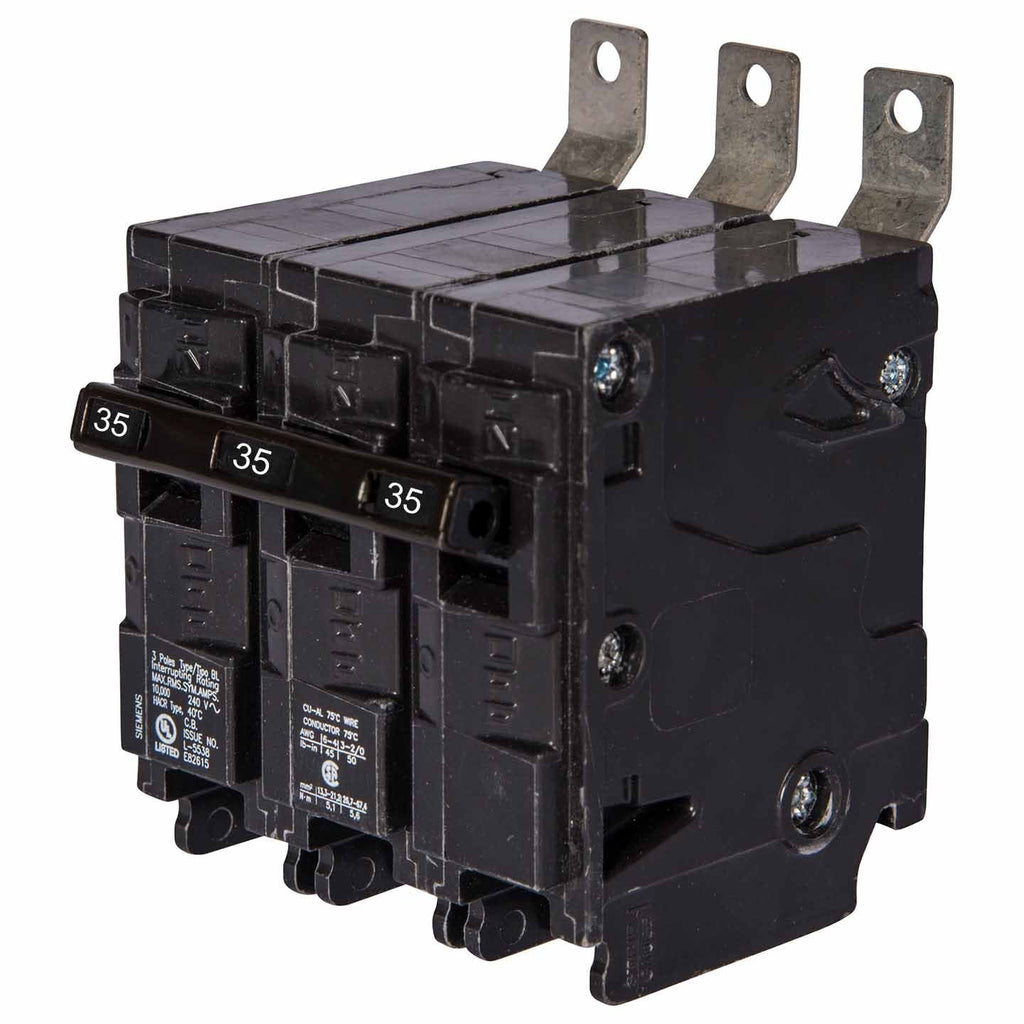

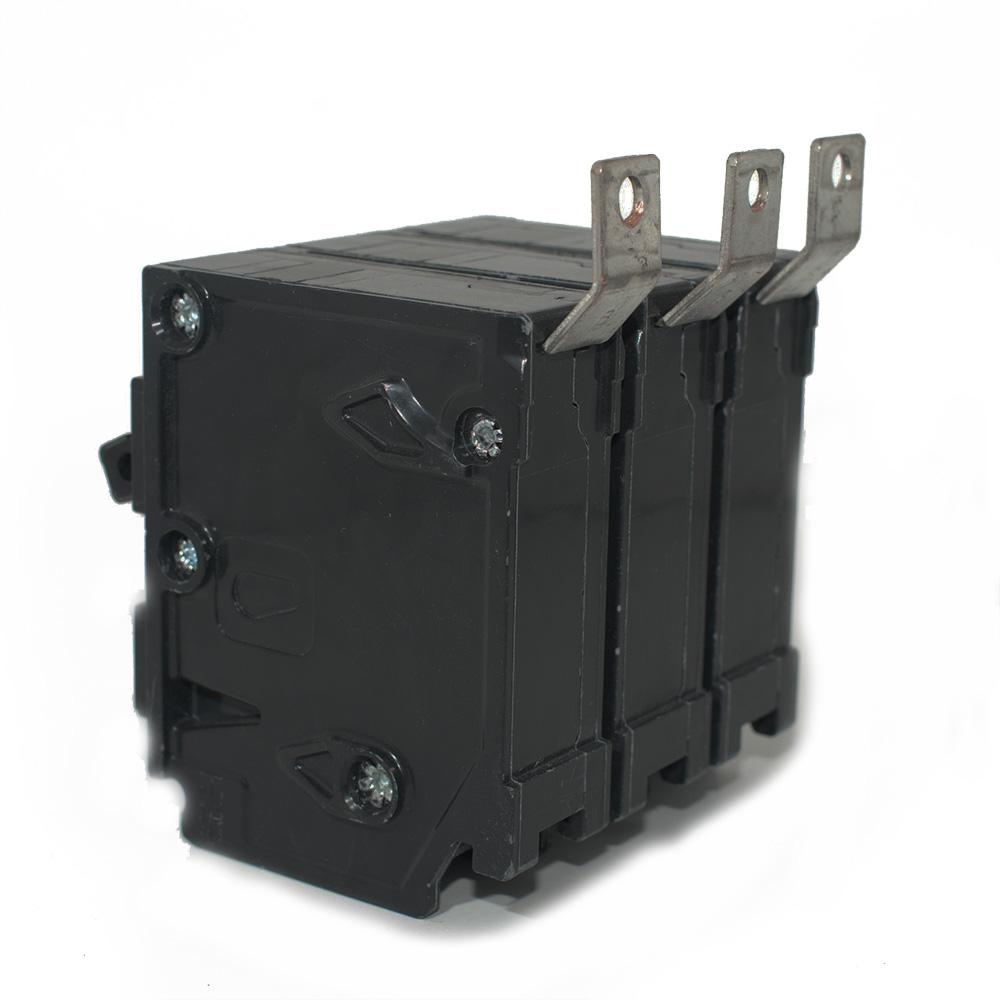

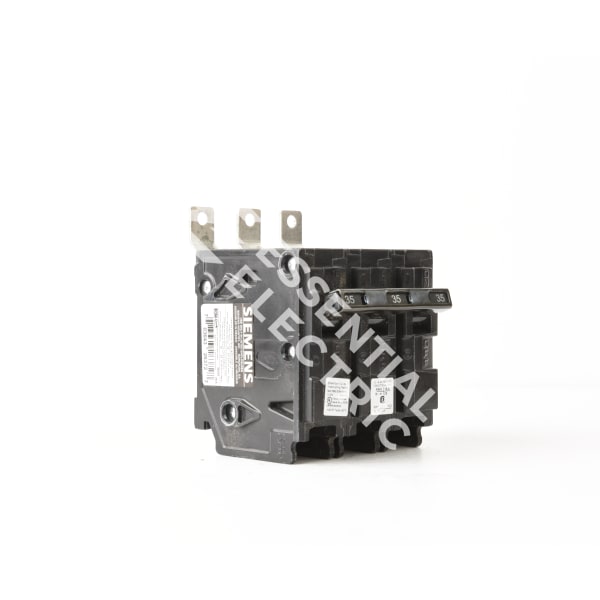

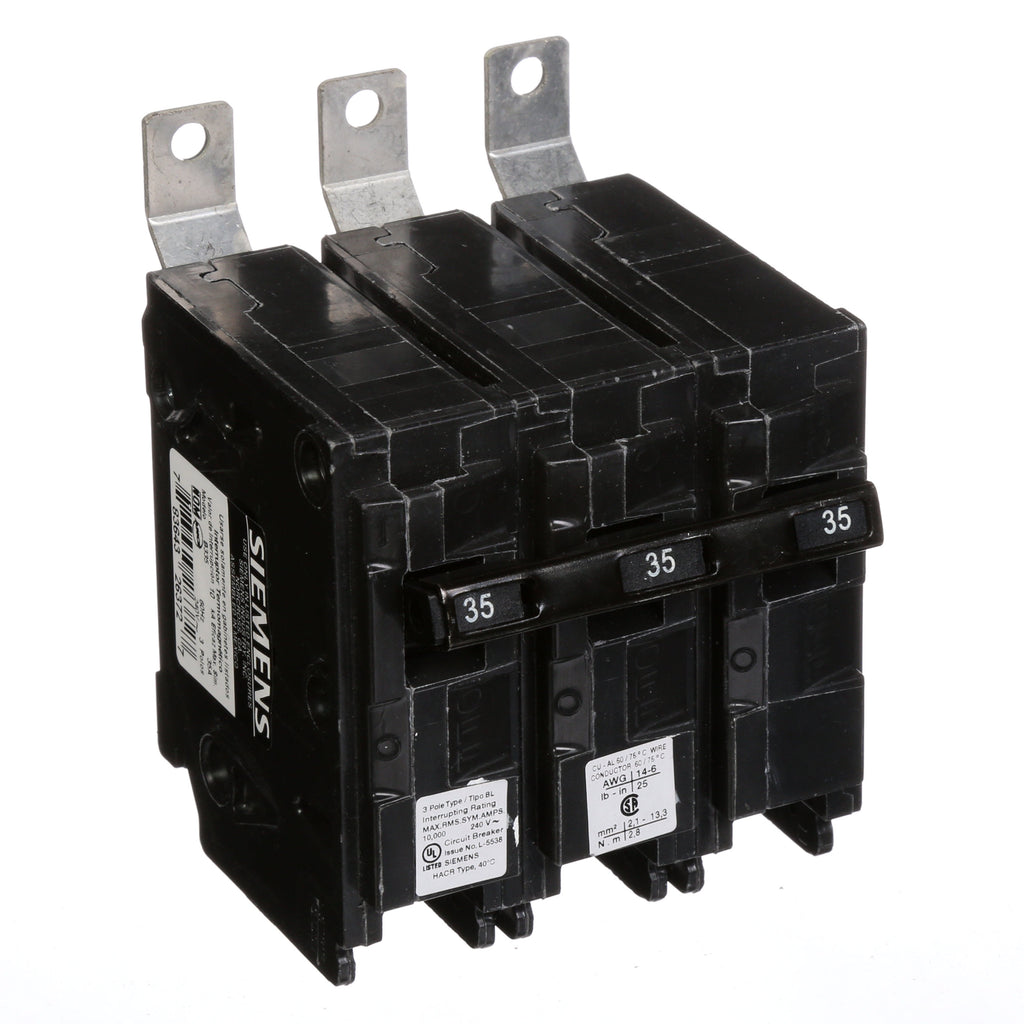

B335 - Siemens 35 Amp 240 Volt 3-Pole Bolt-On Molded Case Circuit Breaker 10kA Interrupt Rating

B335

B335 is a Siemens 3-pole, 35 amp, 240 volt bolt-on molded case circuit breaker designed for reliable circuit protection.This Siemens B335 circuit breaker features a thermal magnetic trip unit with a 10,000 amp interrupt rating. It is a bolt-on type breaker suitable for use in Siemens load centers and panels. The breaker is UL listed and HACR reverse feed rated, ensuring compliance with safety standards. Compact dimensions and robust construction make it ideal for commercial and industrial applications.

• Amperage: 35 Amps
• Voltage Rating: 240 Volts AC
• Number of Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps (10 kA)
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, HACR Reverse Feed
• Manufacturer: Siemens
• Compact Molded Case Design
• Suitable for Siemens Load Centers

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B335
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 35
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 2 AWG (Al), 4 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263727
• GTIN : 00783643263727
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
