Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B330H

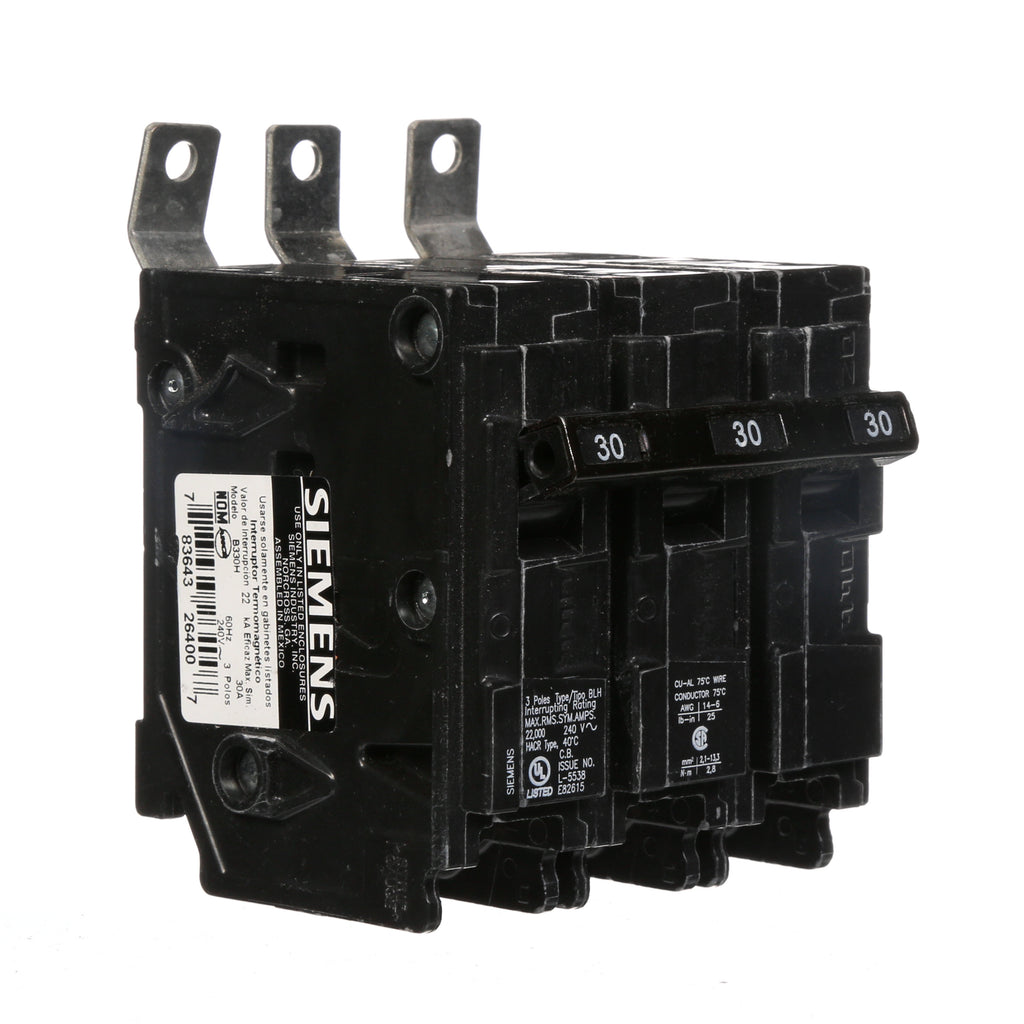

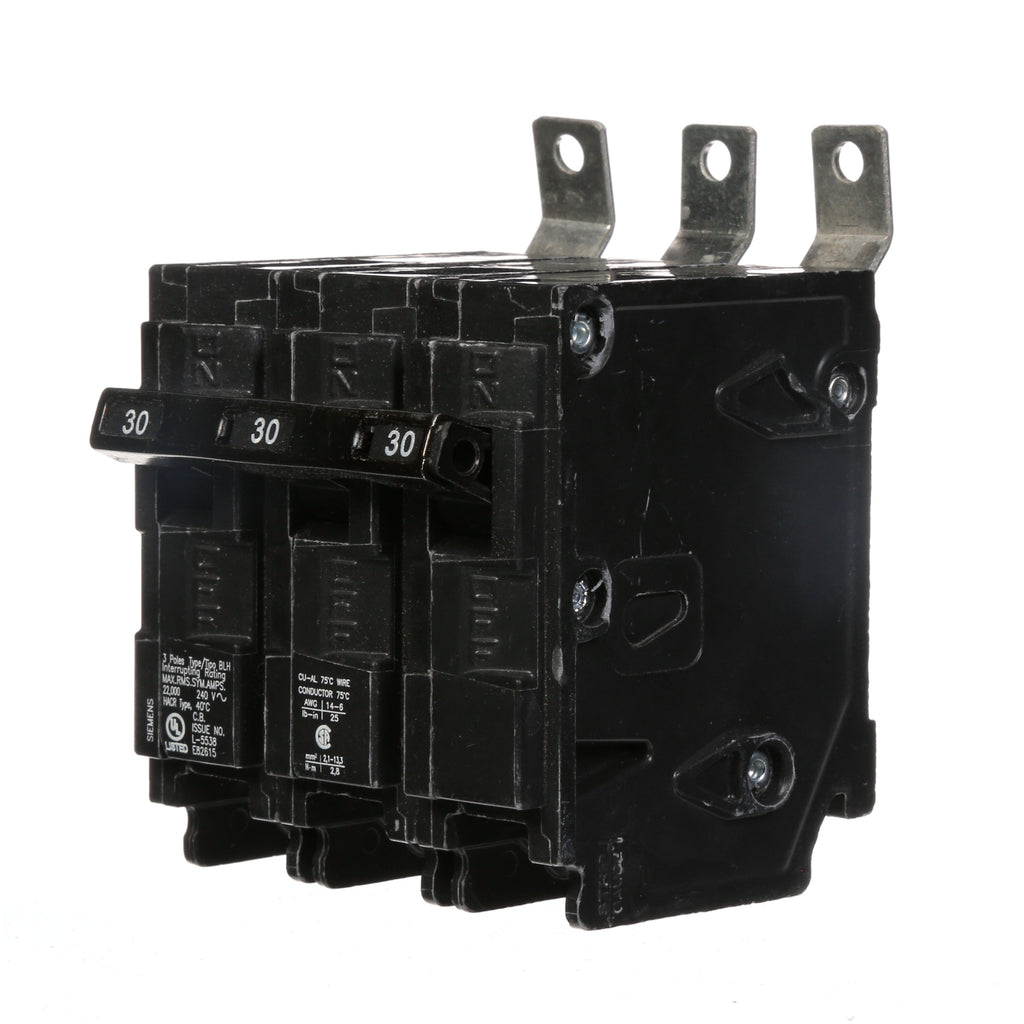

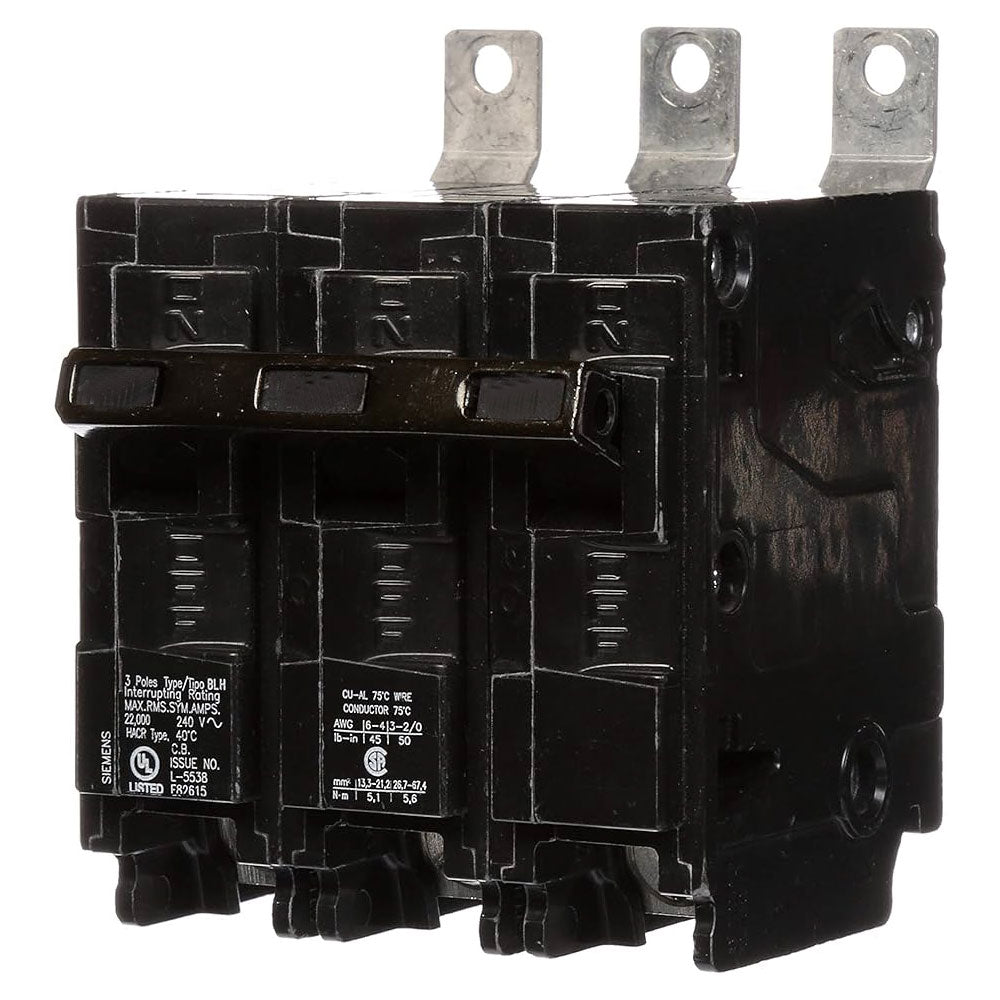

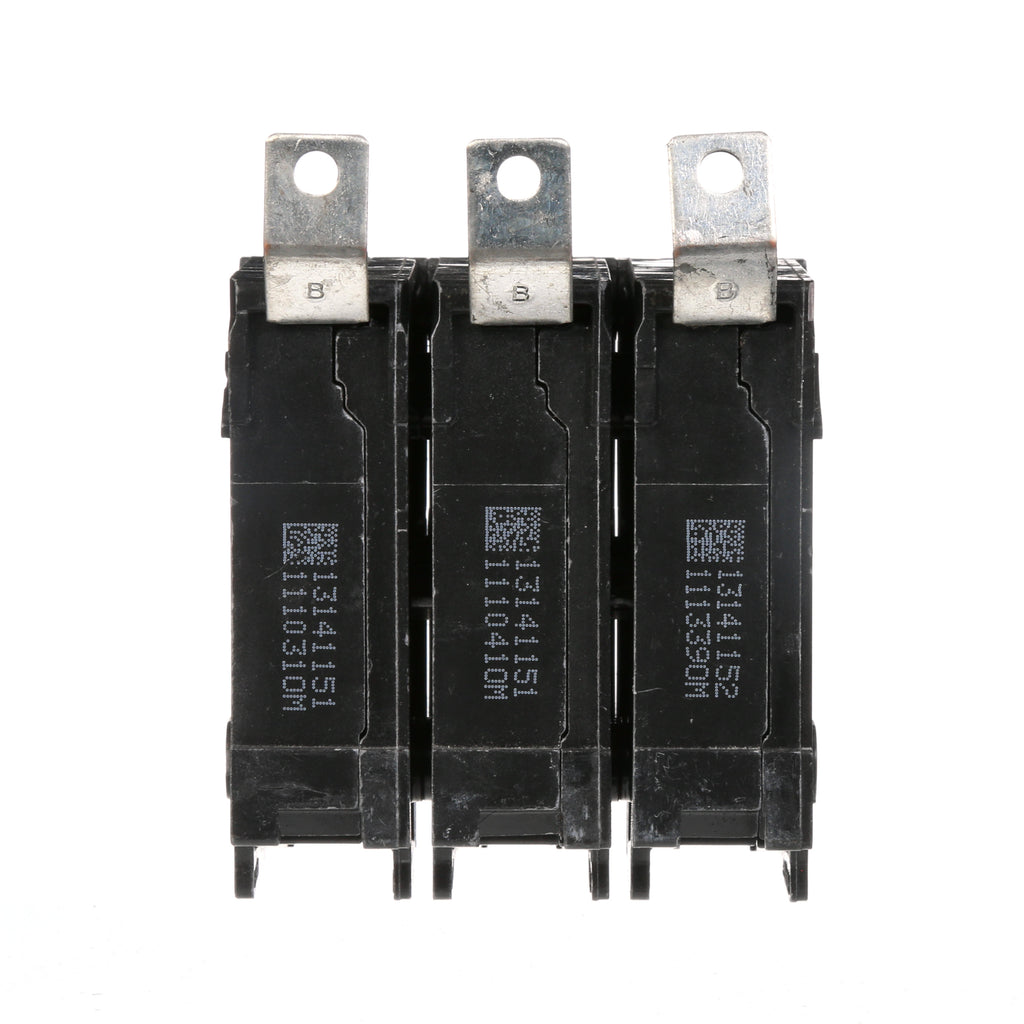

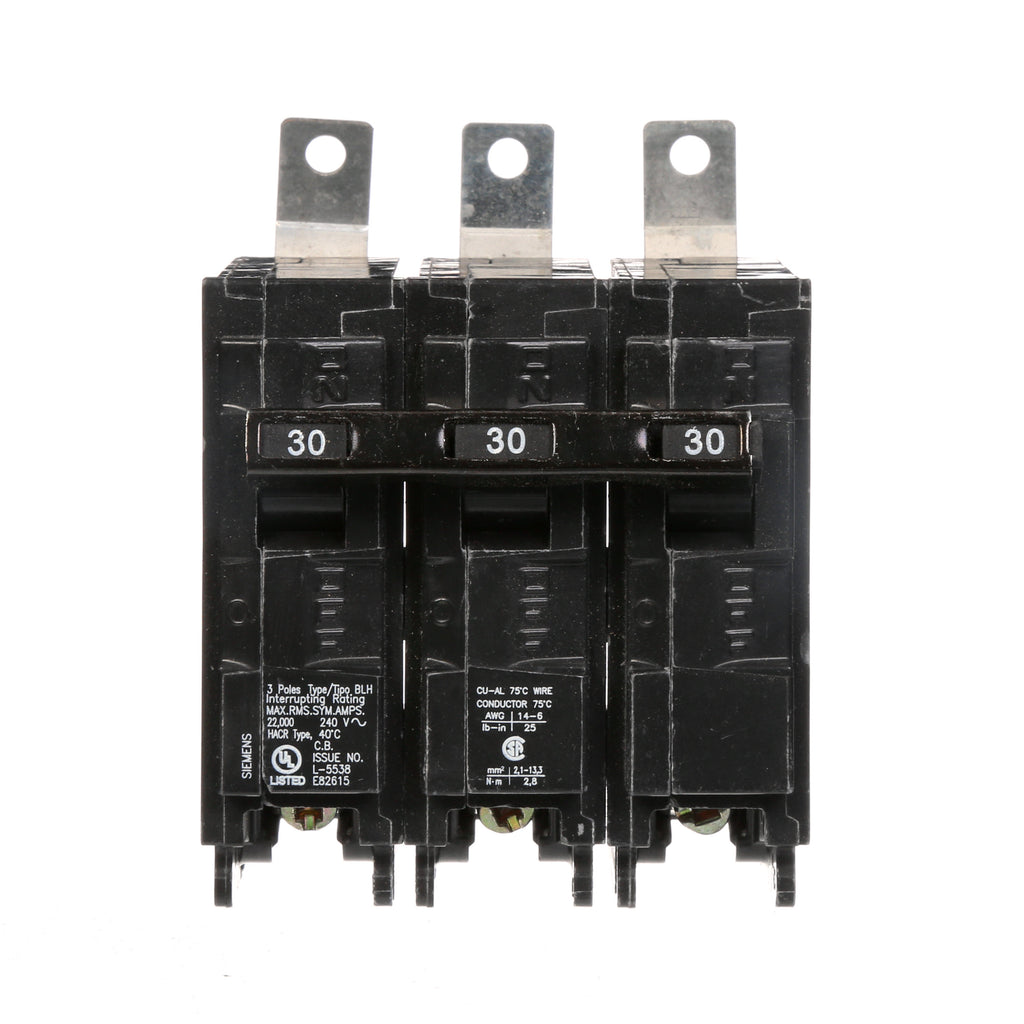

B330H - Siemens Type BLH 3-pole molded case circuit breaker rated at 30A and 240V with bolt-on mounting. This low voltage thermal-magnetic circuit breaker features a 22 kA interrupt rating at 240VAC, LI trip functions for long-time and instantaneous protection, and is designed for panelboard mounting in electrical distribution applications.
- Part Number: B330H
- Manufacturer: Siemens
- Type: BLH
- Poles: 3
- Amperage: 30A
- Voltage: 240VAC
- Mounting: Bolt-On
- Interrupt Rating: 22 kA @ 240VAC
- Trip Type: Thermal-Magnetic (LI)
- Connection: Bolt-On
Specifications
- Part Number: B330H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLH
- Voltage : 240
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BLH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643264007
- GTIN : 00783643264007
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 2.756 inch
- Weight : 1.058 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
