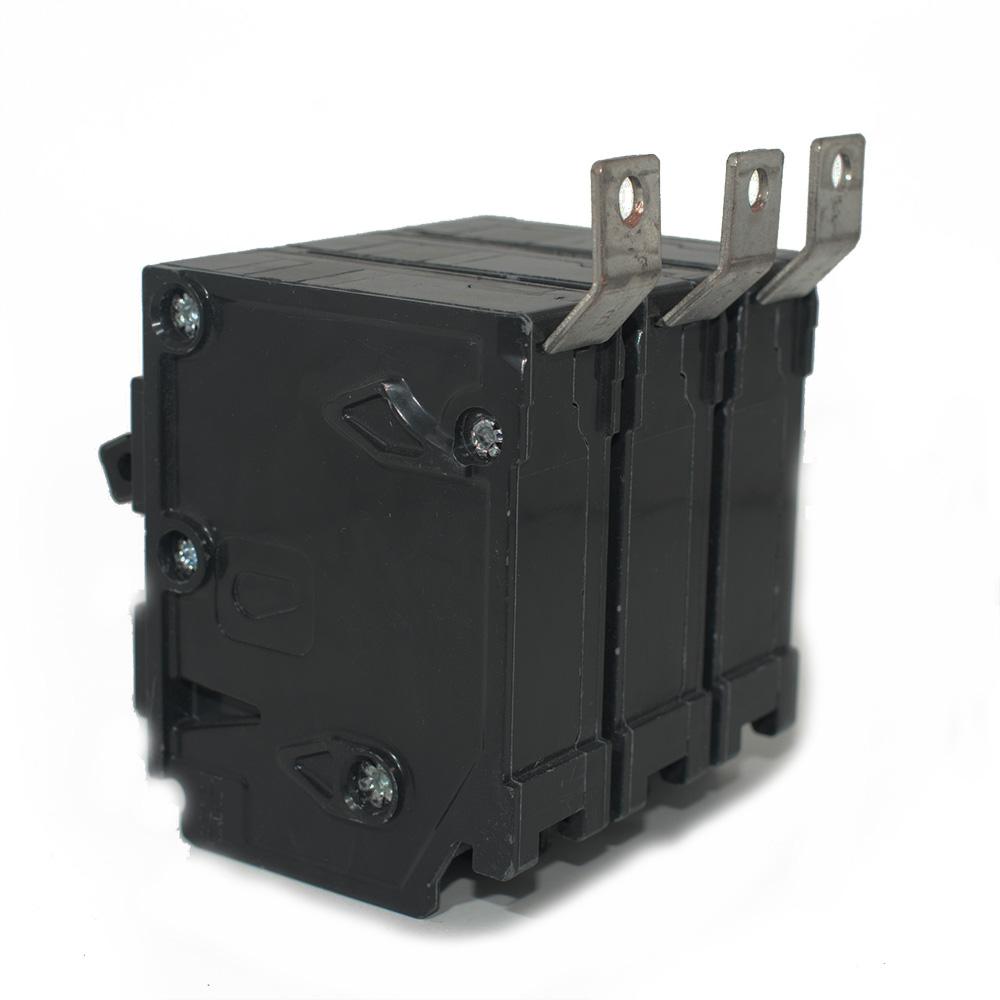

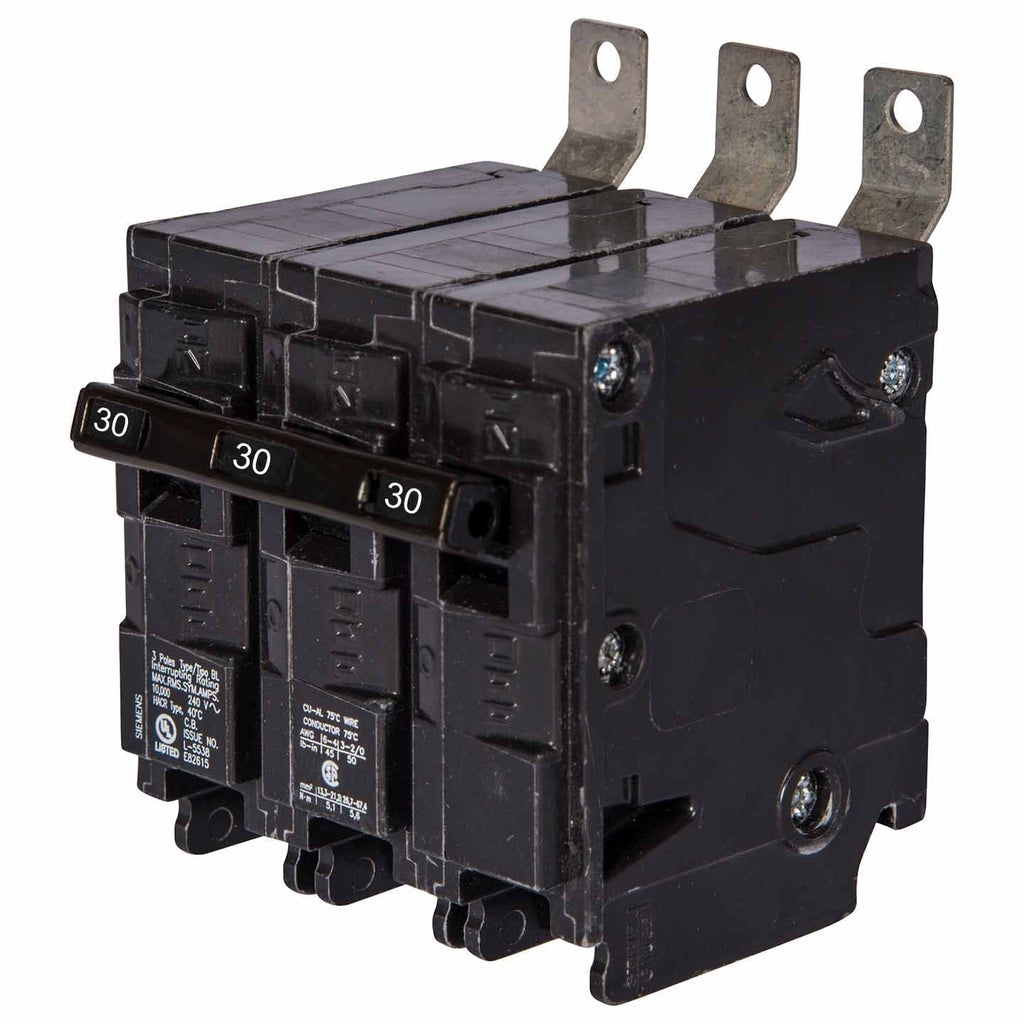

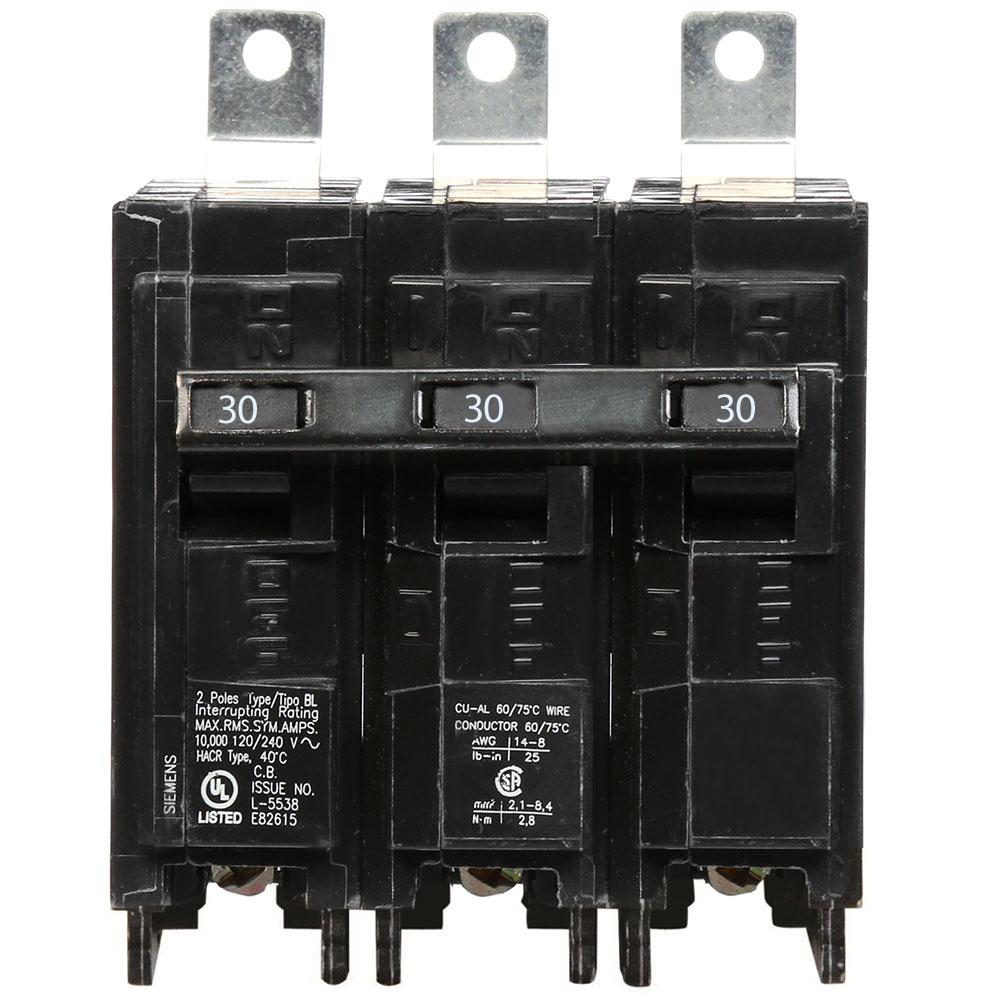

B330 - Siemens 30 Amp 240V 3 Pole Bolt-On Circuit Breaker Type BL Series

B330

B330 is a Siemens 30 Amp, 3 Pole, 240 Volt bolt-on circuit breaker designed for reliable electrical distribution protection.This Siemens B330 circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions. It has a 10kA interrupting rating at 240VAC and is part of the Type BL series with a bolt-on mounting type. The breaker is UL, CSA, and NOM certified, suitable for panelboard applications, and supports wire sizes from AWG 14 to AWG 6.

Key Specifications
• Amperage: 30 Amp
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 10kA at 240V
• Series/Frame: Type BL
• Trip Unit: Thermal Magnetic
• Certifications: UL, CSA, NOM
• Connection Type: Bolt-On
• Wire Size Range: AWG 14 to AWG 6
• Phase: 3
• Application: Panelboards
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: B330
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 30
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643263710
• GTIN : 00783643263710
• Country of Origin : Mexico
• Dimensions : 2.563 x 3.00 x 3.122 inch
• Weight : 0.948 lb
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
