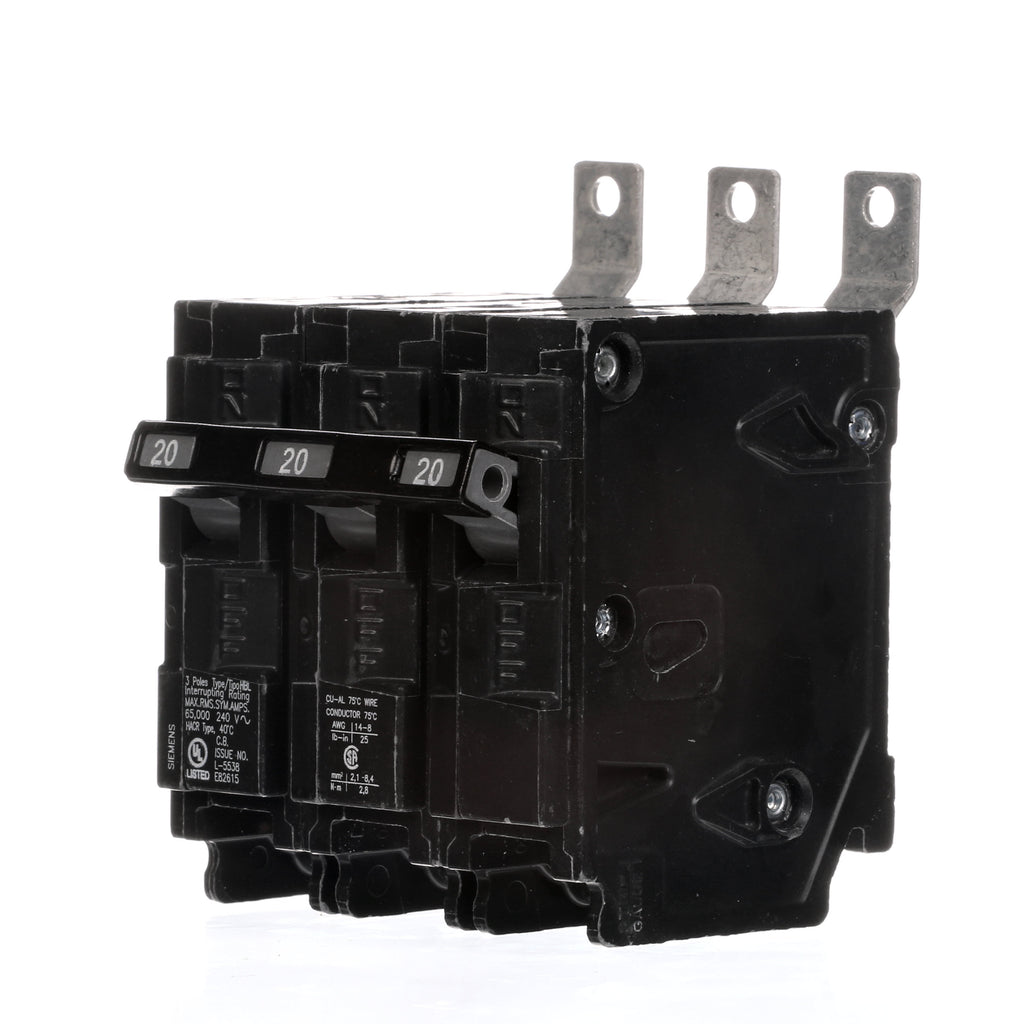

B320HH - Siemens 20 Amp 240 VAC 3-Pole Bolt-On Molded Case Circuit Breaker 65 kA Interrupt

B320HH

B320HH is a Siemens 3-pole, 20 amp, 240 VAC bolt-on molded case circuit breaker designed for reliable low voltage circuit protection.This Siemens B320HH circuit breaker features a thermal/magnetic trip unit, a 65 kA interrupt rating, and bolt-on mounting type. It is part of the Type HBL series, suitable for panelboard mounting with a 3-pole configuration and 240 VAC voltage rating.

Key Specifications
• Manufacturer: Siemens
• Part Number: B320HH
• Amperage: 20 Amp
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA
• Trip Unit: Thermal/Magnetic
• Series/Frame: Type HBL
• Certifications: Industry standard low voltage molded case breaker
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: B320HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 20
• Phase : 3
• Poles : 3
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic



Product Data

• UPC : 783643264212
• GTIN : 00783643264212
• Country of Origin : Mexico
• Dimensions : 3.937 x 2.756 x 1.969 inch
• Weight : 1.058
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
