Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B32000S01

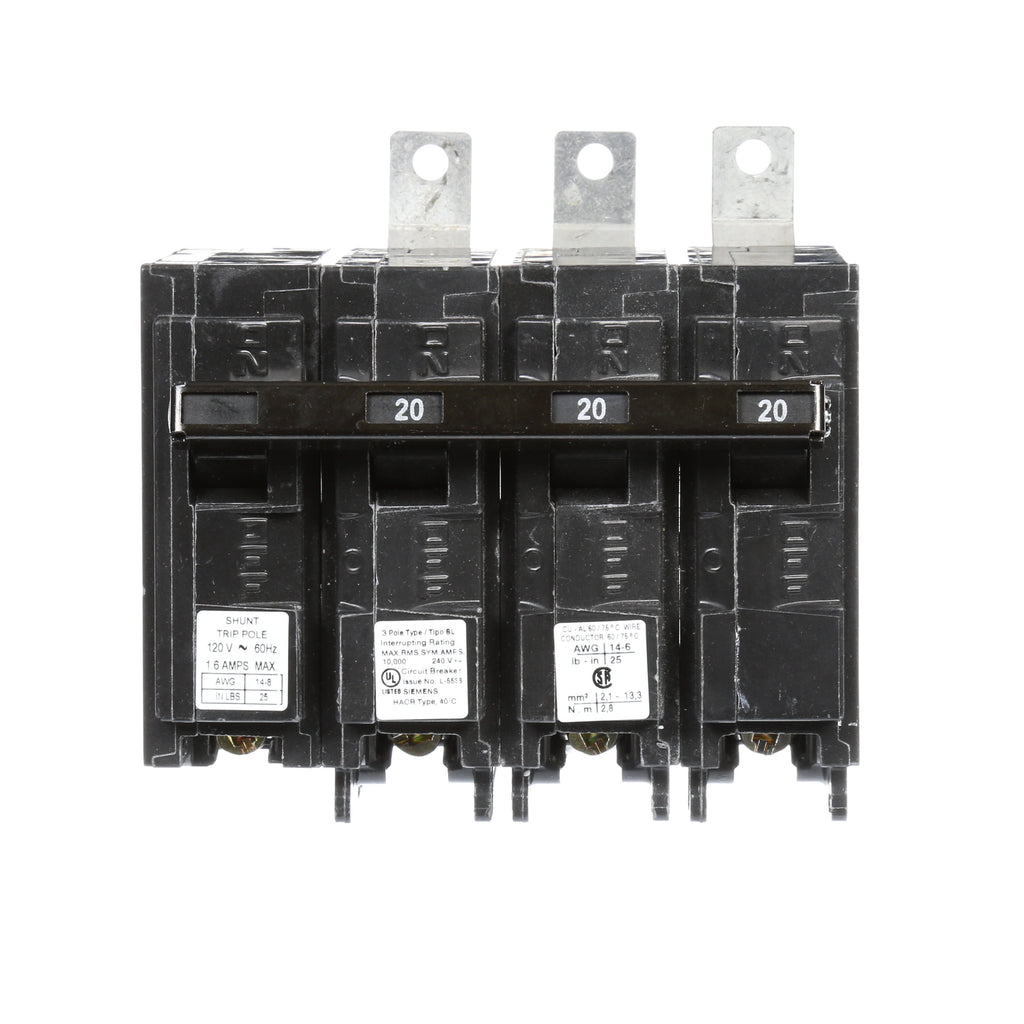

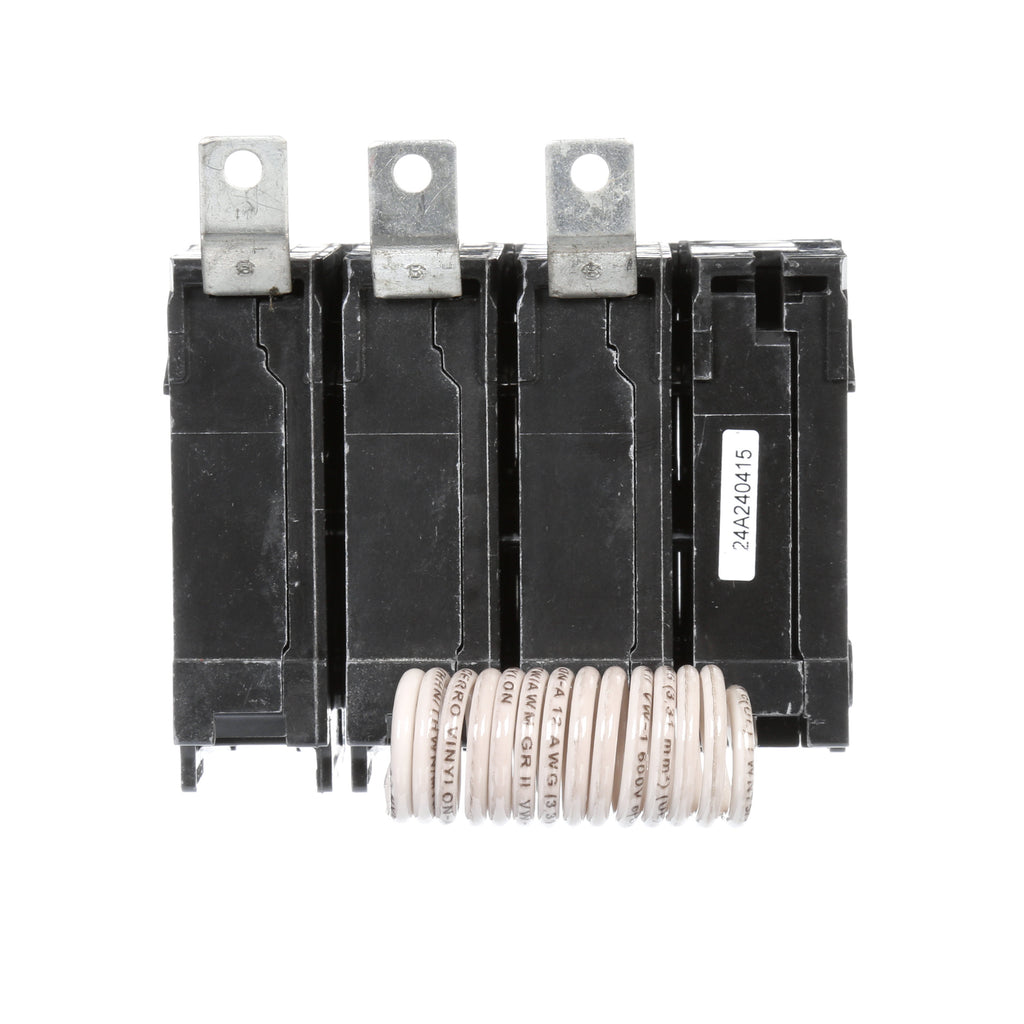

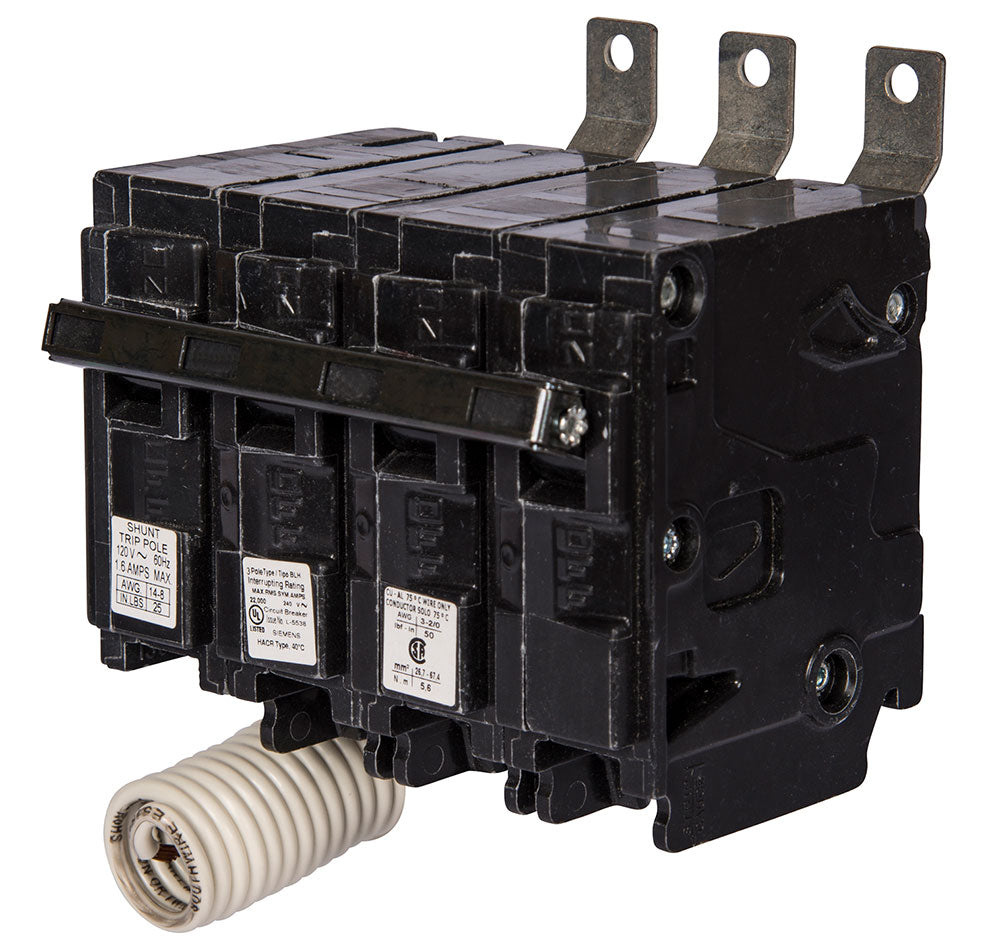

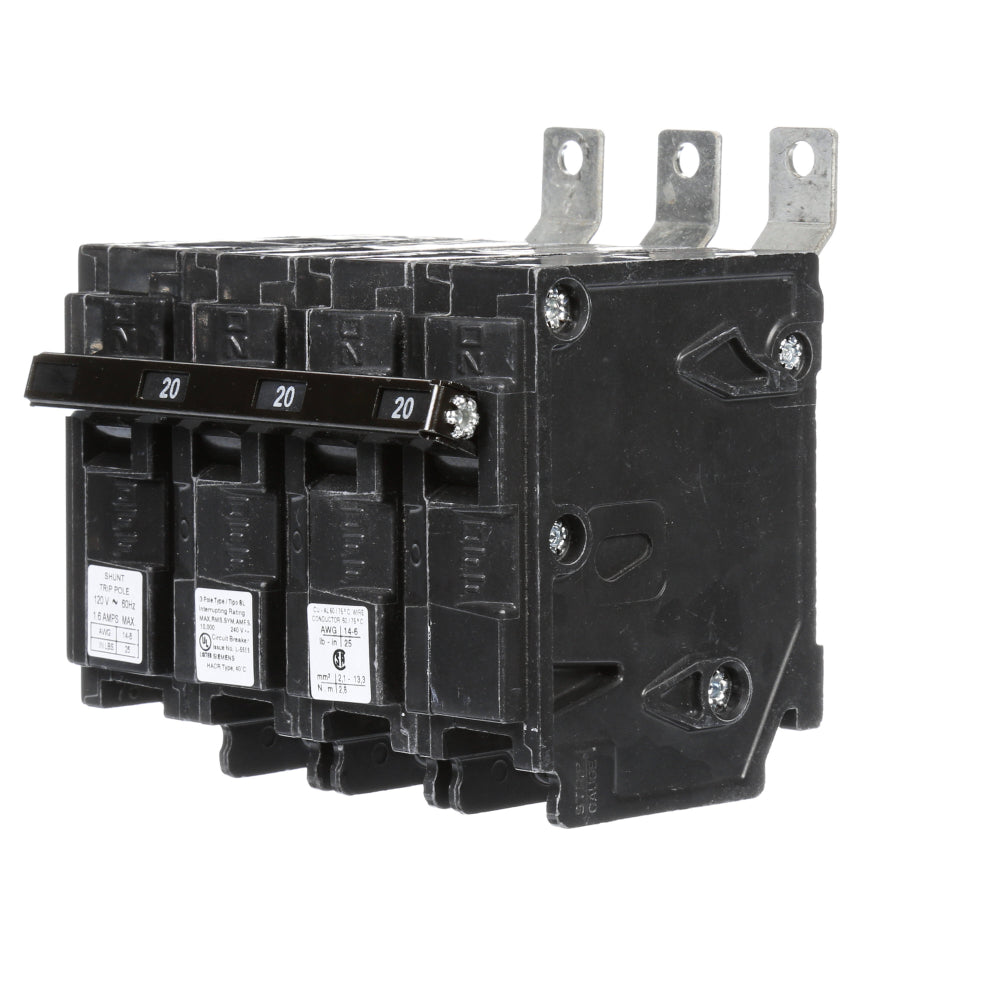

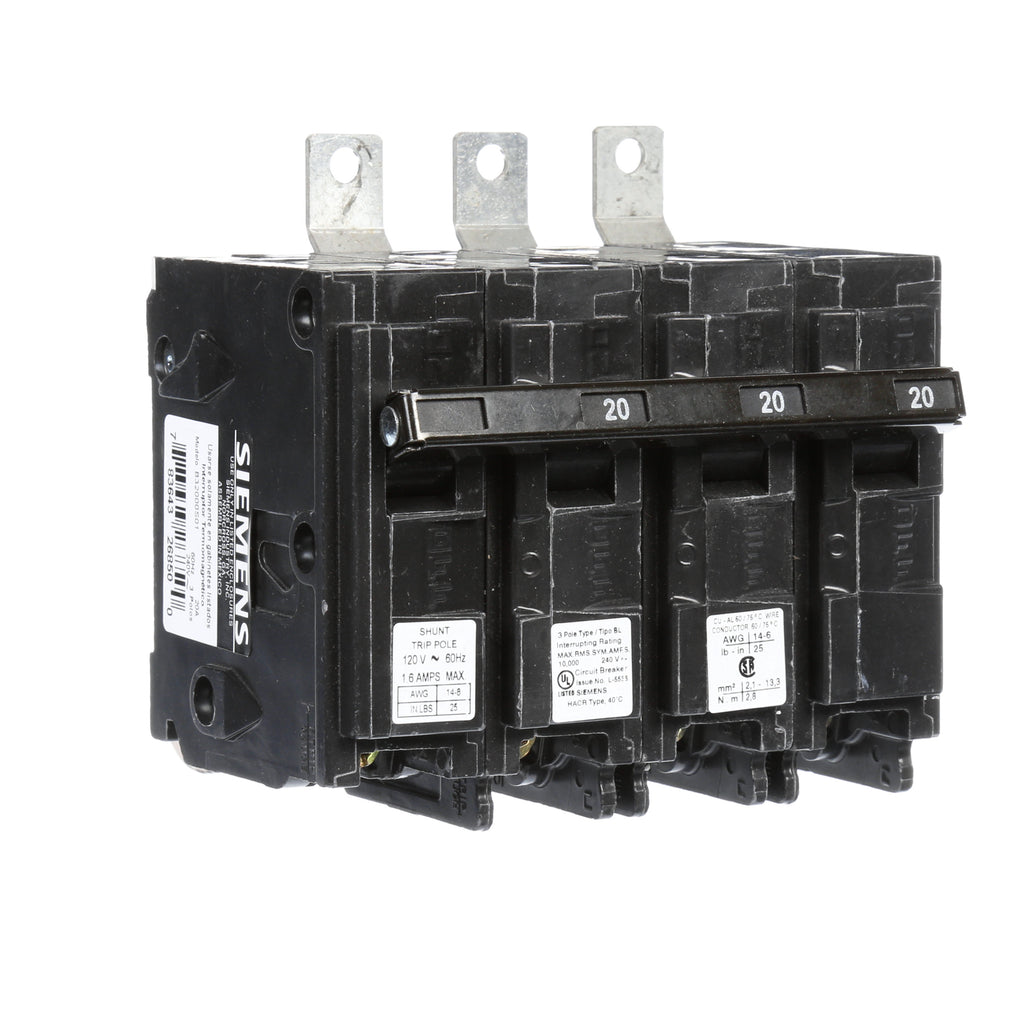

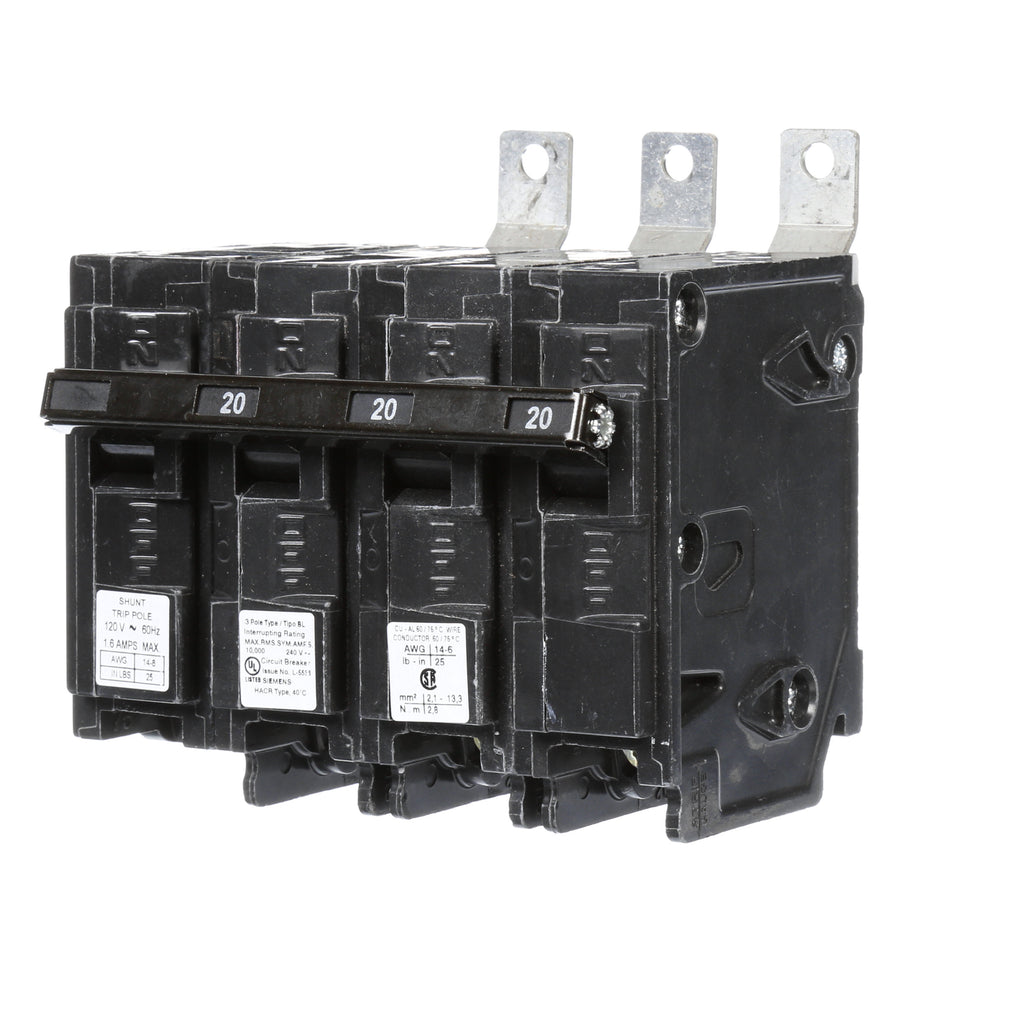

B32000S01 is a Siemens Type BL molded case circuit breaker with a 20 amp rating and 3 poles designed for low voltage applications.This circuit breaker features a 120/240 VAC voltage rating, 10 kA interrupt rating, and a shunt/thermal magnetic trip unit. It is bolt-on mounted and UL 489 certified for electrical distribution use.
- Key Specifications
- Amperage: 20 A
- Voltage: 120/240 VAC
- Poles: 3
- Interrupt Rating: 10 kA
- Mounting Type: Bolt-on
- Trip Unit: Shunt/Thermal Magnetic
- Series/Frame: Type BL
- Certifications: UL 489
Specifications
- Part Number: B32000S01
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 20
- Phase : 3
- Poles : 3
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : Long Time and Instantaneous
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
- Breaker Type : Shunt Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 783643268500
- GTIN : 00783643268500
- Country of Origin : Mexico
- Dimensions : 2.563 x 4.00 x 3.122 inch
- Weight : 1.257
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
