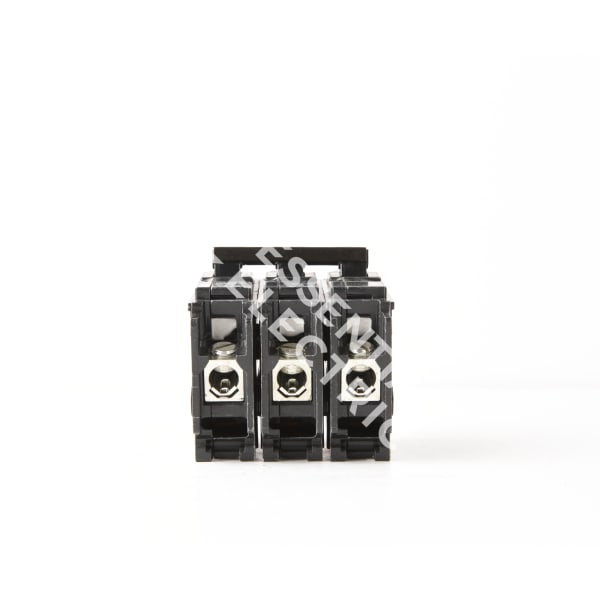

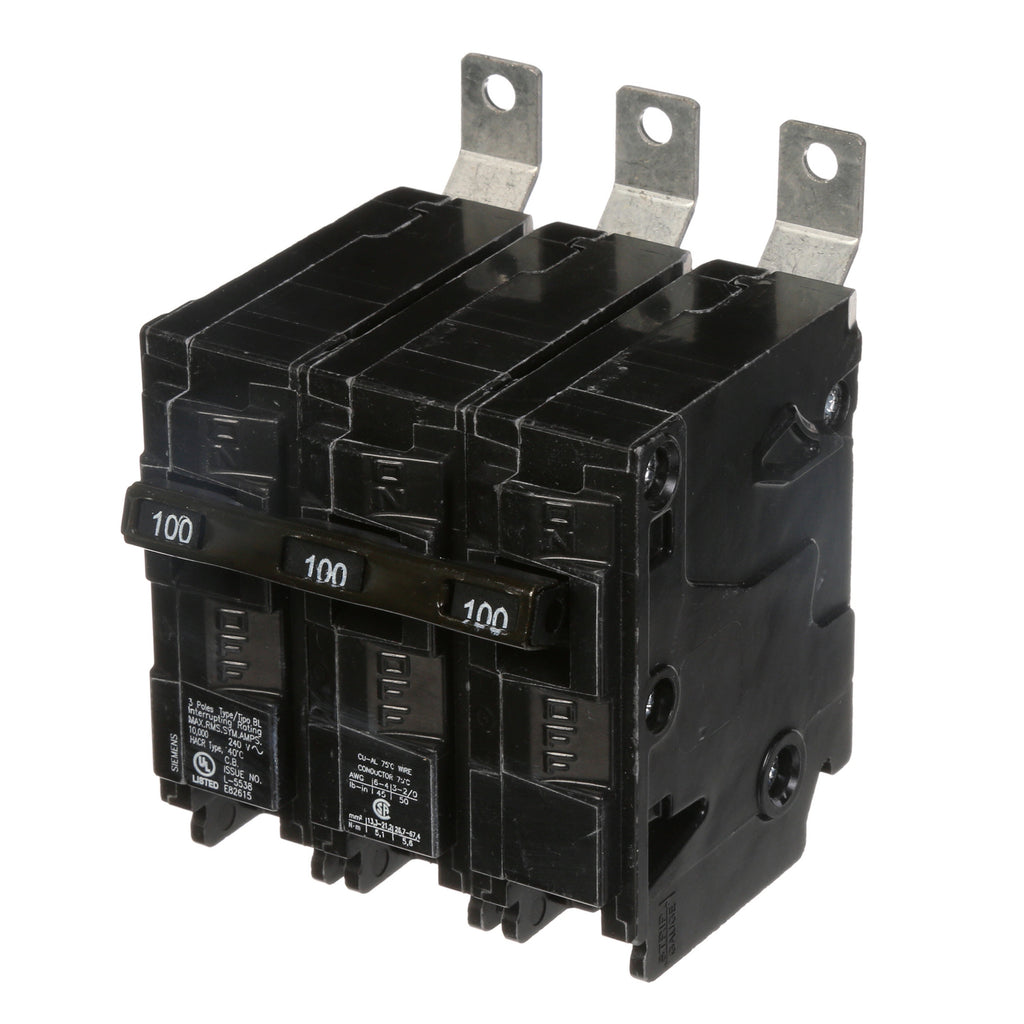

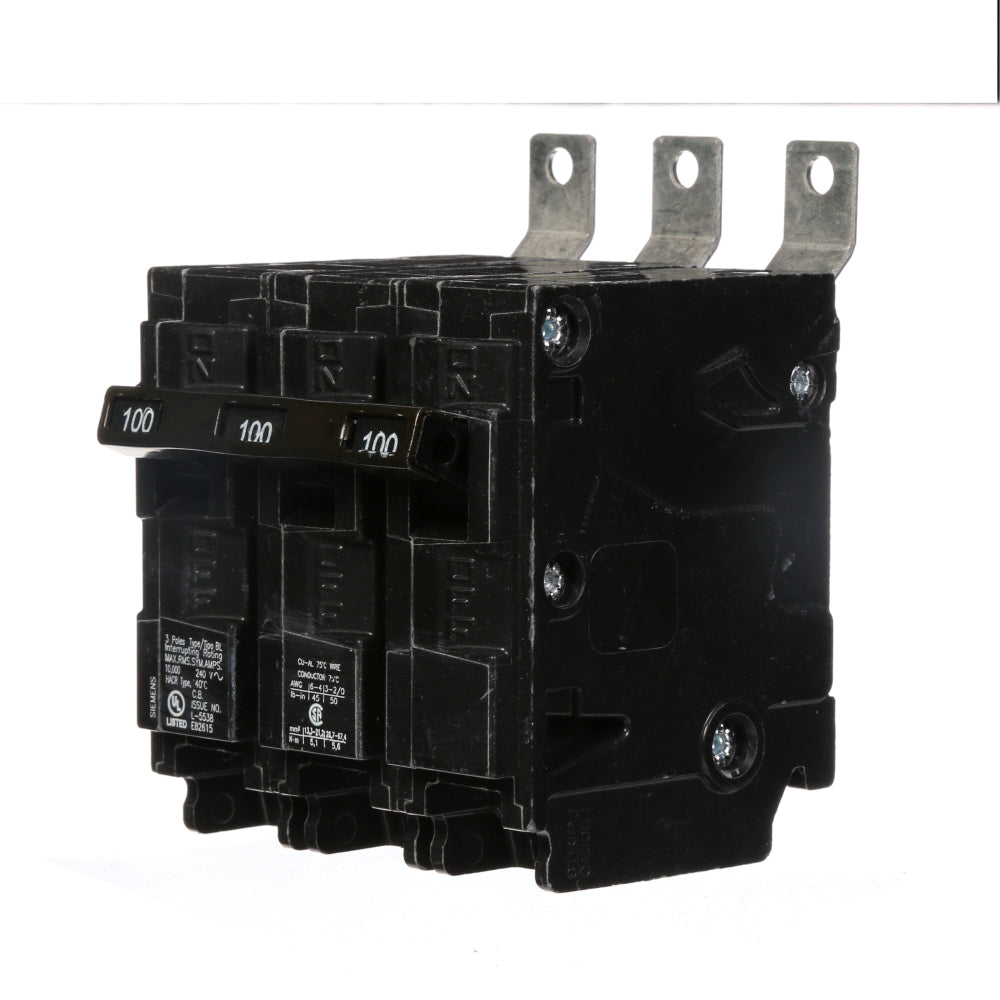

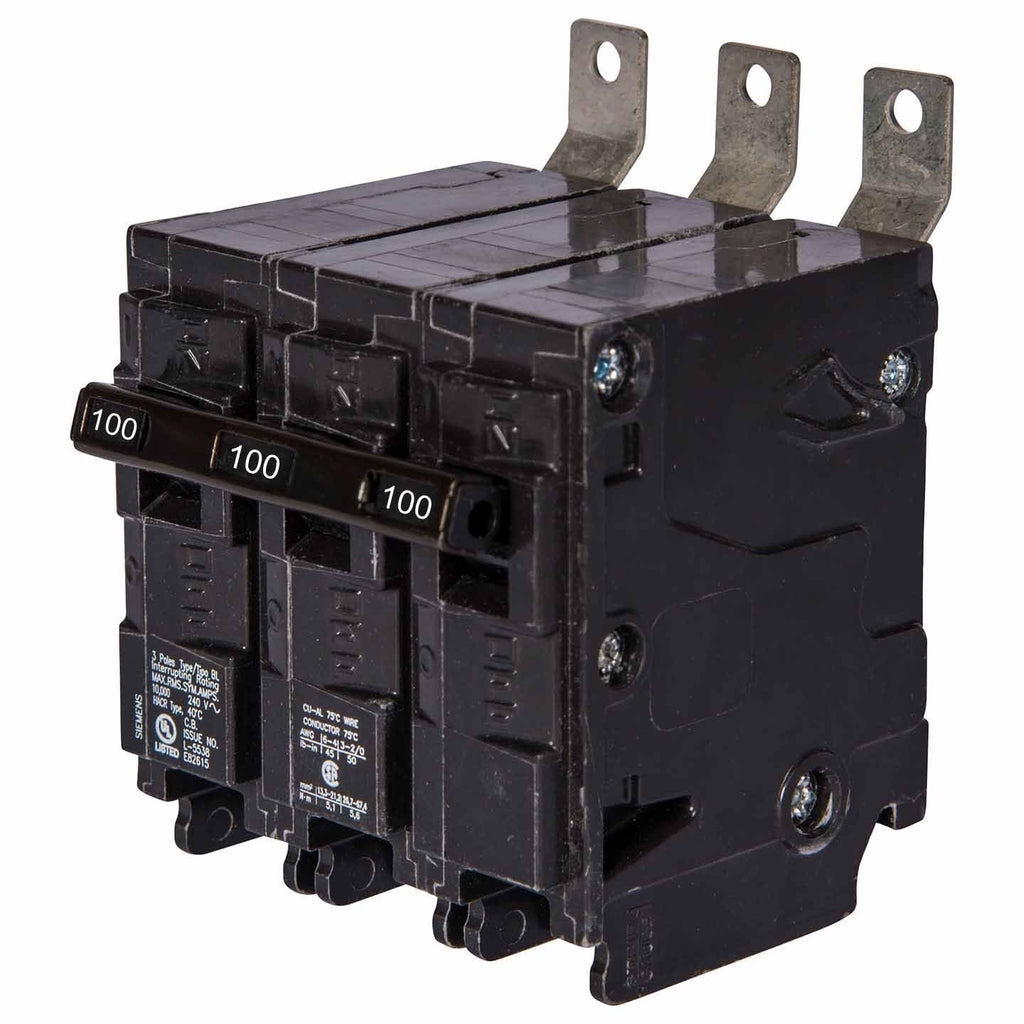

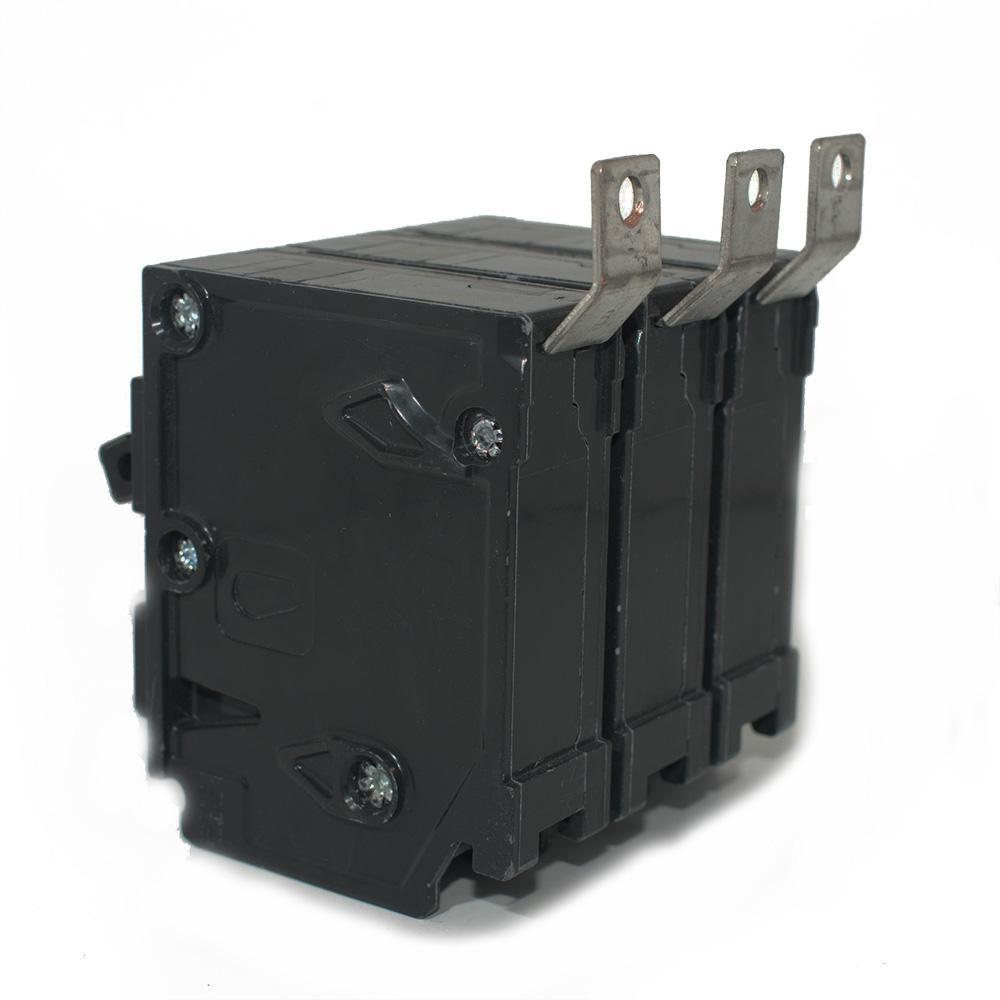

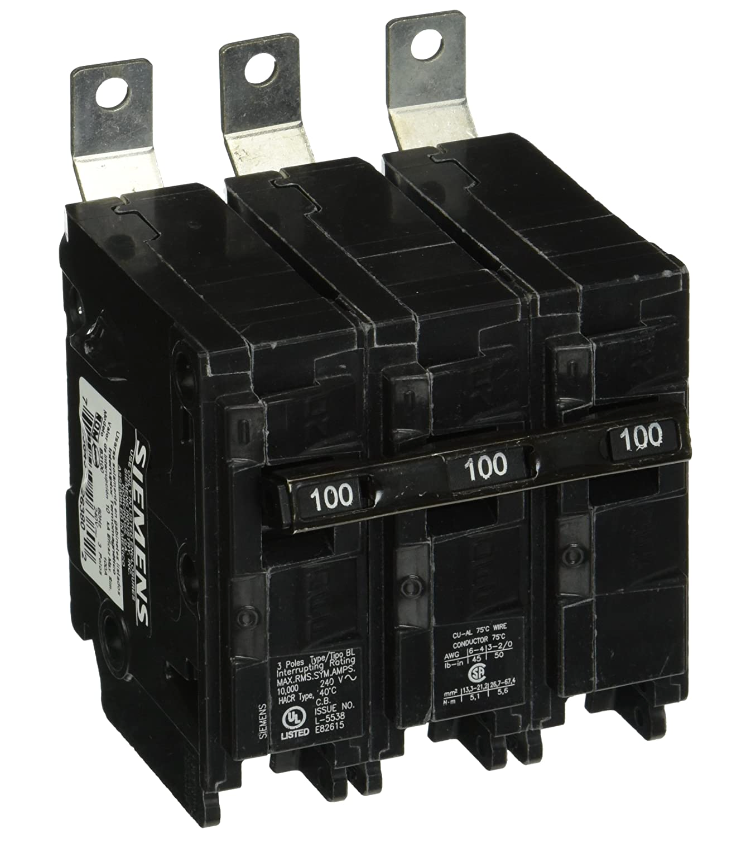

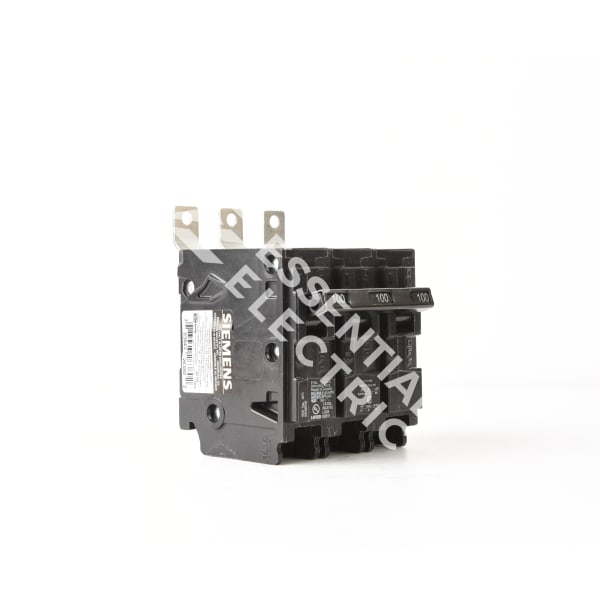

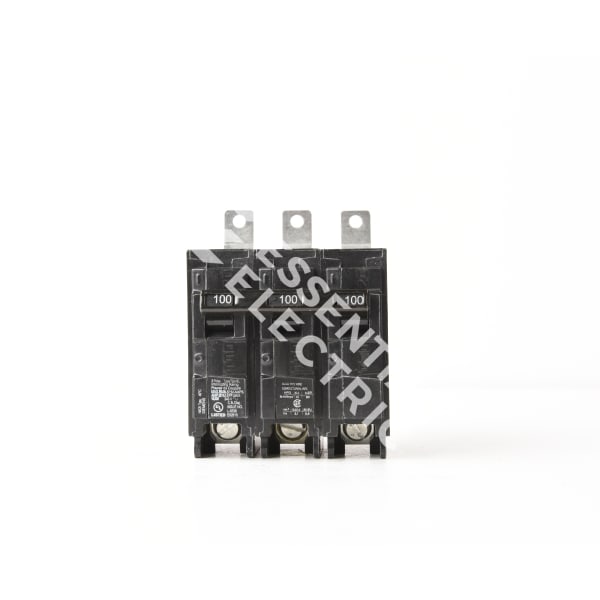

B3100 - Siemens 100 Amp 240 Volt 3 Pole Bolt-On Circuit Breaker BL Series

B3100

B3100 is a Siemens 3 Pole, 100 Amp, 240 Volt bolt-on circuit breaker from the BL series designed for reliable thermal magnetic protection.This Siemens B3100 circuit breaker features a 10kA interrupting rating at 240VAC, UL and CSA certifications, and a toggle actuator. It is a bolt-on type breaker with long time and instantaneous trip functions, suitable for use with P1 panelboards. The breaker supports wire sizes from AWG 2 Cu to AWG 1/0 and complies with HACR standards.

• Manufacturer: Siemens
• Series: BL
• Amperage: 100 A
• Voltage: 240 VAC
• Poles: 3
• Mounting Type: Bolt-On
• Interrupting Rating: 10kAIC at 240VAC
• Trip Unit: Thermal Magnetic (Long Time and Instantaneous)
• Certifications: UL 489, CSA, HACR Rated
• Actuator Type: Toggle
• Connection Type: Bolt-On
• Compatible Panelboards: P1

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B3100
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 100
• Phase : 3
• Poles : 3
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 2 AWG (Al), 4 AWG (Cu) Max. Wire Size 1/0 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263802
• GTIN : 00783643263802
• Country of Origin : Mexico
• Dimensions : 3.937 x 2.756 x 2.756 inch
• Weight : 0.86 lb
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
