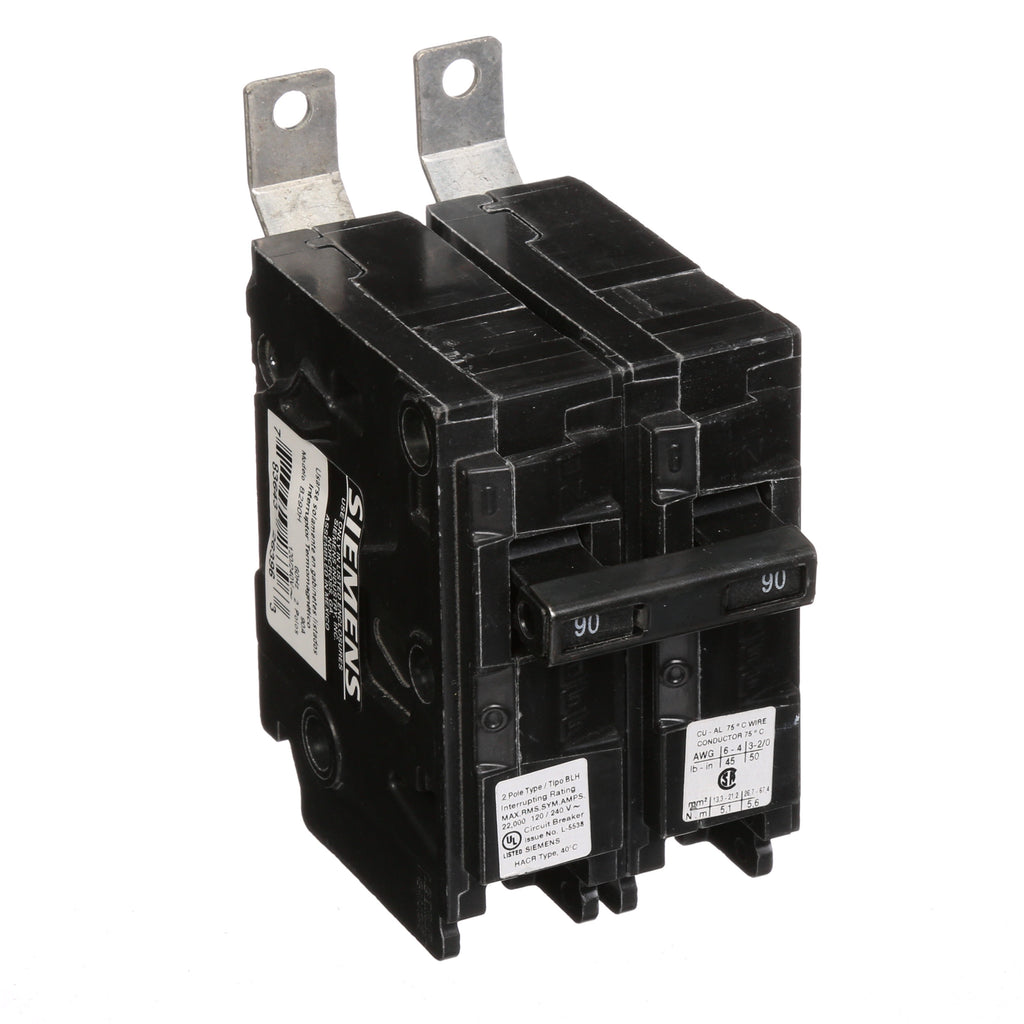

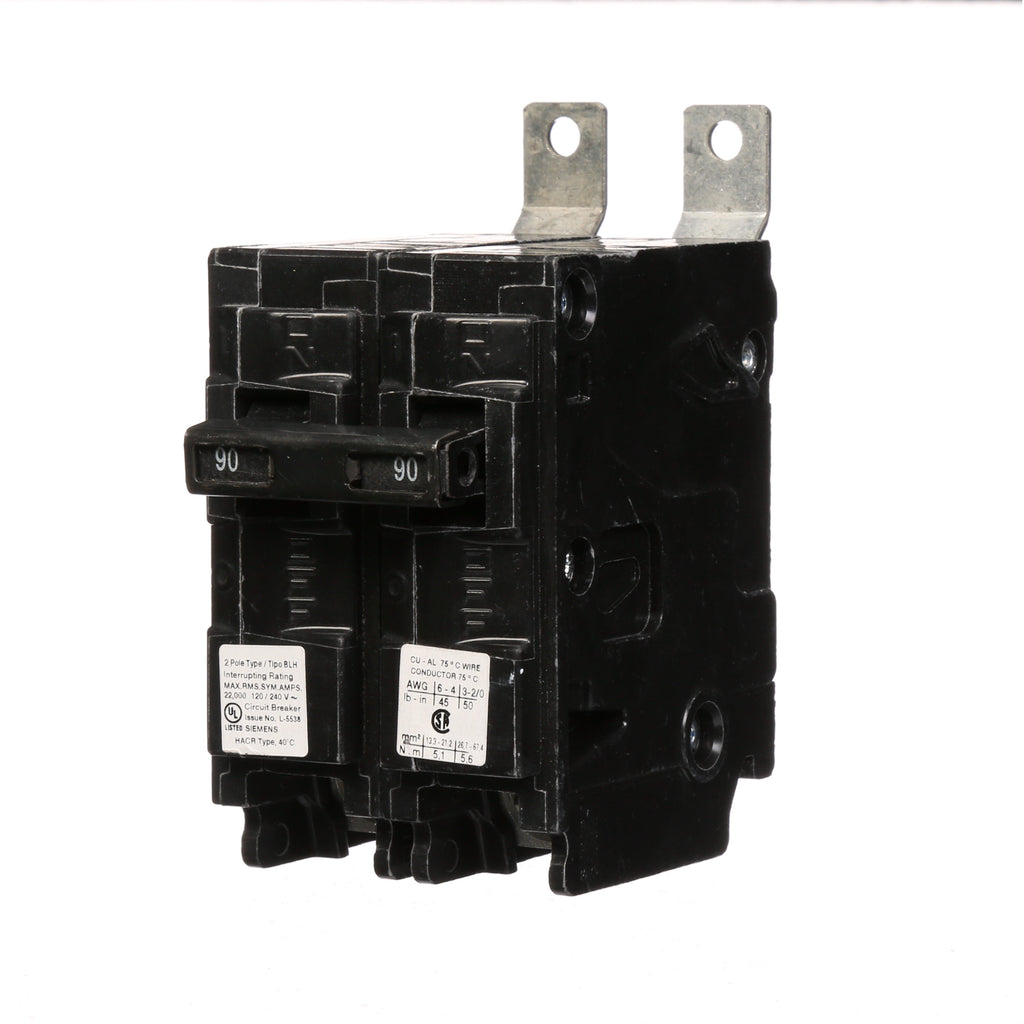

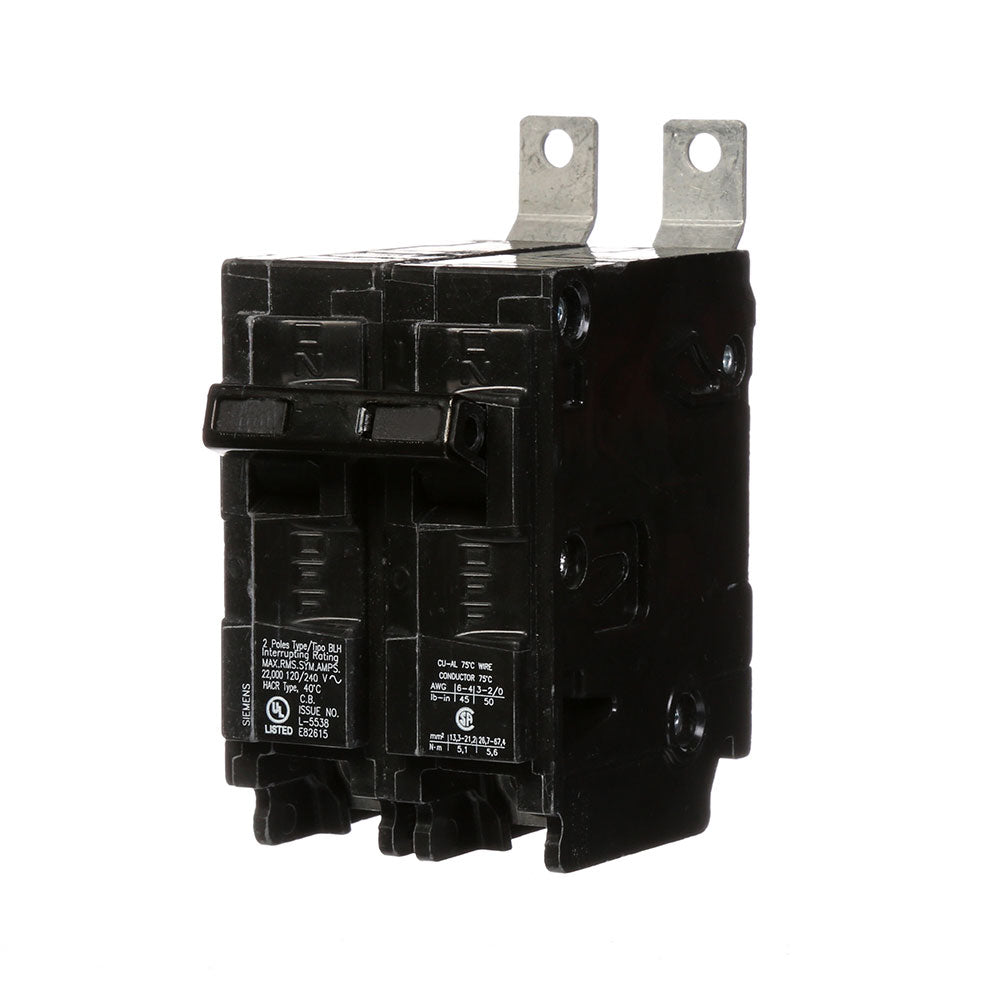

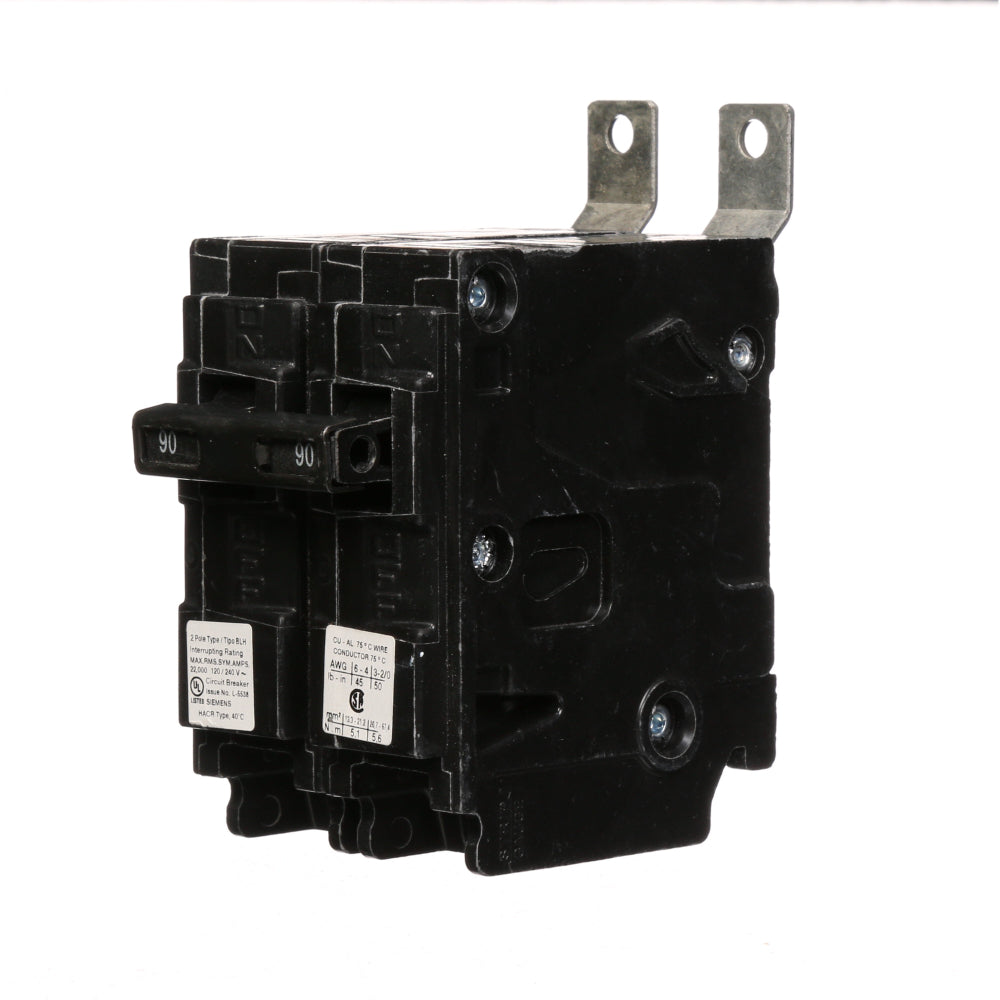

B290H - Siemens 90 Amp 2 Pole 120/240VAC Circuit Breaker Type BLH Panel Mount

B290H

B290H is a Siemens 2 Pole, 90 Amp, 120/240VAC thermal magnetic molded case circuit breaker designed for panelboard mounting.This Siemens B290H circuit breaker features a Type BLH low voltage design with a 22kA interrupt rating at 240VAC, suitable for electrical distribution applications. It includes bolt-on mounting, lug load side terminations, and busbar line side terminations. The breaker complies with UL 489 and HACR certifications.

Key Specifications
• Amperage: 90 Amps
• Voltage: 120/240 VAC
• Poles: 2 Pole
• Mounting Type: Panelboard Mount (Bolt-On)
• Interrupt Rating: 22kA at 240VAC
• Series/Frame: Type BLH
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, HACR Rated
• Load Side Termination: Lug (Included)
• Line Side Termination: Busbar

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B290H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 90
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263963
• GTIN : 00783643263963
• Country of Origin : Mexico
• Dimensions : 3.937 x 3.937 x 1.969 inch
• Weight : 0.705
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
