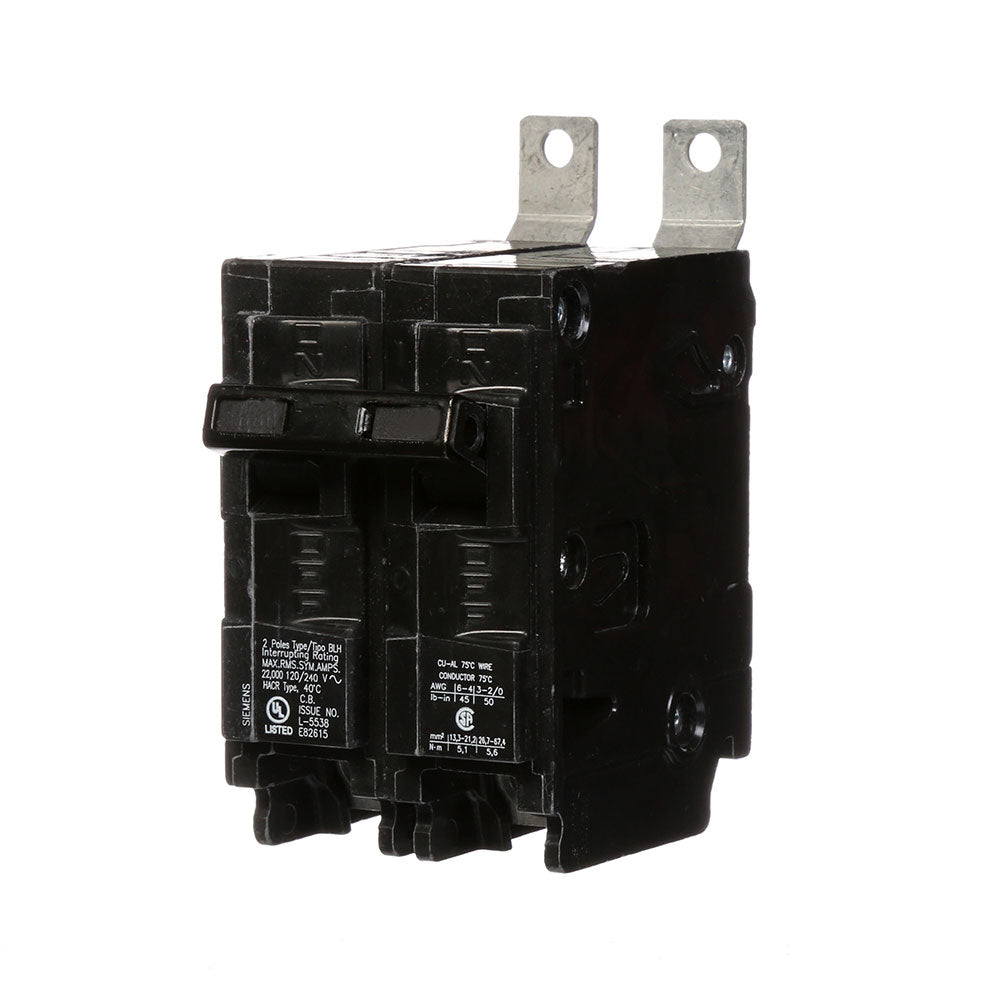

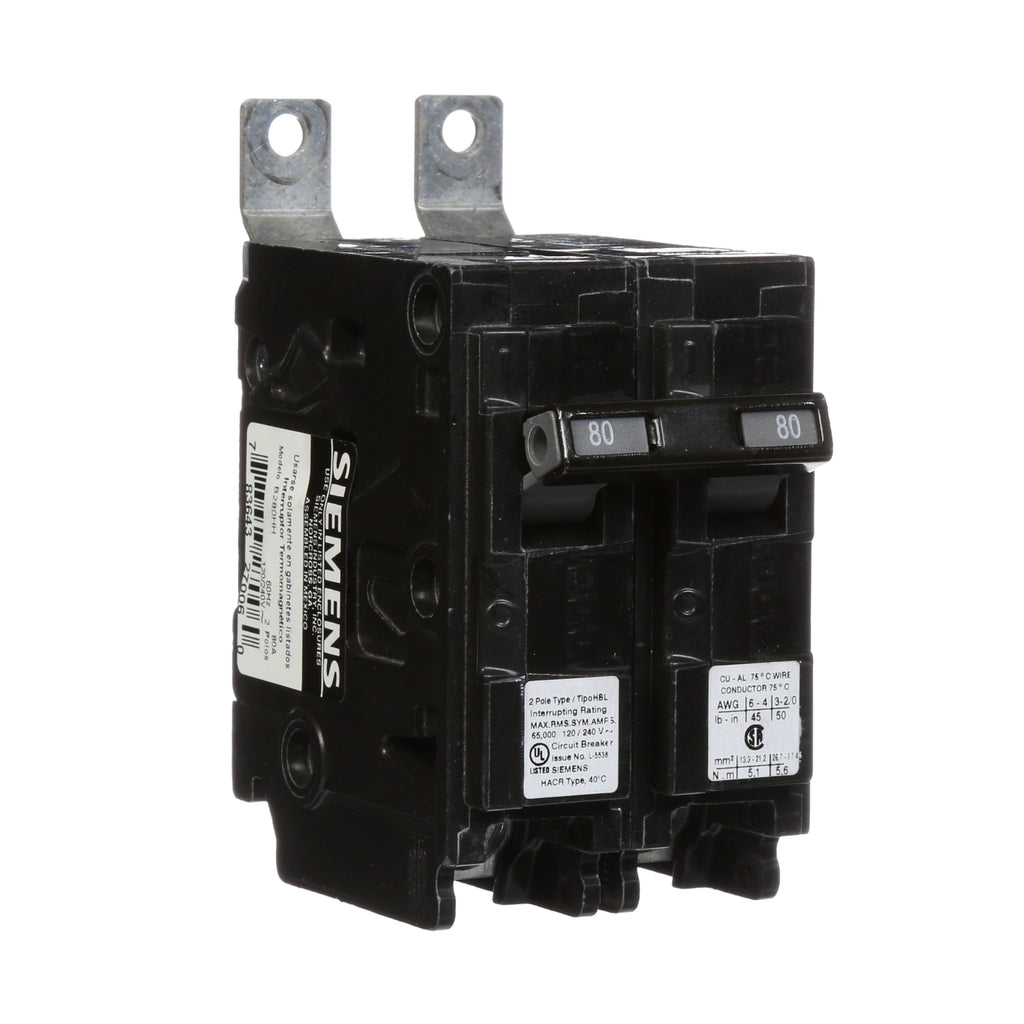

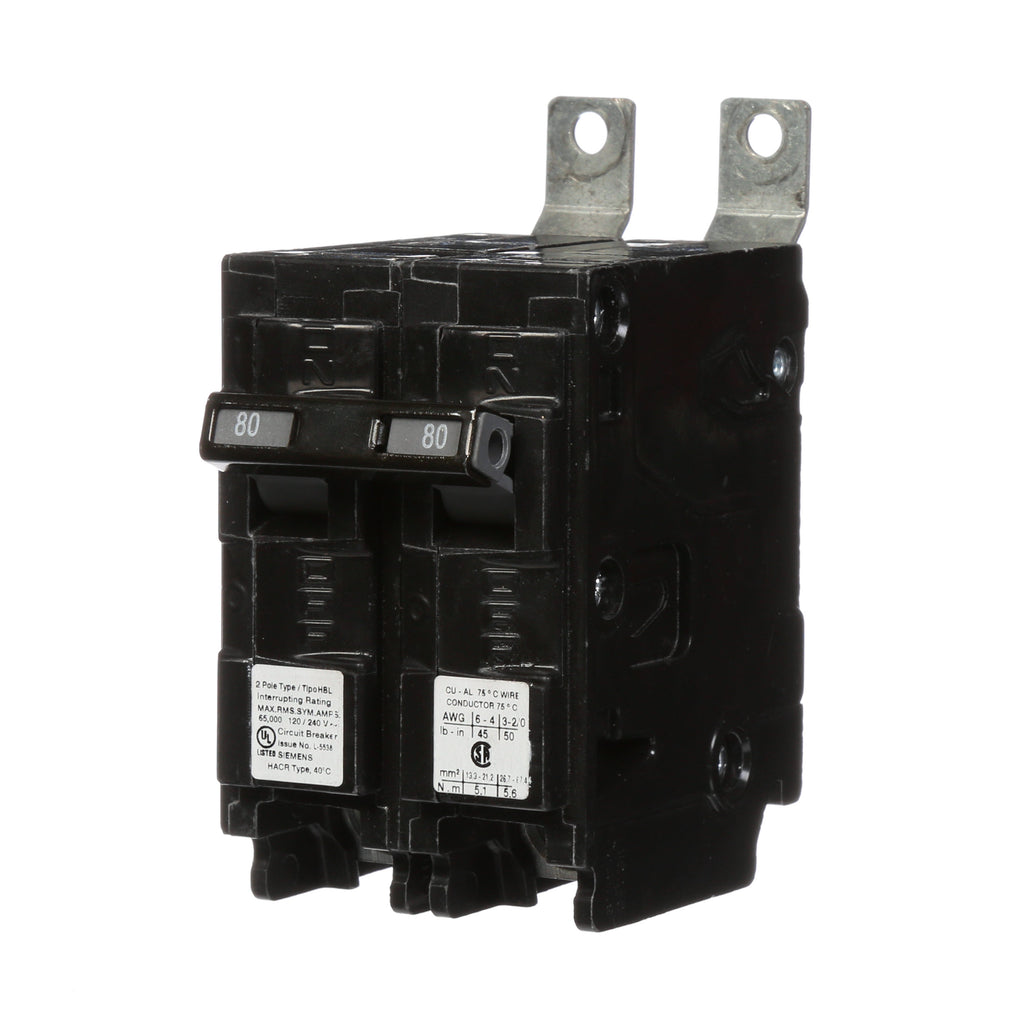

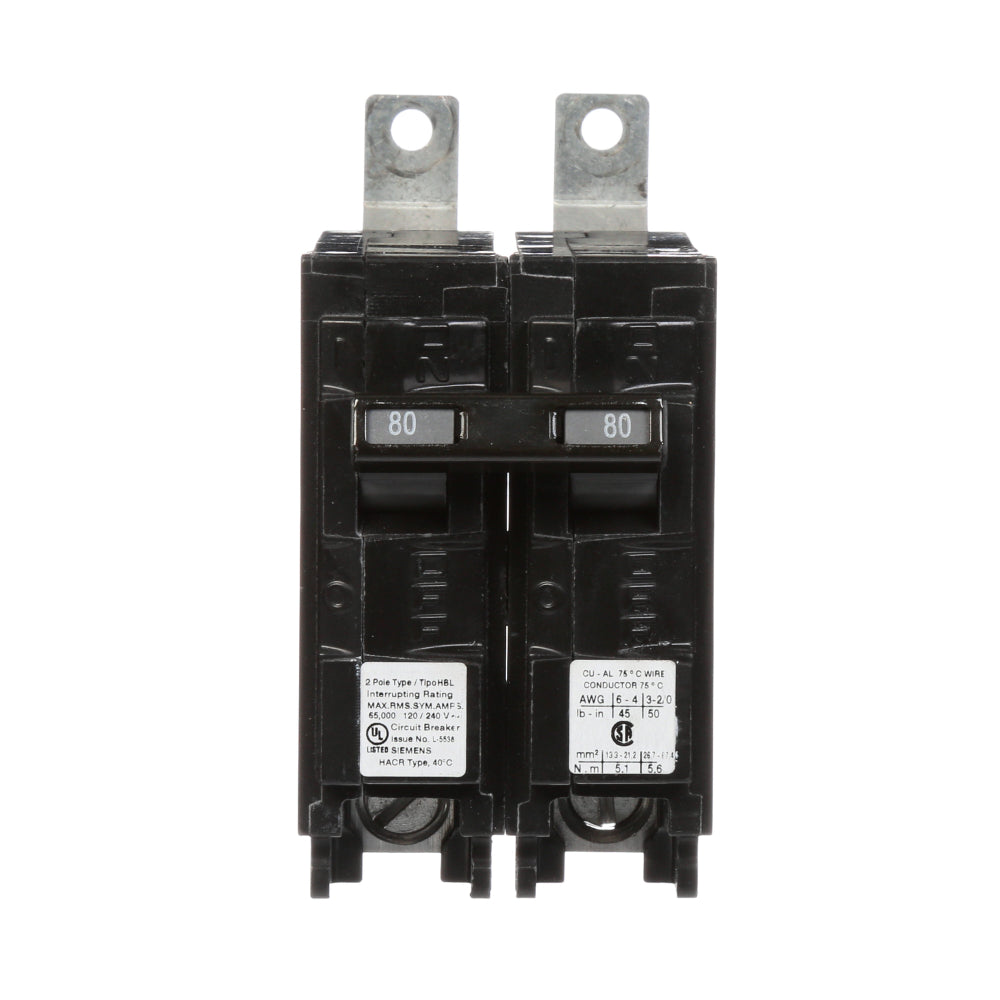

B280HH - Siemens 80 Amp 2 Pole 120/240V Bolt-On Molded Case Circuit Breaker 65kA Interrupt

B280HH

B280HH is a Siemens 80 Amp, 2 Pole, 120/240 Volt bolt-on molded case circuit breaker designed for low voltage electrical distribution.This Type HBL circuit breaker features a thermal magnetic trip unit and a high interrupt rating of 65 kA at 60 Hz frequency. It is UL 489 certified and suitable for panelboard mounting, providing reliable circuit protection in commercial and industrial applications.

• Amperage: 80 Amps
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kA
• Trip Unit: Thermal Magnetic
• Frequency: 60 Hz
• Series/Frame: Type HBL
• Certification: UL 489

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B280HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120/240
• Amperage : 80
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643270060
• GTIN : 00783643270060
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
