B270 - Siemens 70 Amp 2 Pole 240V Bolt-On Molded Case Circuit Breaker, BL Series, 10 kAIC, CSA/UL Listed

B270

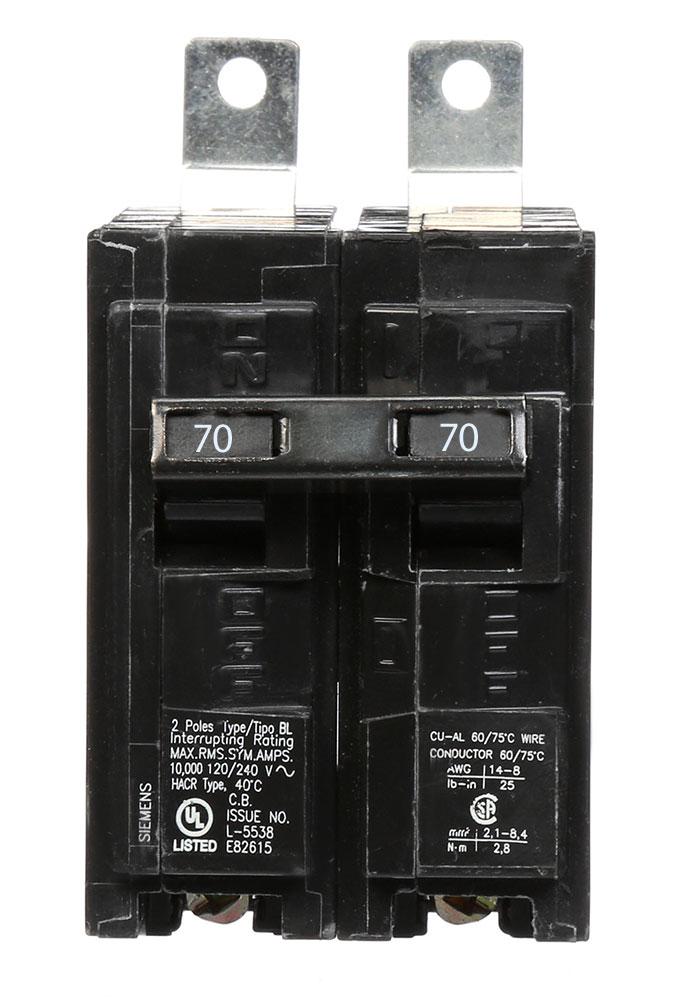

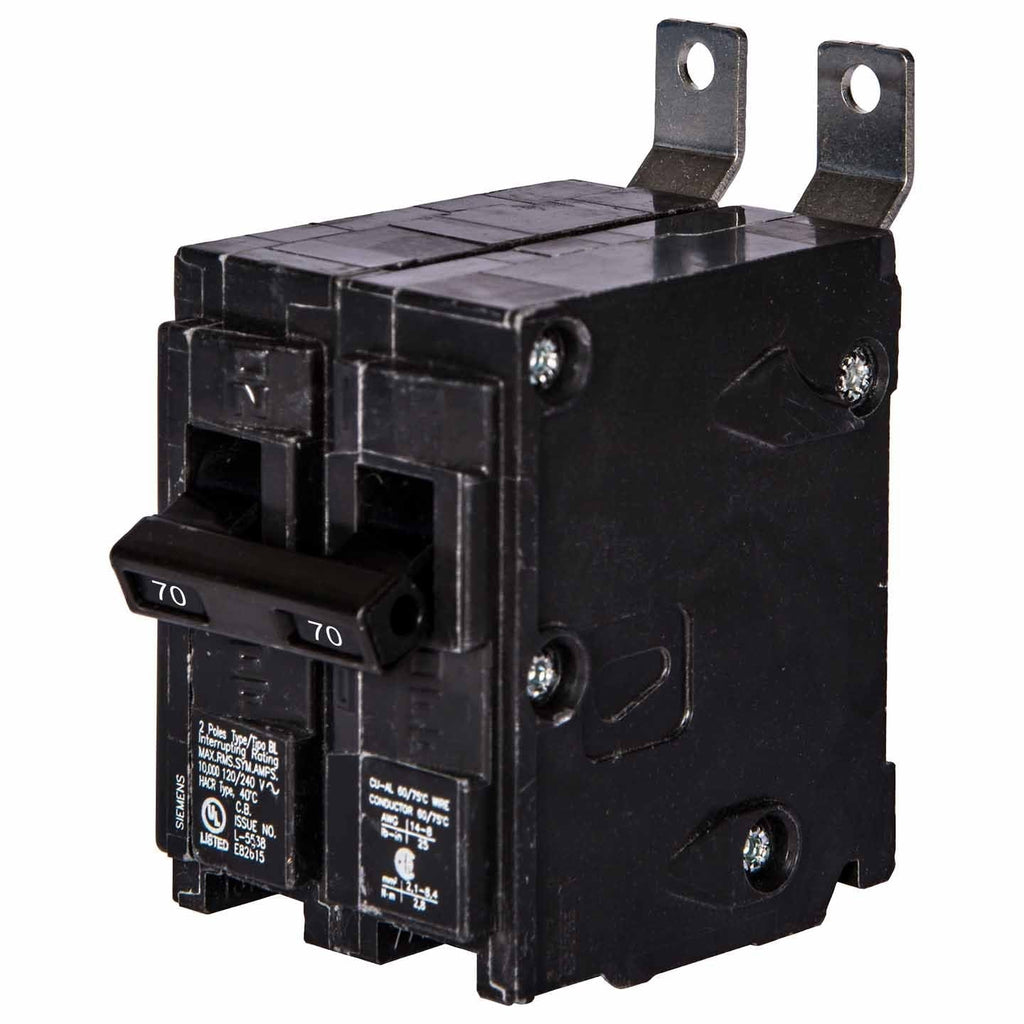

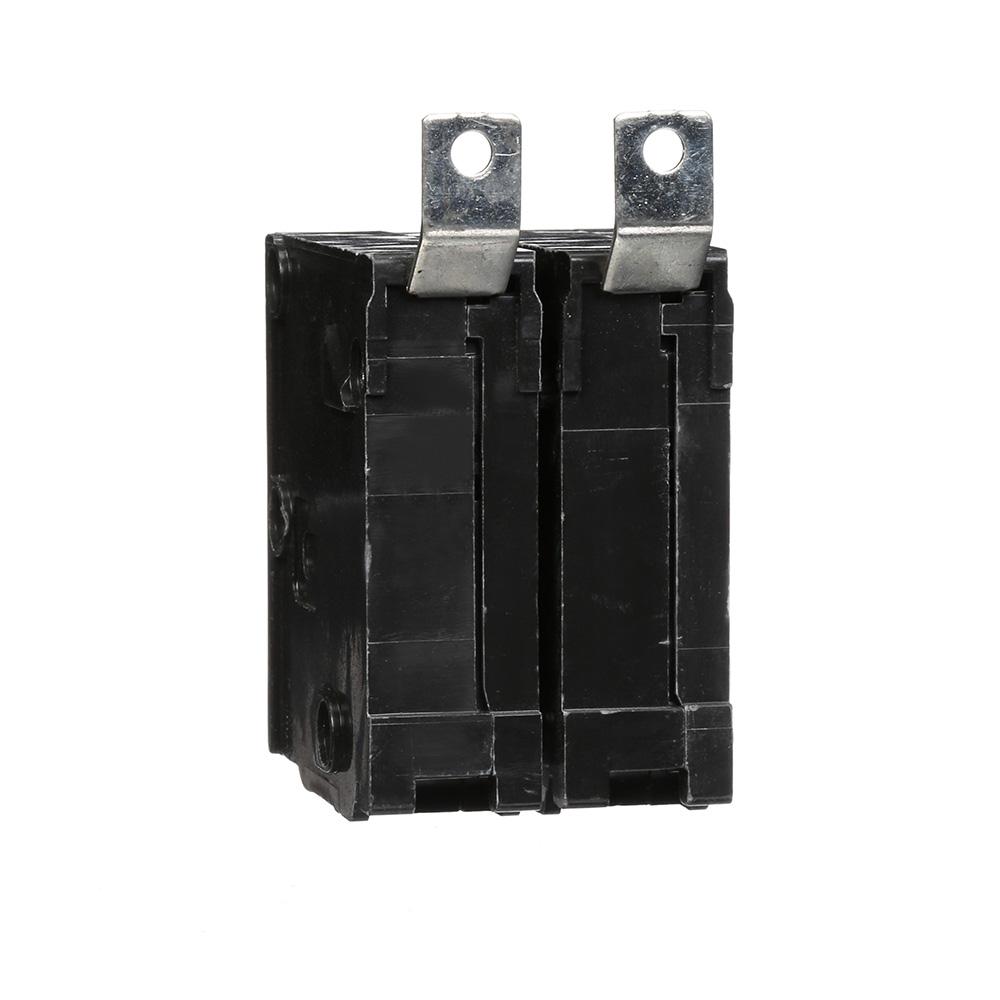

B270 is a Siemens 70 Amp, 2-pole, 240V bolt-on molded case circuit breaker designed for reliable electrical distribution protection.

This circuit breaker features a robust BL series frame, non-interchangeable trip unit, and is engineered for panelboard mounting. It is suitable for a variety of commercial and industrial applications where dependable overcurrent protection is required.

Key Specifications
• Part Number: B270
• Manufacturer: Siemens
• Amperage: 70 Amp
• Voltage: 240V AC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kAIC
• Series/Frame: BL
• Trip Unit: Non-interchangeable
• Certifications: CSA Approved, UL Listed
• Dimensions: 3.5" H x 2" W x 3" L
• Connection: Busbar line side, lug load side

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B270
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 70
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263611
• GTIN : 00783643263611
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
