B260HH - Siemens 60 Amp 240 Volt 2 Pole Bolt-On Circuit Breaker Type HBL 65kA Interrupt Rating

B260HH

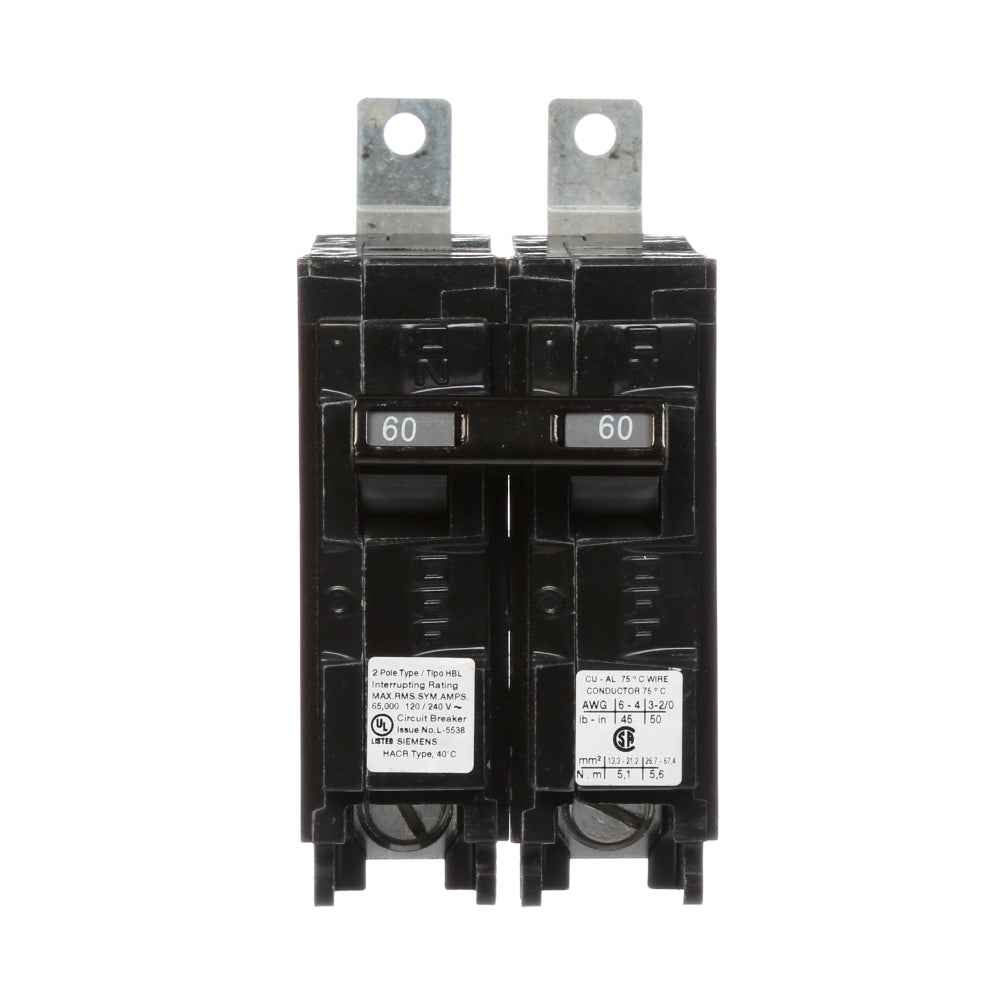

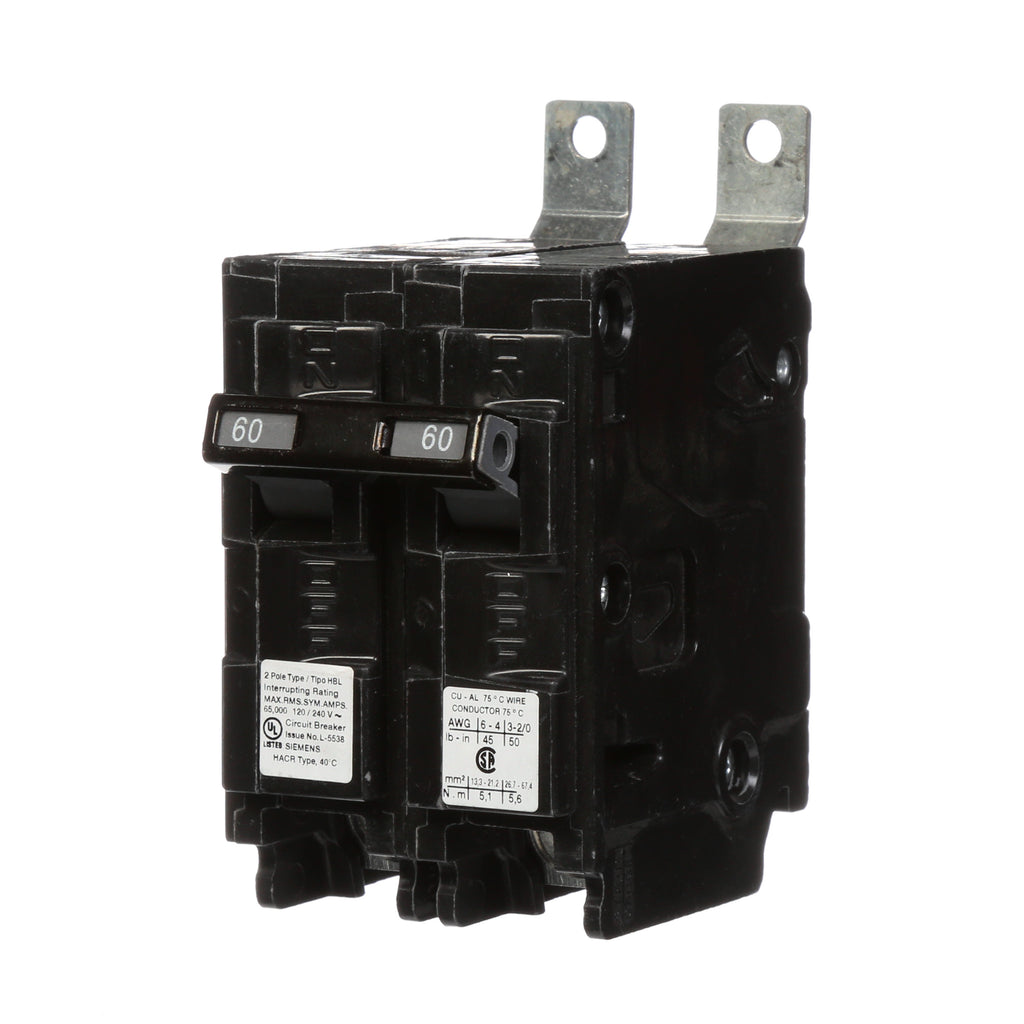

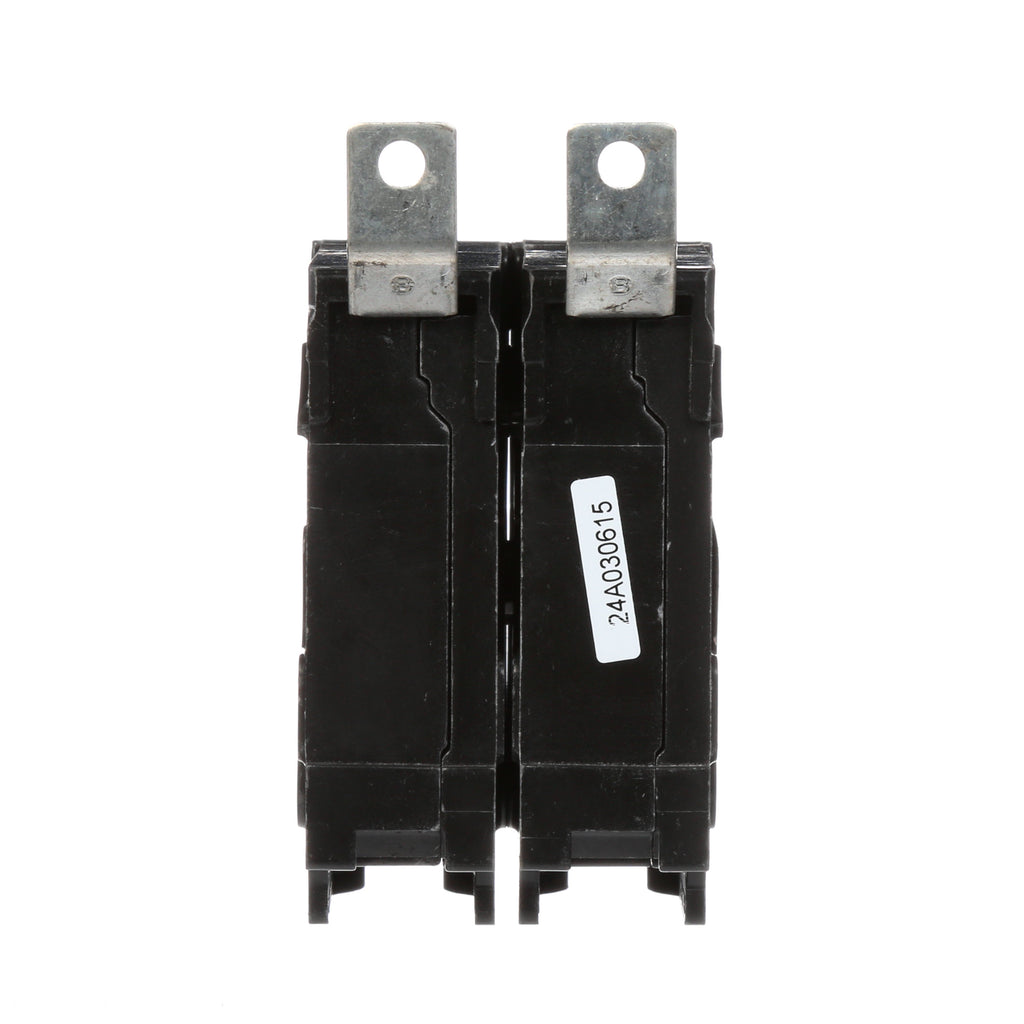

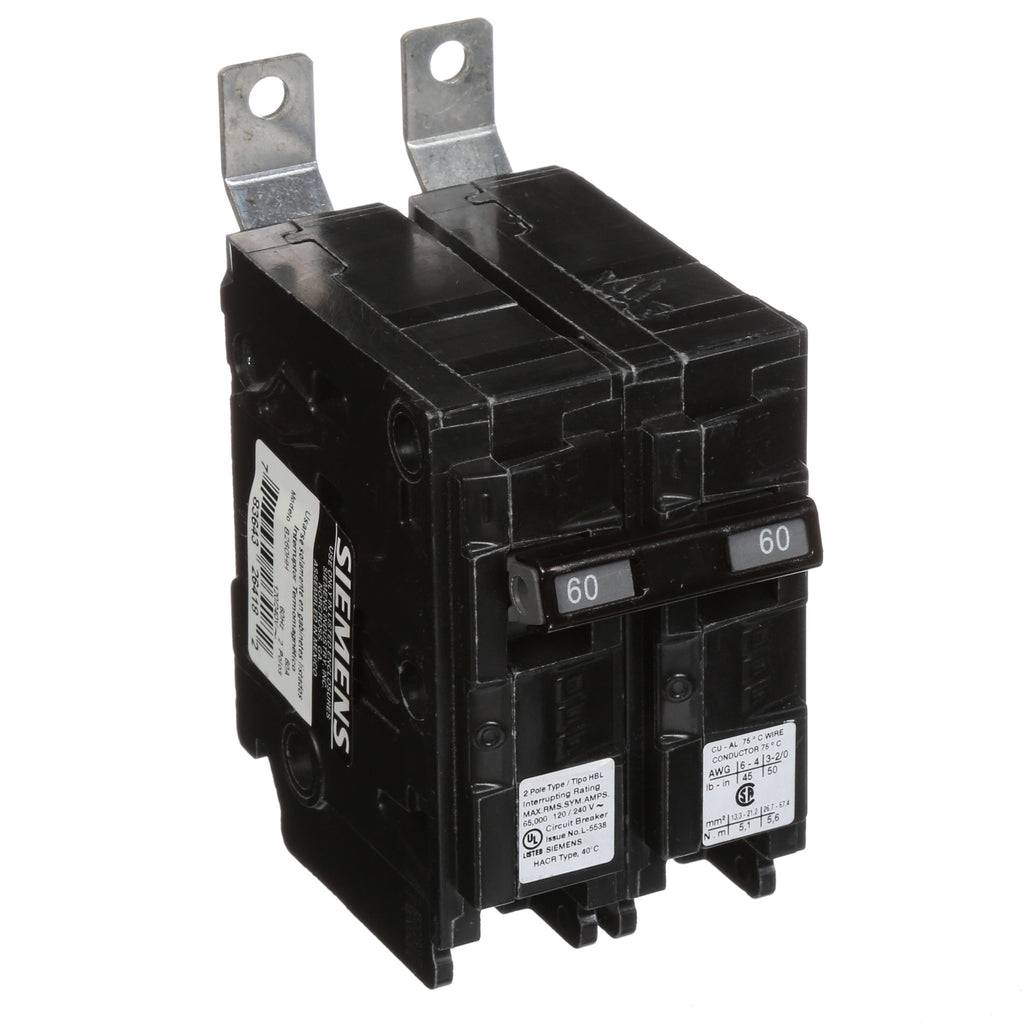

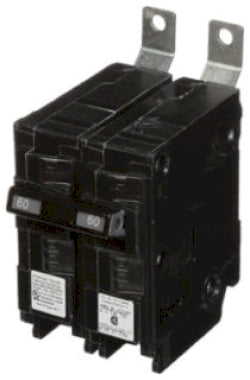

B260HH is a Siemens Type HBL low voltage molded case circuit breaker designed for reliable protection in electrical systems.This 2 pole, 60 amp circuit breaker operates at 120/240 VAC with a high interrupt rating of 65 kA. It features a thermal/magnetic trip unit and a bolt-on mounting type, making it suitable for panel installations. The breaker meets UL, CSA, and HACR certifications and is part of Siemens' B frame series.

Key Specifications
• Amperage: 60 Amp
• Voltage: 120/240 VAC
• Number of Poles: 2
• Interrupt Rating: 65 kA
• Trip Unit: Thermal/Magnetic
• Mounting Type: Bolt-On
• Frame Type: B
• Certifications: UL, CSA, HACR
• Series: Type HBL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B260HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120/240
• Amperage : 60
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264182
• GTIN : 00783643264182
• Country of Origin : Mexico
• Dimensions : 2.756 x 1.969 x 3.937 inch
• Weight : 0.683
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
