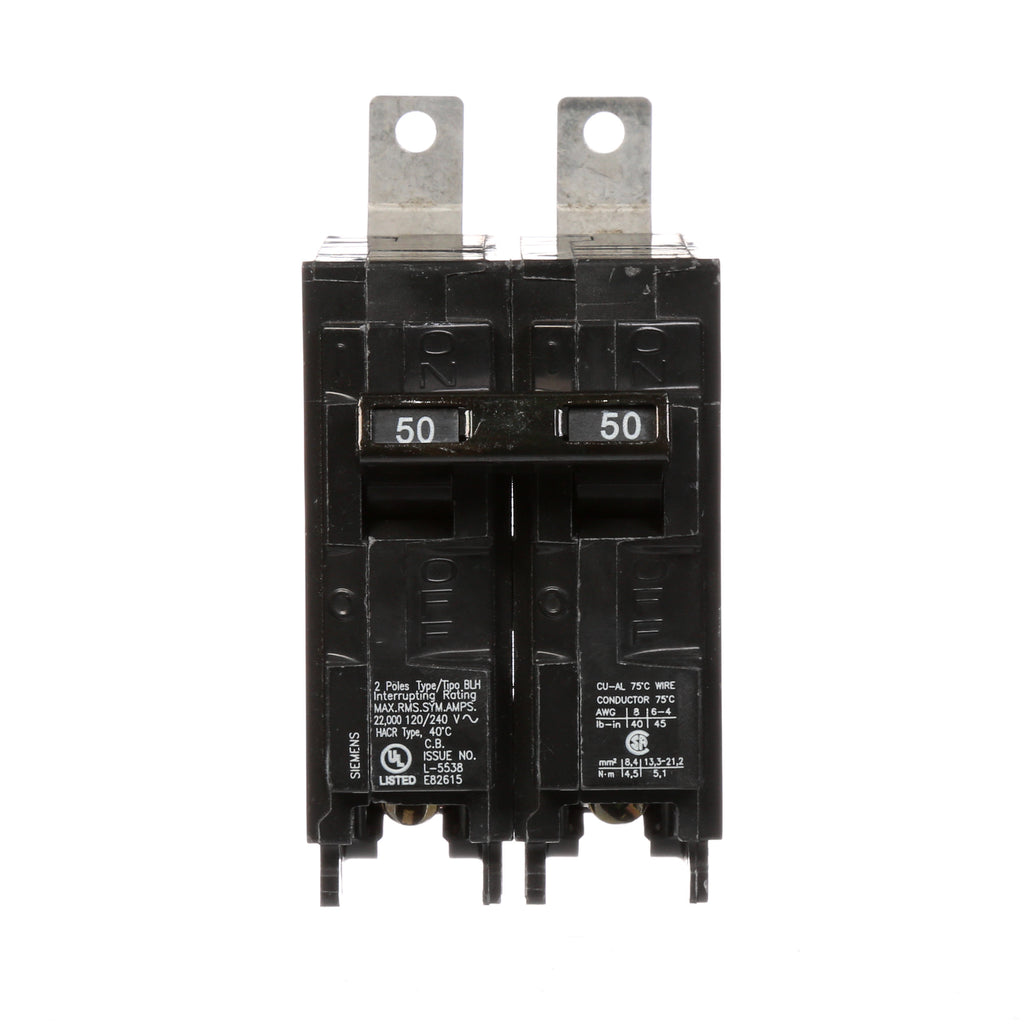

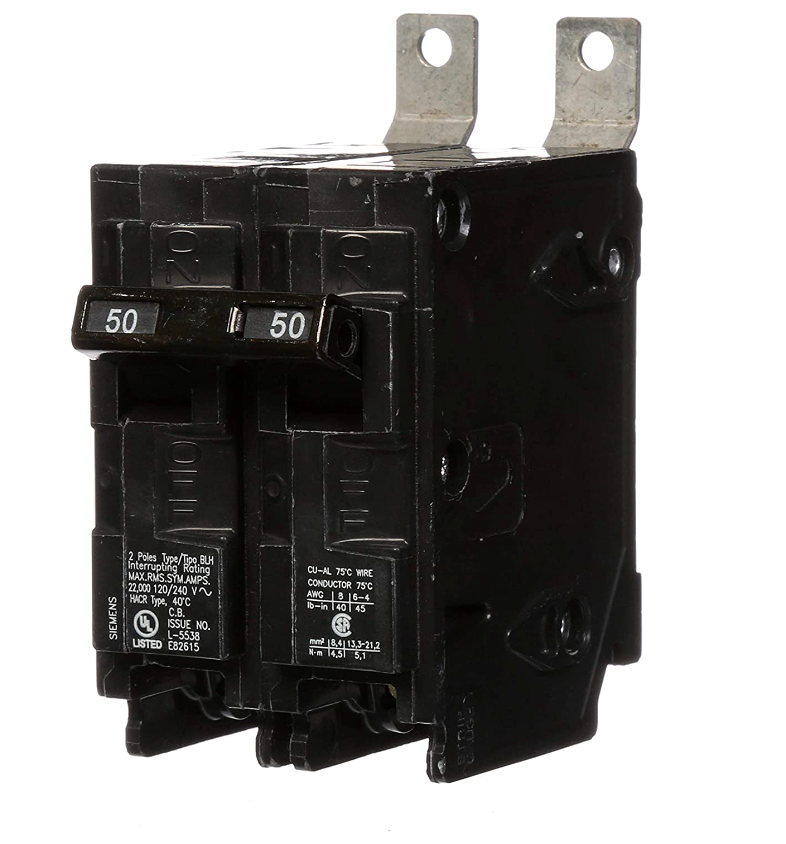

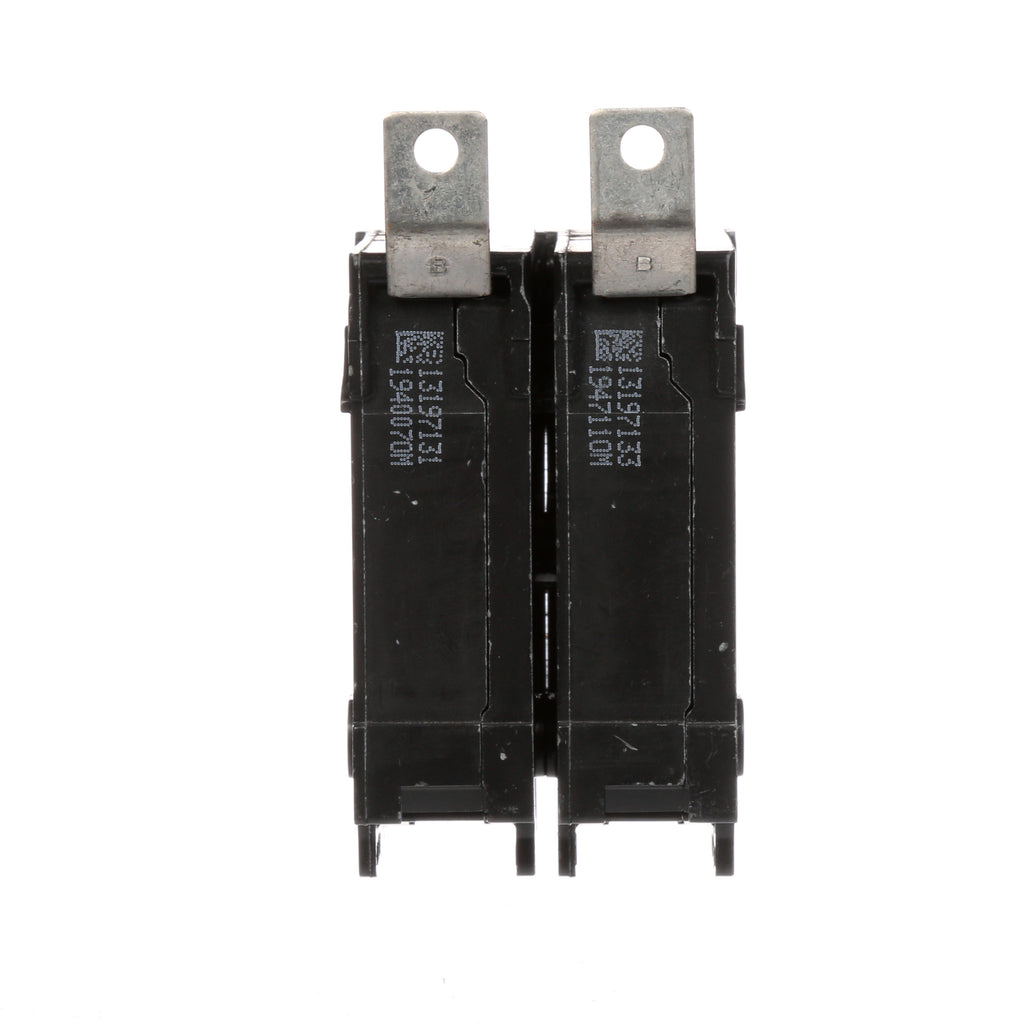

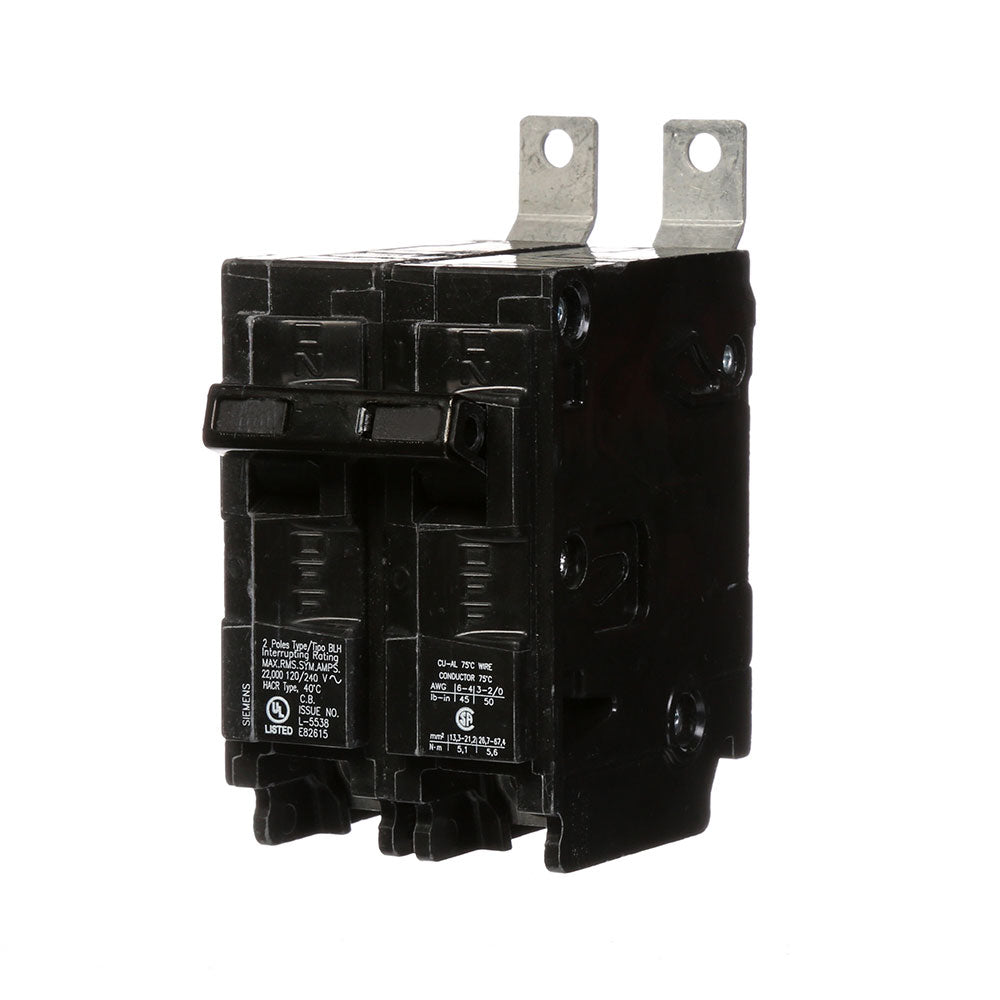

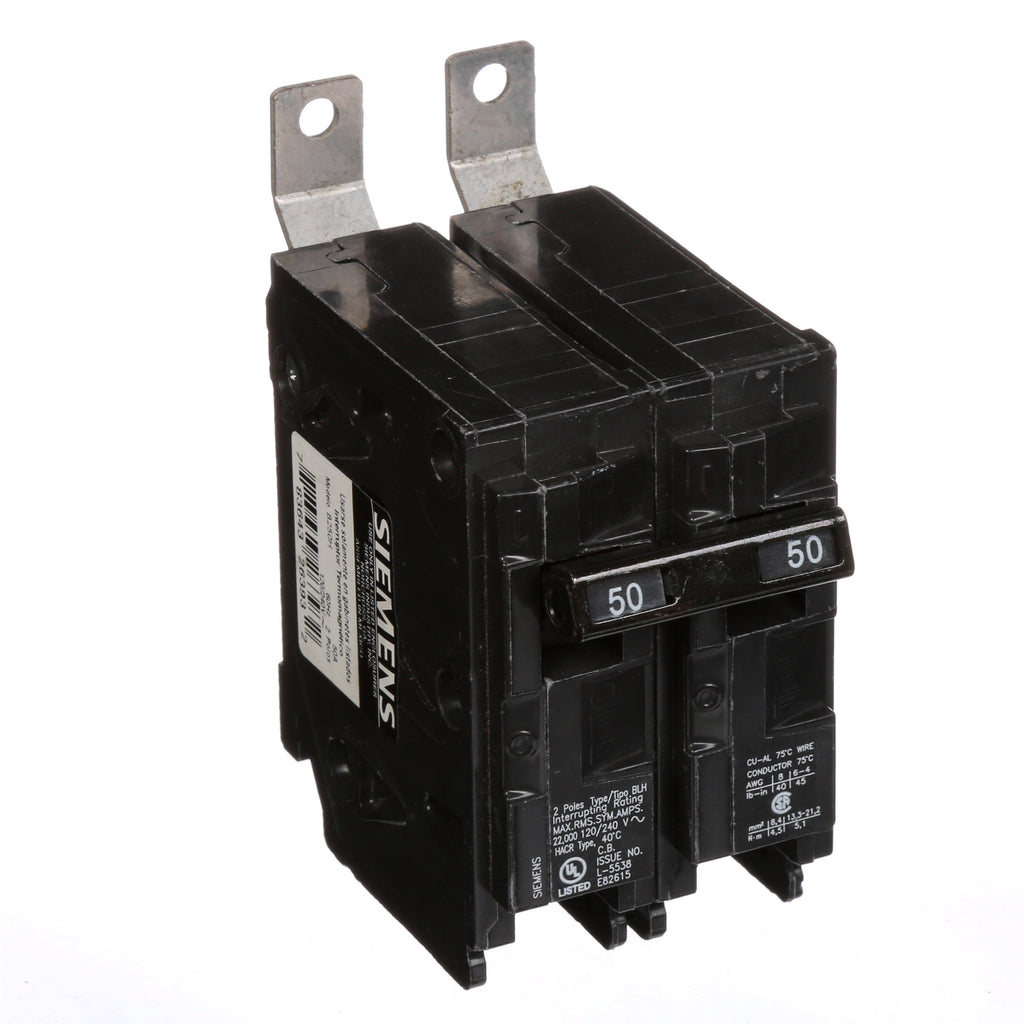

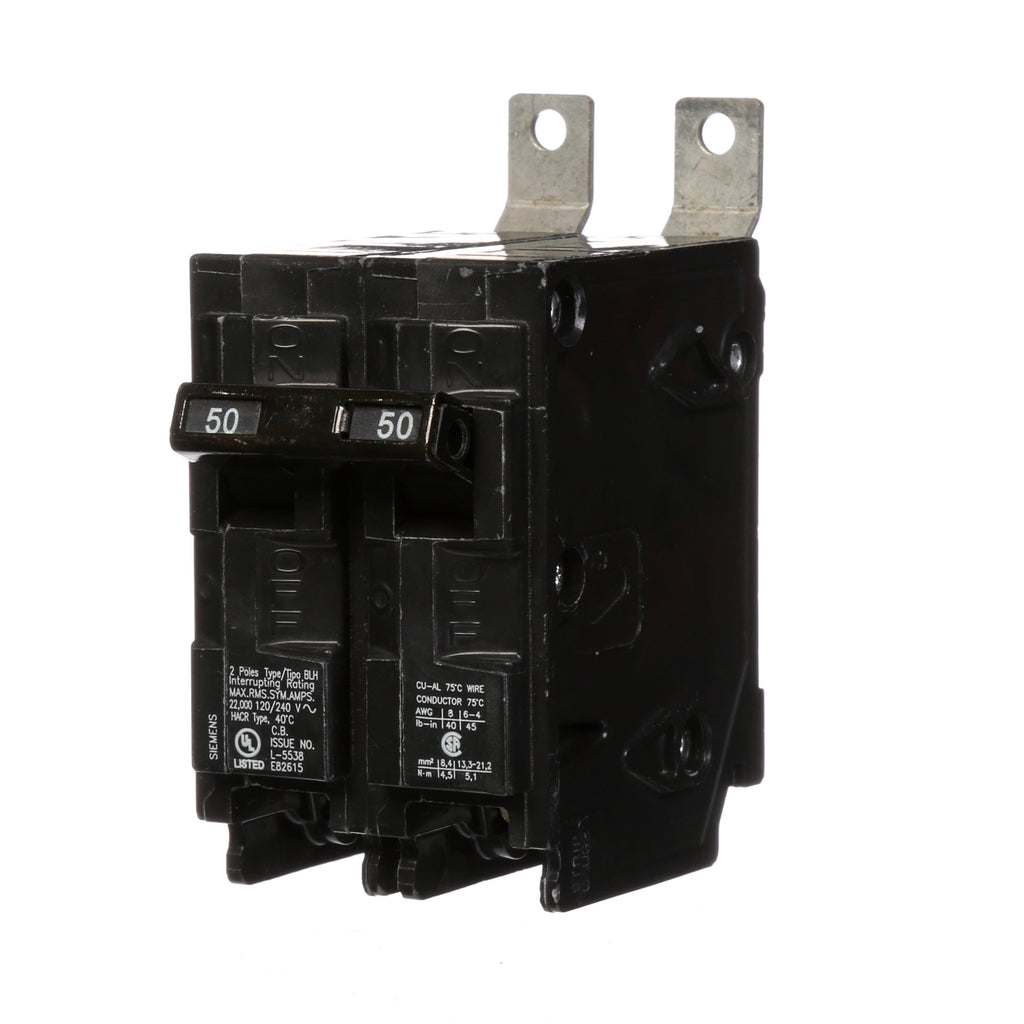

B250H - Siemens 50 Amp 2-Pole 120/240 Volt Bolt-On Circuit Breaker 22 kA Interrupt Rating

B250H

B250H is a Siemens 2-pole bolt-on circuit breaker rated for 50 amps and 120/240 volts with a 22 kA interrupt rating.This Siemens B250H Type BLH molded case circuit breaker features thermal magnetic trip units, panel mounting, and is UL listed with HACR and CSA reverse feed certifications. It is designed for low voltage electrical distribution with a 22,000 amp interrupt capacity, ensuring reliable protection for electrical circuits.

• Amperage: 50 Amp
• Voltage Rating: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On Panel Mount
• Interrupt Rating: 22 kAIC
• Trip Unit: Thermal Magnetic
• Series/Frame: Type BLH
• Certifications: UL Listed, HACR, CSA Reverse Feed
• Application: Low Voltage Molded Case Circuit Breaker
• Connection Type: Bolt-On

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B250H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263932
• GTIN : 00783643263932
• Country of Origin : Mexico
• Dimensions : 12.598 x 4.331 x 3.543 inch
• Weight : 0.661
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
