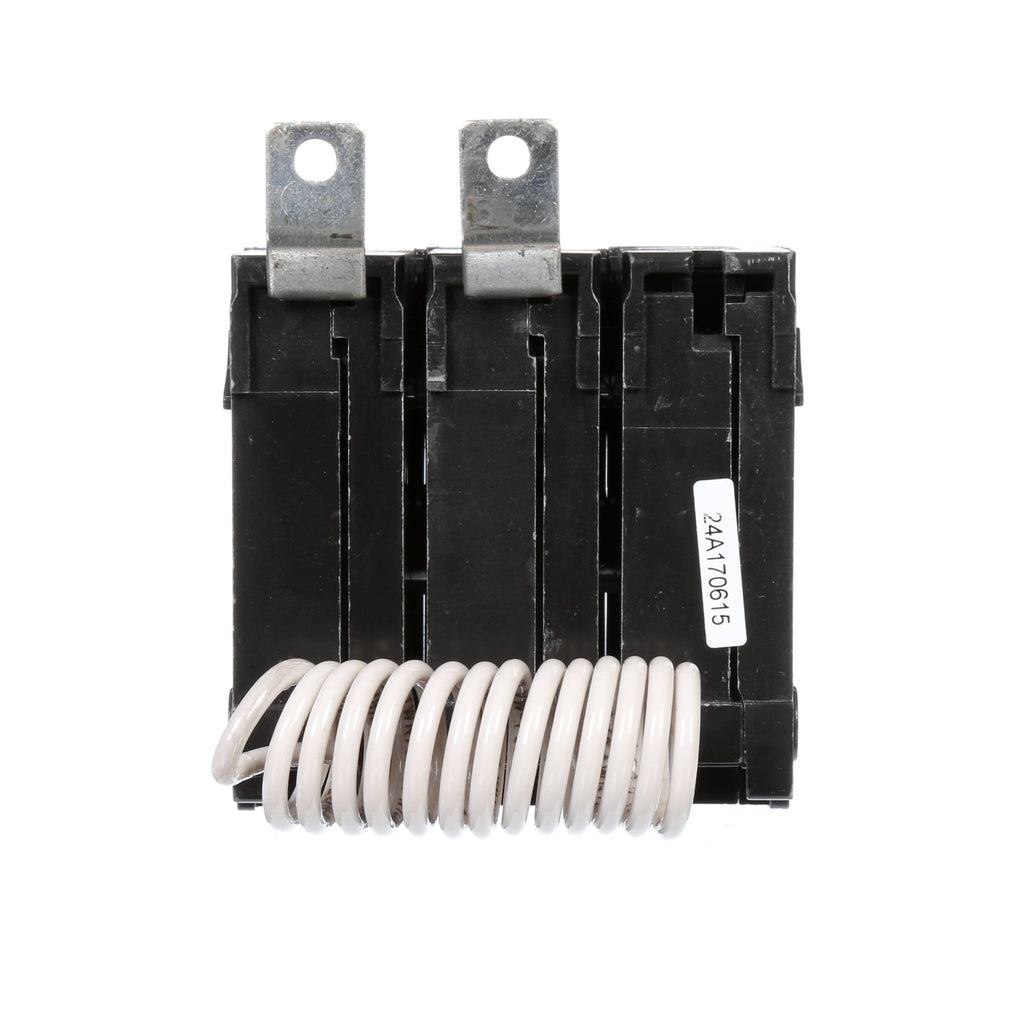

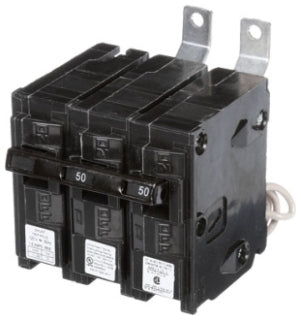

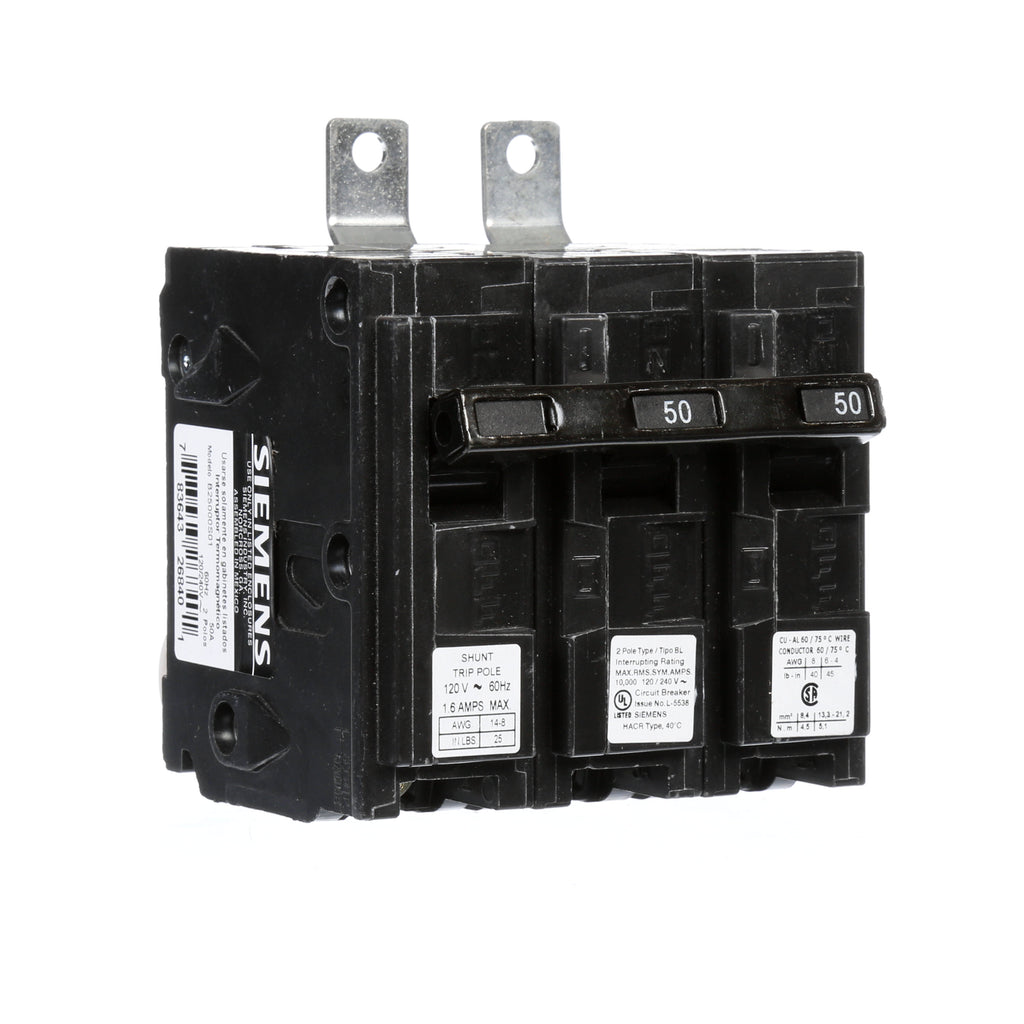

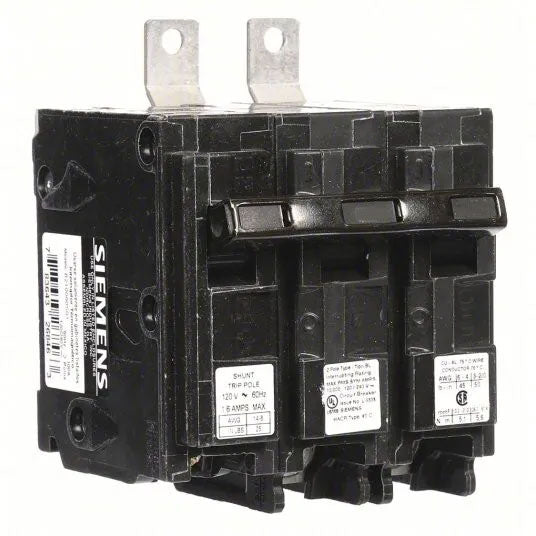

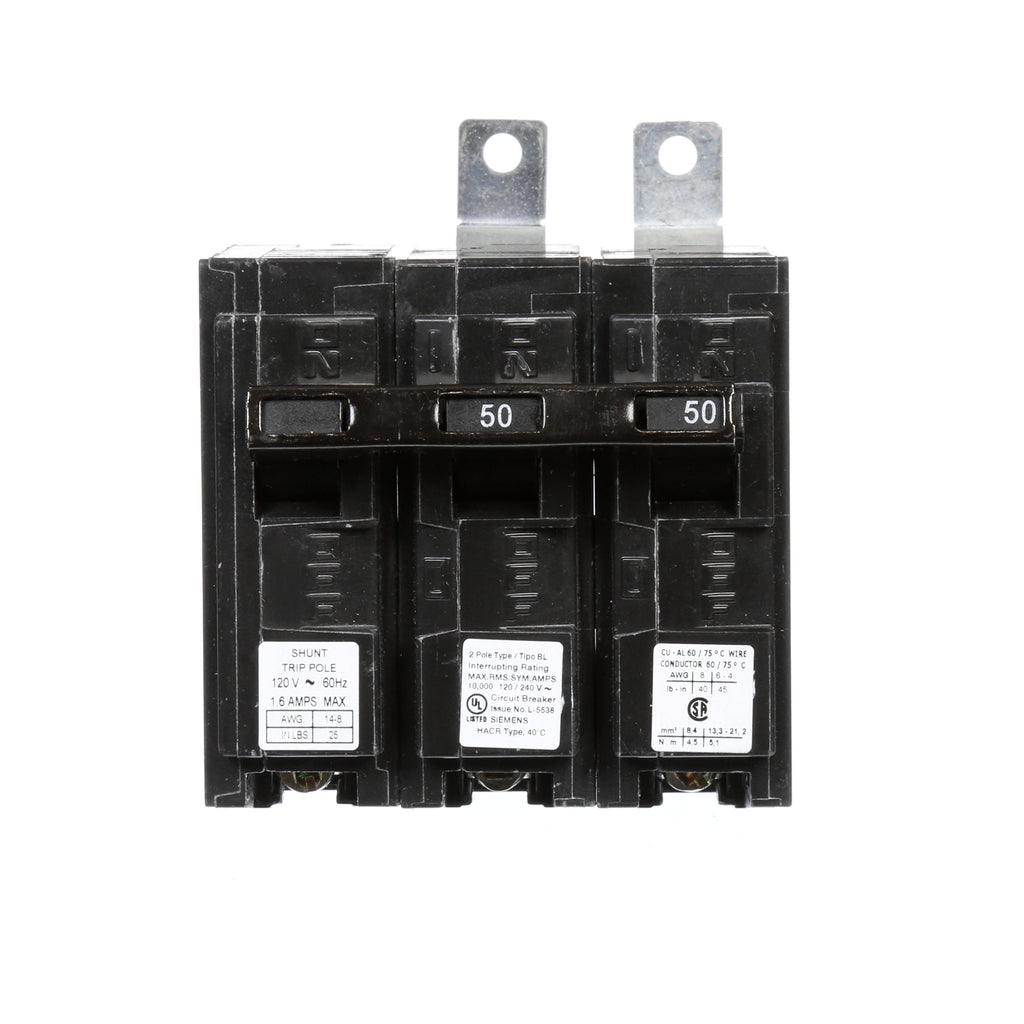

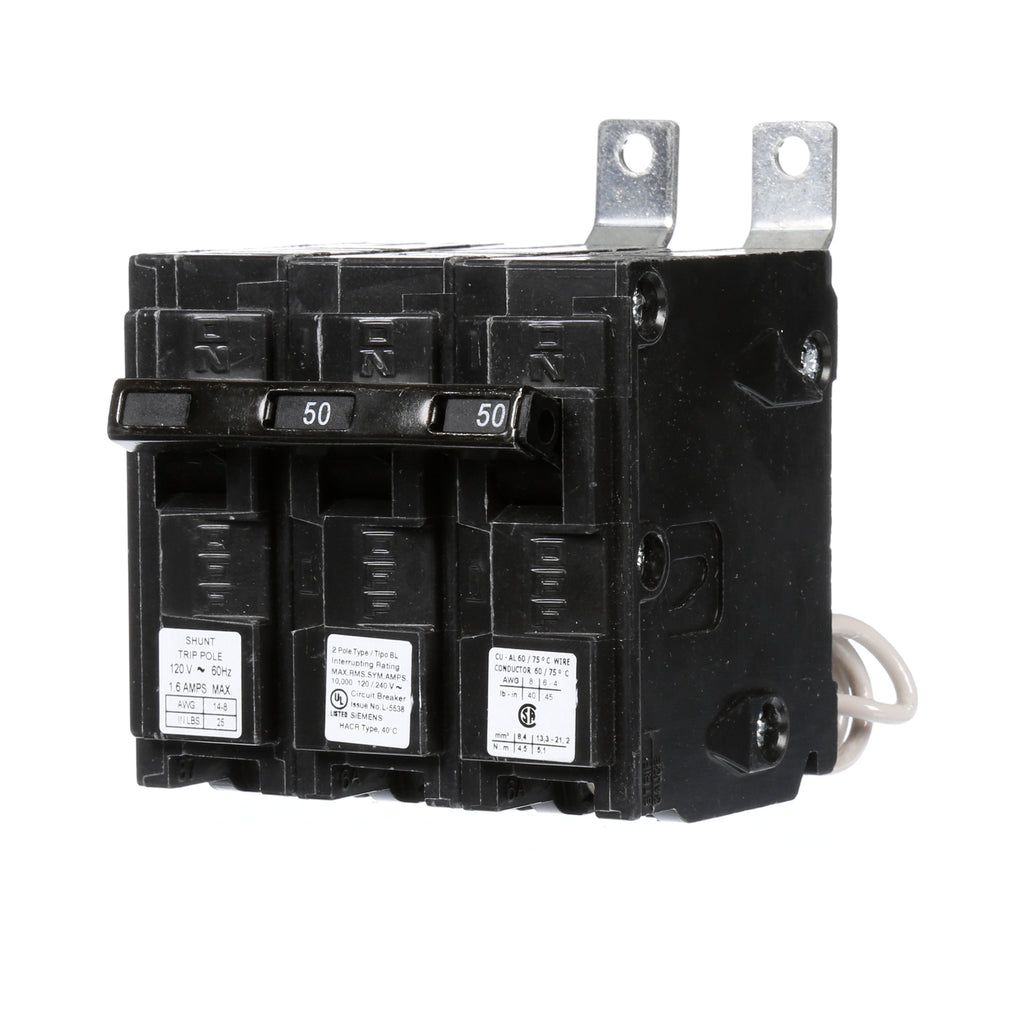

B25000S01 - Siemens 50 Amp 2 Pole 120/240V Bolt-On Molded Case Circuit Breaker with Shunt Trip

B25000S01

B25000S01 is a Siemens 2 pole, 50 amp, 120/240 volt bolt-on molded case circuit breaker with a 10 kA interrupt rating and 120 VAC shunt trip.This thermal magnetic breaker features a BL frame, terminal load lug connections, and is UL listed, CSA certified, and HACR rated. It provides reliable overcurrent protection with quick reset capability after fault clearance.

• Amperage: 50 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA at 120/240 VAC
• Series/Frame: BL Frame
• Trip Unit: Thermal Magnetic with 120 VAC Shunt Trip
• Terminal Type: Load Lug
• Certifications: UL Listed, CSA Certified, HACR Rated
• Phase: Single
• Dimensions: Approx. 2" W x 3" D x 3-9/16" H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B25000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 50
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268401
• GTIN : 00783643268401
• Country of Origin : Mexico
• Dimensions : 2.571 x 3.00 x 2.89 inch
• Weight : 0.926
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
