B245H - Siemens 45 Amp 120/240 Volt 2-Pole Thermal Magnetic Circuit Breaker Type BLH 22kA Interrupt Rating

B245H

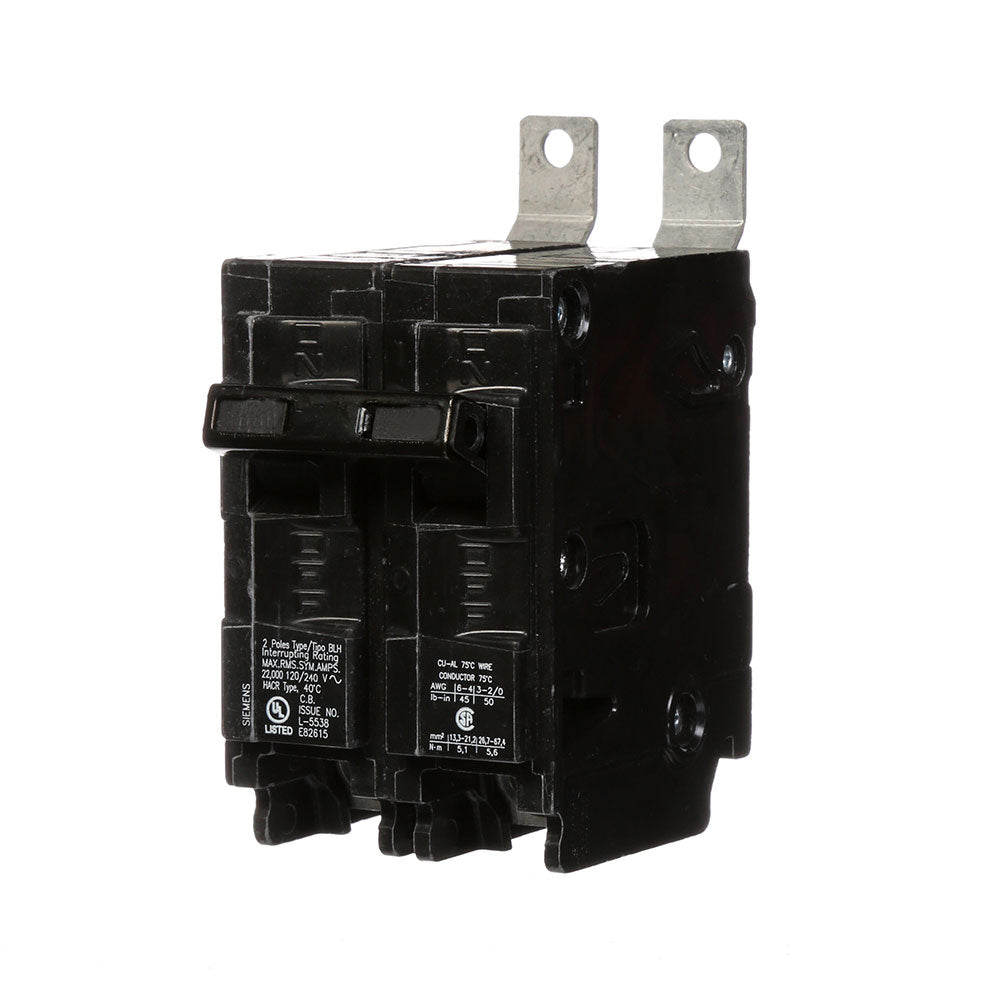

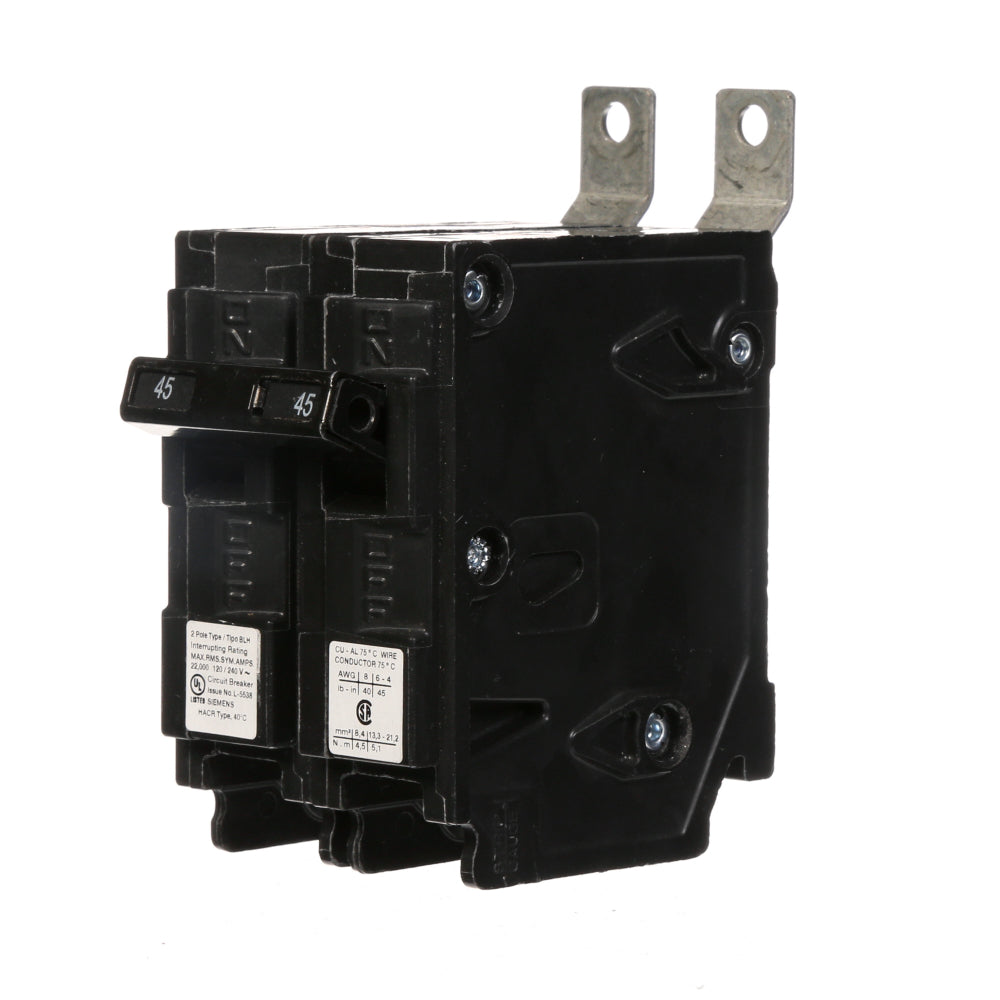

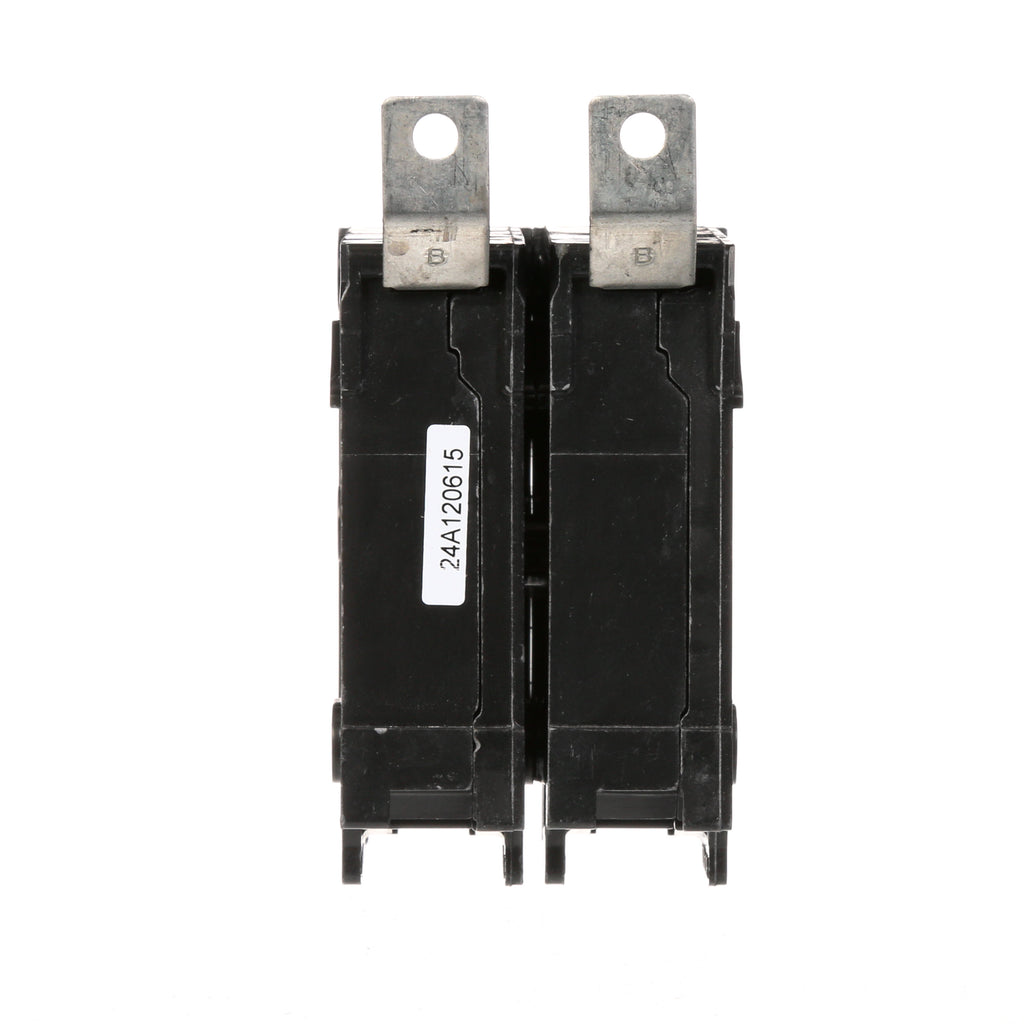

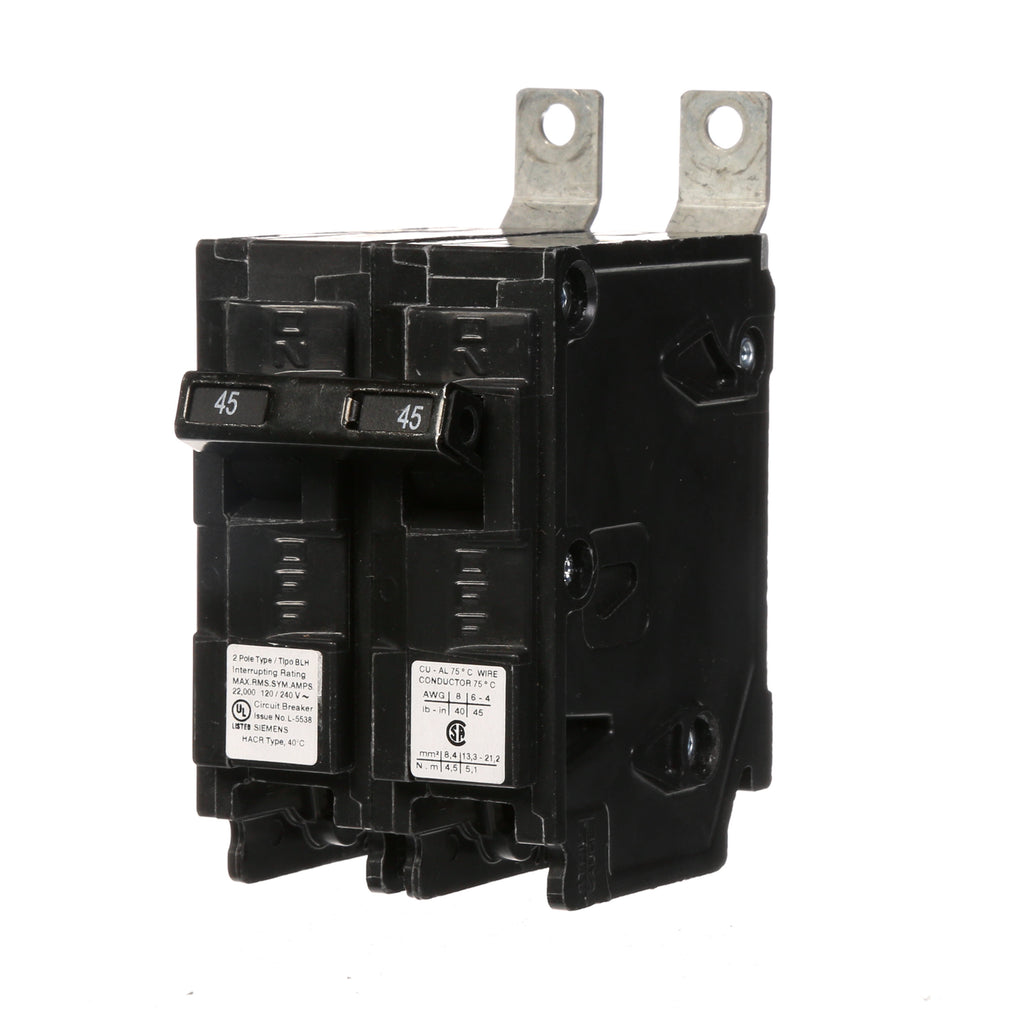

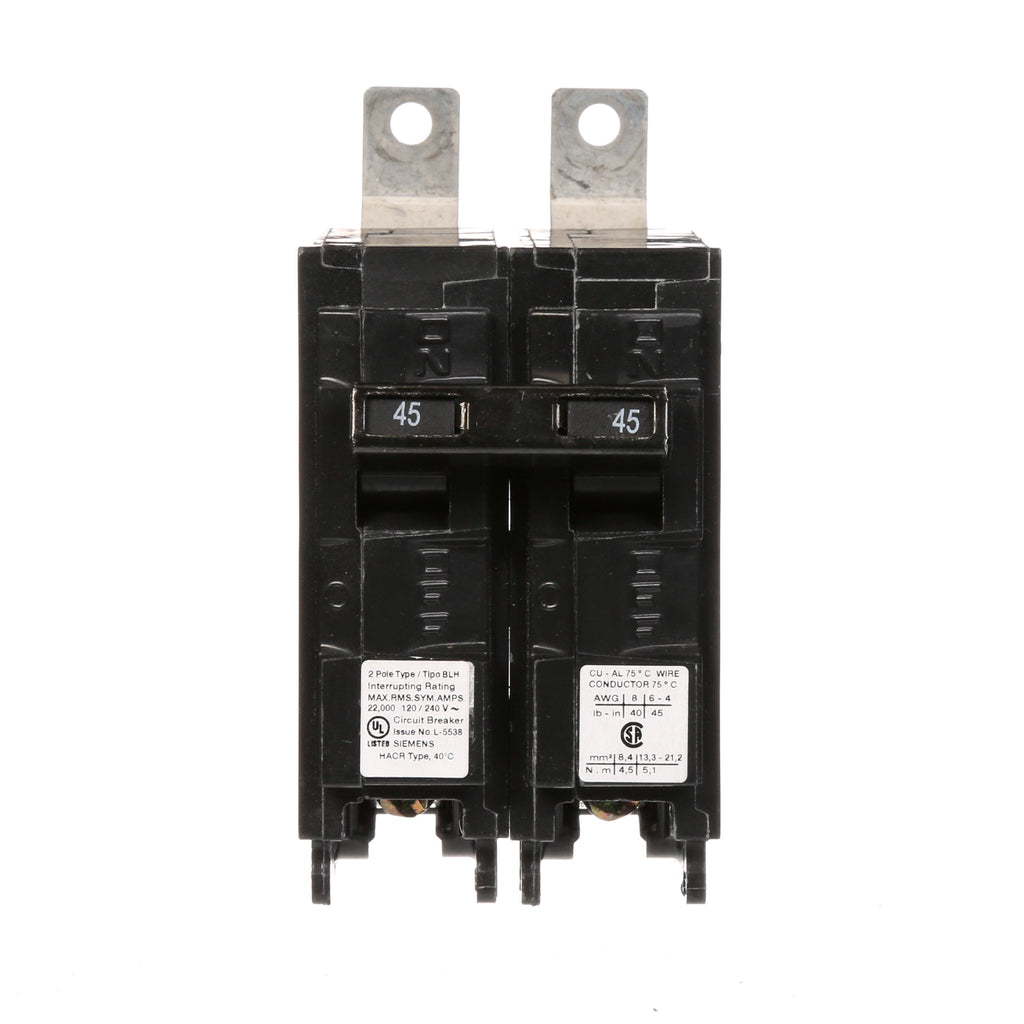

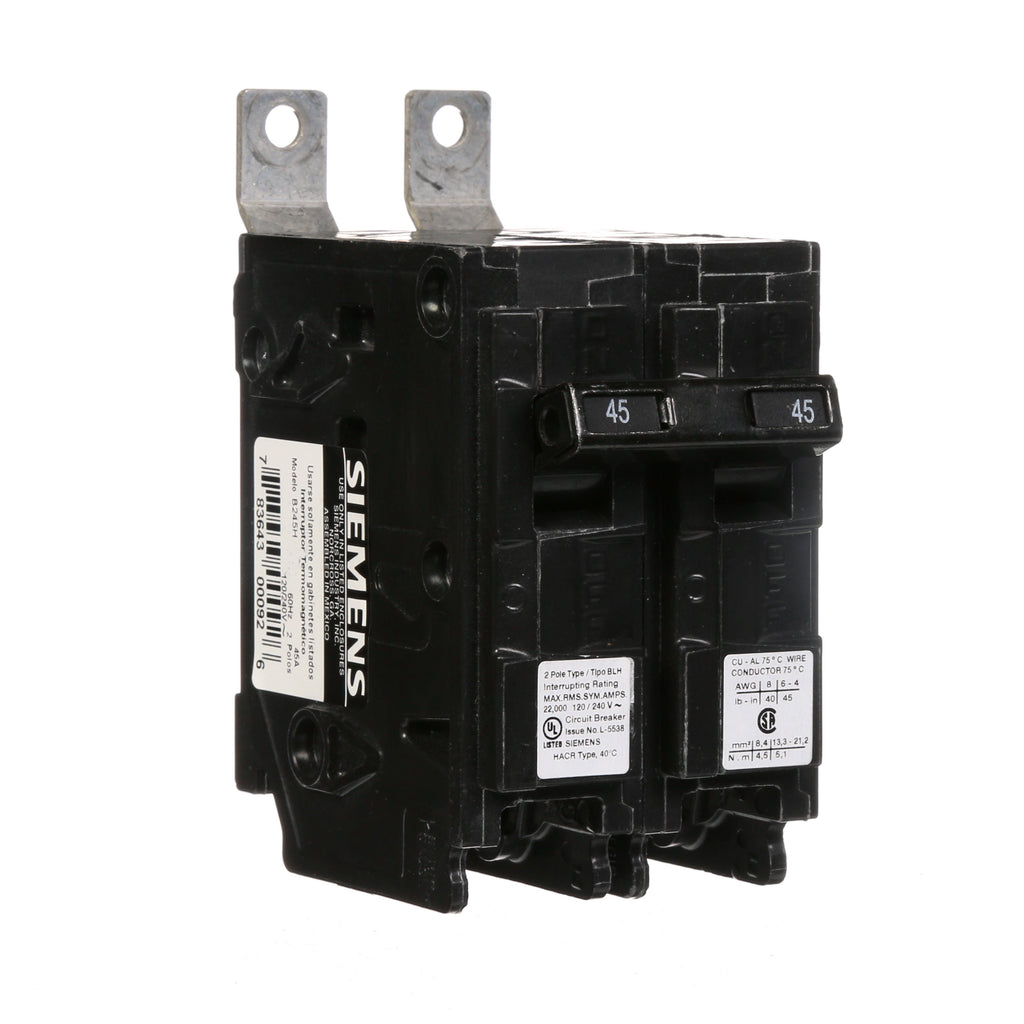

B245H is a Siemens 45 Amp 2-Pole thermal magnetic circuit breaker designed for 120/240 Volt applications.This Siemens B245H circuit breaker features a bolt-on mounting type with a 22kA interrupt rating at 240VAC. It belongs to the Type BLH series and includes thermal magnetic trip units for reliable protection. The breaker supports busbar line side connections and lug load side terminations.

Key Specifications
• Amperage: 45 Amp
• Voltage: 120/240 Volt
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22kA at 240VAC
• Series/Frame: Type BLH
• Trip Unit: Thermal Magnetic
• Line Side Termination: Busbar
• Load Side Termination: Lug (Included)
• Certifications: UL Listed (implied by standard Siemens MCCB)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B245H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 45
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643000926
• GTIN : 00783643000926
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
