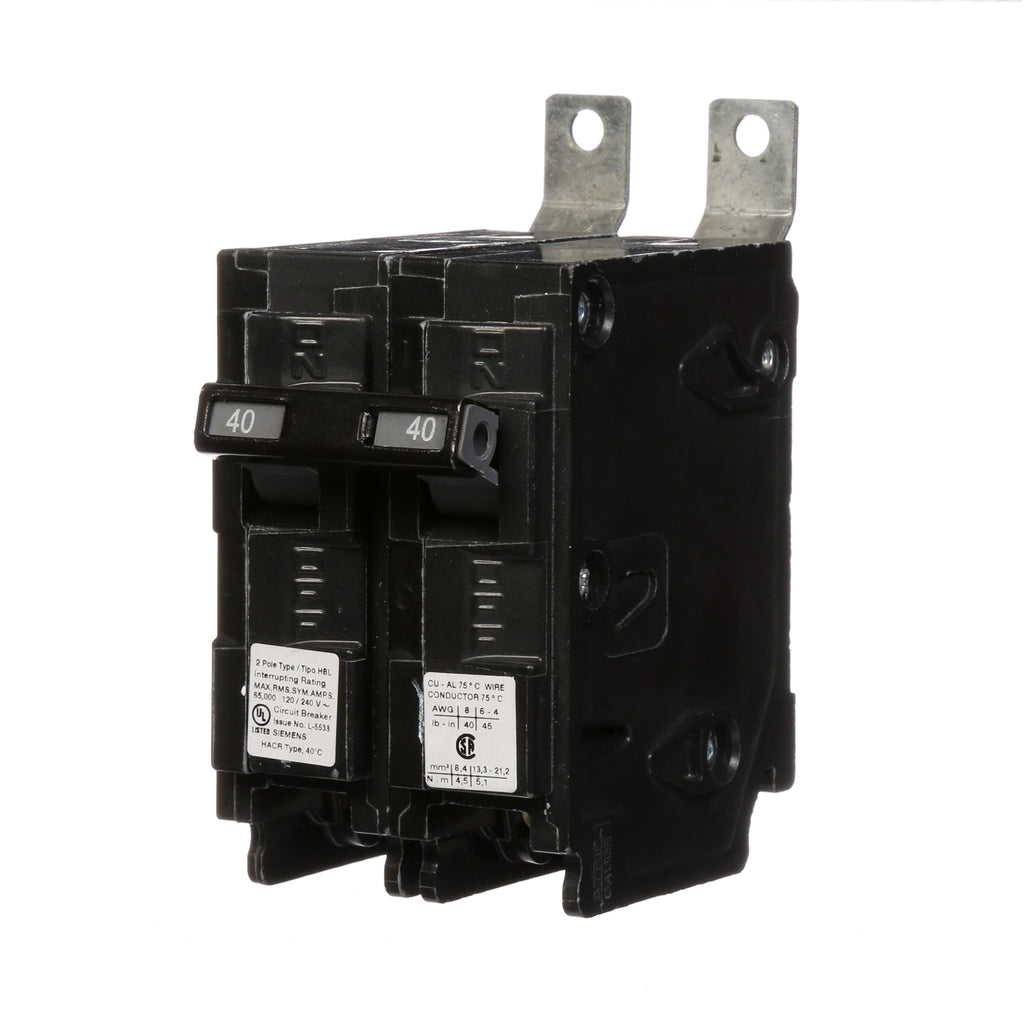

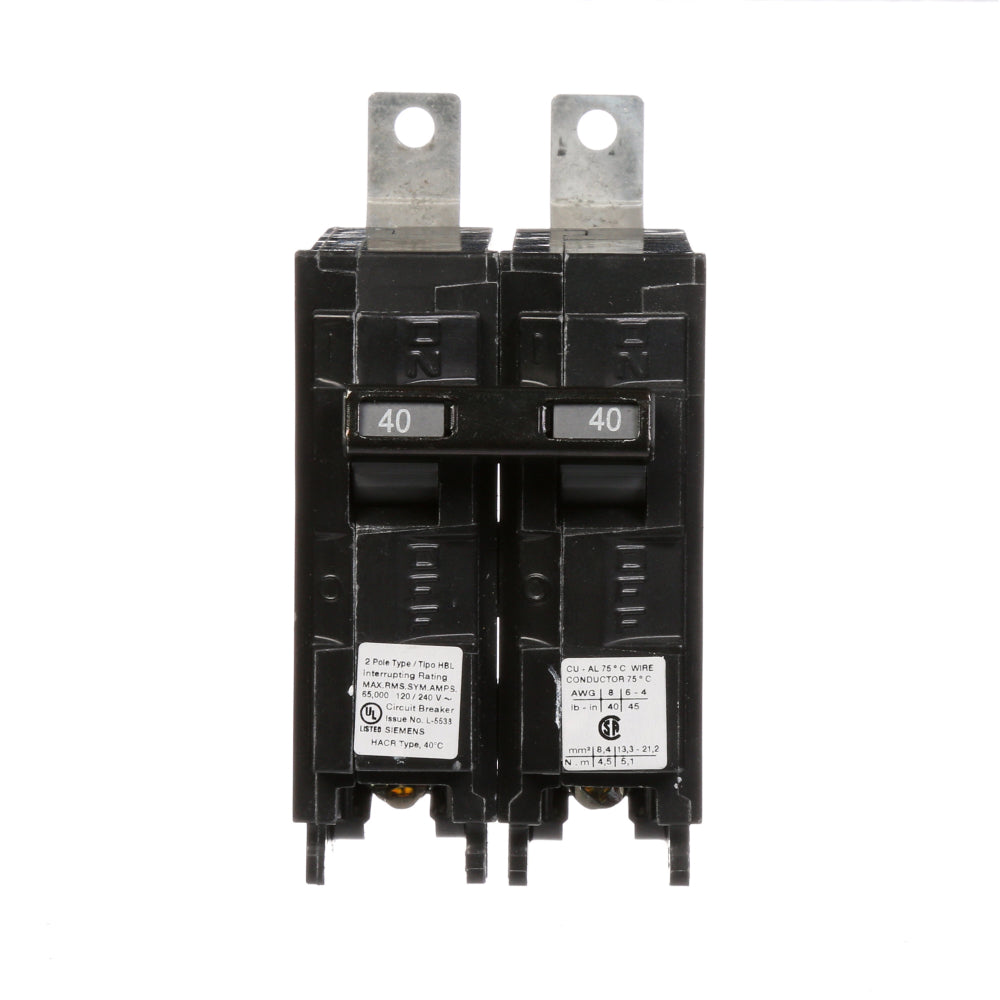

B240HH - Siemens 40A 2-Pole 120/240V 65kA Bolt-On Molded Case Circuit Breaker

B240HH

B240HH is a Siemens 2-pole, 40-amp molded case circuit breaker designed for 120/240VAC panelboard mounting with bolt-on connection and thermal magnetic protection. This Type BL series breaker provides reliable circuit protection with long-time and instantaneous trip functions, making it suitable for residential and light commercial applications requiring dependable overcurrent protection.

• Amperage: 40A
• Voltage Rating: 120/240VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Series: Type BL
• Protection Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous
• Interrupting Rating: 65kAIC
• Weight: 0.65 lbs
• Certifications: UL Listed, HACR, CSA Reverse Feed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B240HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Lug
• Frame Size : 125A/HBL
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264168
• GTIN : 00783643264168
• Country of Origin : Mexico
• Dimensions : 2.756 x 1.969 x 3.937 inch
• Weight : 0.661
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
