B24000S01 - Siemens 40 Amp 2-Pole 120/240V Bolt-On Shunt Trip Circuit Breaker 10kA BL Type

B24000S01

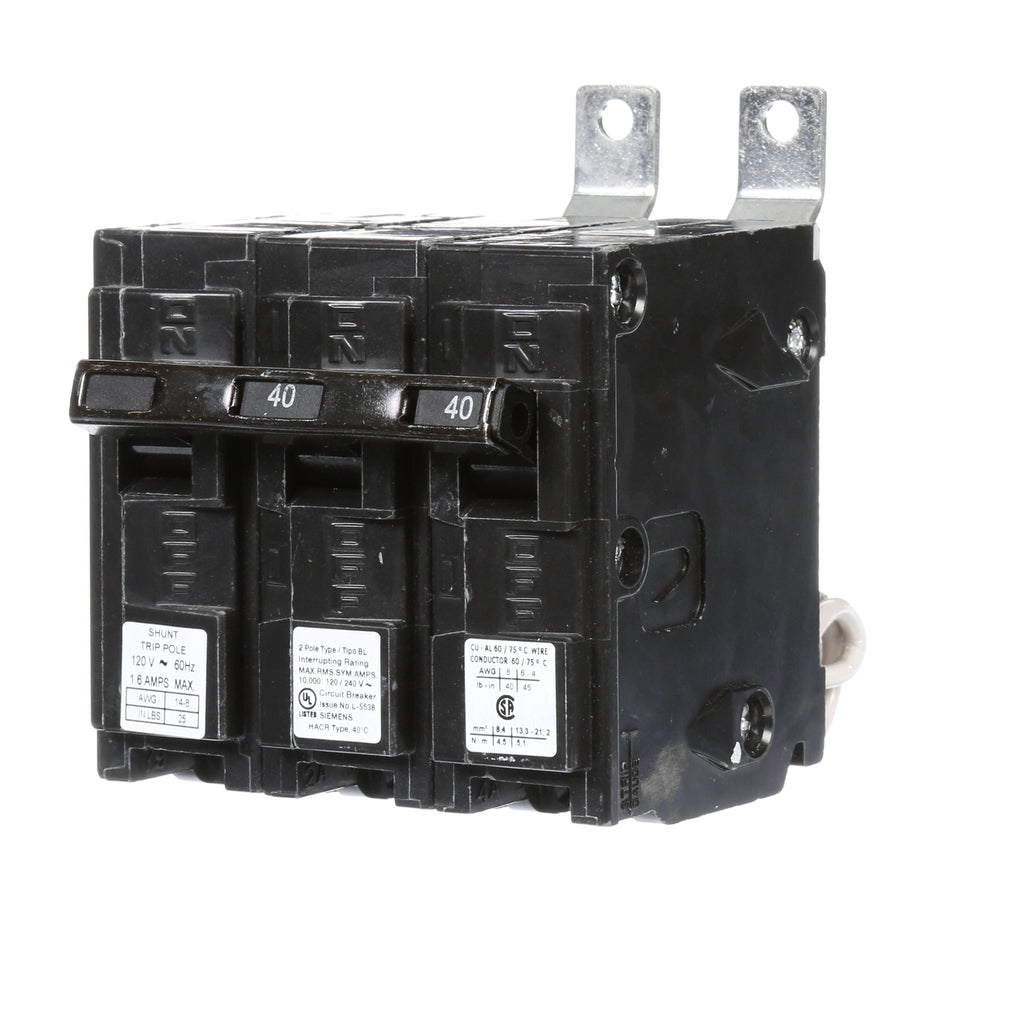

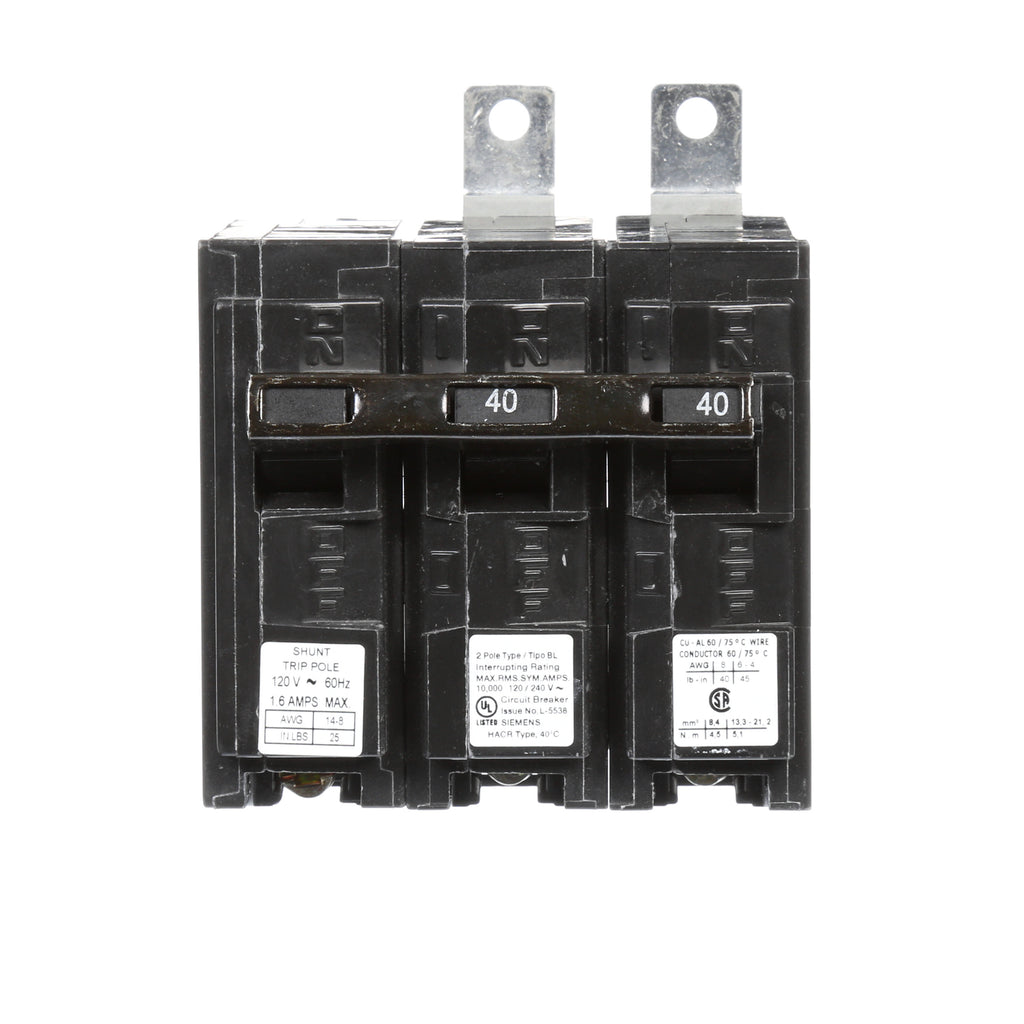

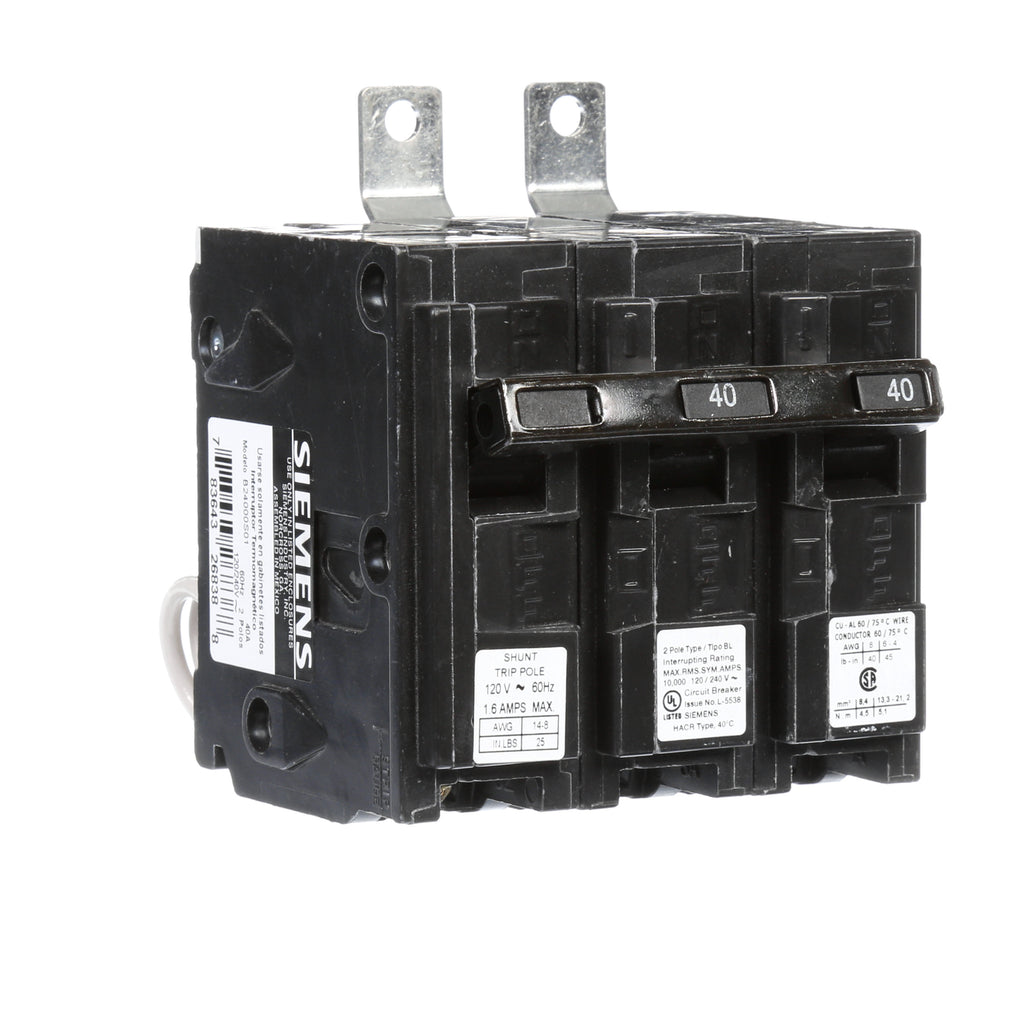

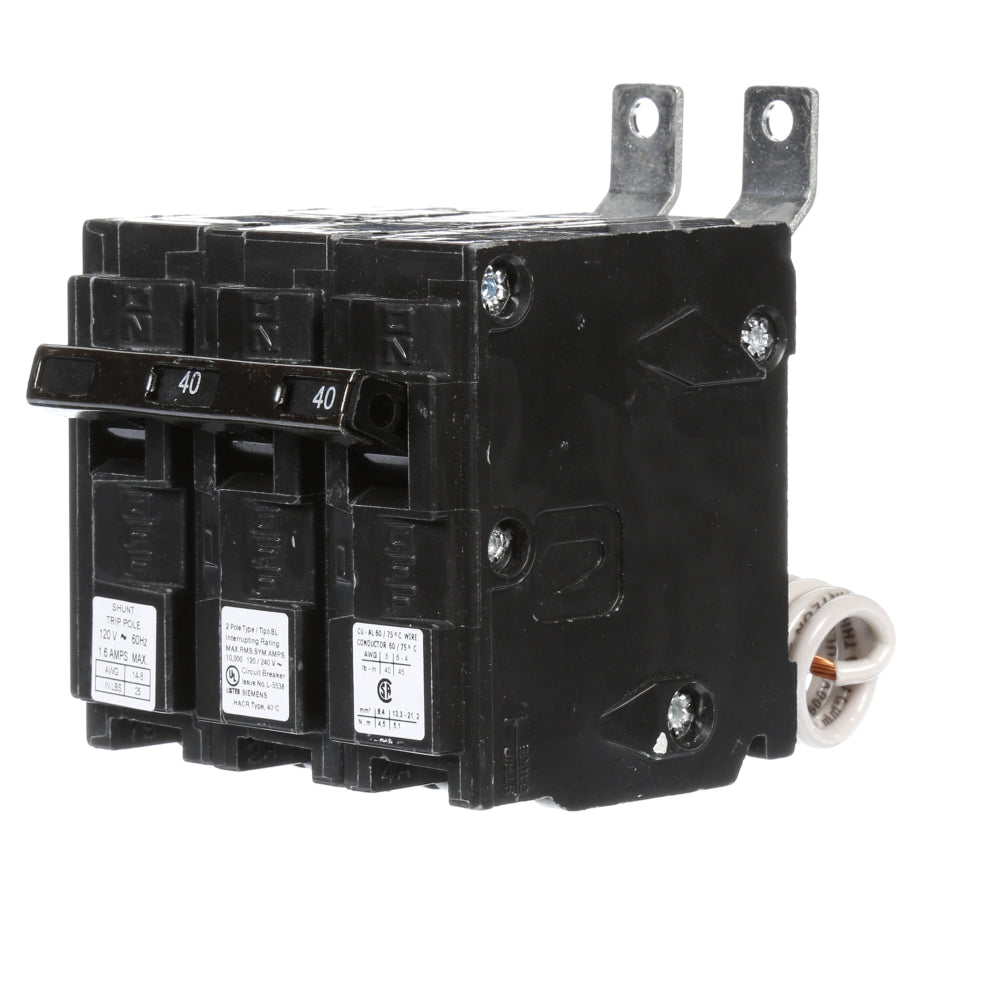

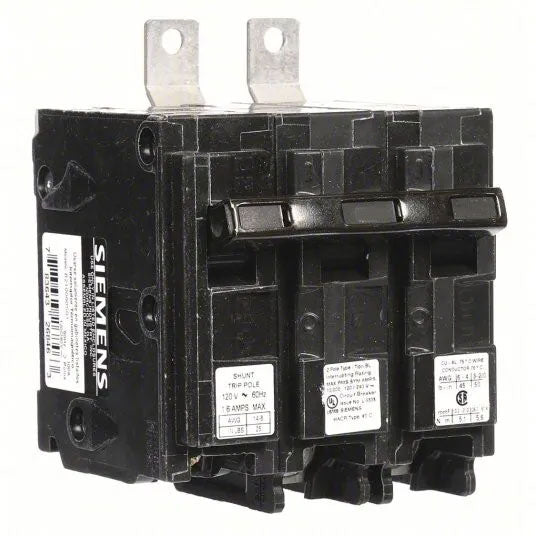

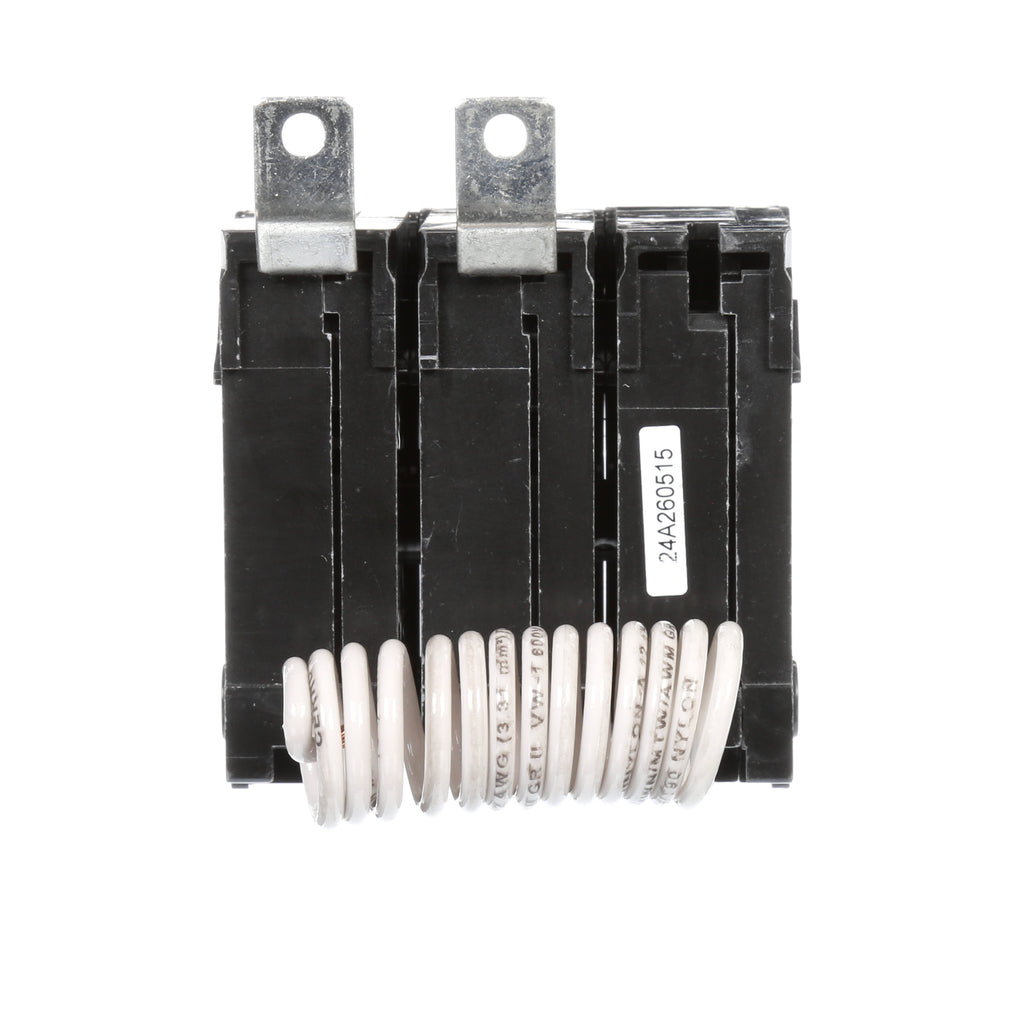

B24000S01 is a Siemens 40 Amp, 2-Pole, 120/240 Volt AC Bolt-On Shunt Trip Circuit Breaker with a 10 kA interrupt rating and BL type frame.This circuit breaker features a bolt-on mounting style designed for reliable panel installation. It supports 120/240 VAC operation with a 40 Amp rating and includes a shunt trip function for remote tripping capability. The BL type frame ensures compatibility with Siemens panelboards requiring this style. It has a 10,000 Amp interrupt rating (10 kAIC) for high fault current protection.

Key Specifications
• Amperage: 40 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10 kA
• Frame/Series: BL Type
• Trip Unit: Shunt Trip
• Certifications: UL Listed (implied by Siemens standard)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B24000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 40
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268388
• GTIN : 00783643268388
• Country of Origin : Mexico
• Dimensions : 2.571 x 3.00 x 2.89 inch
• Weight : 0.926
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
