Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B230HID

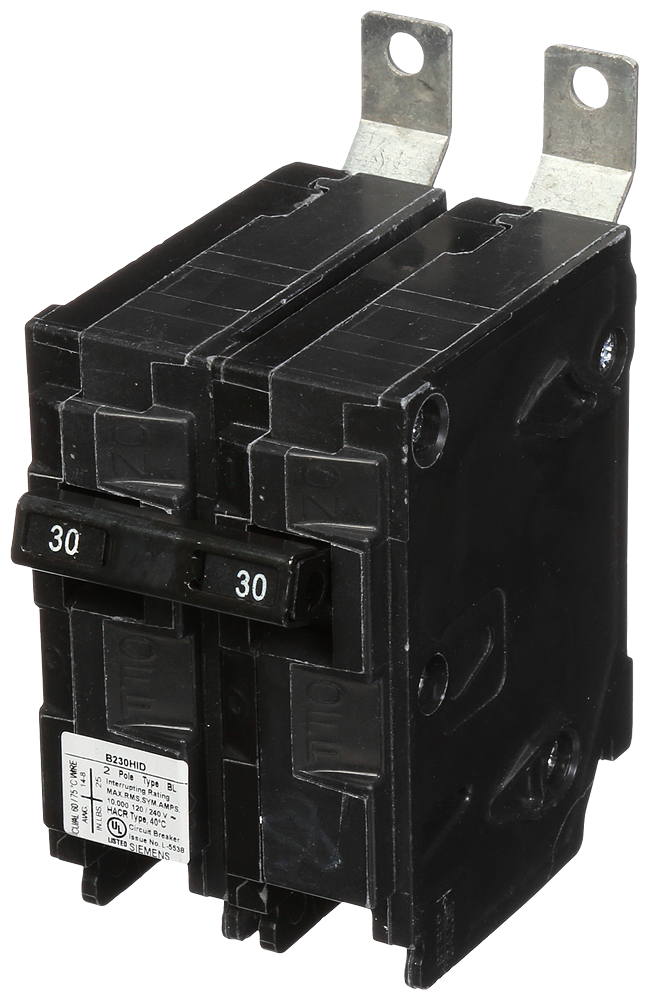

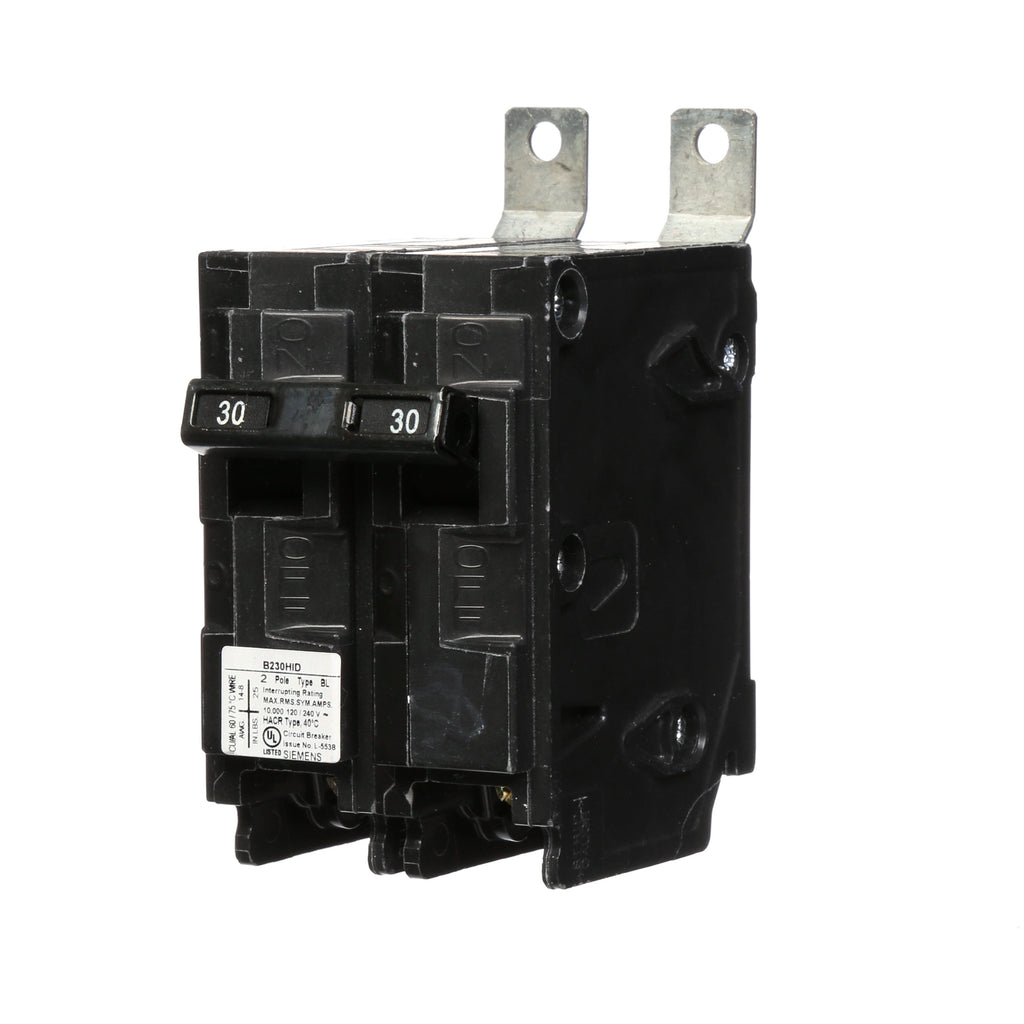

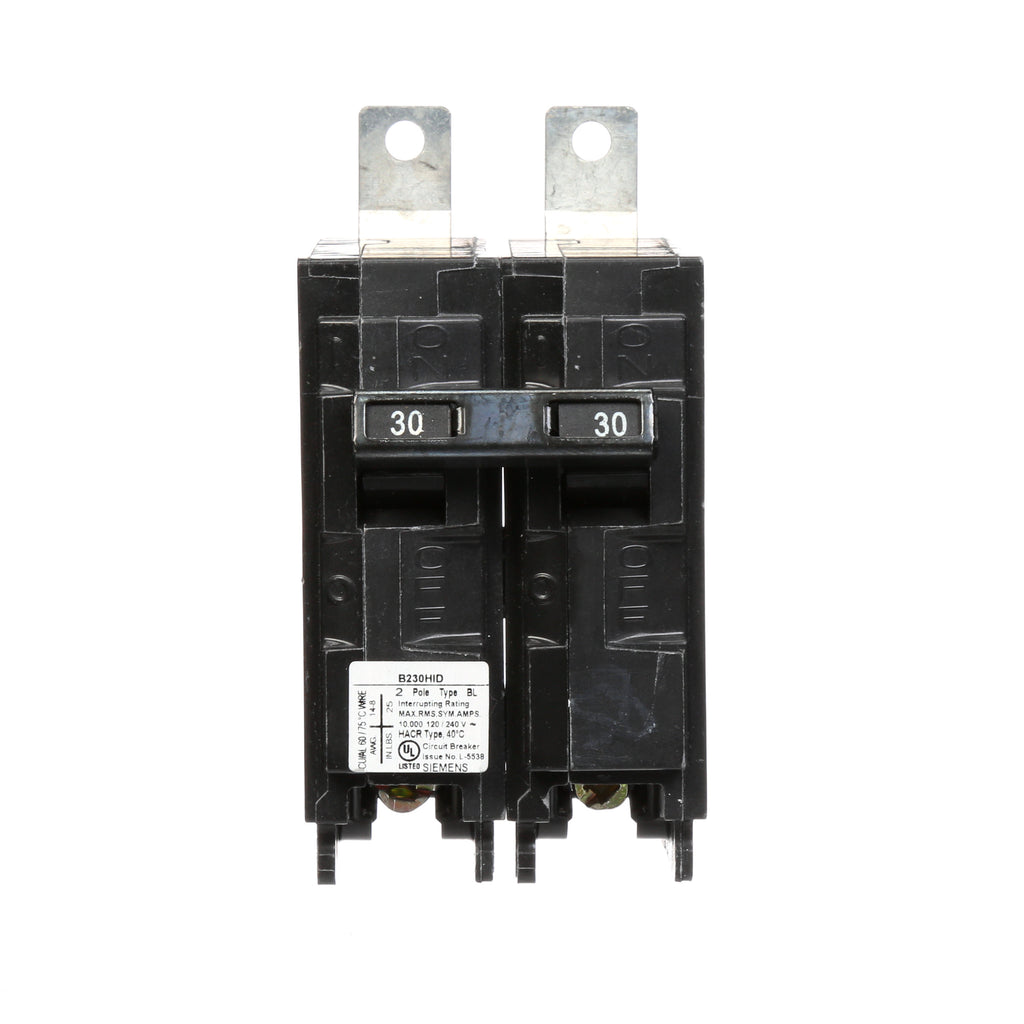

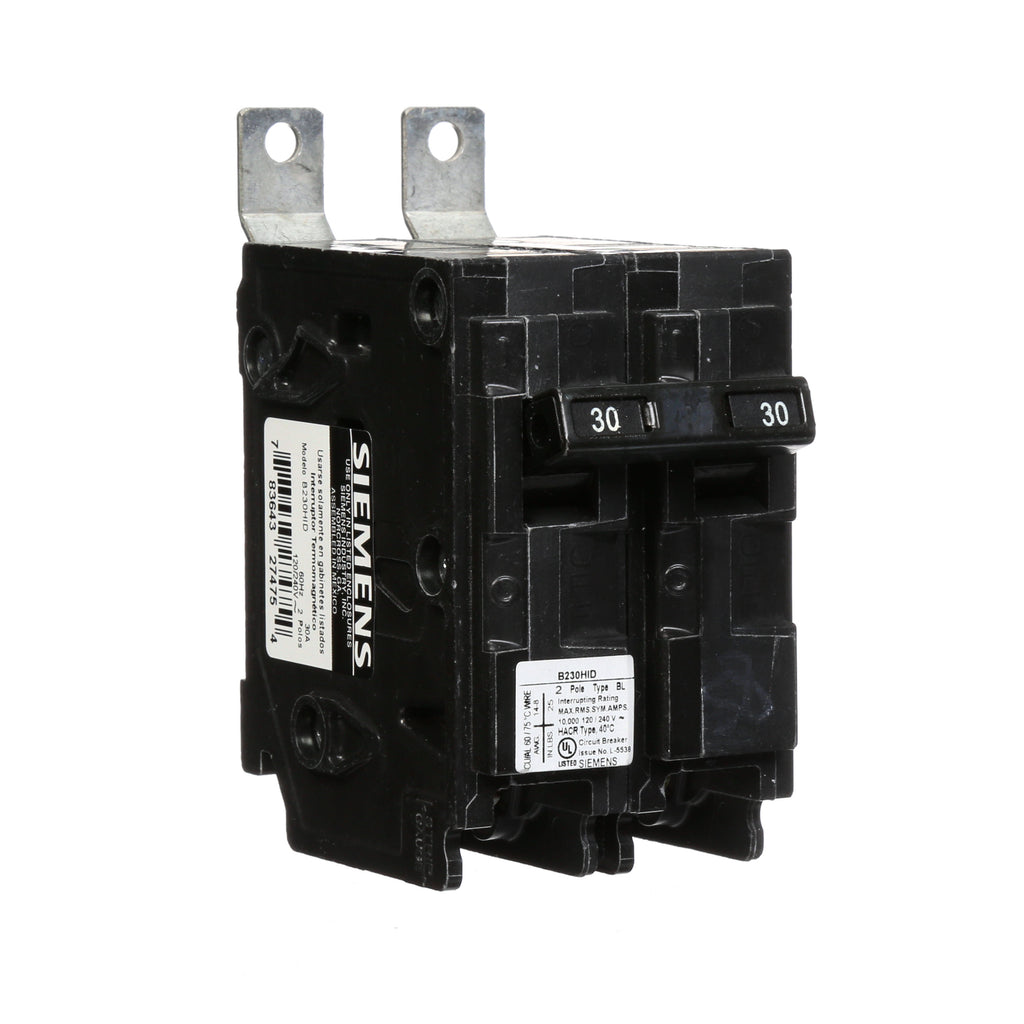

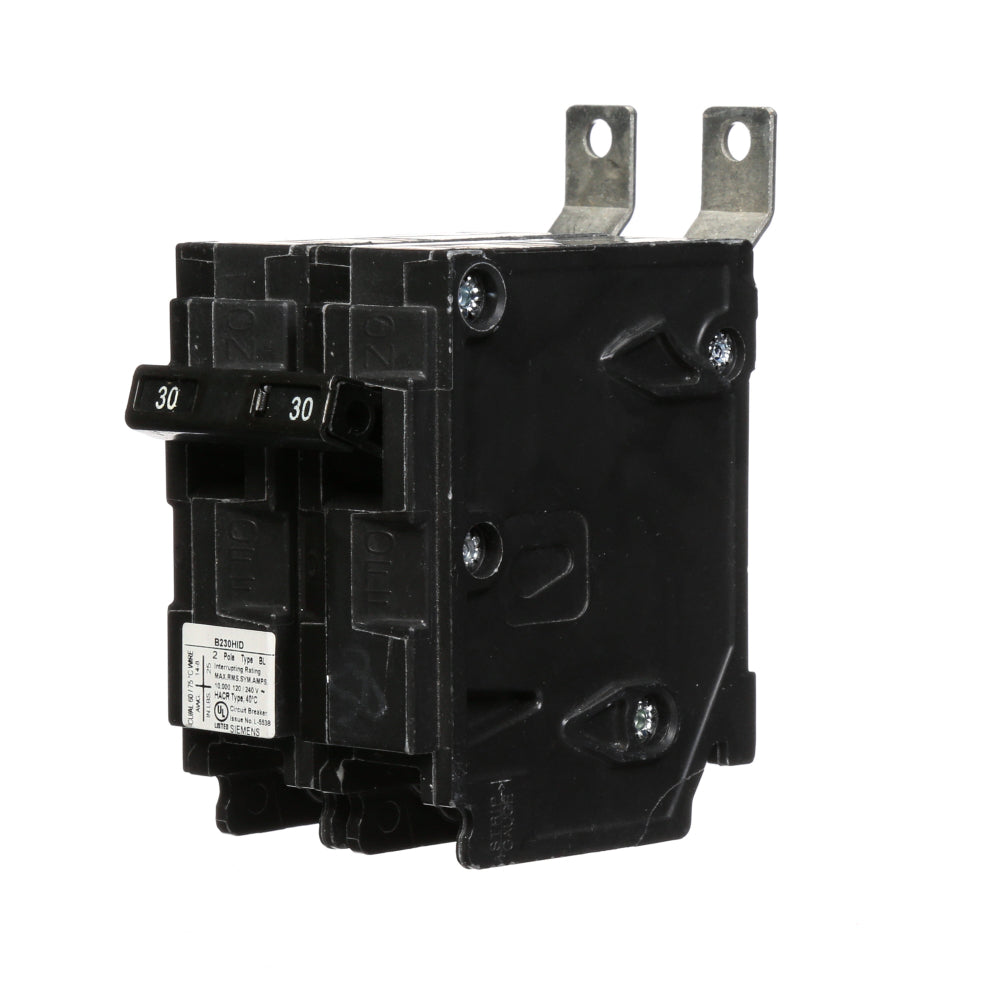

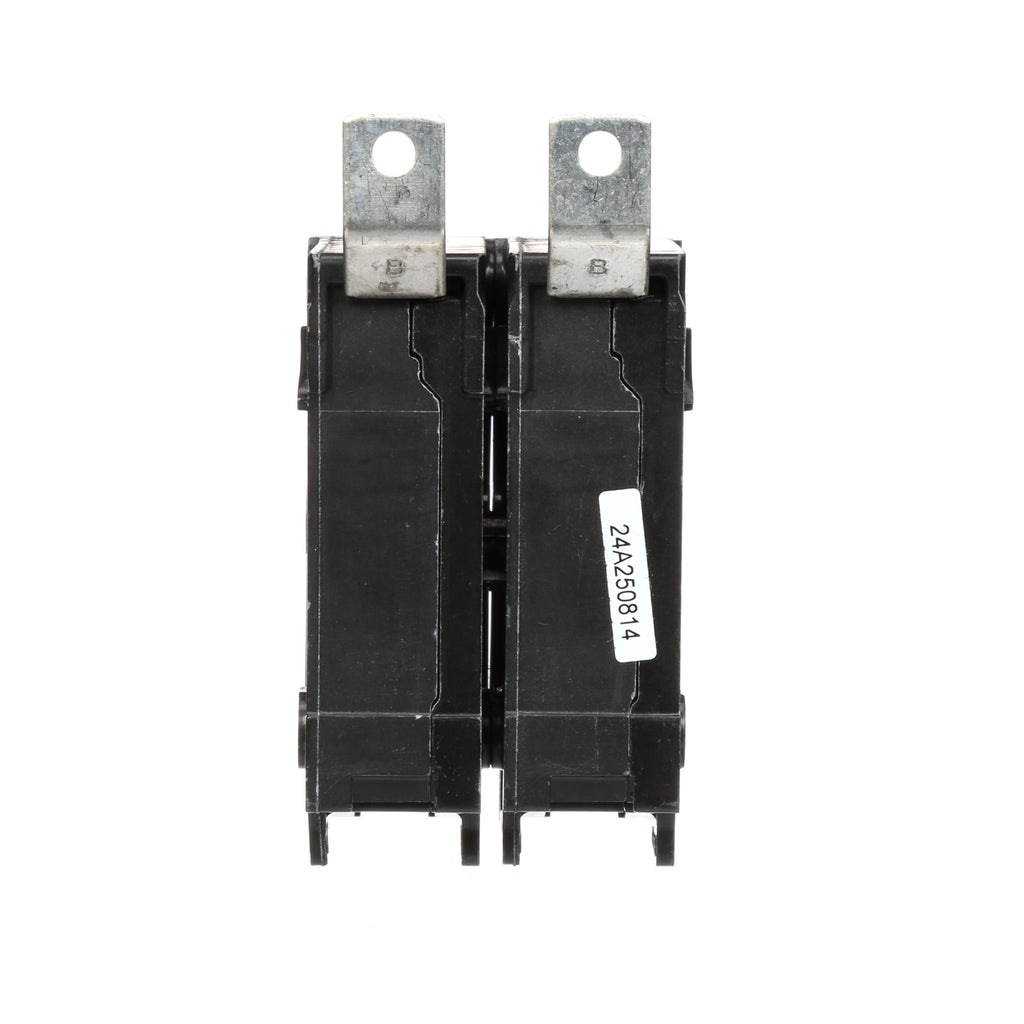

B230HID is a Siemens 30 Amp, 240 Volt, 2 Pole B Series bolt-on circuit breaker designed for high intensity discharge applications.This circuit breaker features a thermal magnetic trip unit with long time and instantaneous trip functions, providing reliable overcurrent protection. It has an interrupting rating of 10,000 amps at 120 volts AC and is designed for panel mounting with bolt-on connection. The breaker is part of Siemens' B frame series and is UL listed for safety and performance.
- Amperage: 30 Amp
- Voltage: 240 Volts AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10,000 A at 120 VAC
- Series/Frame: B Series
- Trip Unit: Thermal Magnetic with Long Time and Instantaneous Trip
- High Intensity Discharge (HID) rated
- UL Listed
- Panel Mounted Molded Case Circuit Breaker
Specifications
- Part Number: B230HID
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 783643274754
- GTIN : 00783643274754
- Country of Origin : Mexico
- Dimensions : 2.563 x 2.00 x 3.122 inch
- Weight : 0.639
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
