Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B230GF

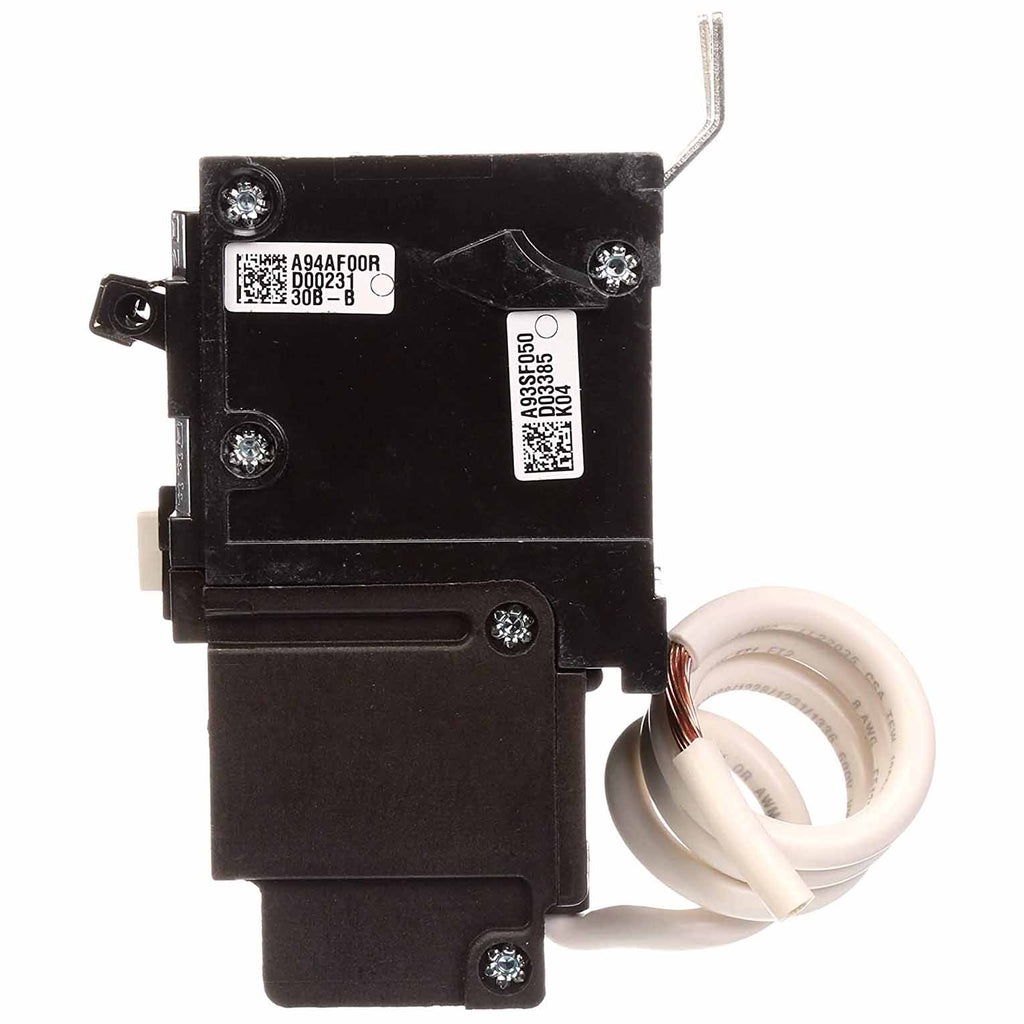

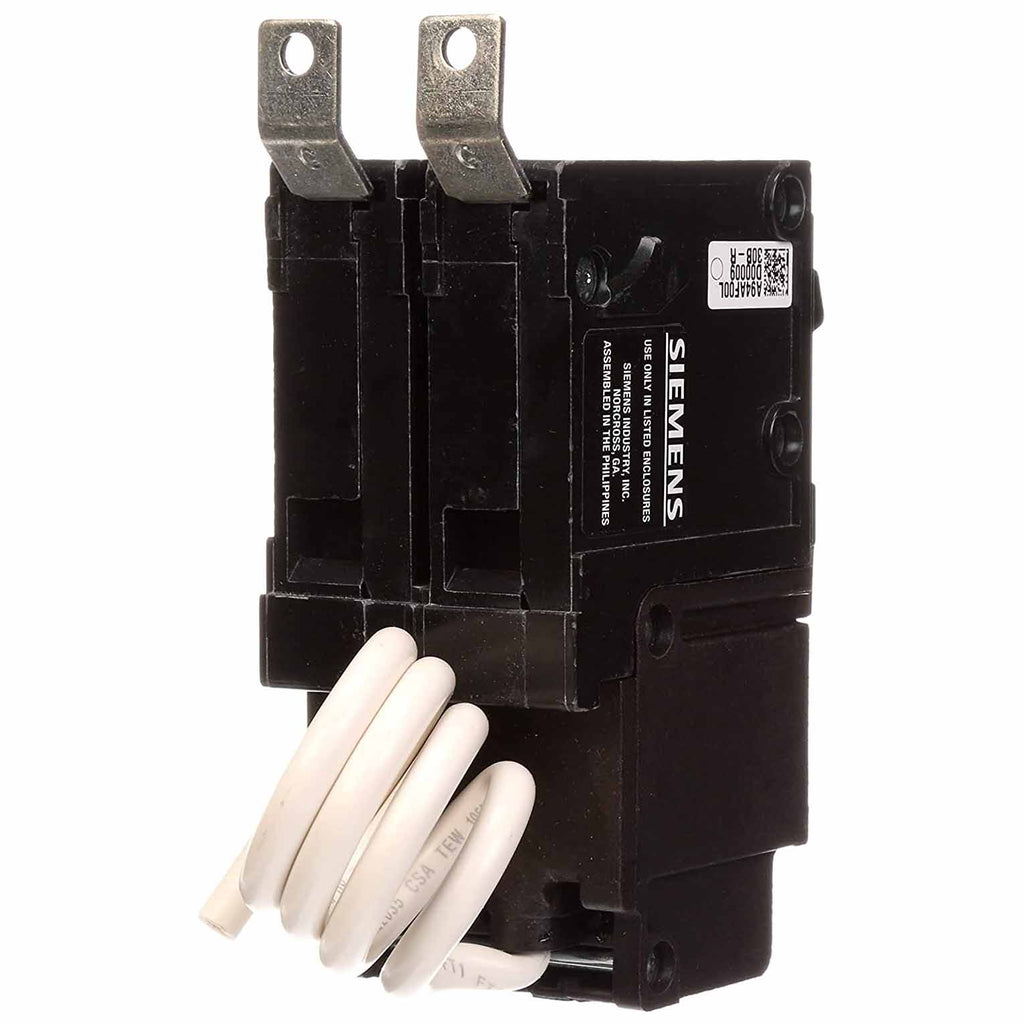

B230GF is a thermal-magnetic, 2-pole molded case circuit breaker designed for 120/240V AC applications with Class A GFCI ground fault protection. This bolt-on breaker features a 5mA trip level and is rated for 10kA interrupting capacity at 240V, making it suitable for residential, commercial, and industrial installations. The breaker includes long time and instantaneous trip functions with self-test capability as required by UL 943 standards.
- Amperage: 30A
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10kA at 240V
- Trip Unit: Thermal-Magnetic
- GFCI Protection: Class A (5mA)
- Frame Type: B (BLFB)
- UL Listed and cUL Certified
- HACR and SWD Rated
Additional Information
Ground Fault 5mA
Specifications
- Part Number: B230GF
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : B
- Voltage : 120/240
- Amperage : 30
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : LI - Long Time and Instantaneous Trip
- Temp Rating : 104 ¡F (40 ¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 195125299627
- GTIN : 00195125299627
- Country of Origin : Philippines
- Dimensions : 5.00 x 2.00 x 3.00 inch
- Weight : 0.8 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
