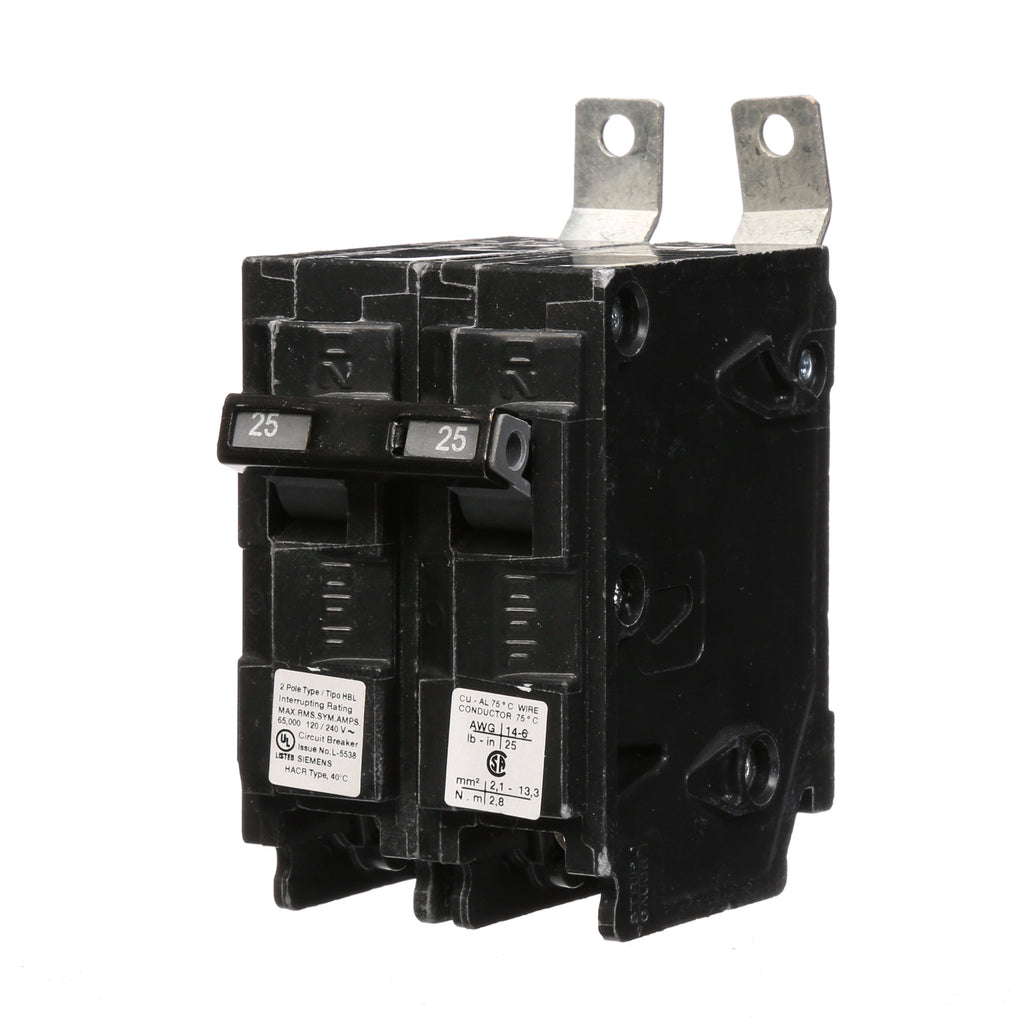

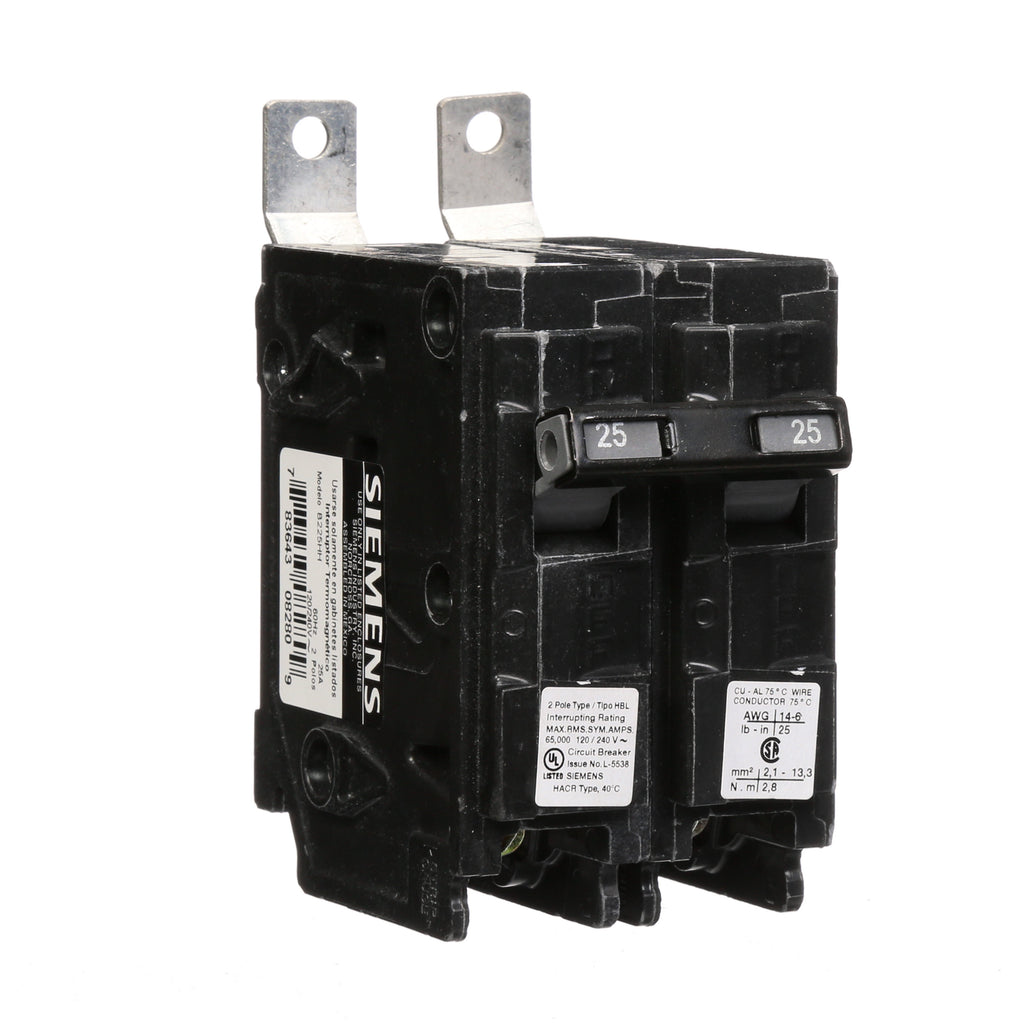

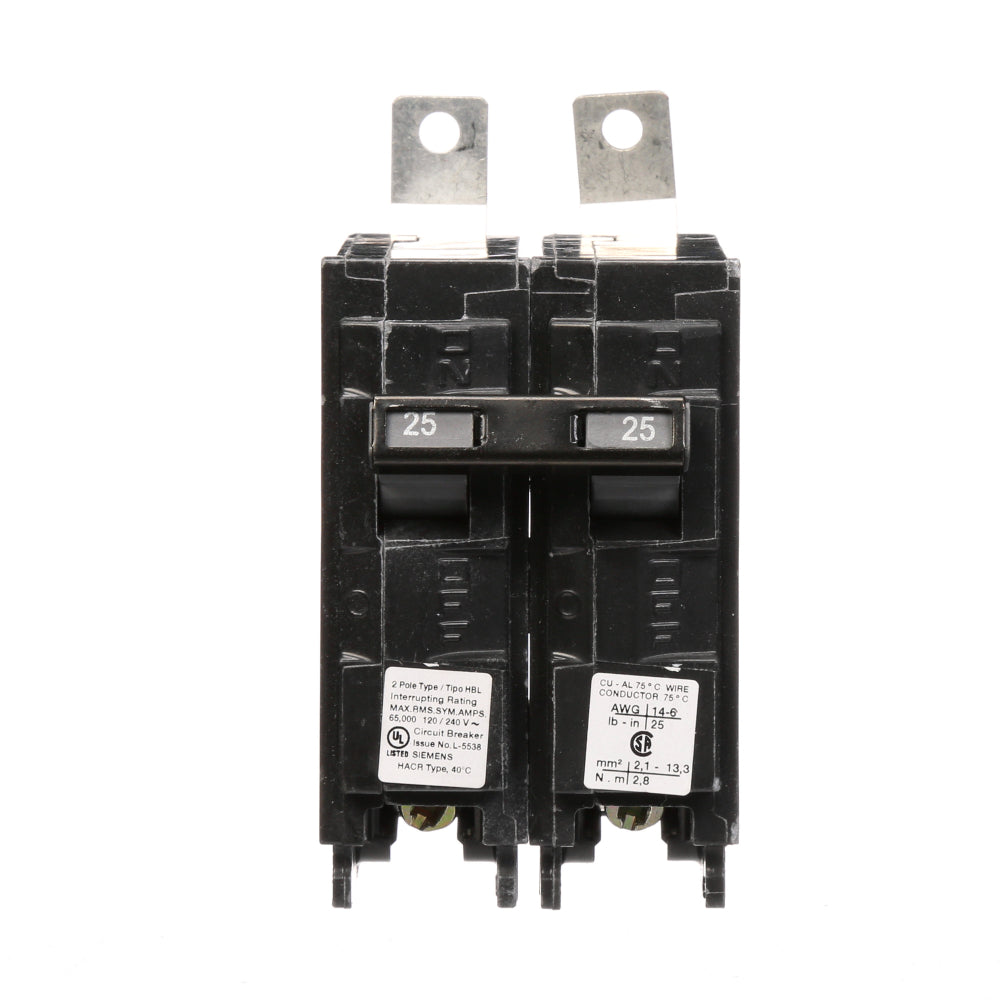

B225HH - Siemens 25 Amp 2-Pole 120/240V Bolt-On Molded Case Circuit Breaker 65kA Interrupt Rating HBL Frame

B225HH

B225HH is a Siemens 2-pole, 25 amp, 120/240 VAC bolt-on molded case circuit breaker designed for reliable circuit protection.This breaker features a thermal magnetic trip unit with a 65kA interrupt rating at 240 volts, suitable for single-phase applications. It uses a bolt-on mounting type and is built on the HBL frame, ensuring compatibility with Siemens panelboards. The breaker provides robust protection with a toggle actuator and is UL listed for safety compliance.

• Amperage: 25 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 65kA at 240 VAC
• Frame Type: HBL
• Trip Unit: Thermal Magnetic
• Phase: Single Phase
• Connection: Bolt-On
• Certifications: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B225HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240
• Amperage : 25
• Phase : 1
• Poles : 2
• AIC rating : 65kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 783643082809
• GTIN : 00783643082809
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
