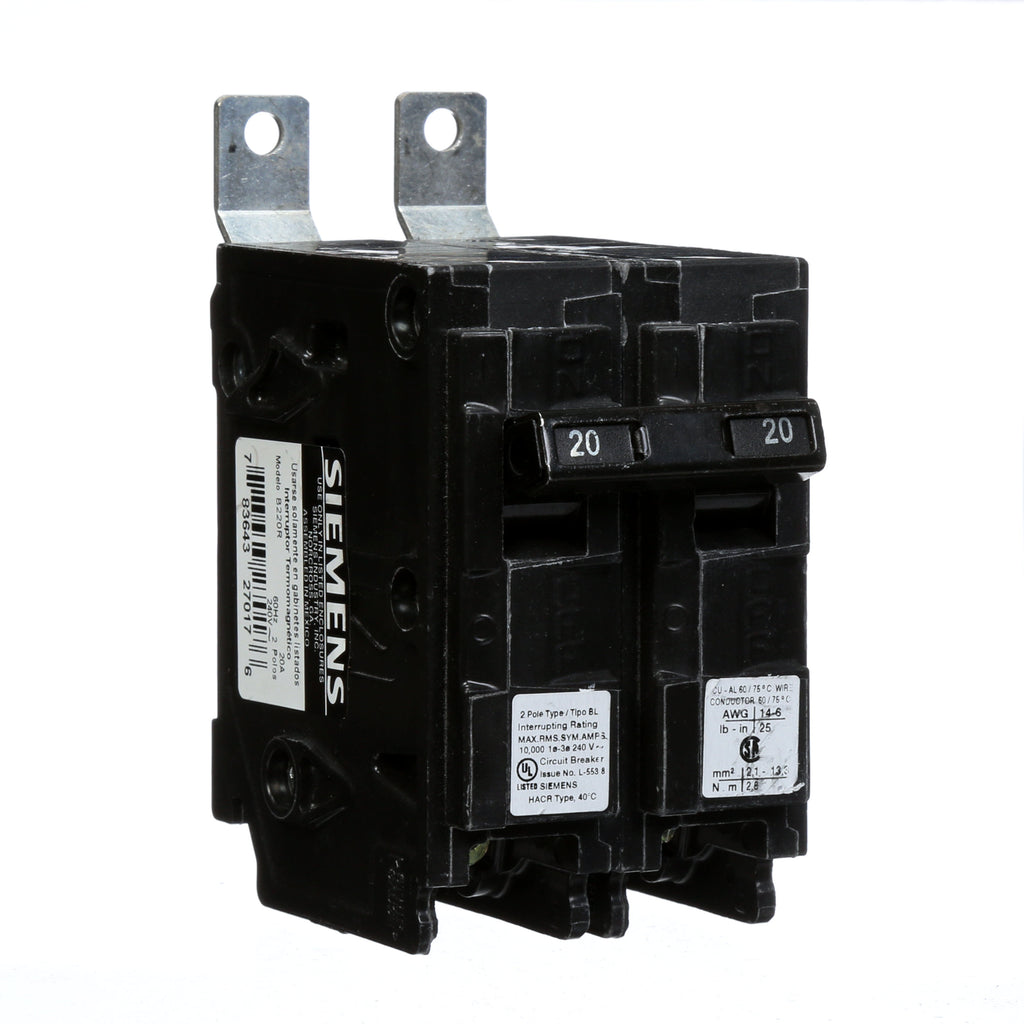

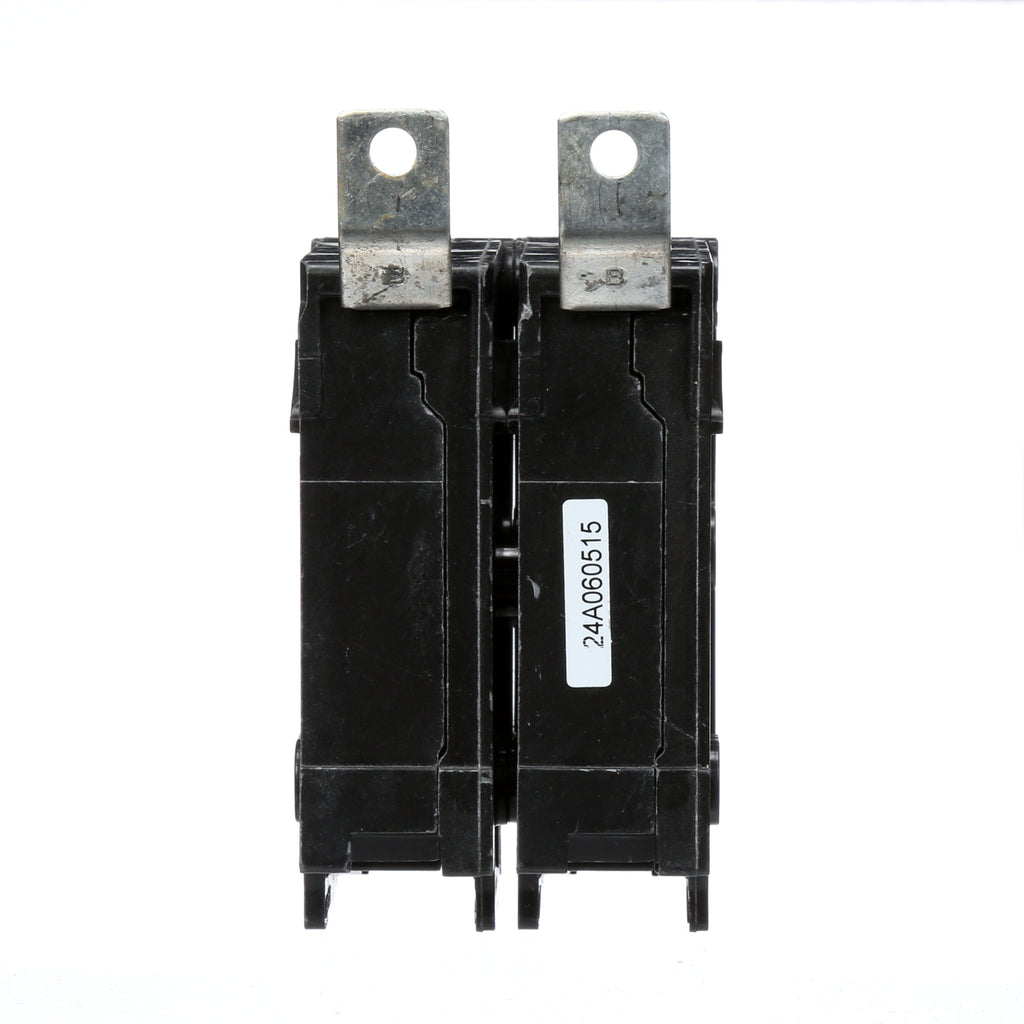

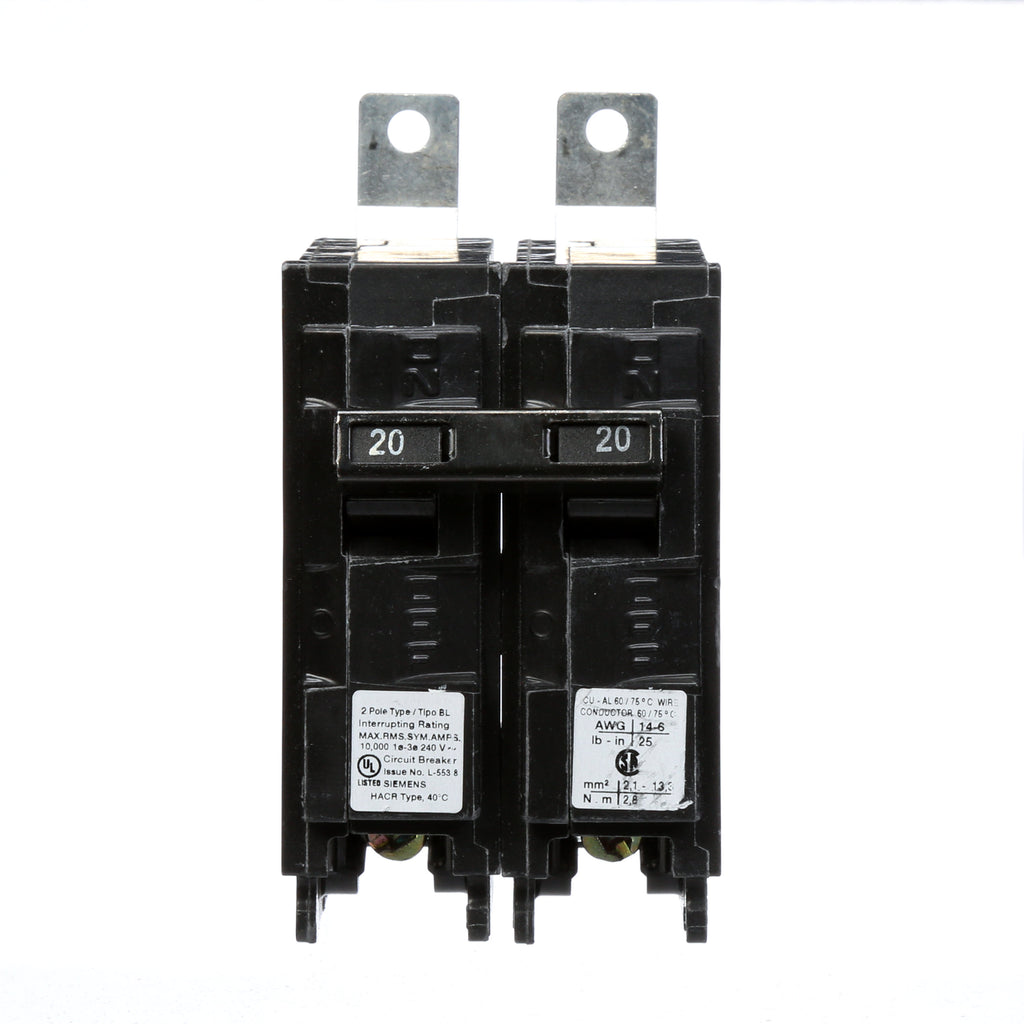

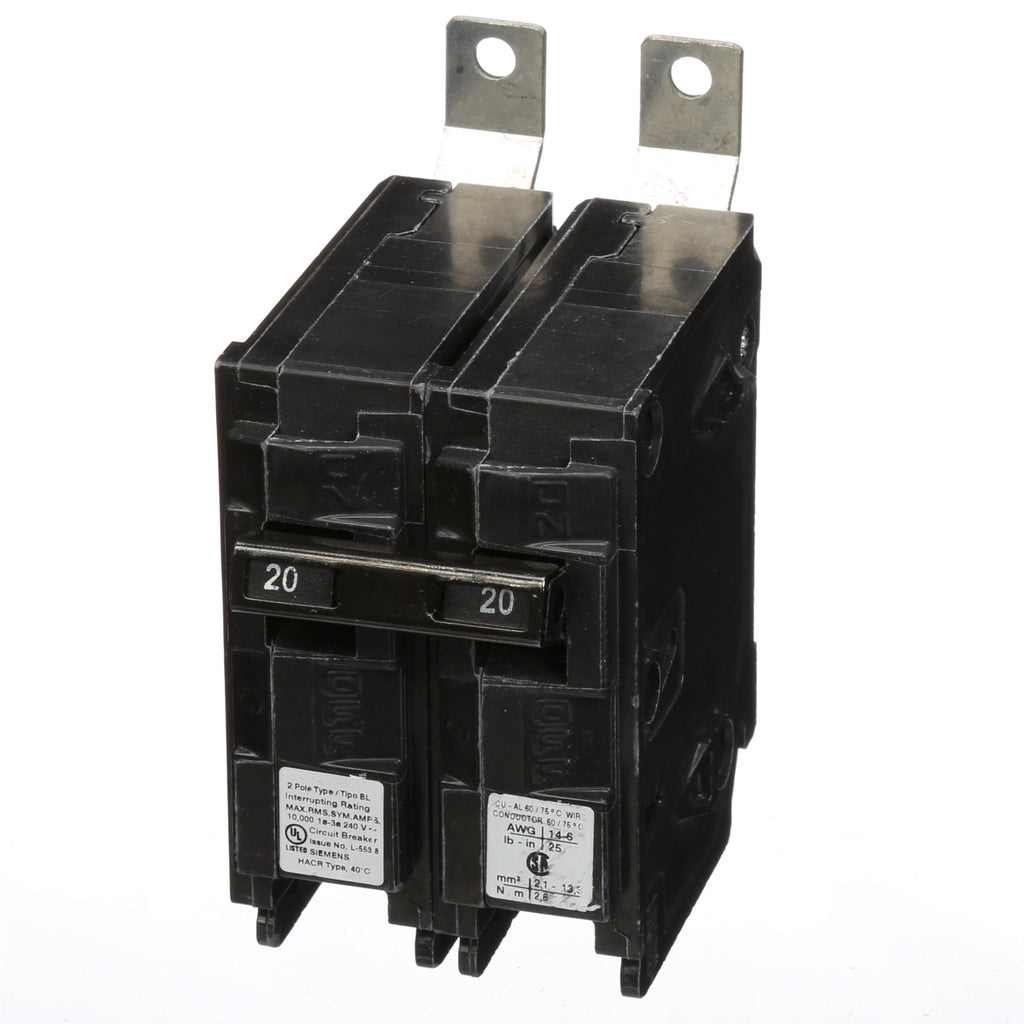

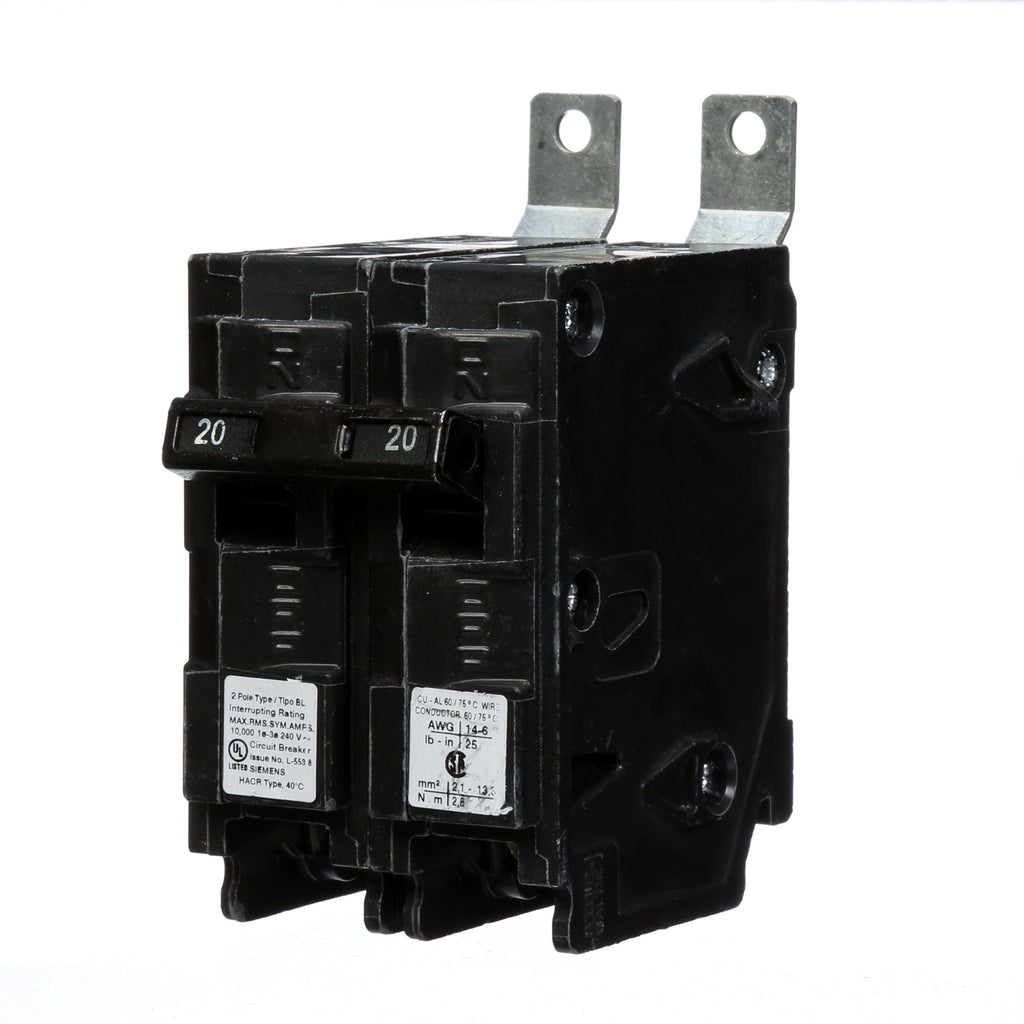

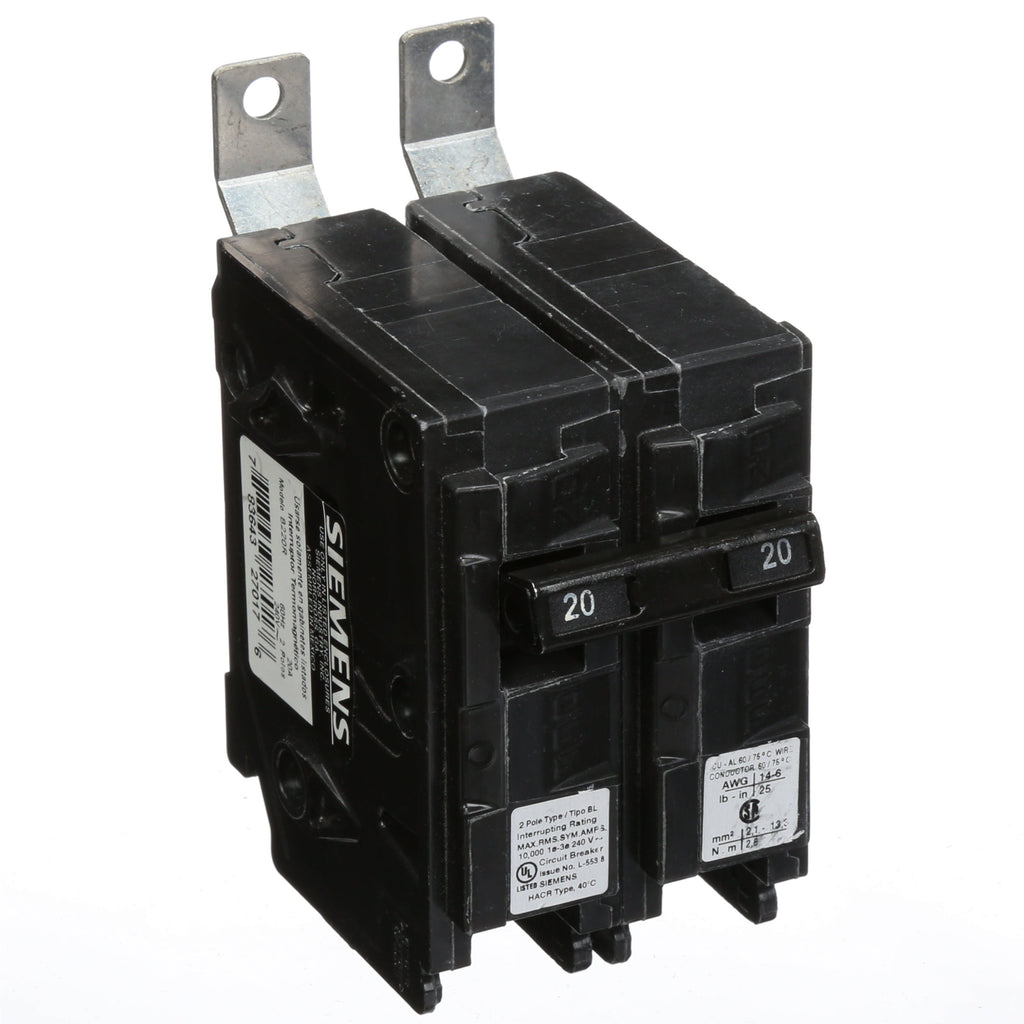

B220R - Siemens 20 Amp 2-Pole 240V Molded Case Circuit Breaker Type BL 10kA Interrupt Rating

B220R

B220R is a Siemens 20 Amp, 2-pole molded case circuit breaker designed for 240 VAC applications with a 10 kA interrupt rating. B220R features a thermal/magnetic trip unit and bolt-on mounting type, suitable for panel installations requiring reliable overcurrent protection. It is part of the Type BL series and supports wire sizes from 14 AWG to larger, with UL and CSA certifications.

Key Specifications
• Amperage: 20 Amp
• Voltage: 240 VAC
• Poles: 2
• Interrupt Rating: 10 kA
• Mounting Type: Bolt-On
• Trip Unit: Thermal/Magnetic
• Series/Frame: Type BL
• Wire Size Range: 14 AWG and up
• Certifications: UL, CSA
• Dimensions: Approx. 3 in depth, 3.5 in height, 2.5 in length

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B220R
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Voltage : 240
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 783643270176
• GTIN : 00783643270176
• Country of Origin : Mexico
• Dimensions : 2.756 x 2.756 x 1.969 inch
• Weight : 0.661
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
