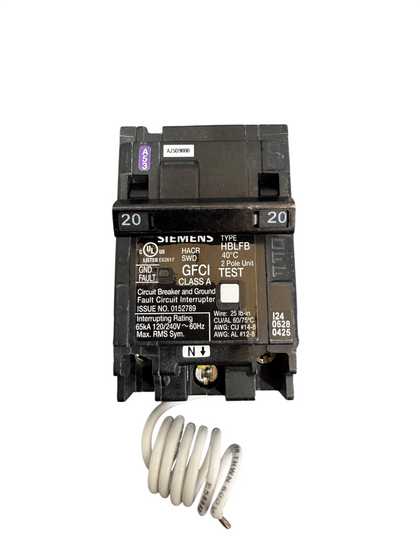

B220GFHH Siemens 20A 2-Pole 120/240V AC Class A GFCI Circuit Breaker, 65,000 AIC, Type HBLFB Bolt-On

B220GFHH

B220GFHH Siemens 20A 2-Pole 120/240V AC Class A GFCI Circuit Breaker, 65,000 AIC, Type HBLFB Bolt-On

The Siemens B220GFHH is a two-pole, 20 A Class A ground fault circuit interrupter rated 120/240 V AC and applied at a 65,000 A interrupting rating. Siemens catalogs the B220GFHH as type HBLFB, the bolt-on ground fault construction within the BL breaker offering, and the HH suffix designates the 65 kA interrupting tier.

The B220GFHH is UL Listed and cUL Certified as a Class A device and complies with UL 943. It responds to a current imbalance of 4 mA to 6 mA or greater, carries HACR and SWD ratings, and incorporates RF interference shielding intended to resist false tripping. Continuous self-test as required by UL 943 is included; where the device determines that its protective function has been compromised, it trips itself.

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Common Applications

• Spa and hot tub branch circuits
• Kitchen receptacle circuits
• Bathroom receptacle circuits
• Construction power
• 120/240 V AC single-phase, three-wire systems
• The 120/240 V AC portion of 240/120 V three-phase, four-wire systems
• 208Y/120 V three-phase, four-wire systems

Key Features

• Class A ground fault protection: Interrupts the circuit on a current imbalance of 4 mA to 6 mA or greater.
• 65,000 A interrupting rating: Siemens lists the B220GFHH in the 65 kA column of its Class A 5 mA ground fault offering.
• UL 943 self-test: The device tests itself continuously and trips where its protective function is found to be compromised.
• RF interference shielding: Shielding is provided to resist false tripping caused by radio frequency interference.
• No load neutral required: A load neutral is not required on two-pole circuits; the white line neutral pigtail must be connected to the panel neutral.

Specifications

• Manufacturer: Siemens
• Catalog Number: B220GFHH
• Type: HBLFB
• Product Type: Class A ground fault circuit interrupter circuit breaker
• Poles: 2
• Amperage: 20 A
• Voltage: 120/240 V AC
• Interrupting Rating: 65,000 A
• Ground Fault Sensitivity: Class A, 5 mA
• Mounting: Bolt-on
• Standard: UL 943
• Listings: UL Listed, cUL Certified
• Additional Ratings: HACR, SWD
• Lifecycle Status: Active

Product Identification

• Packaging Dimensions: 5.00 in L x 2.00 in W x 3.00 in H
• Net Weight: 0.8 lb

FAQ

What is the Siemens B220GFHH? It is a two-pole, 20 A, 120/

Specifications

• Part Number: B220GFHH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 240 V
• Amperage : 20 A
• Phase : 1
• Poles : 2
• AIC rating : 65 kA
• Connection : Bolt-On

Product Data

• UPC : 195125303904
• Country of Origin : Philippines
• Dimensions : 5.00 x 2.00 x 3.00 inch
• Weight : 0.8 lb
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
