Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B220GF

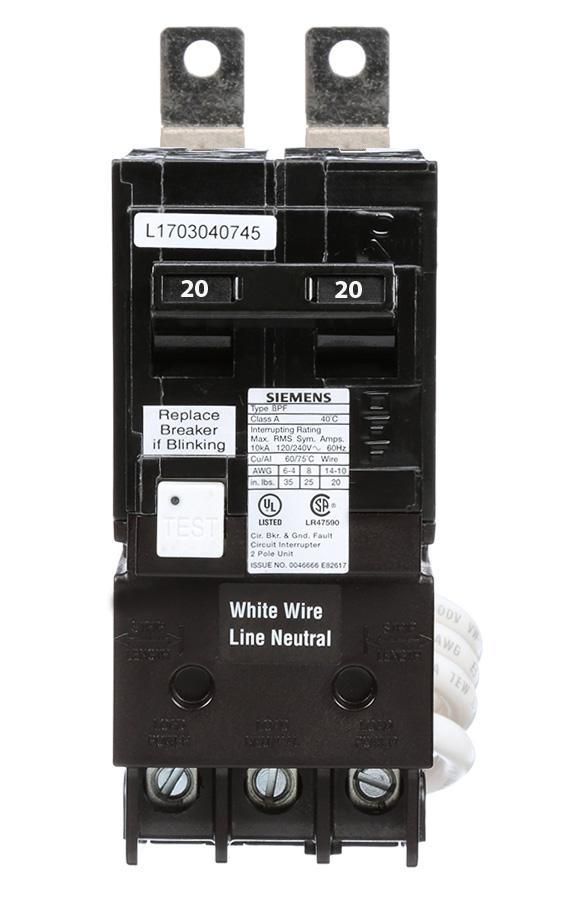

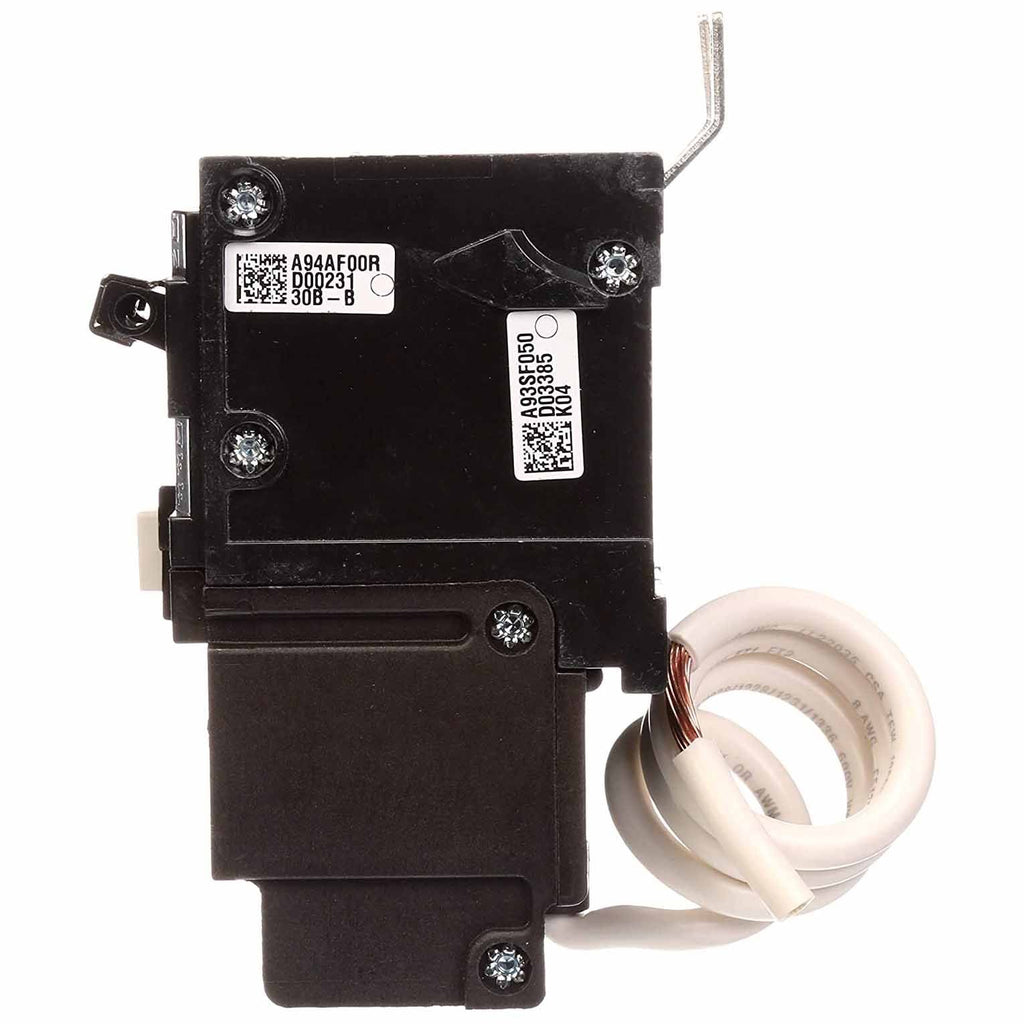

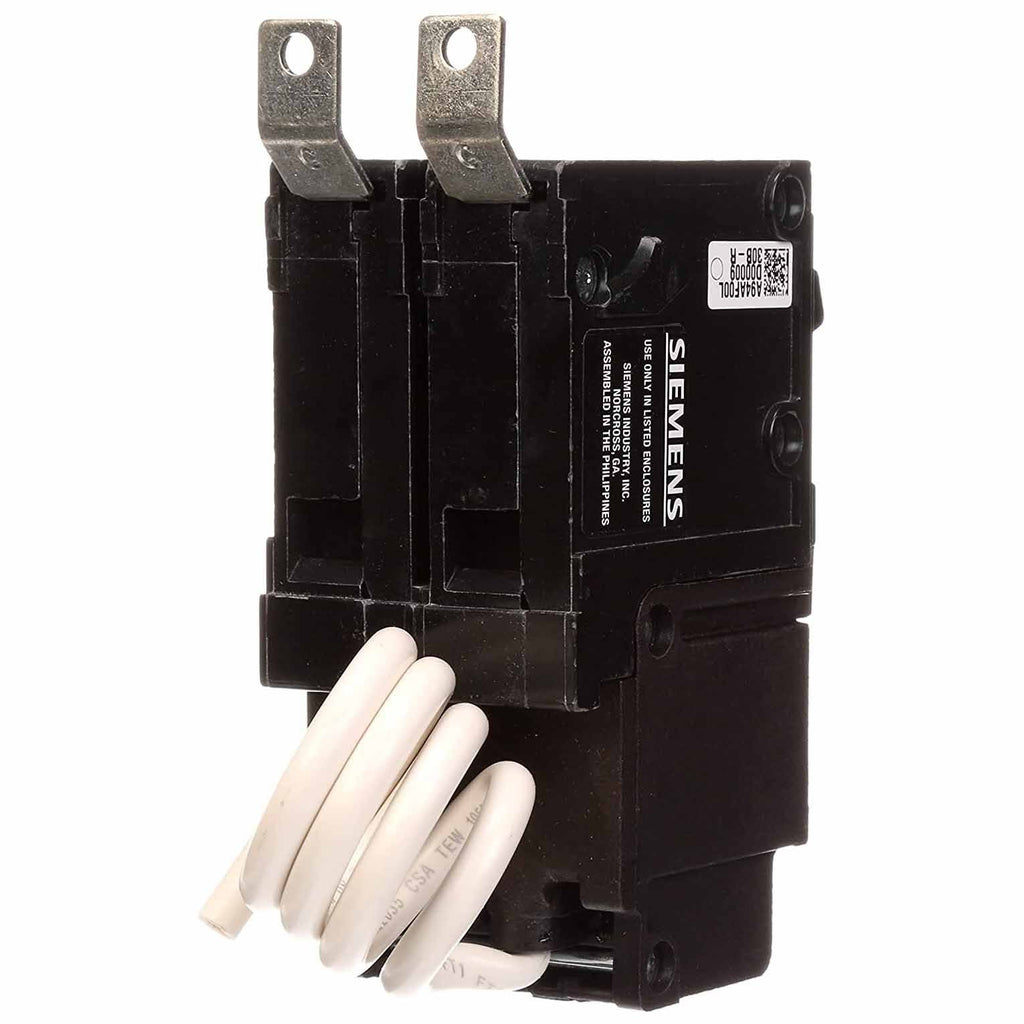

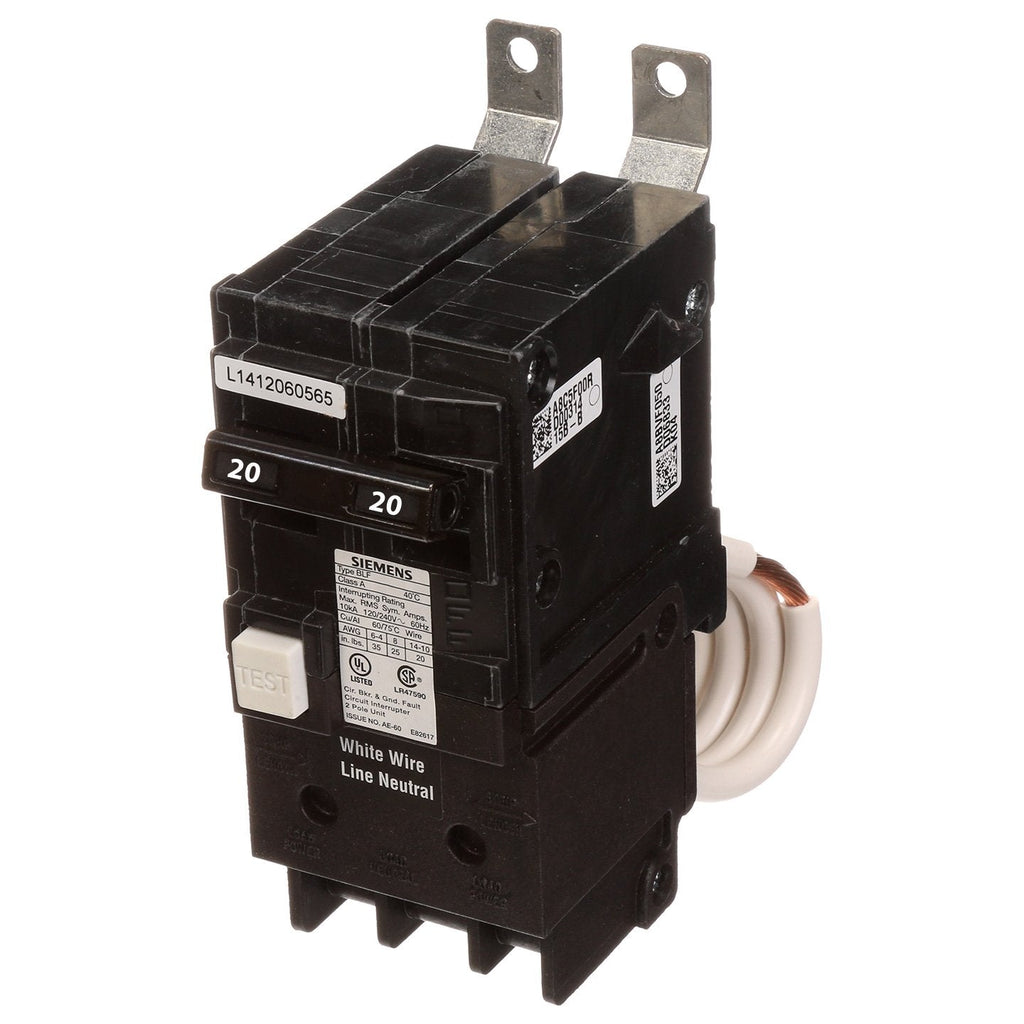

B220GF is a Siemens 2-pole ground fault circuit breaker designed for reliable protection in 120/240V AC electrical systems.
This circuit breaker features a bolt-on mounting type for secure installation, a thermal magnetic trip unit for both overload and short circuit protection, and is part of the BLFB series. It is suitable for use in residential and light commercial applications where ground fault protection is required.
-
Key Specifications
- Part Number: B220GF
- Manufacturer: Siemens
- Amperage: 20 Amp
- Voltage: 120/240V AC
- Poles: 2
- Mounting Type: Bolt-On
- Interrupt Rating: 10 kAIC
- Series/Frame: BLFB
- Trip Unit: Thermal Magnetic
- Certifications: Not specified in available data
- Connection: Bolt-On
- Phase: 1
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Additional Information
Ground Fault 5mA
Specifications
- Part Number: B220GF
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : B
- Voltage : 120/240
- Amperage : 20
- Phase : 1
- Poles : 2
- AIC rating : 10kA@240V
- Connection : Bolt-On
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 195125299603
- GTIN : 00195125299603
- Country of Origin : Philippines
- Dimensions : 5.00 x 2.00 x 3.00 inch
- Weight : 0.8 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
