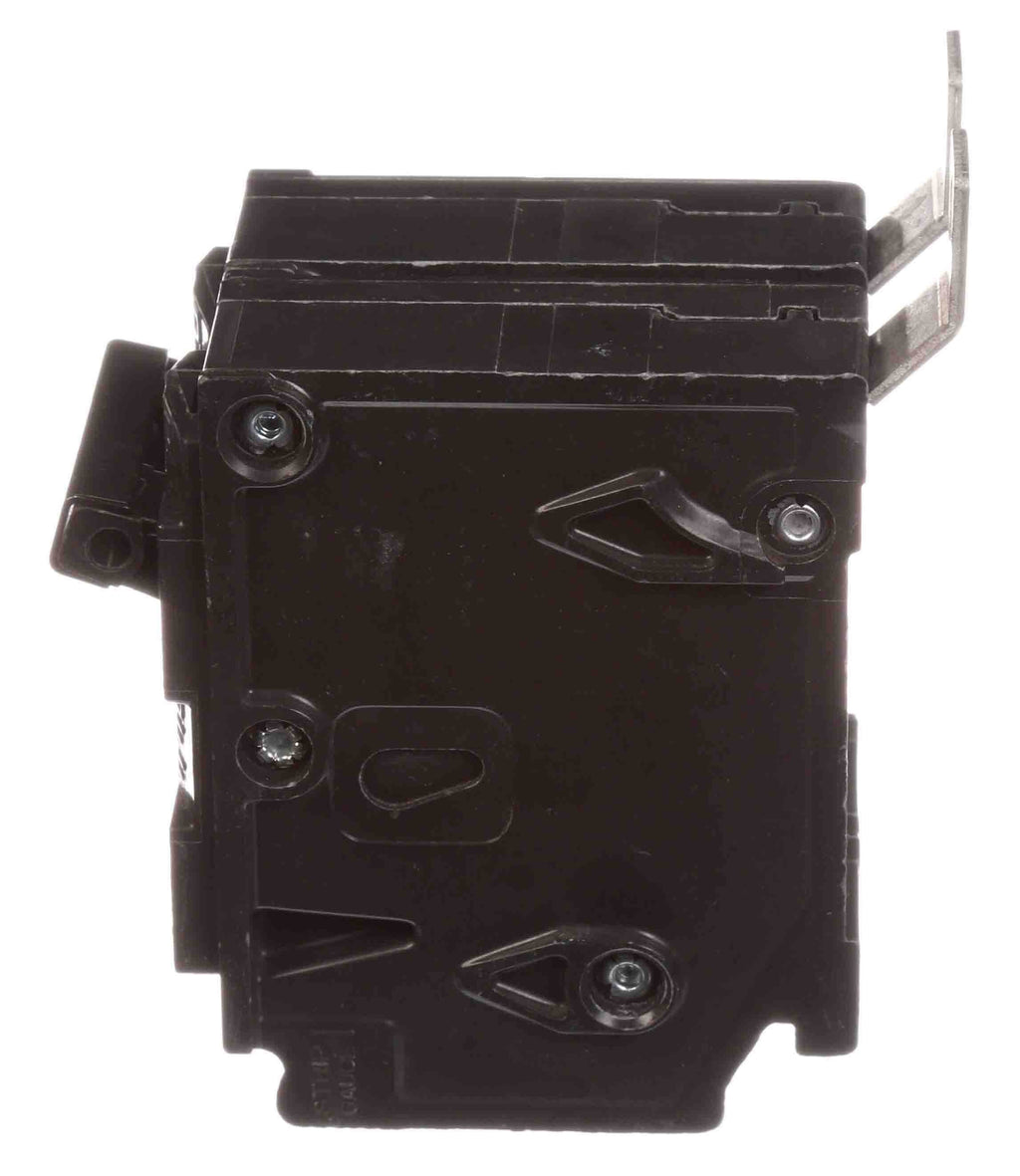

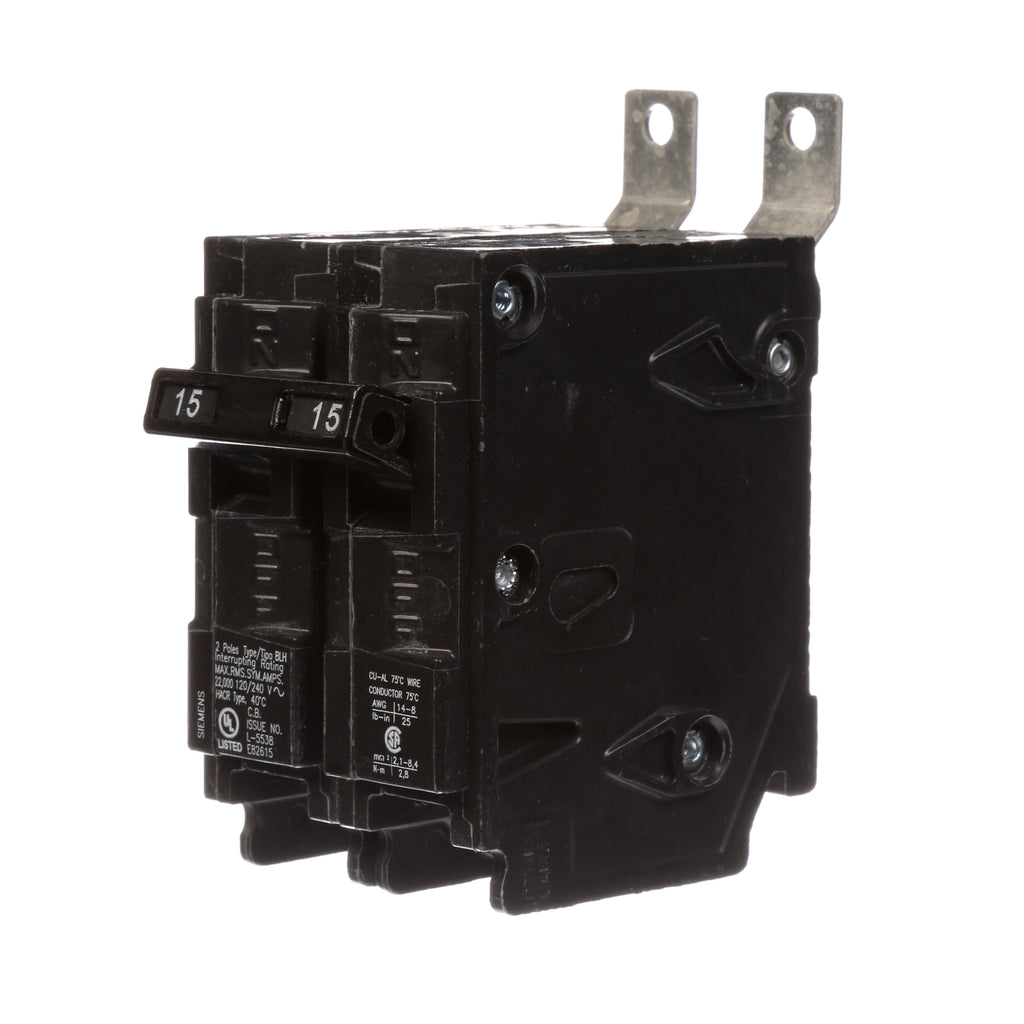

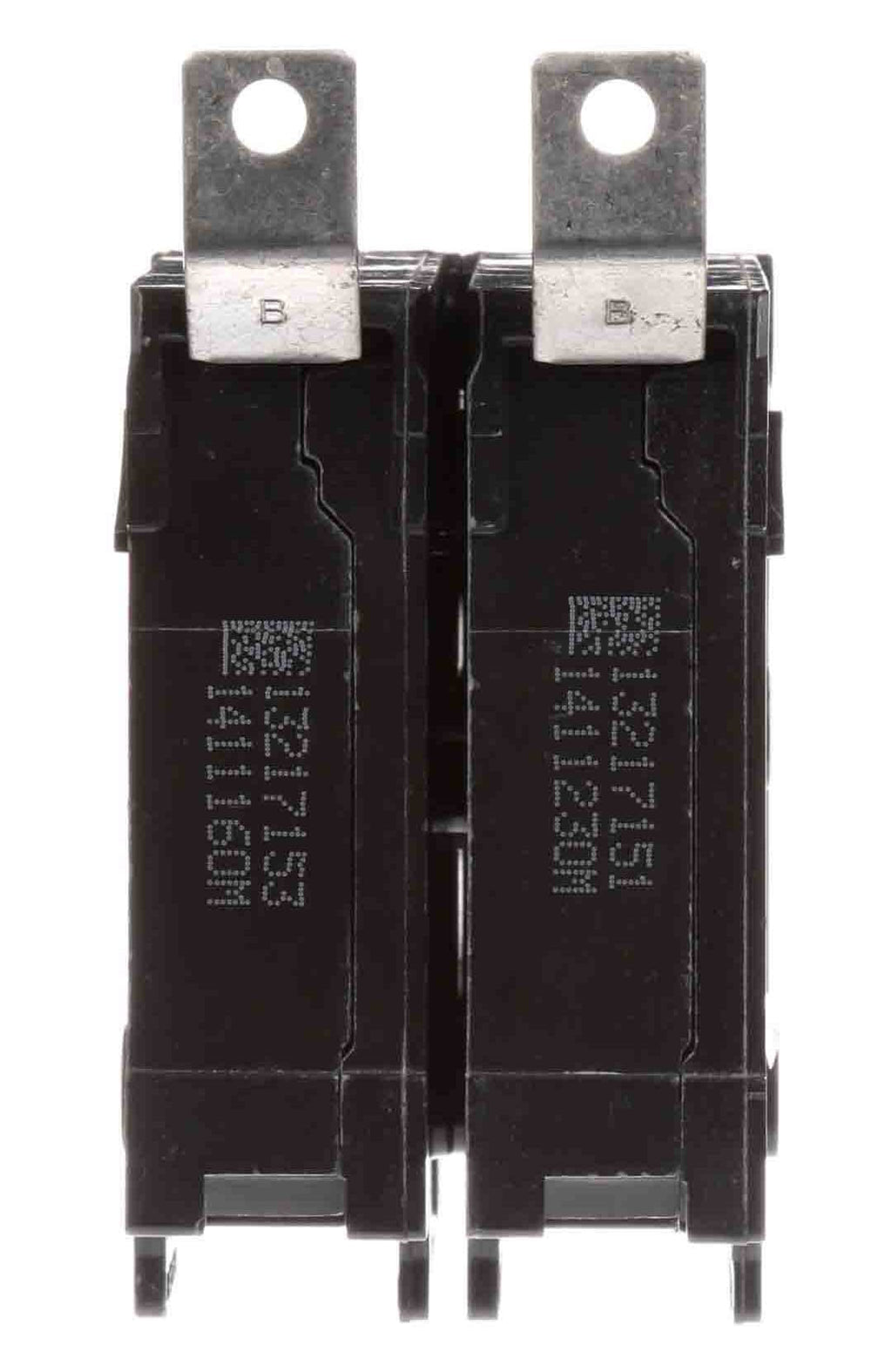

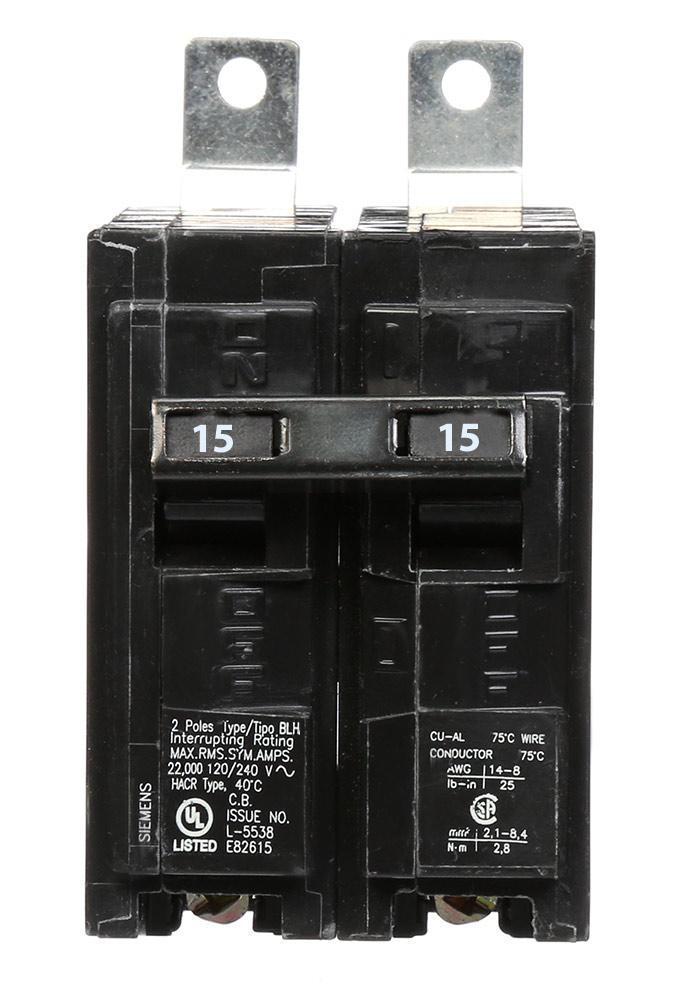

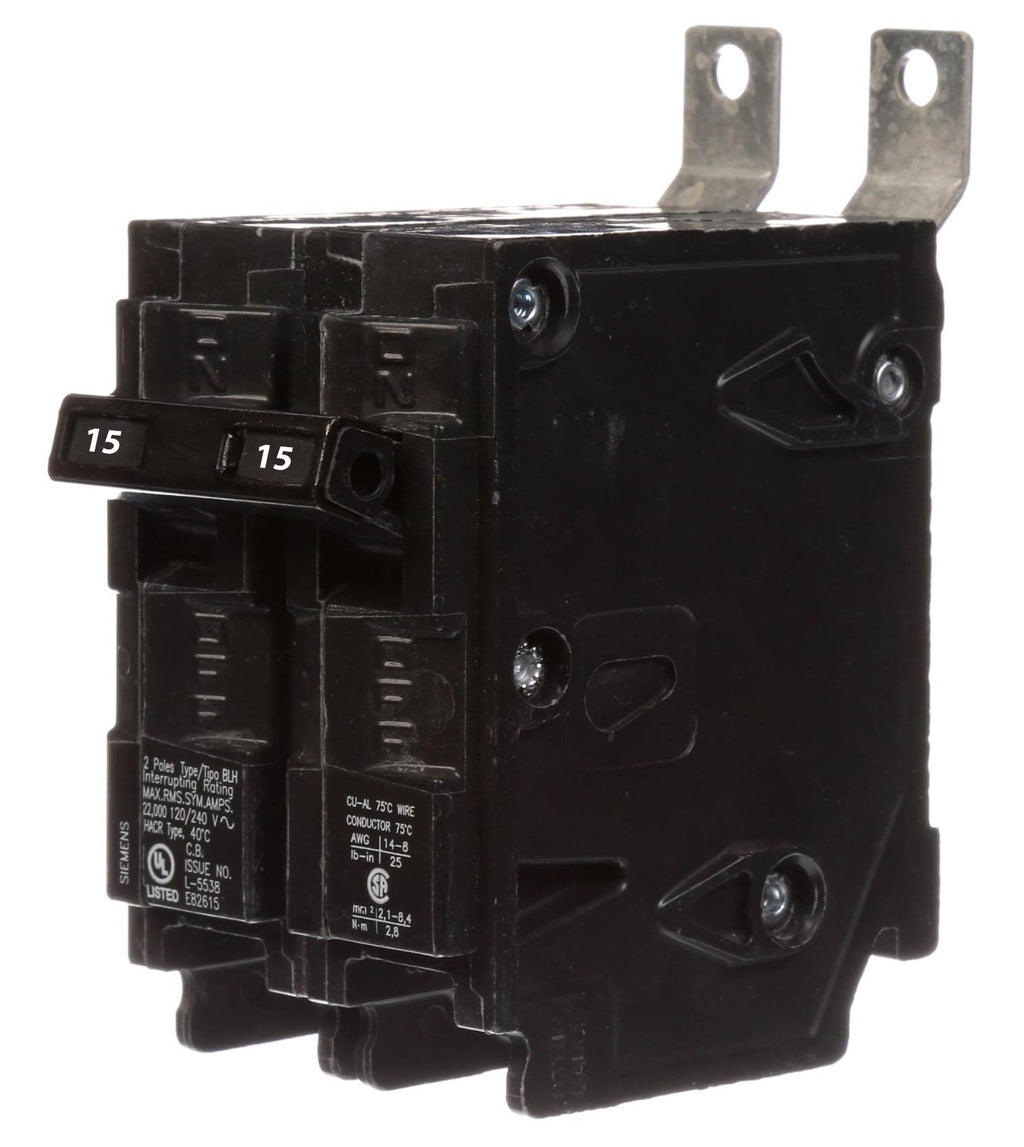

B215H - Siemens 2-Pole 15 Amp 120/240 VAC 22 kA Bolt-On Molded Case Circuit Breaker

B215H

B215H is a Siemens 2-pole, 15 amp, 120/240 VAC molded case circuit breaker designed for reliable electrical distribution and panelboard protection. This Siemens B215H breaker features a bolt-on mounting design, thermal magnetic trip unit, and a 22 kA interrupting rating, making it suitable for a wide range of commercial and industrial applications. It is UL 489 listed and built to meet rigorous safety standards for dependable circuit protection.

• Part Number: B215H
• Manufacturer: Siemens
• Series/Frame: BL
• Number of Poles: 2
• Amperage Rating: 15 A
• Voltage Rating: 120/240 VAC
• Mounting Type: Bolt-On
• Interrupting Rating: 22 kA
• Series/Frame: BL
• Trip Unit: Thermal Magnetic
• Standards: UL 489
• Application: Panelboard Mounting

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B215H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263895
• GTIN : 00783643263895
• Country of Origin : Mexico
• Dimensions : 3.937 x 1.969 x 3.937 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
