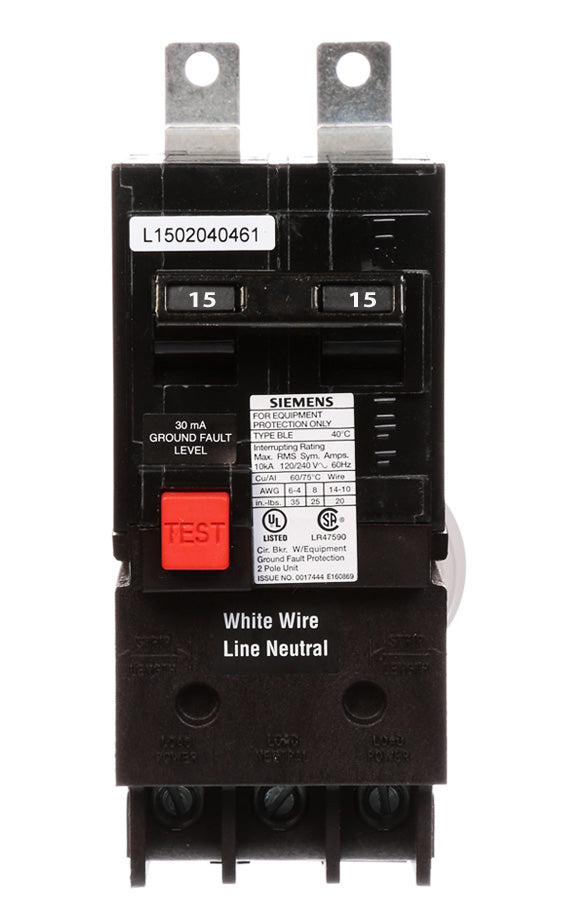

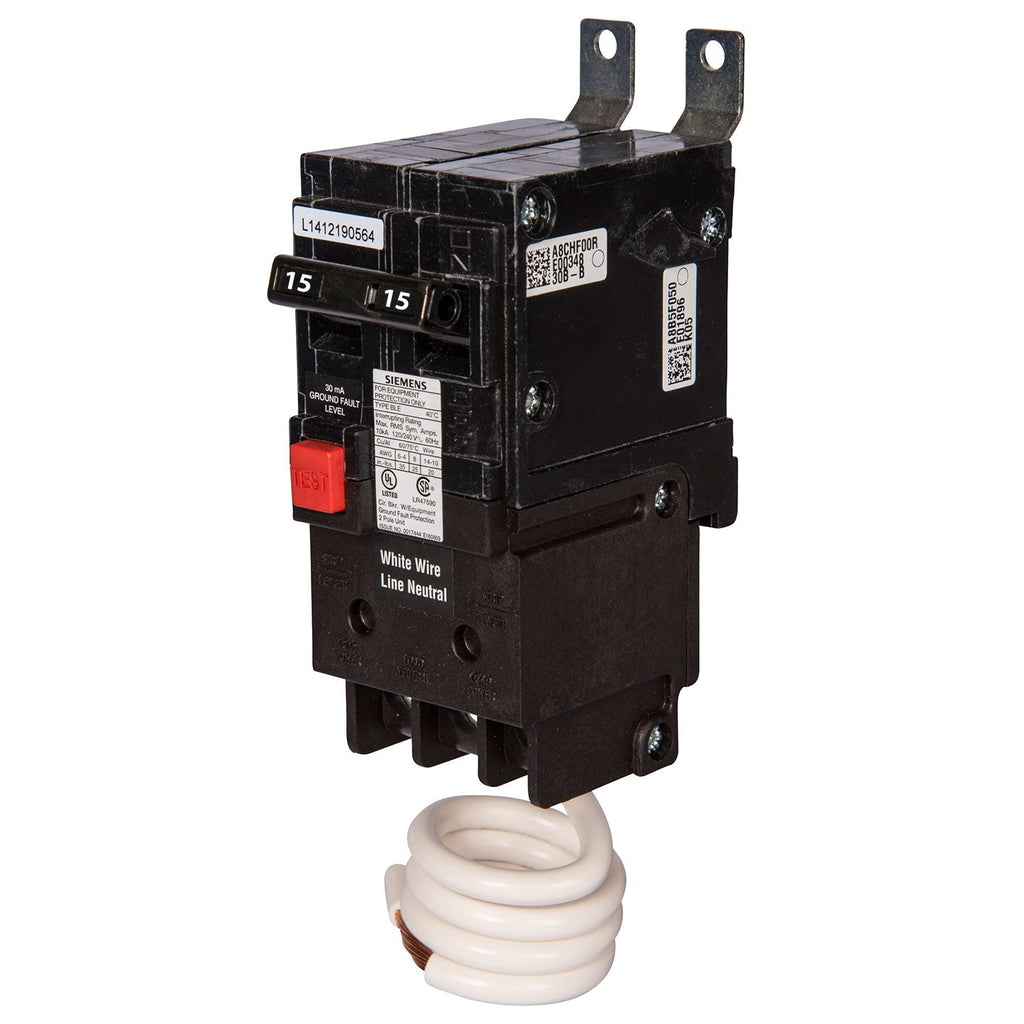

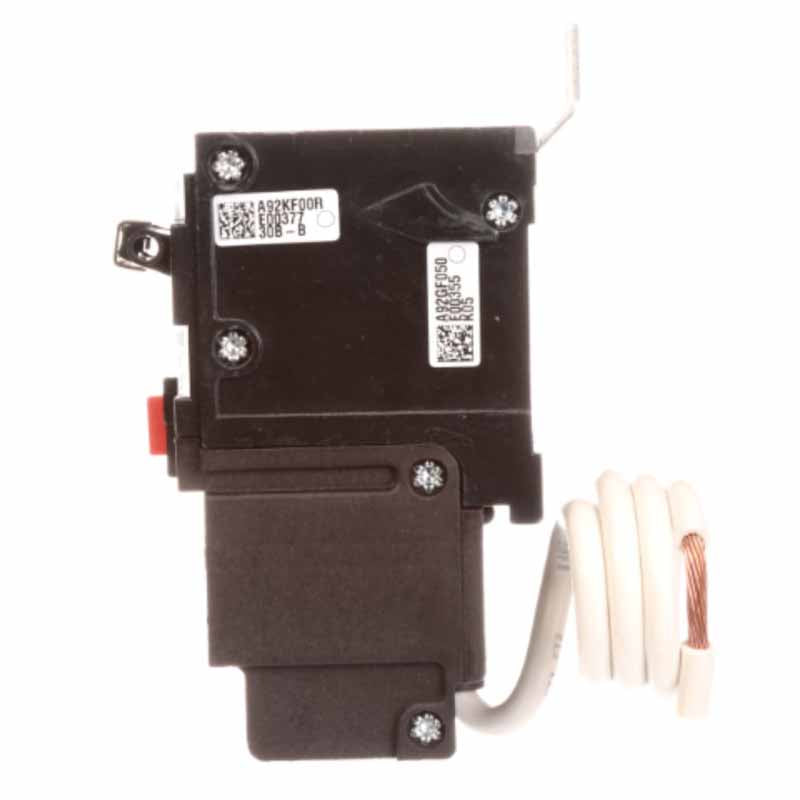

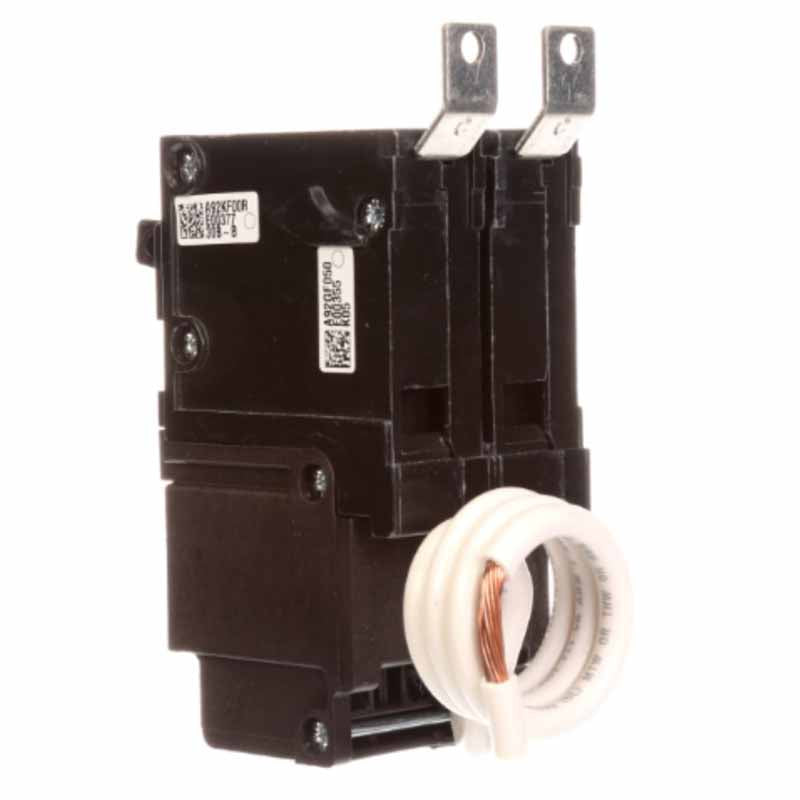

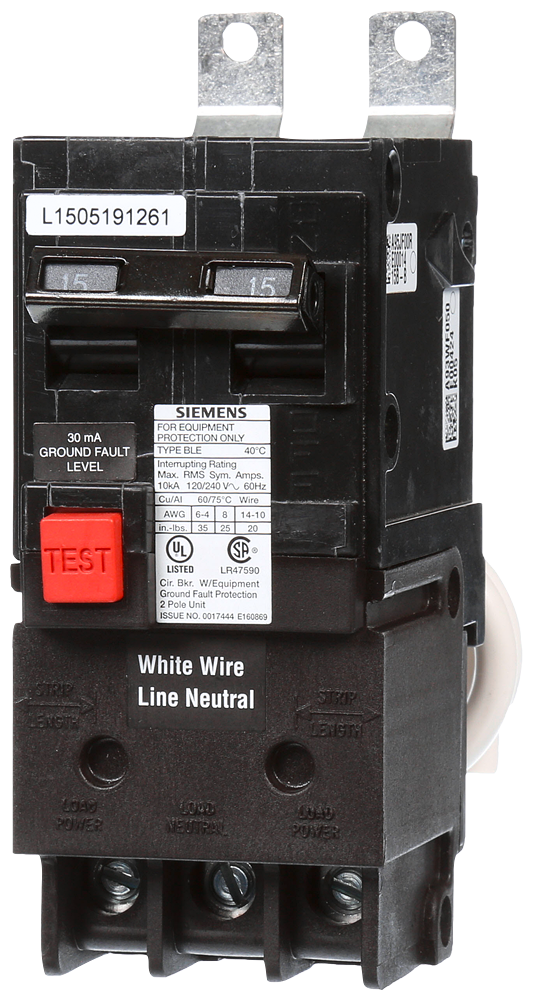

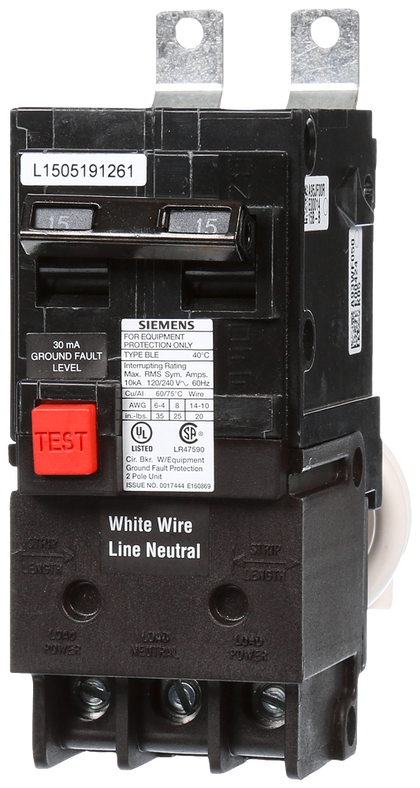

B215EG - Siemens 15A 240V 2-Pole Bolt-On Circuit Breaker, 10kAIC, Series B, Thermal Magnetic Trip, UL Listed

B215EG

B215EG is a 2-pole, 240V, 15A molded case circuit breaker designed for electrical distribution in residential, commercial, and industrial applications.B215EG features thermal magnetic trip protection with long-time and instantaneous trip functions. The breaker has a 10kA interrupting capacity at 240V and utilizes bolt-on connections for secure panelboard mounting. It is UL 489 listed and provides equipment protection with ground fault protection capabilities.

• Amperage Rating: 15A
• Voltage Rating: 240V AC
• Number of Poles: 2
• Connection Type: Bolt-On
• Interrupt Rating: 10kA @ 240V
• Trip Type: Thermal Magnetic
• Trip Functions: Long-Time and Instantaneous
• Frame Type: B
• Certification: UL 489
• Depth: 6 inches
• Height: 2 inches
• Width: 4 inches

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Additional Information

Ground Fault

Specifications

• Part Number: B215EG
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Voltage : 240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@120V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• Protection : Thermal Magnetic

Product Data

• UPC : 195125299368
• GTIN : 00195125299368
• Country of Origin : Philippines
• Dimensions : 5.00 x 2.00 x 3.00 inch
• Weight : 0.8 lb
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
