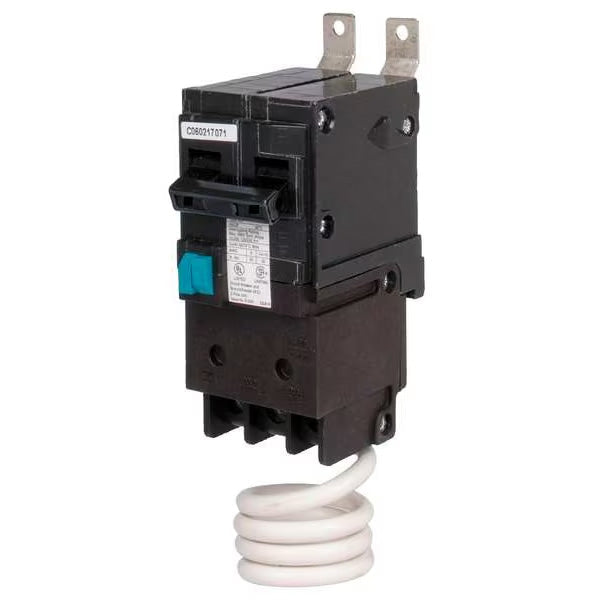

B215AFH - Siemens 15 Amp 240 Volt 2 Pole Bolt-On Molded Case Circuit Breaker

B215AFH

B215AFH is a Siemens 15 Amp, 2 Pole, 240 Volt bolt-on molded case circuit breaker designed for reliable circuit protection.This Siemens B215AFH circuit breaker features a B series frame with a 22kA interrupt rating at 120/240V AC. It is an arc fault type breaker suitable for use in Siemens P1 panelboards, with a bolt-on mounting type and terminal lug connections. The breaker supports wire sizes from 12 AWG aluminum and 14 AWG copper up to 8 AWG, and is UL 489 certified.

Key Specifications
• Amperage: 15 Amps
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22,000 Amps (22kA) at 120/240V AC
• Frame/Series: B Series
• Trip Unit: Arc Fault Circuit Interrupter
• Wire Size Range: 12 AWG (Aluminum), 14 AWG (Copper) minimum; up to 8 AWG maximum
• Certifications: UL 489
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: B215AFH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BAFH
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 22kA@120/240V
• Connection : Bolt-On
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 20/BAFH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 8 AWG
• Breaker Type : Arc Fault Circuit Interrupter
• Protection : Thermal Magnetic



Product Data

• UPC : 783643463899
• Country of Origin : Mexico
• Dimensions : 2.756 x 3.937 x 5.906 inch
• Weight : 1.08
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
