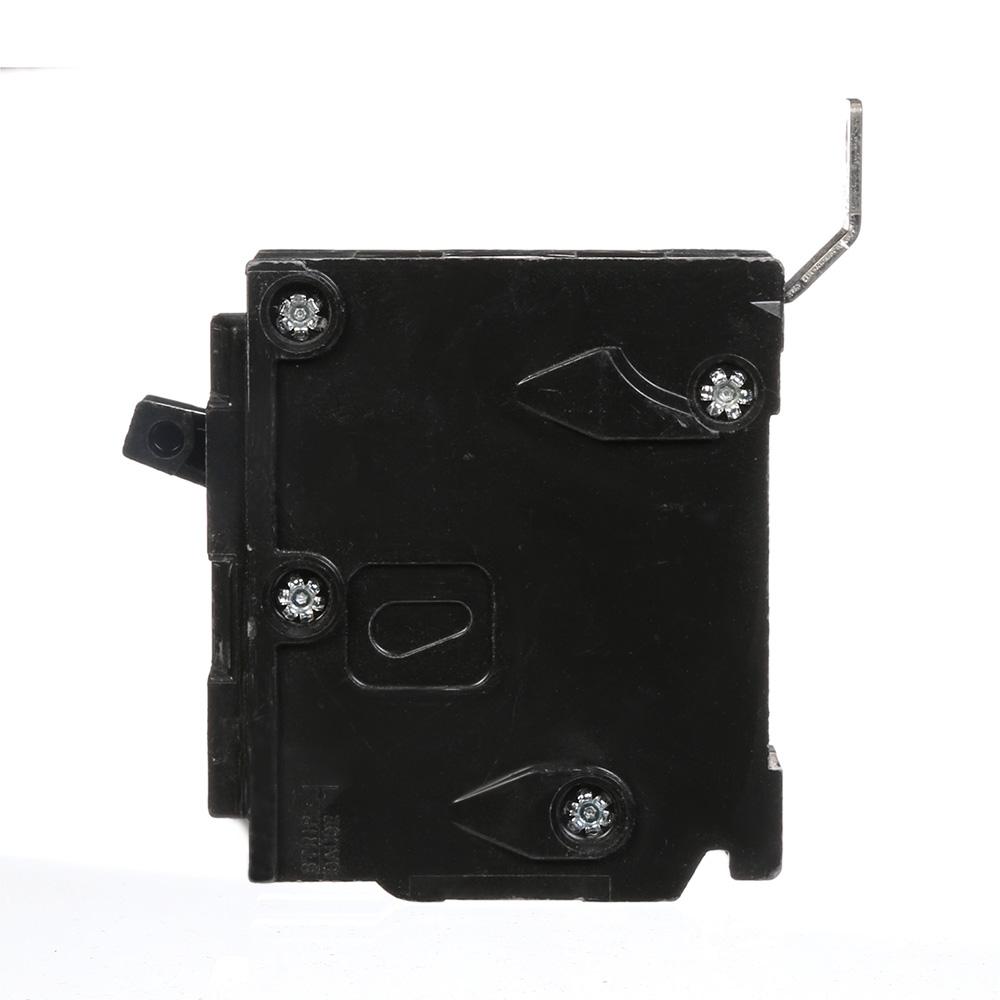

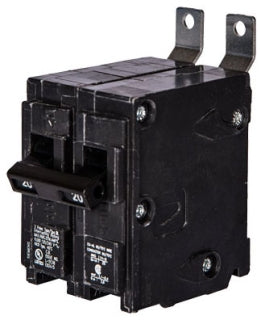

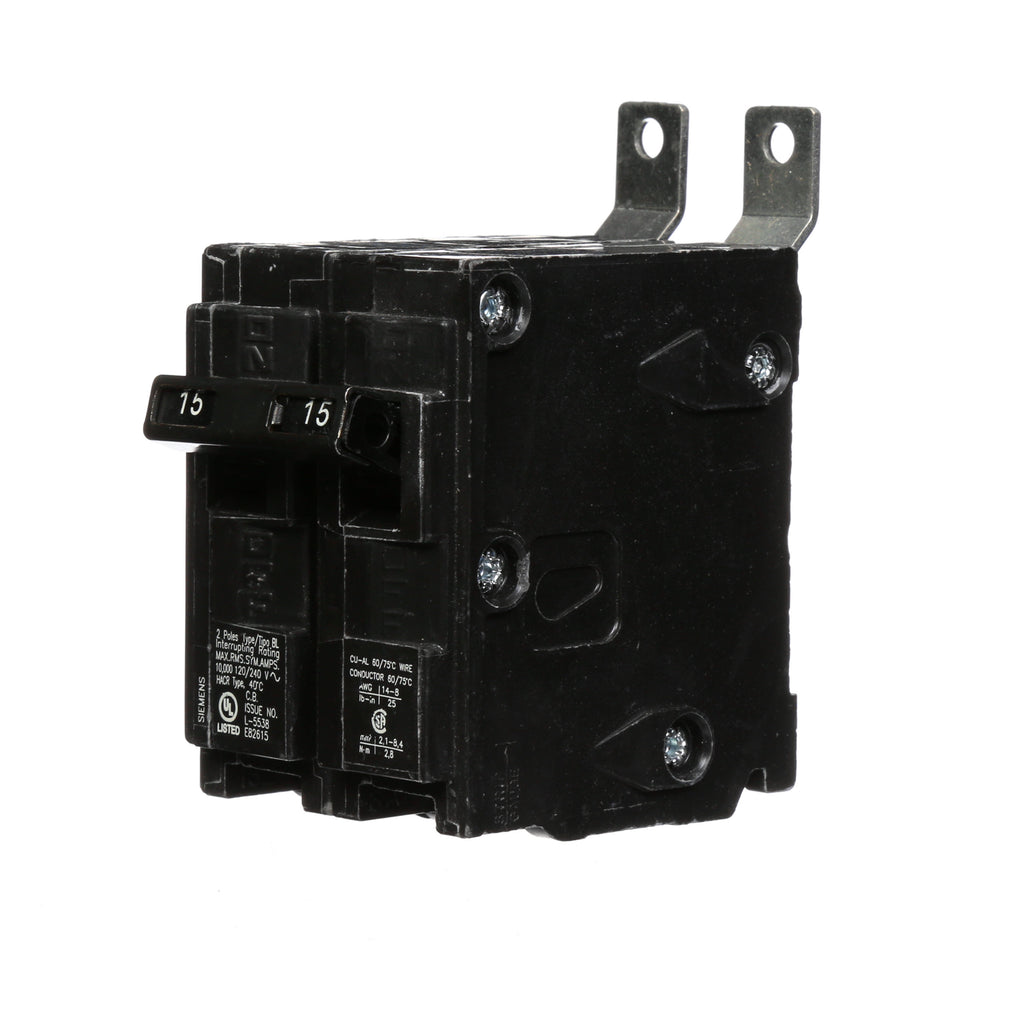

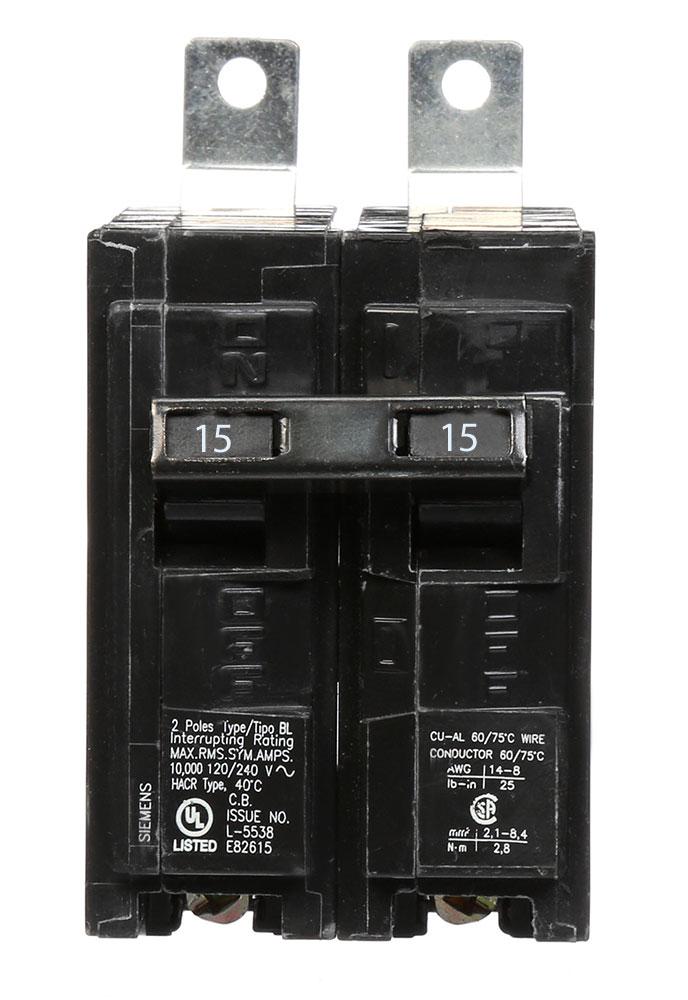

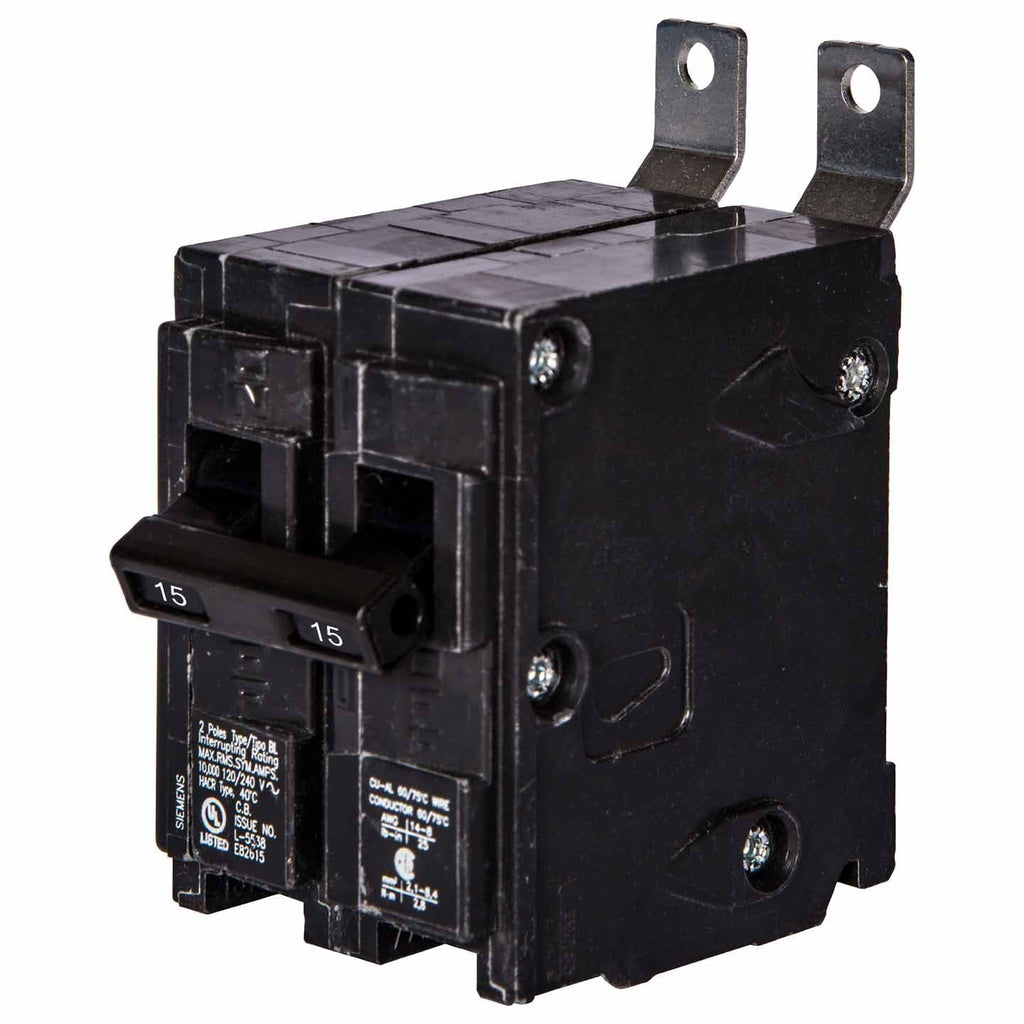

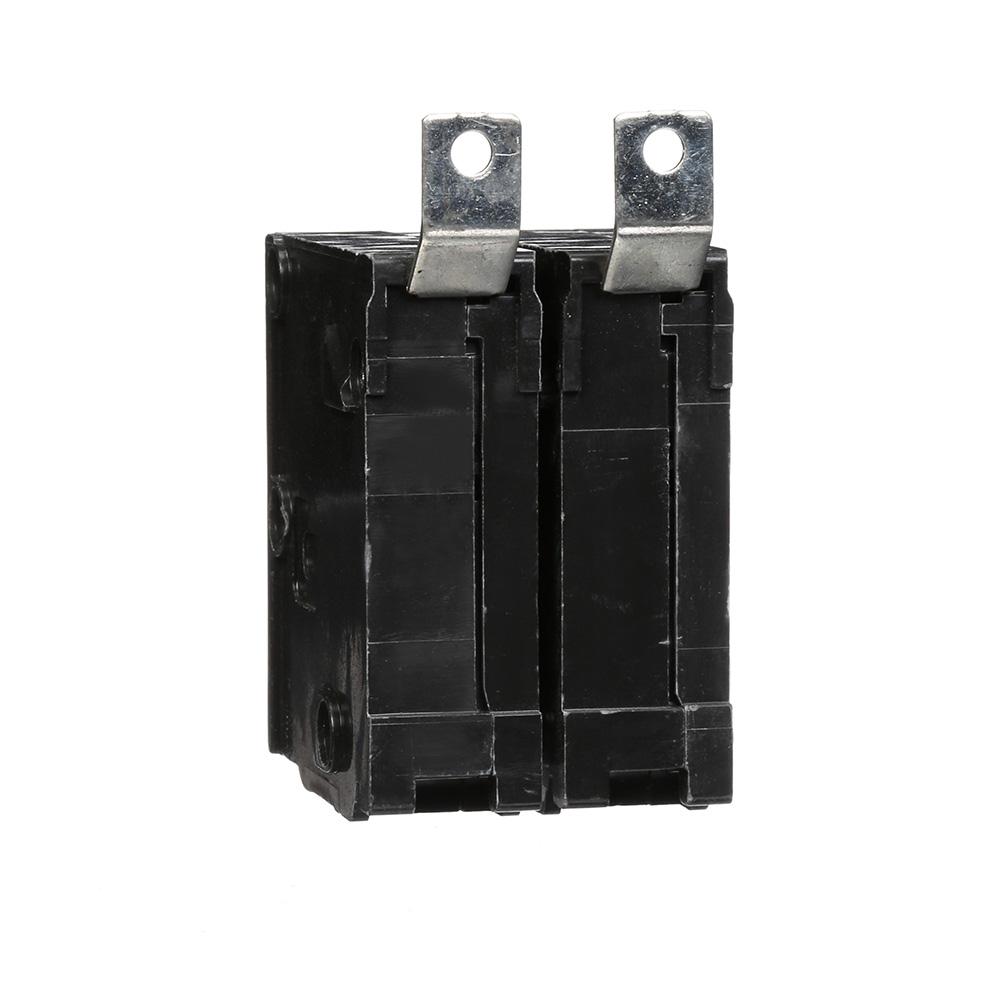

B215 - Siemens 15 Amp 2 Pole 120/240V Bolt-On Circuit Breaker, 10kA Interrupt Rating, BL Series

B215

B215 is a Siemens 15 Amp 2 Pole thermal magnetic molded case circuit breaker designed for 120/240VAC applications.This Siemens B215 circuit breaker features a bolt-on mounting type, a 10kA interrupting rating at 120/240VAC, and is part of the BL series frame with long-time and instantaneous trip functions.

Key Specifications
• Amperage: 15 Amp
• Voltage: 120/240 VAC
• Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: BL Series
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Certifications: UL Listed, CSA Approved
• Connection Type: Bolt-On
• Phase: Single
• Terminal Connection: Load Side Lug
• Actuator Type: Toggle

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B215
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263529
• GTIN : 00783643263529
• Country of Origin : Mexico
• Dimensions : 2.571 x 2.00 x 2.89 inch
• Weight : 0.639 lb
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
