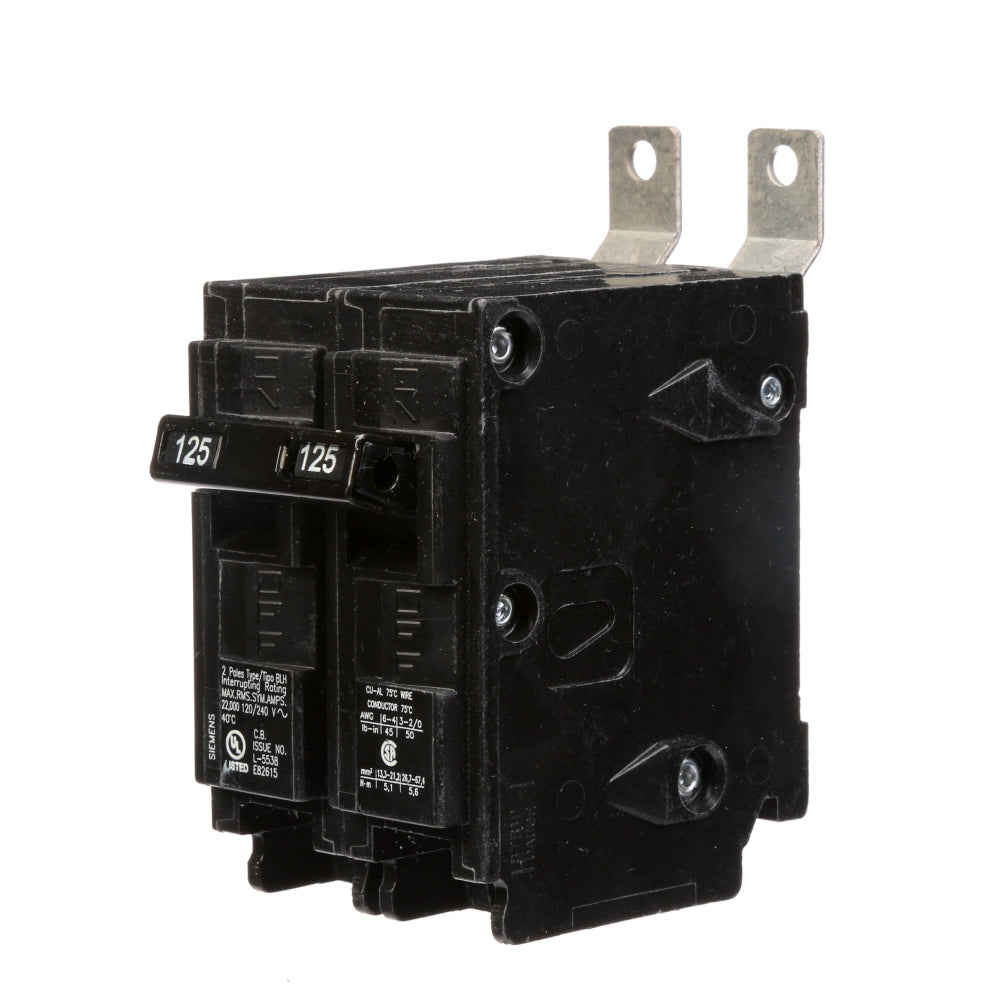

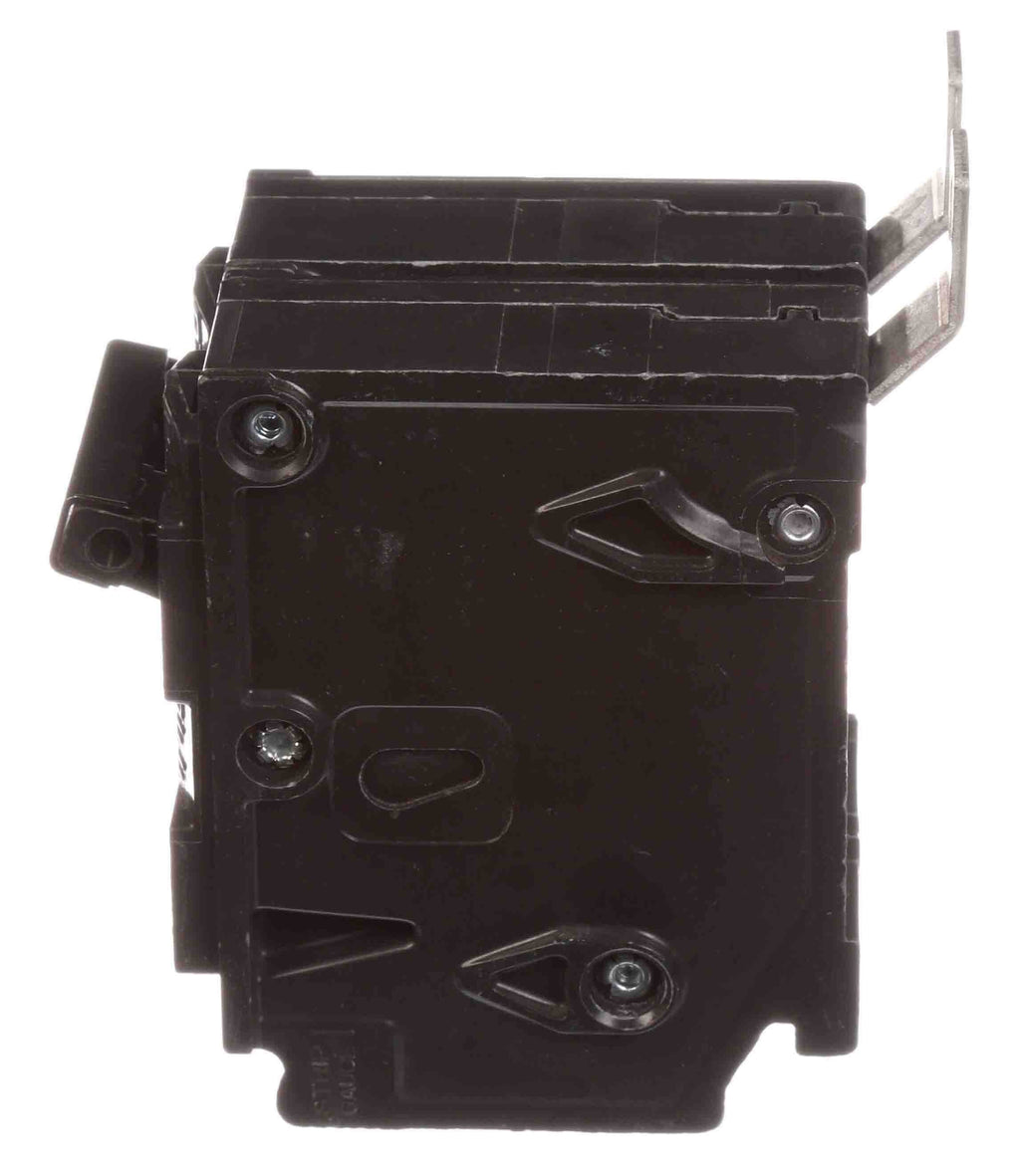

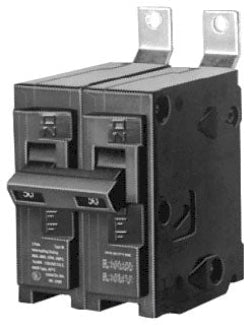

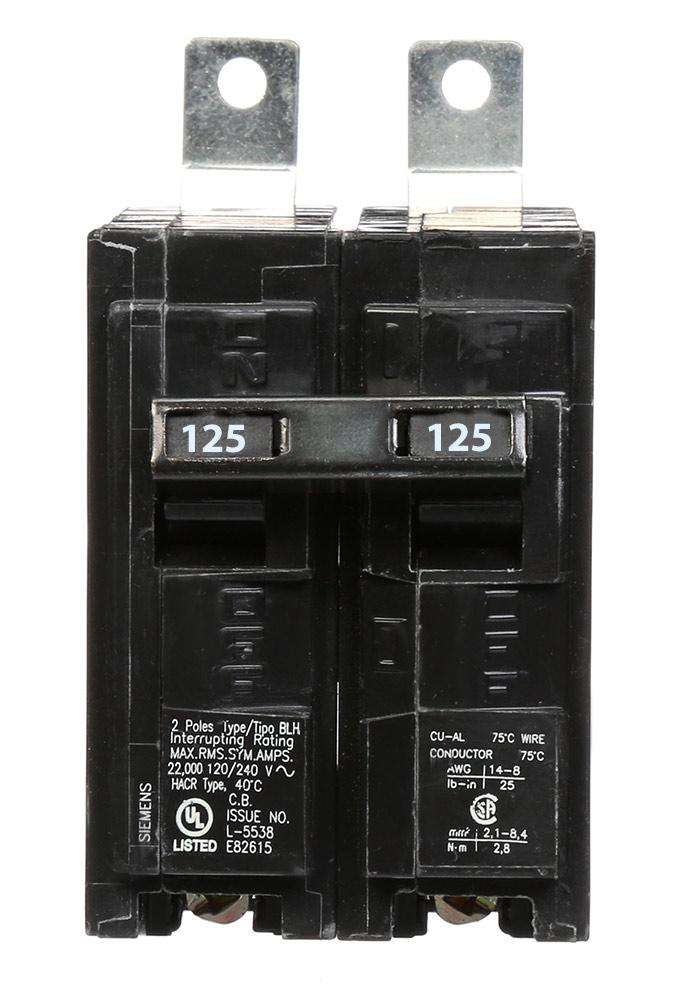

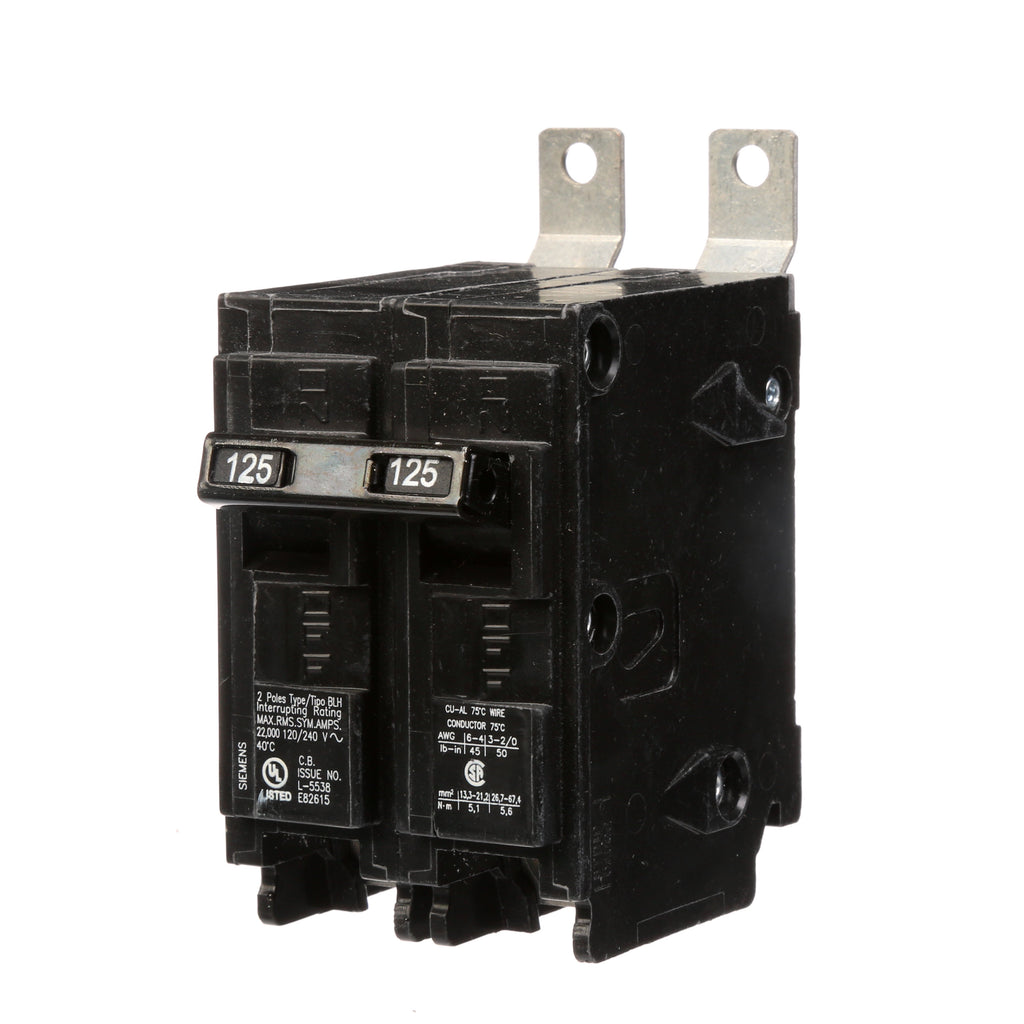

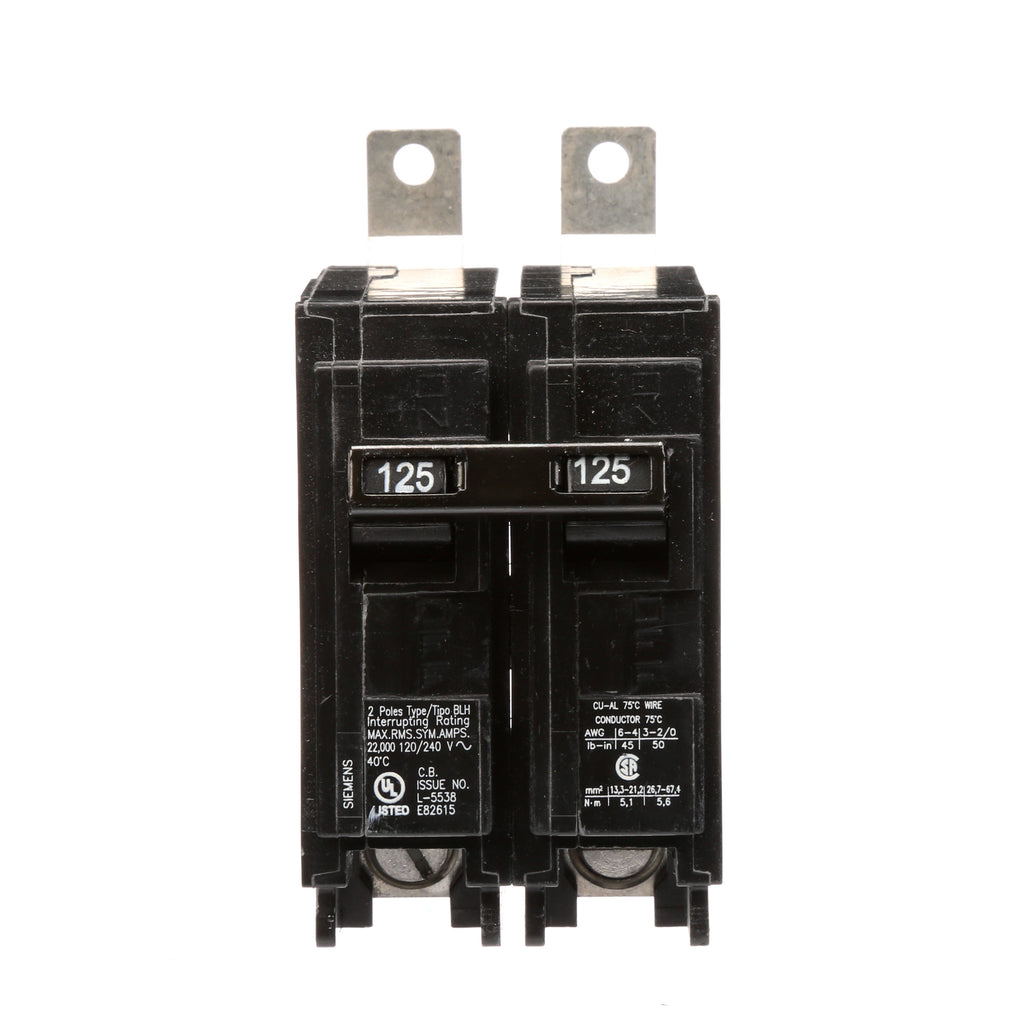

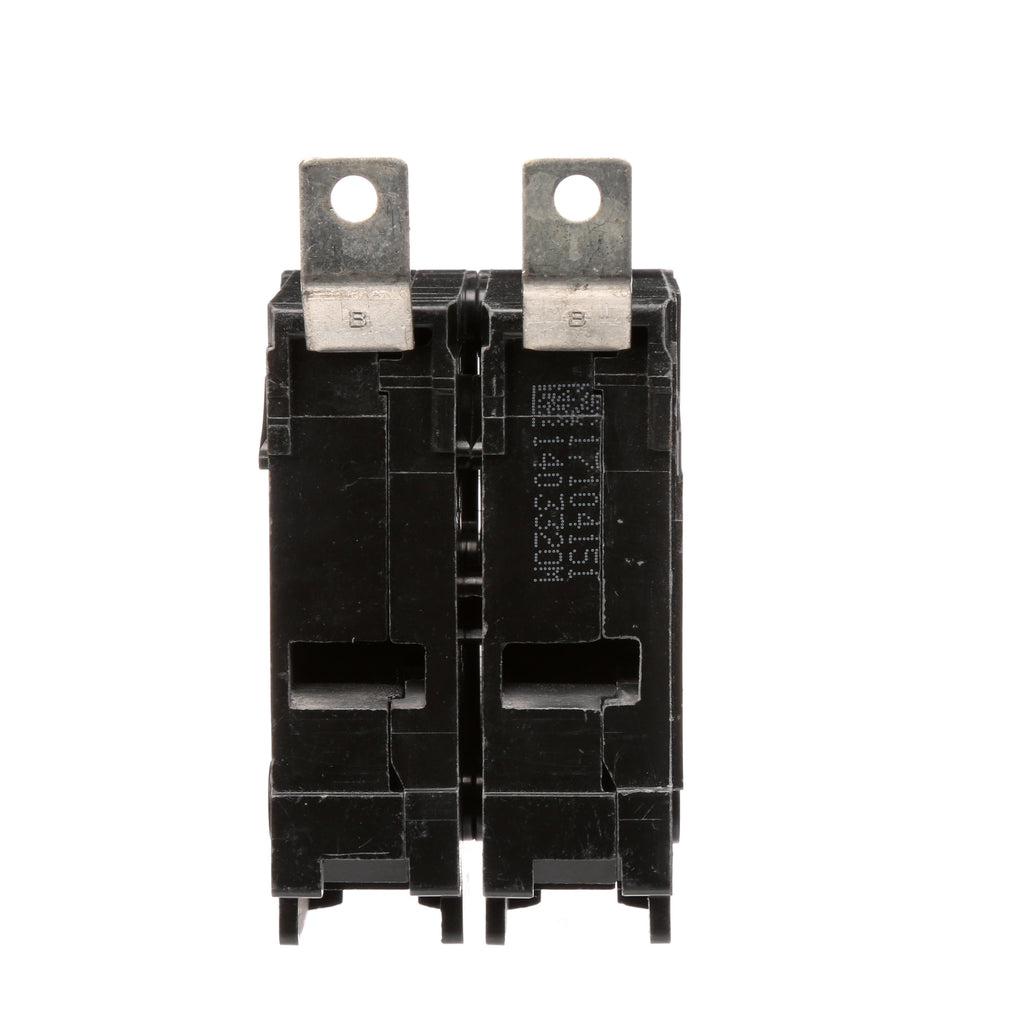

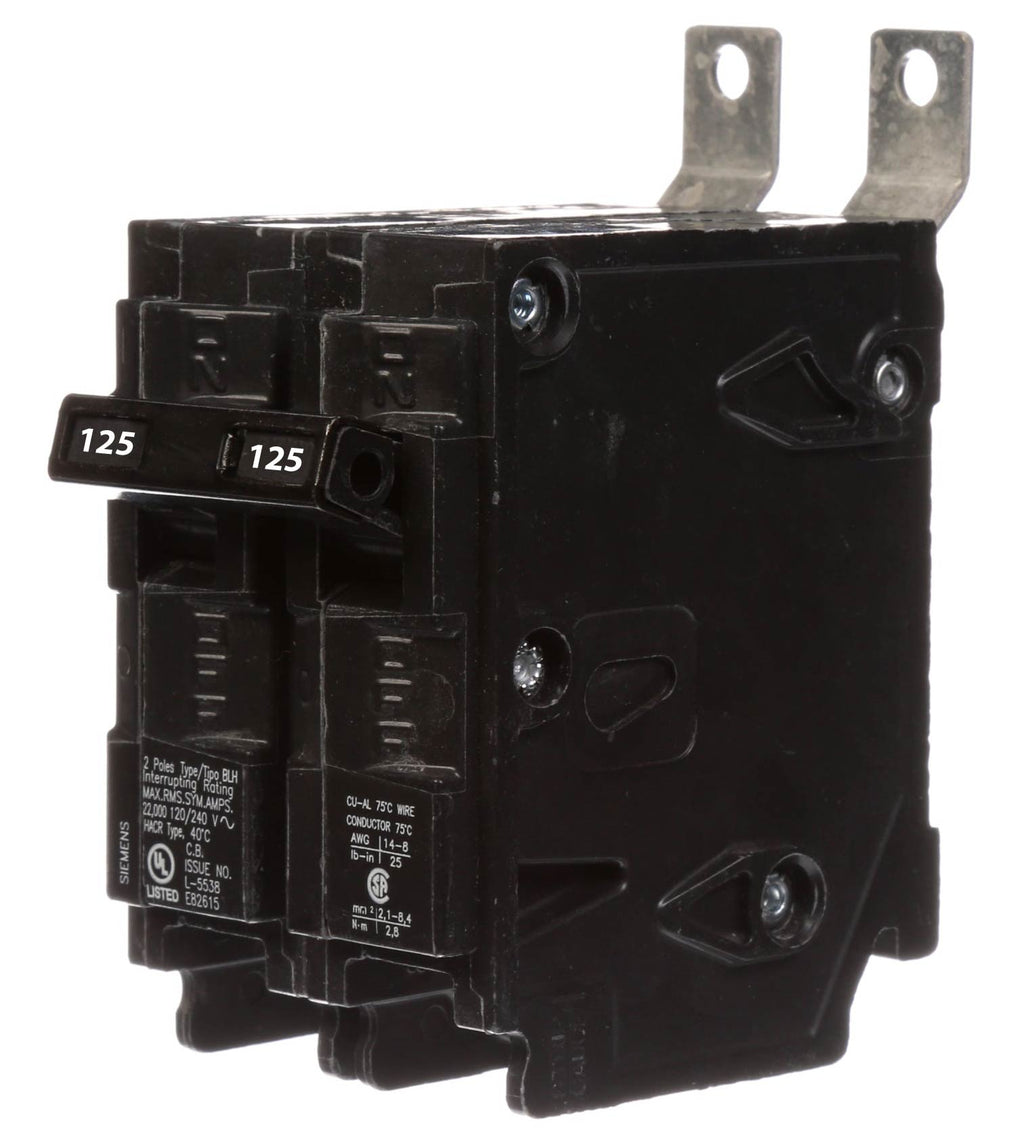

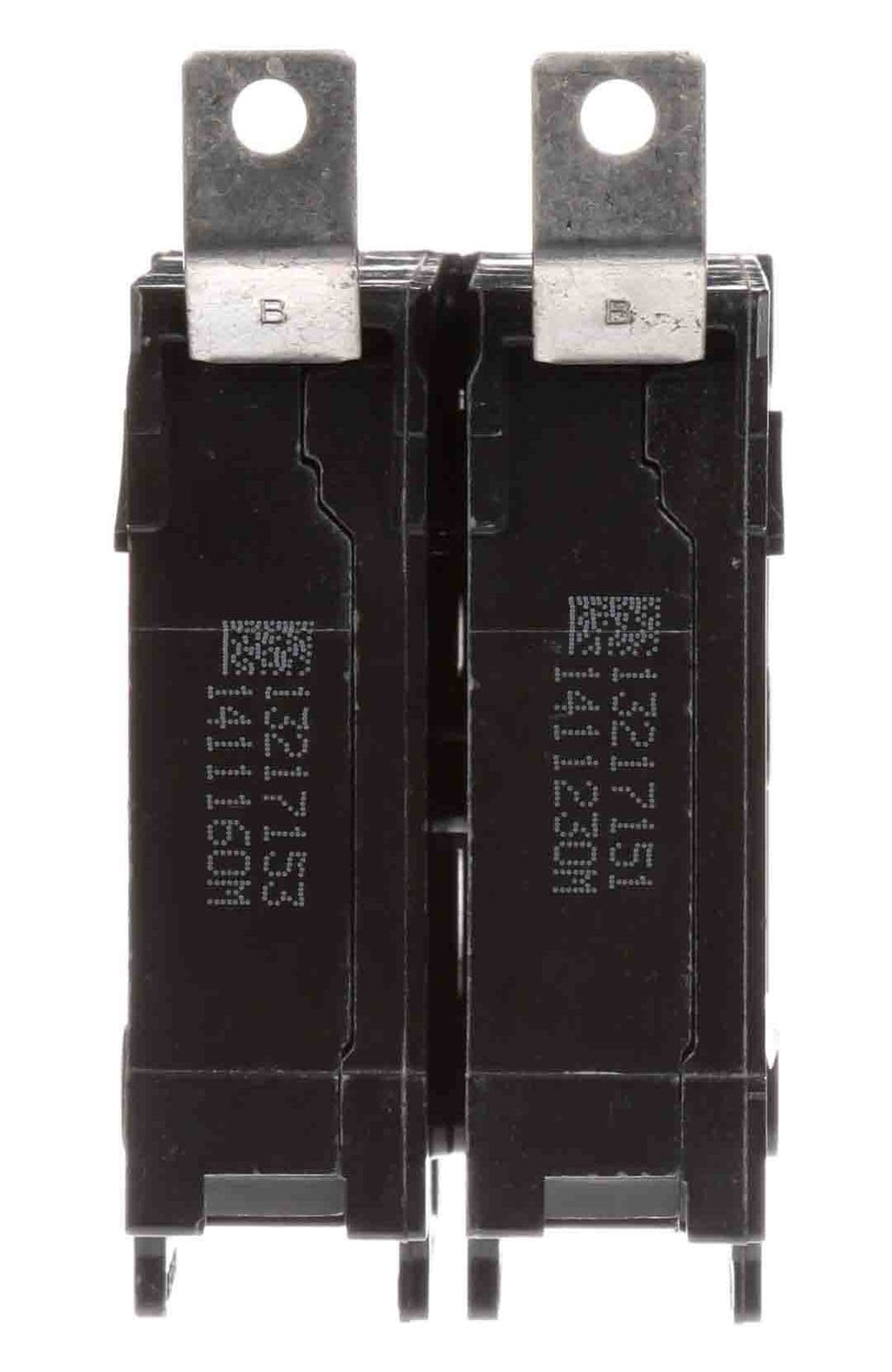

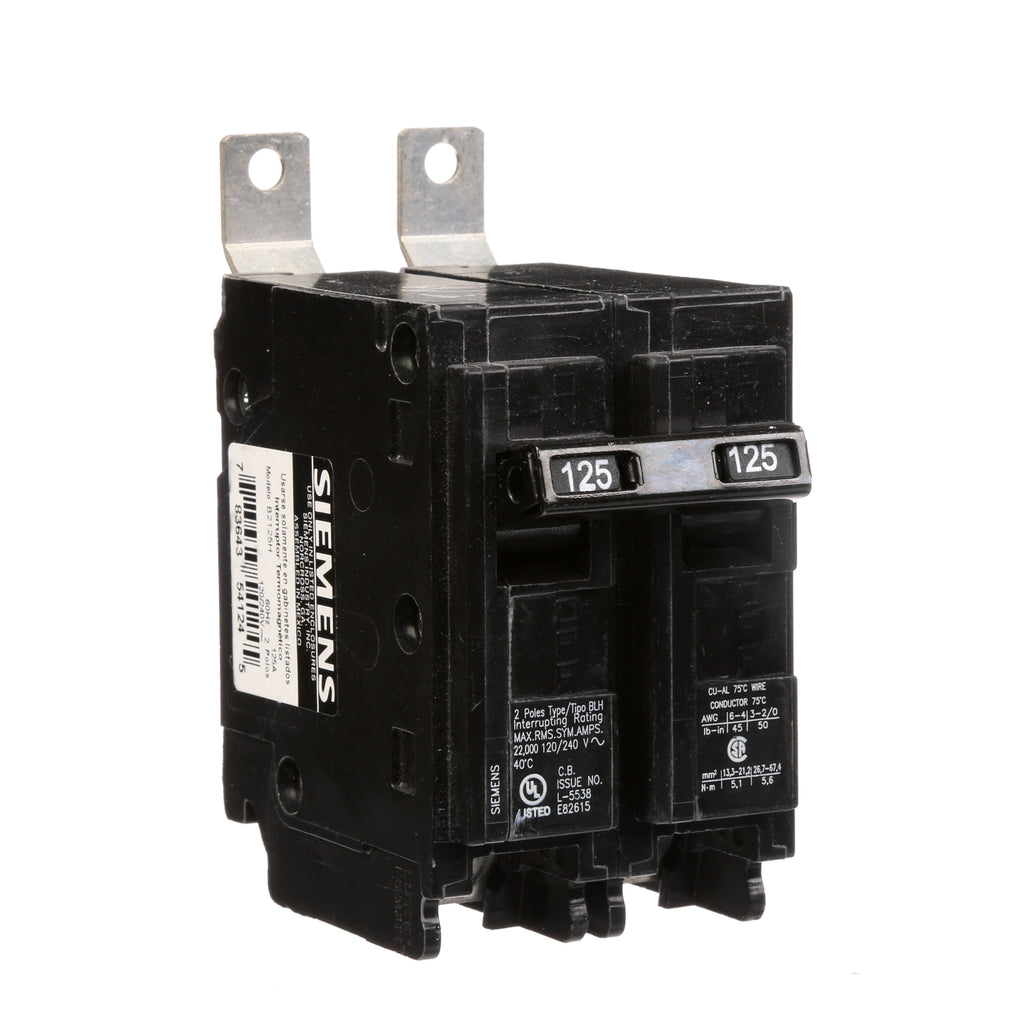

B2125H - Siemens 125 Amp 240 Volt 2 Pole Bolt-On Circuit Breaker, 22kA Interrupt Rating, Type BLH Frame

B2125H

B2125H is a Siemens 2 pole bolt-on circuit breaker rated for 125 amps and 120/240 volts AC with a 22 kiloampere interrupt rating.This thermal magnetic molded case circuit breaker features a Type BLH frame, bolt-on mounting, and complies with UL 489 and HACR standards. It is designed for electrical distribution applications with load side lug terminals and supports wire sizes from 2 AWG to 1/0 AWG. The breaker provides reliable protection with long-time and instantaneous trip functions.

Key Specifications
• Amperage: 125 Amps
• Voltage Rating: 120/240 VAC
• Number of Poles: 2
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 240 VAC
• Series/Frame: Type BLH, B Frame
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, HACR Rated
• Wire Size Range: 2 AWG to 1/0 AWG
• Load Side Lug Terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B2125H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120/240
• Amperage : 125
• Phase : 1
• Poles : 2
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643541245
• GTIN : 00783643541245
• Country of Origin : Mexico
• Dimensions : 2.563 x 2.00 x 3.122 inch
• Weight : 0.639
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
