B2110 - Siemens 110A 2-Pole Molded Case Circuit Breaker, 120/240V, BL Series, Thermal/Magnetic Trip, 10kA Interrupt, Lug Mount

B2110

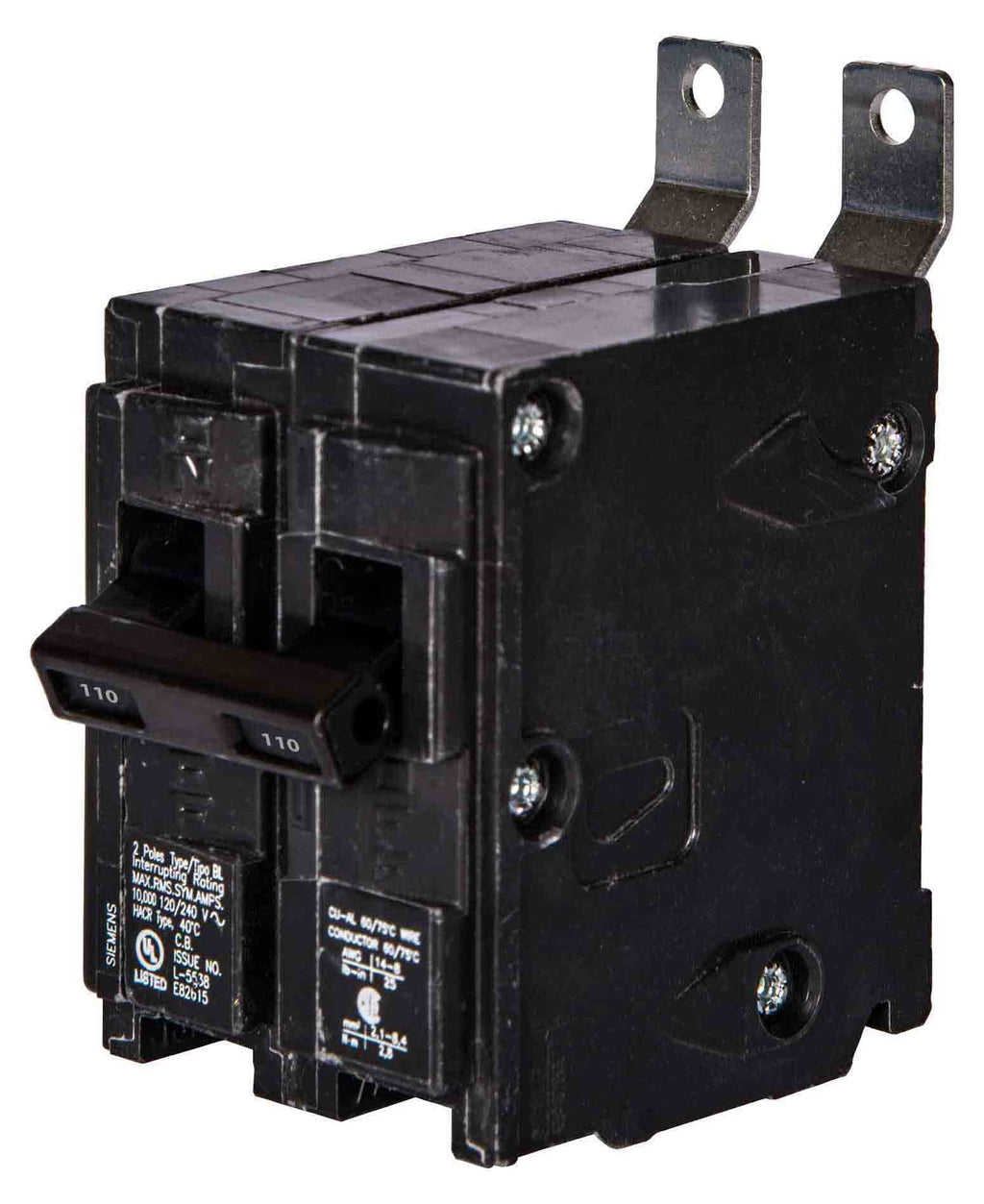

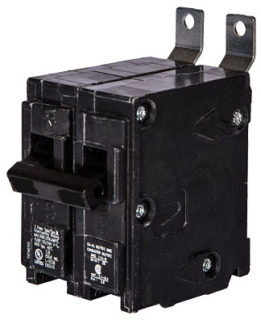

B2110 is a Siemens 2-pole molded case circuit breaker designed for reliable circuit protection in commercial and industrial applications.

This thermal/magnetic trip circuit breaker features a 110A current rating, 120/240V voltage rating, and a 10kA interrupting capacity. It is part of the BL series with a 125A frame, suitable for lug mounting in Siemens P1 panelboards, and is rated for 60 Hz operation.

Key Specifications
• Part Number: B2110
• Manufacturer: Siemens
• Amperage: 110A
• Voltage: 120/240V AC
• Poles: 2
• Mounting Type: Lug
• Interrupt Rating: 10kA
• Series/Frame: BL Series, 125A Frame
• Trip Unit: Thermal/Magnetic
• Frequency: 60 Hz
• For Use With: Siemens P1 Panelboards
• Terminal Connection: Lug
• Certifications: BABA compliant

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B2110
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120/240
• Amperage : 110
• Phase : 1
• Poles : 2
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : Long Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263659
• GTIN : 00783643263659
• Country of Origin : Mexico
• Dimensions : 2.756 x 1.969 x 3.937 inch
• Weight : 0.75
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
