B170 - Siemens 70 Amp 1 Pole 120/240V Molded Case Circuit Breaker BL Series

B170

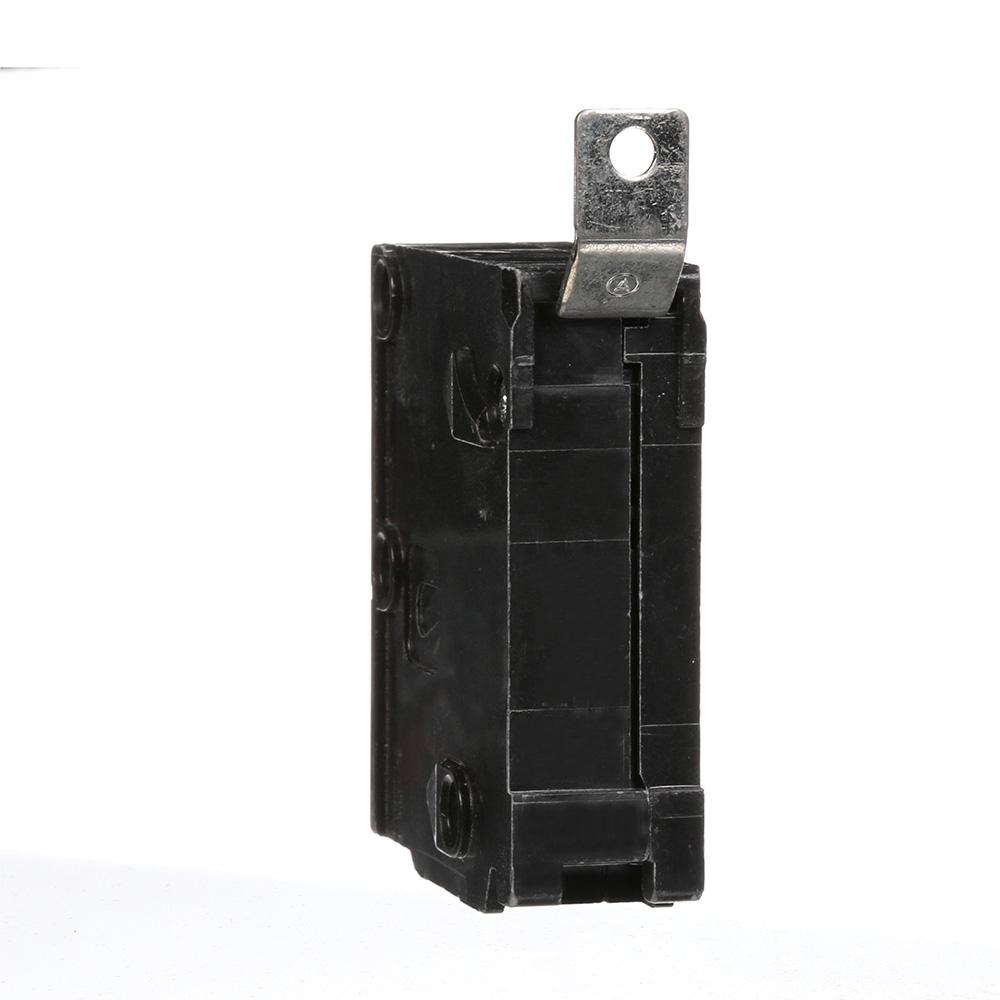

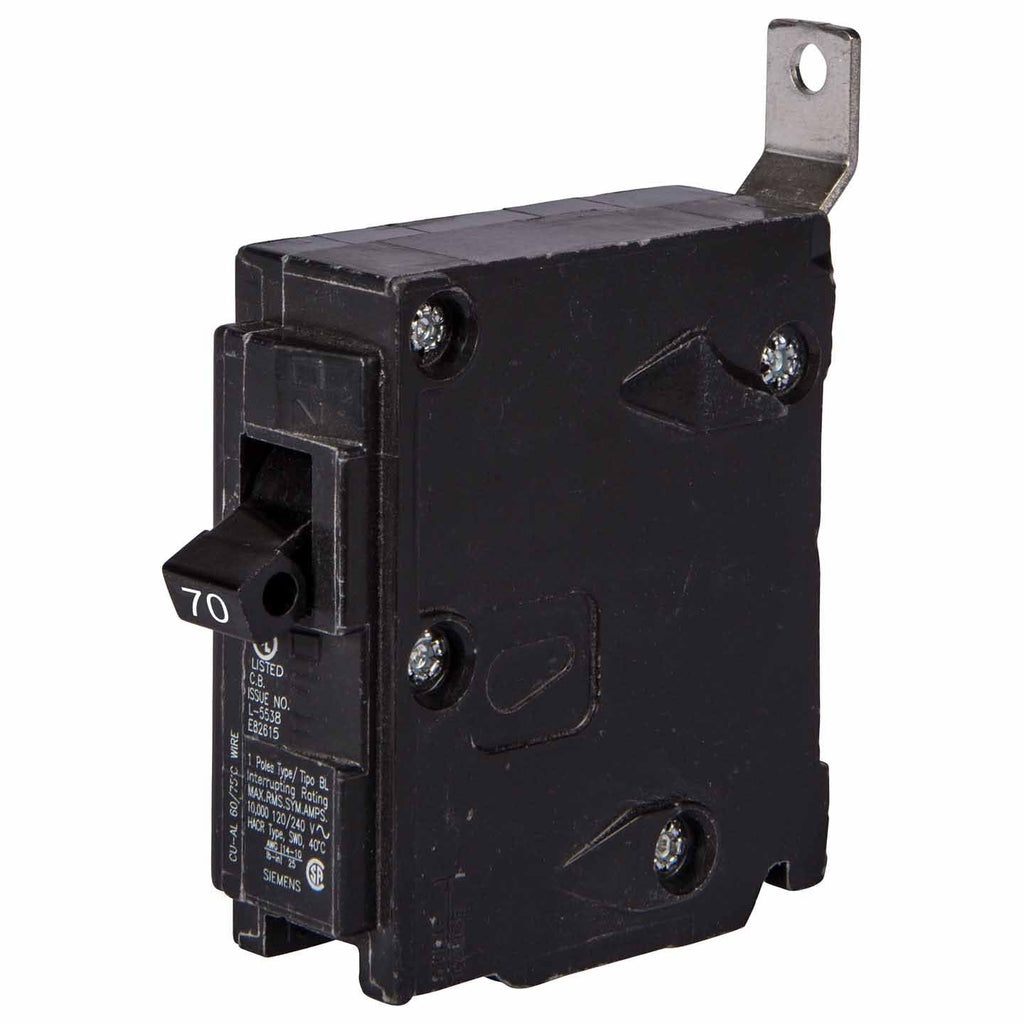

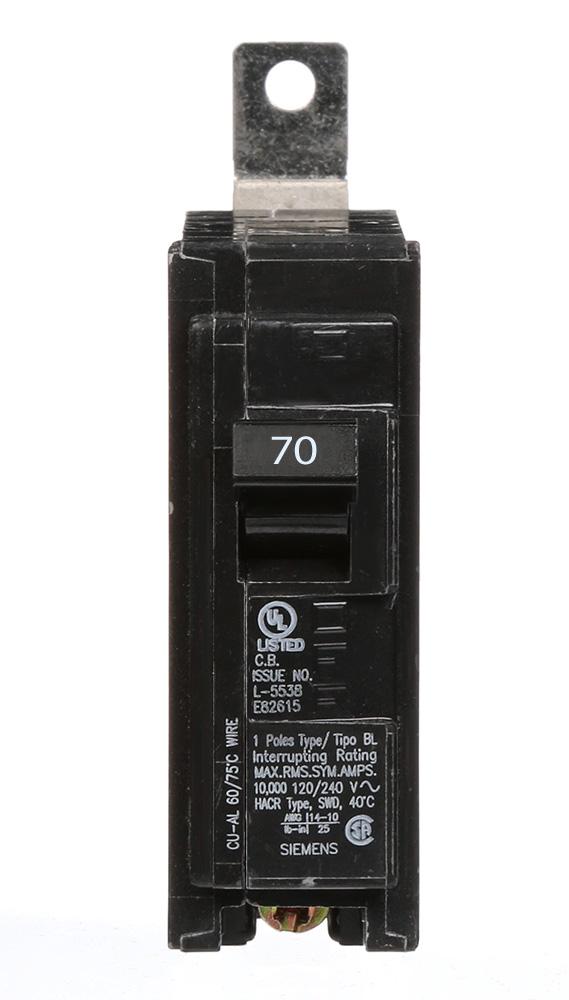

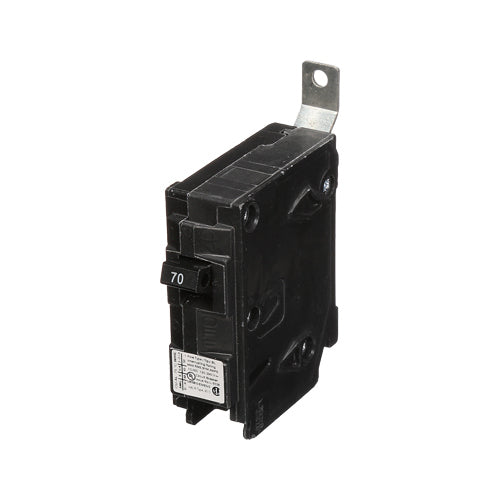

B170 is a Siemens 70 Amp, 1 Pole molded case circuit breaker designed for reliable power distribution protection. B170 features thermal magnetic trip unit technology and is rated for 120/240 VAC operation with a 10 kiloampere interrupt rating. It belongs to the BL series frame and is suitable for panel mounting with lug and busbar terminations. This breaker meets UL certification standards for safety and performance.

Key Specifications
• Manufacturer: Siemens
• Amperage: 70 Amp
• Poles: 1
• Voltage: 120/240 VAC
• Interrupt Rating: 10 kA
• Series/Frame: BL Series
• Trip Unit: Thermal Magnetic
• Mounting Type: Panel Mounted
• Terminations: Busbar (line side), Lug (load side)
• Certification: UL Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B170
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120
• Amperage : 70
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263512
• GTIN : 00783643263512
• Country of Origin : Mexico
• Dimensions : 2.571 x 1.00 x 3.122 inch
• Weight : 0.309
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
