Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B160

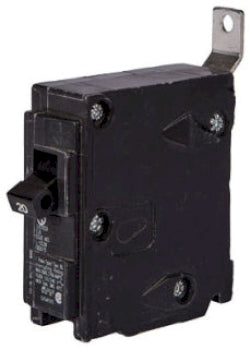

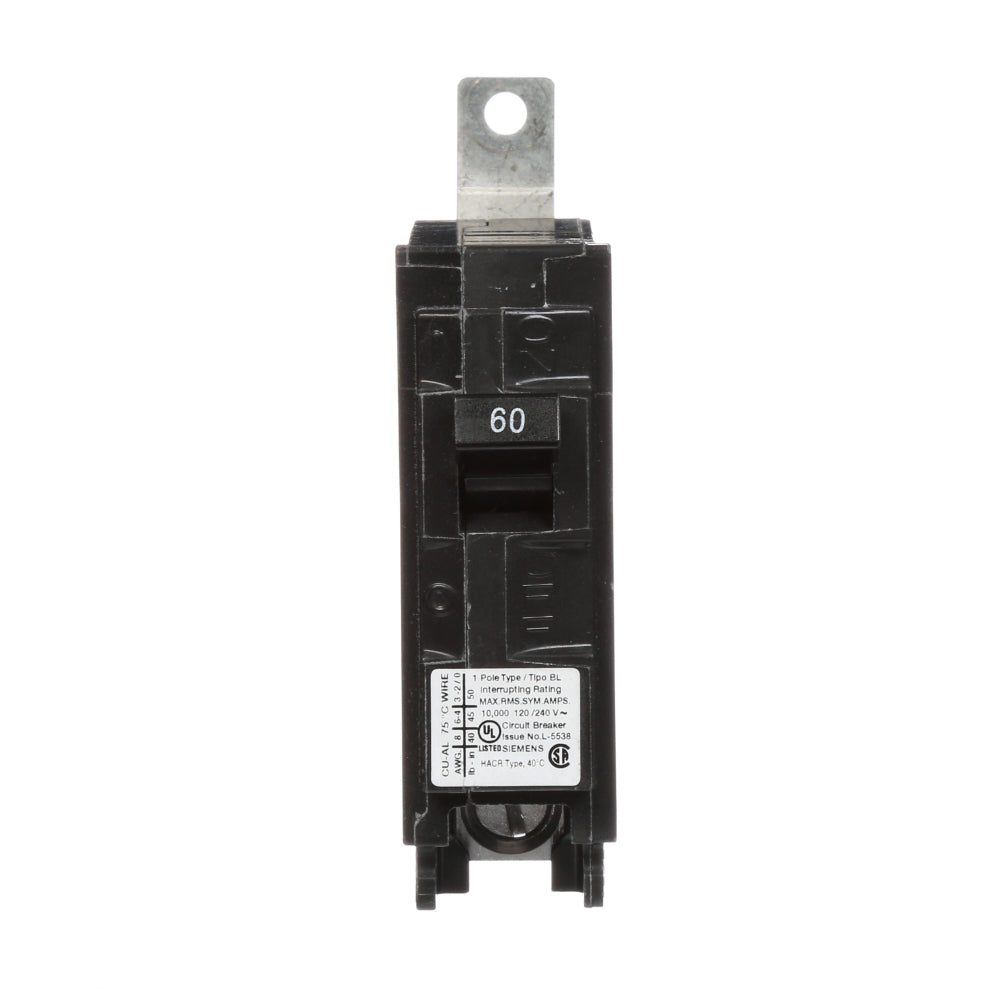

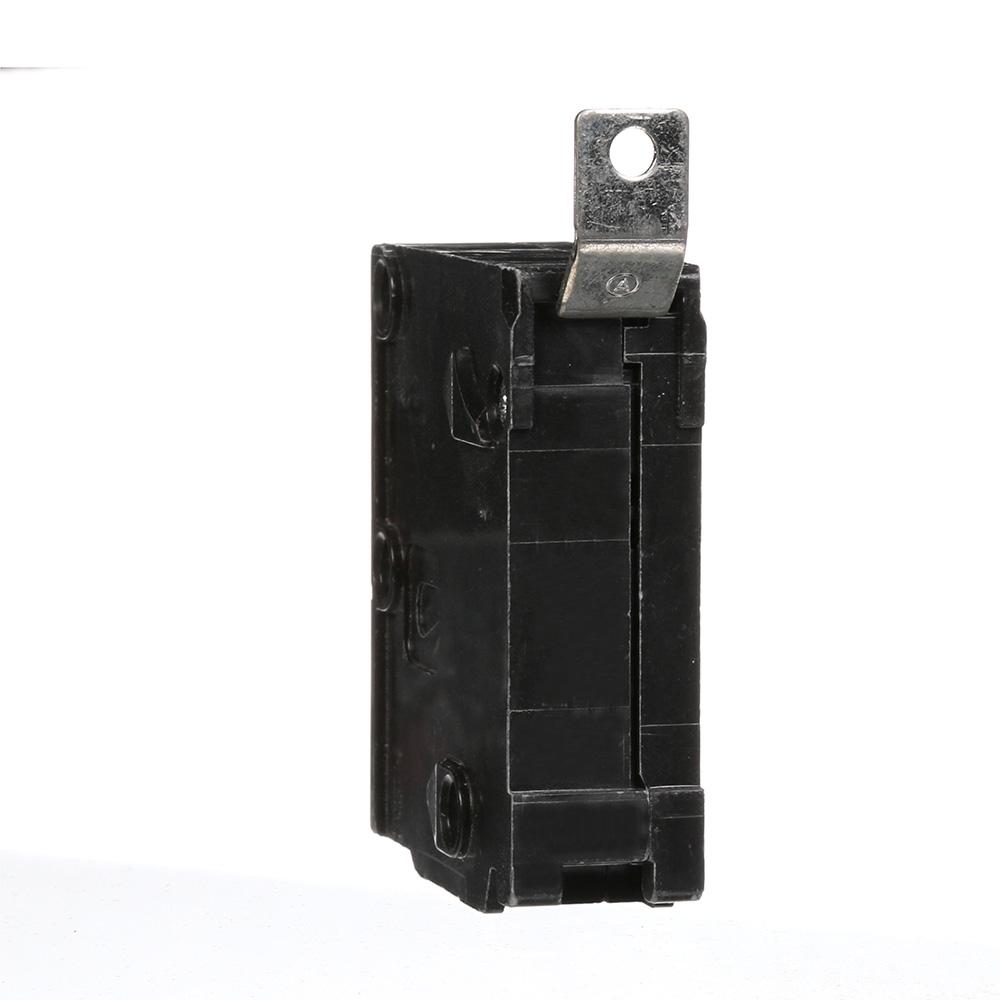

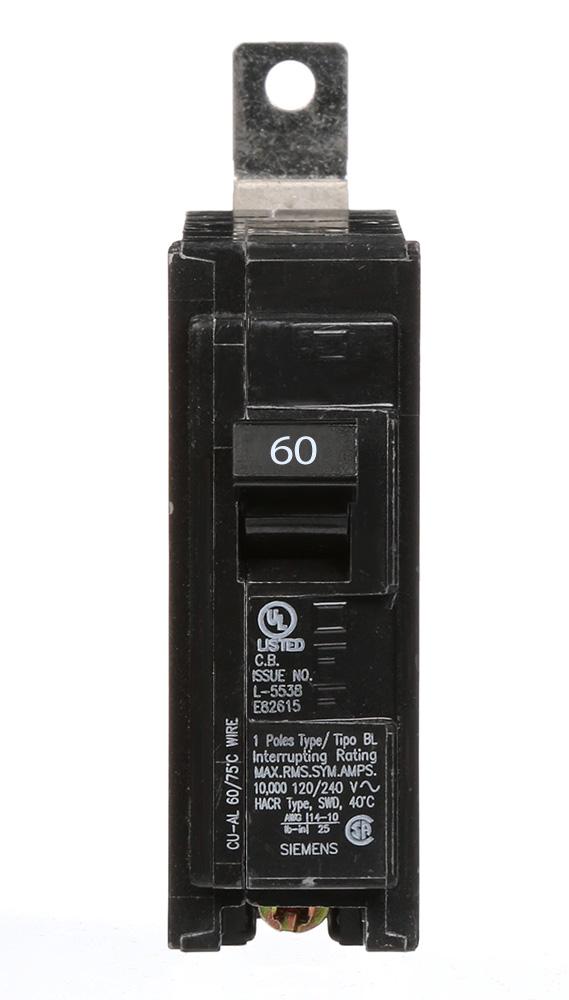

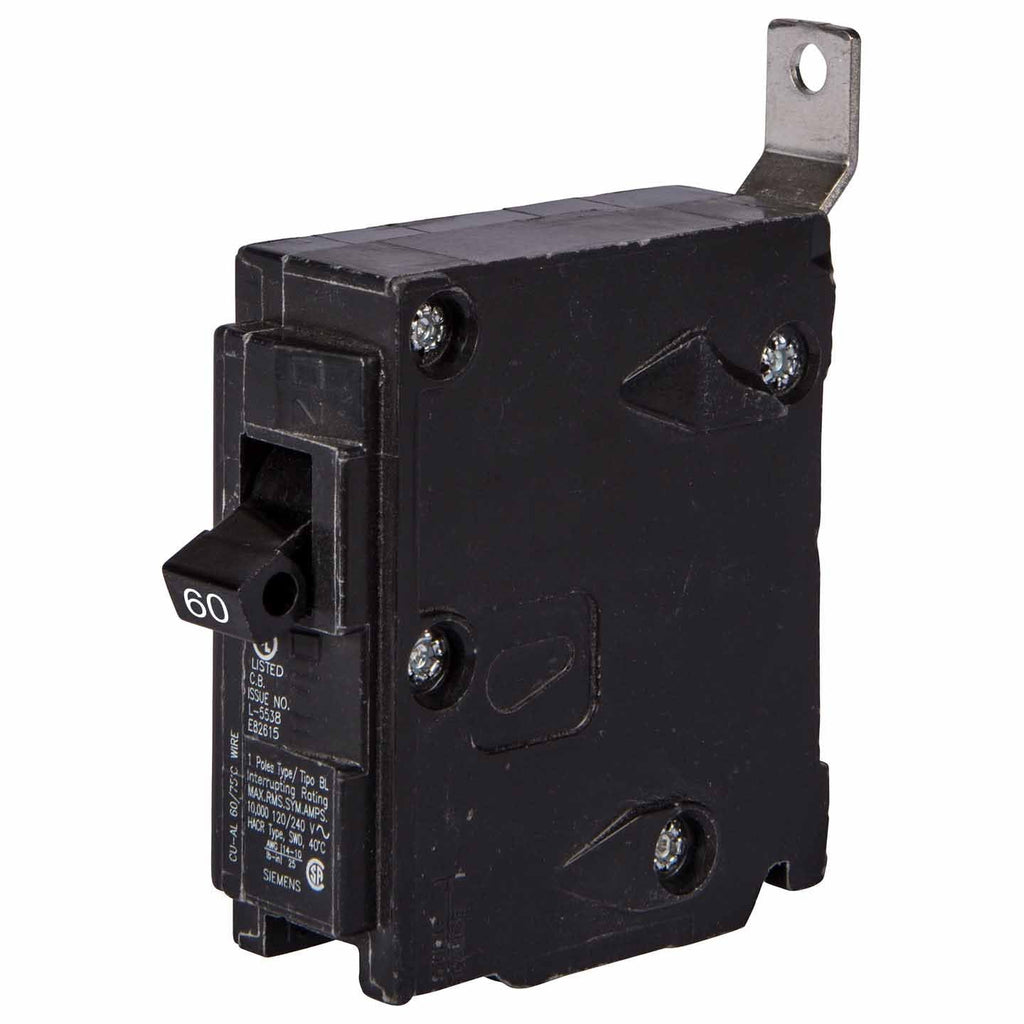

B160 is a Siemens Type BL low voltage molded case circuit breaker designed for panelboard mounting with a 60 amp rating and 120 VAC voltage.This circuit breaker features a thermal/magnetic trip unit, 1 pole configuration, and a 10 kA interrupt rating at 120 VAC. It is suitable for electrical distribution applications and includes bolt-on mounting for secure installation.
- Key Specifications
- Manufacturer: Siemens
- Part Number: B160
- Amperage: 60 Amp
- Voltage: 120 VAC
- Poles: 1 Pole
- Interrupt Rating: 10 kA
- Trip Unit: Thermal/Magnetic
- Mounting Type: Bolt-On
- Series/Frame: Type BL
- Application: Low Voltage Molded Case Circuit Breaker
Specifications
- Part Number: B160
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 120
- Amperage : 60
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263505
- GTIN : 00783643263505
- Country of Origin : Mexico
- Dimensions : 2.756 x 0.787 x 3.937 inch
- Weight : 0.331 lb
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
