2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B1515

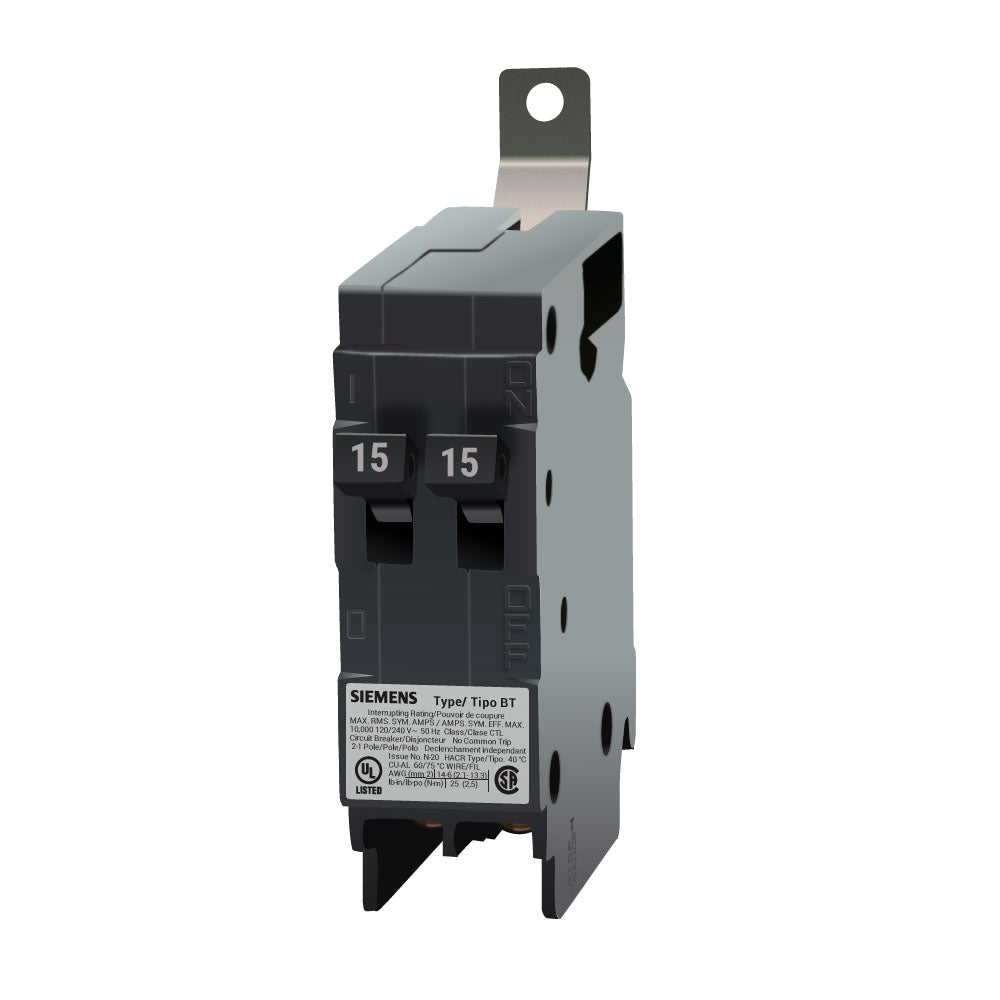

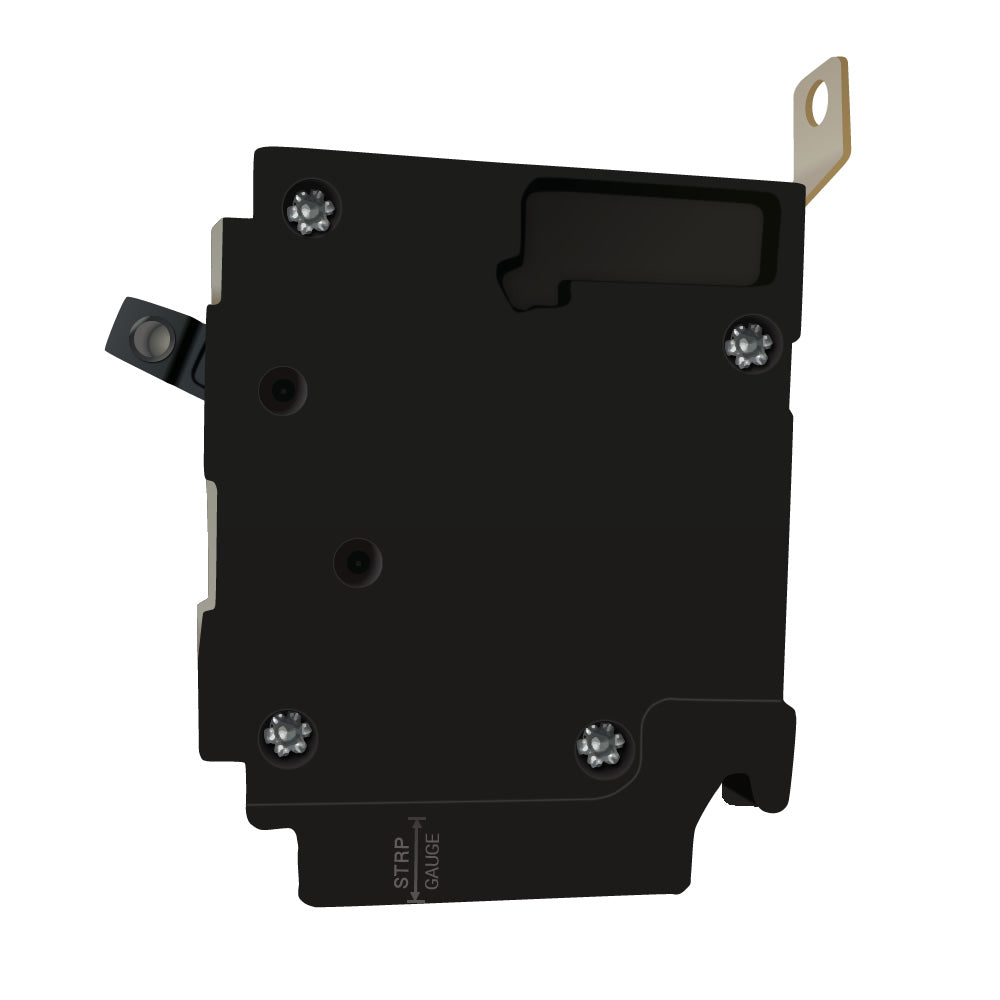

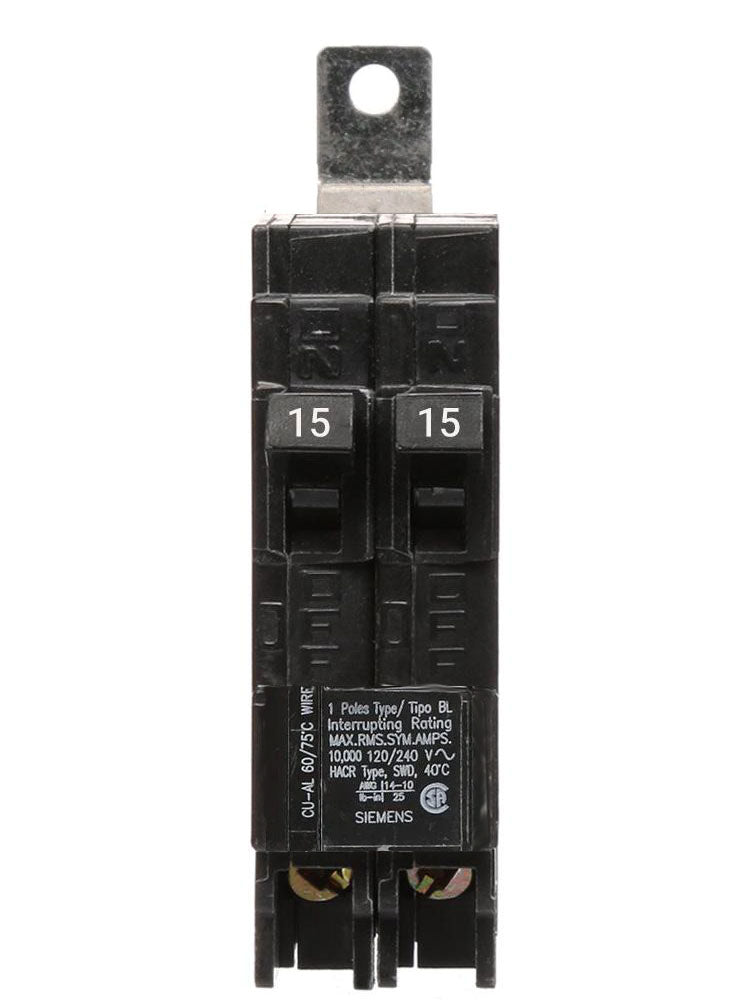

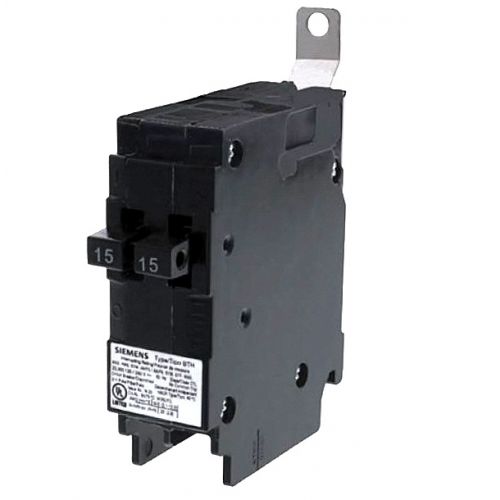

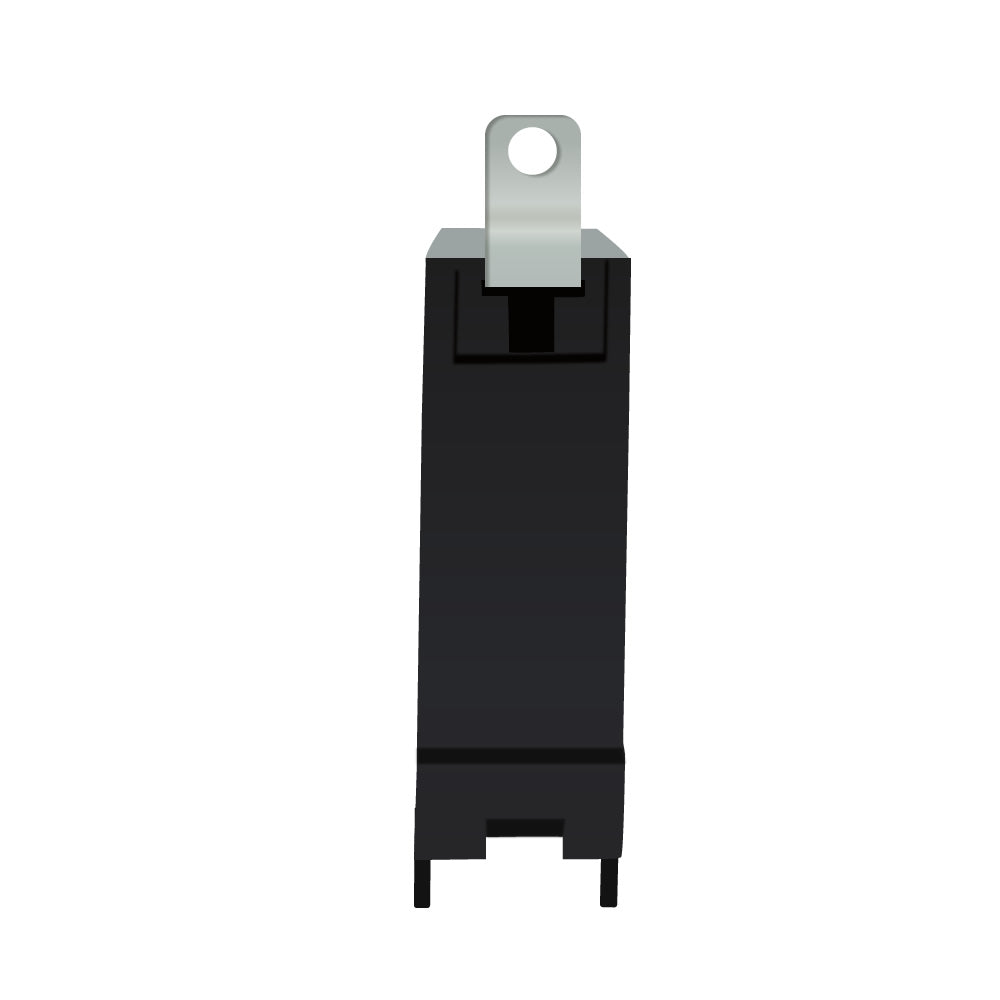

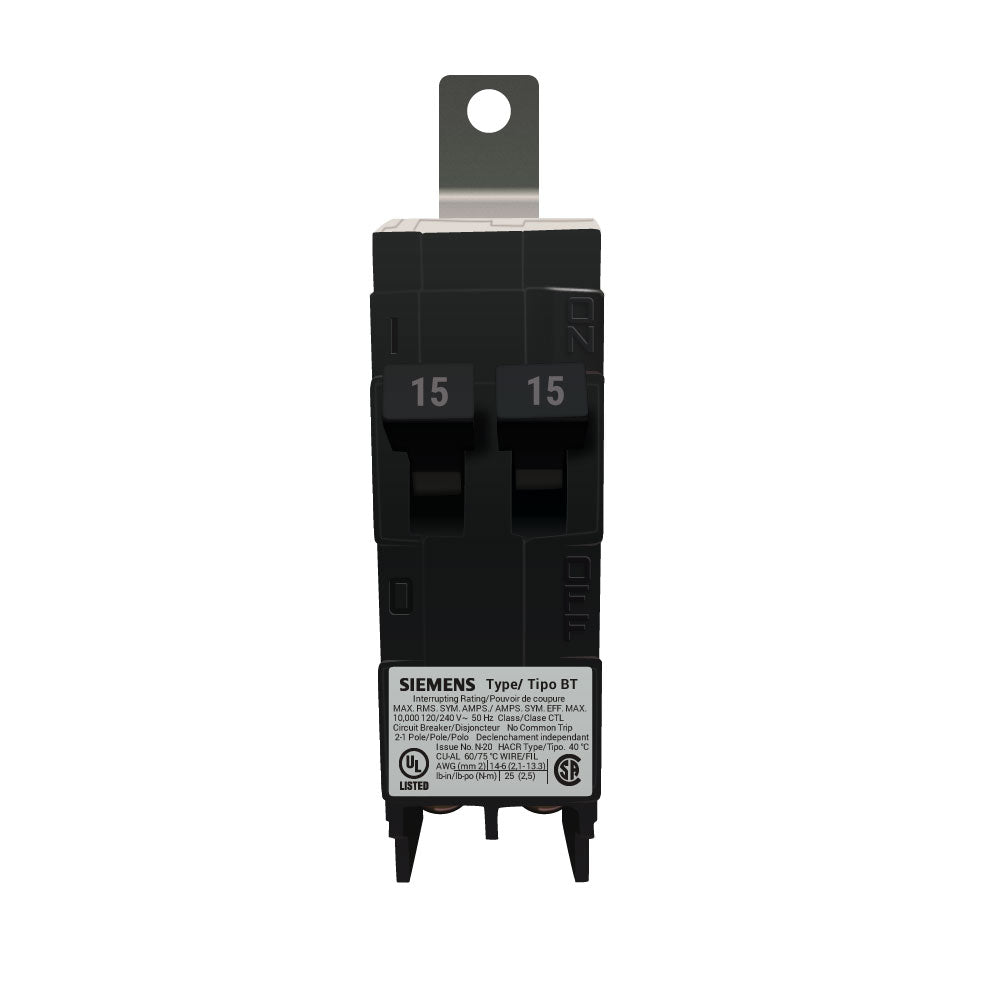

B1515 - Siemens tandem circuit breaker with two 15A single-pole circuits in one standard space, rated for 120/240V AC.
This thermal-magnetic duplex miniature circuit breaker features long time and instantaneous trip functions, bolt-on mounting, and 10kAIC interrupting rating at 240V. It serves as a space-saving solution for residential, commercial, and industrial panelboards, compatible with current and legacy Siemens systems.
Key Specifications
- Manufacturer: Siemens
- Amperage: 15A / 15A
- Voltage: 120/240V AC
- Poles: 2 (tandem single-pole)
- Mounting Type: Bolt-On
- Interrupt Rating: 10kAIC @ 240V
- Series/Frame: B / BT
- Trip Unit: Thermal-Magnetic
- Phase: 1
- UL Listed
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: B1515
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : B Series
- Type : BT
- Voltage : 120
- Amperage : 15
- Phase : 1
- Poles : 2
- AIC rating : 10kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 804766997365
- GTIN : 00804766997365
- Country of Origin : Mexico
- Dimensions : 12.598 x 4.331 x 3.543 inch
- Weight : 0.309
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
