B150LP7JKF - Micron Industries 150VA Control Transformer 120x240V Primary 24V Secondary

B150LP7JKF

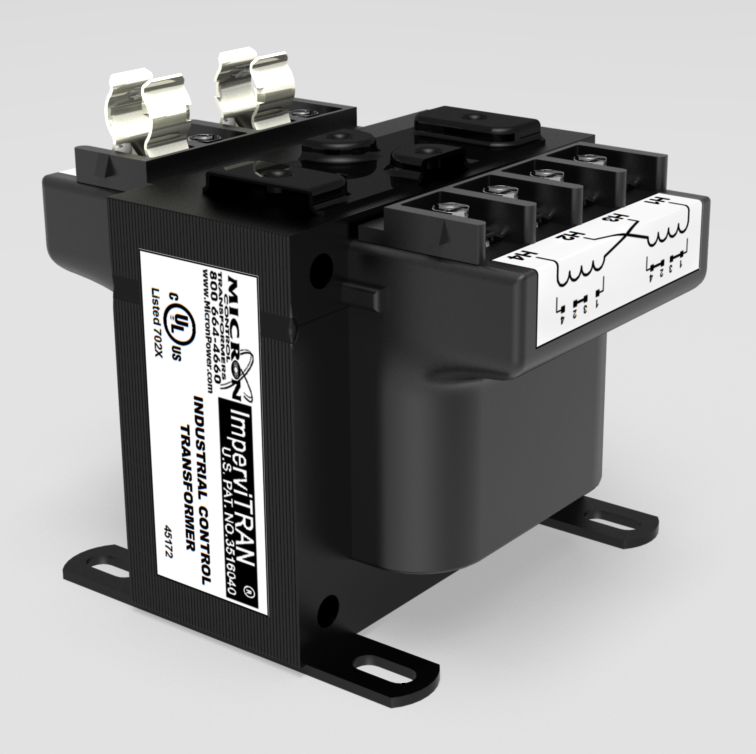

B150LP7JKF is a 150VA industrial control transformer manufactured by Micron Industries, designed for reliable power distribution in control applications.

This single-phase control transformer features a primary voltage rating of 120x240VAC and a secondary voltage output of 24VAC, operating at 50/60 Hz. The unit is equipped with epoxy encapsulated coils that provide improved heat dissipation from the core, and includes secondary fuse clips for added protection. With a temperature class rating of 130C and flange mount configuration with 8 screw terminals, this transformer is built for industrial control environments. The unit weighs 4.5 lbs and is manufactured in the United States.

• Power Rating: 150VA (0.15kVA)
• Primary Voltage: 120x240VAC
• Secondary Voltage: 24VAC
• Frequency: 50/60 Hz
• Phase: Single-phase
• Temperature Class: 130C
• Mounting: Flange mount
• Terminals: 8 screw terminals
• Secondary Fuse Clips: Yes
• Coil Construction: Epoxy encapsulated
• Weight: 4.5 lbs
• Certifications: UL/cUL

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B150LP7JKF
• Manufacturer : Micron Industries
• Brand : Micron Industries
• Category : Transformer
• Item Subcategory : Industrial Control
• Family : ImperviTRAN
• Type : POWERTRAN
• Phase : 1
• KVA Rating : 0.15
• Primary Voltage : 120 X 240
• Secondary Voltage : 24

Product Data

• UPC : 078455048421
• GTIN : 00784550484212
• Dimensions : Height 3.74 in X Width 4.02 in X Depth 3.78 in
• Weight : 1 lb
