Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B150H

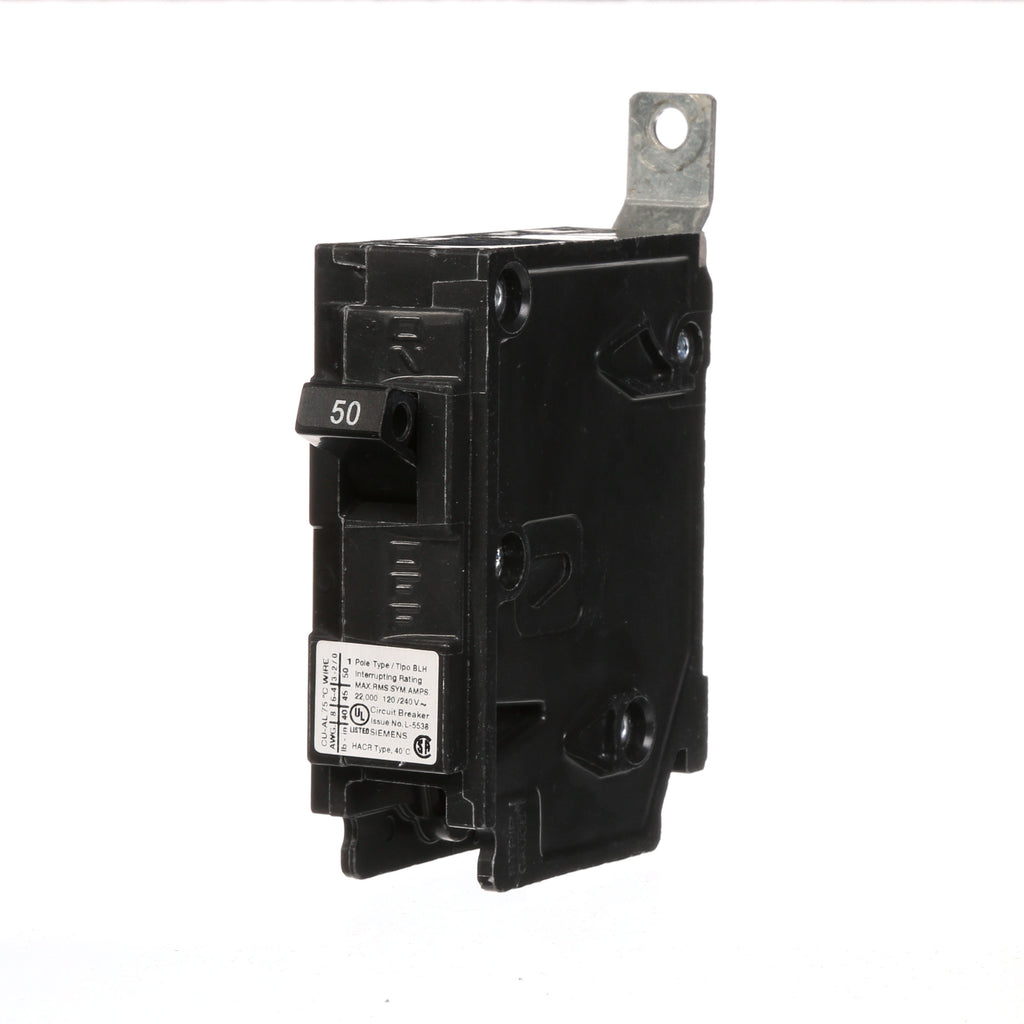

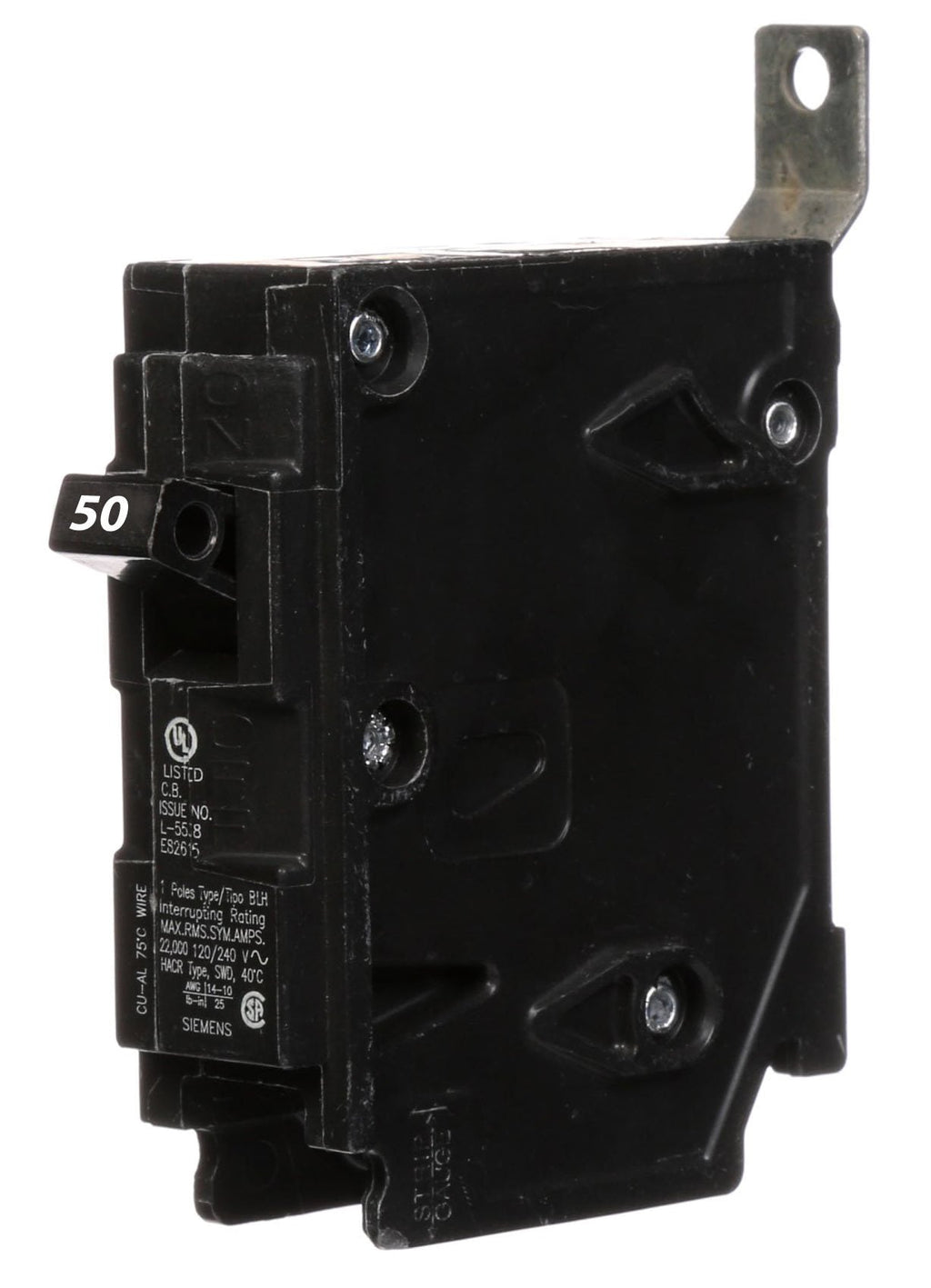

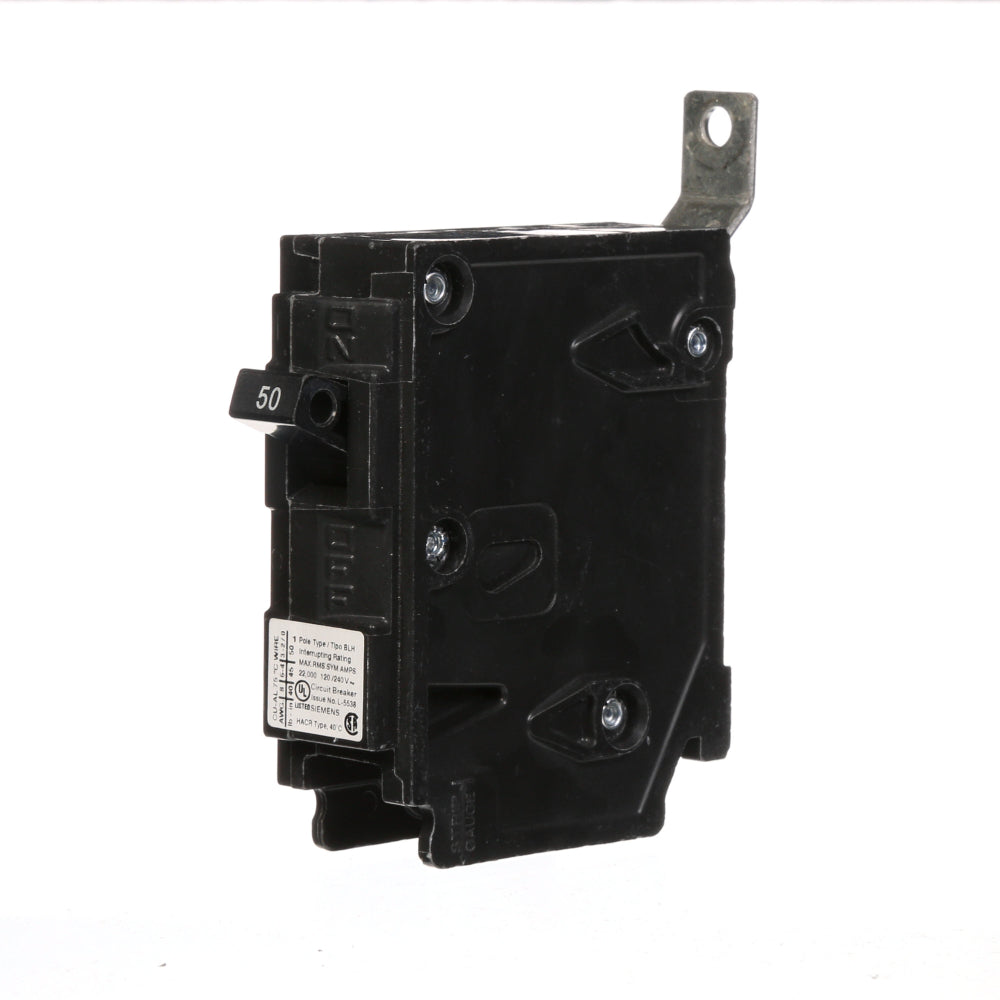

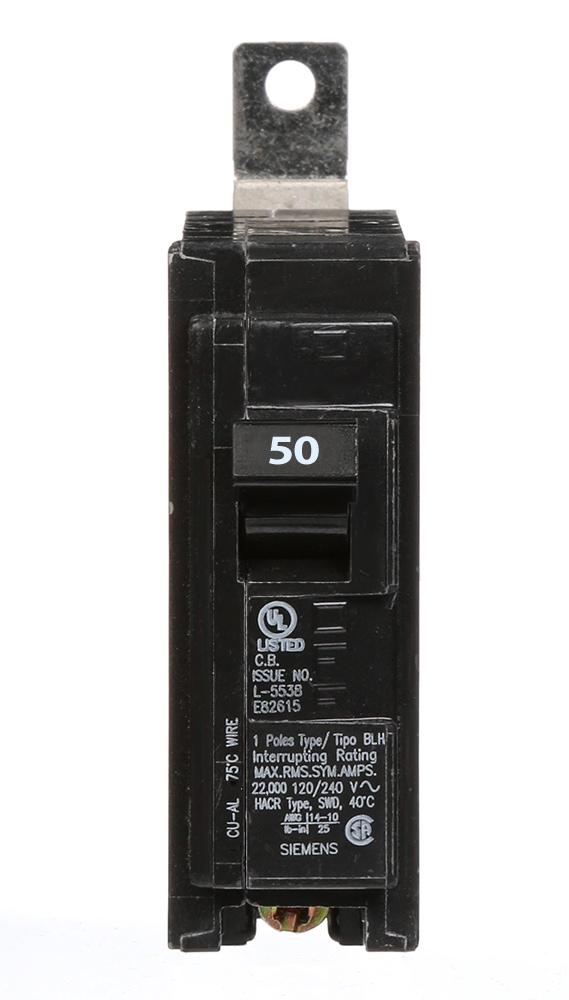

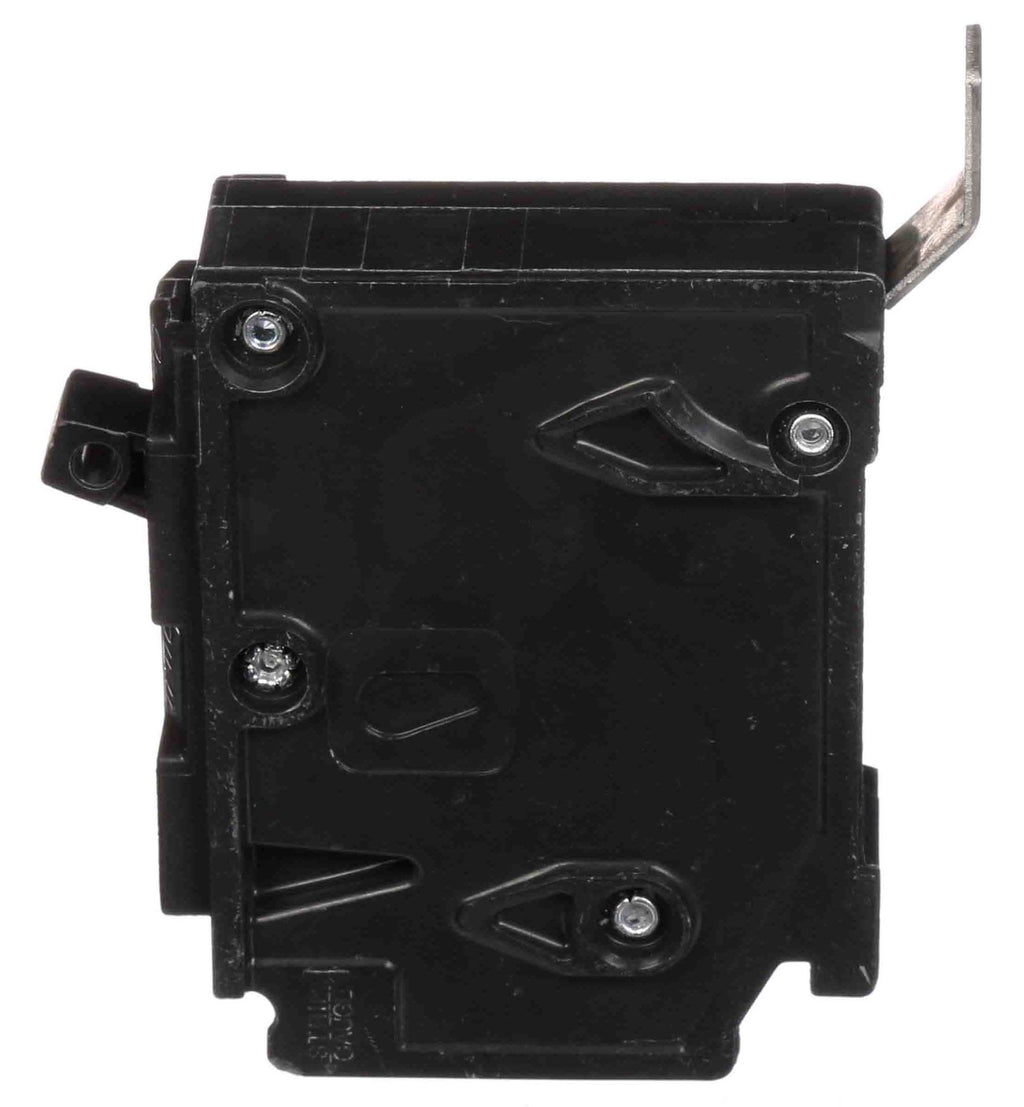

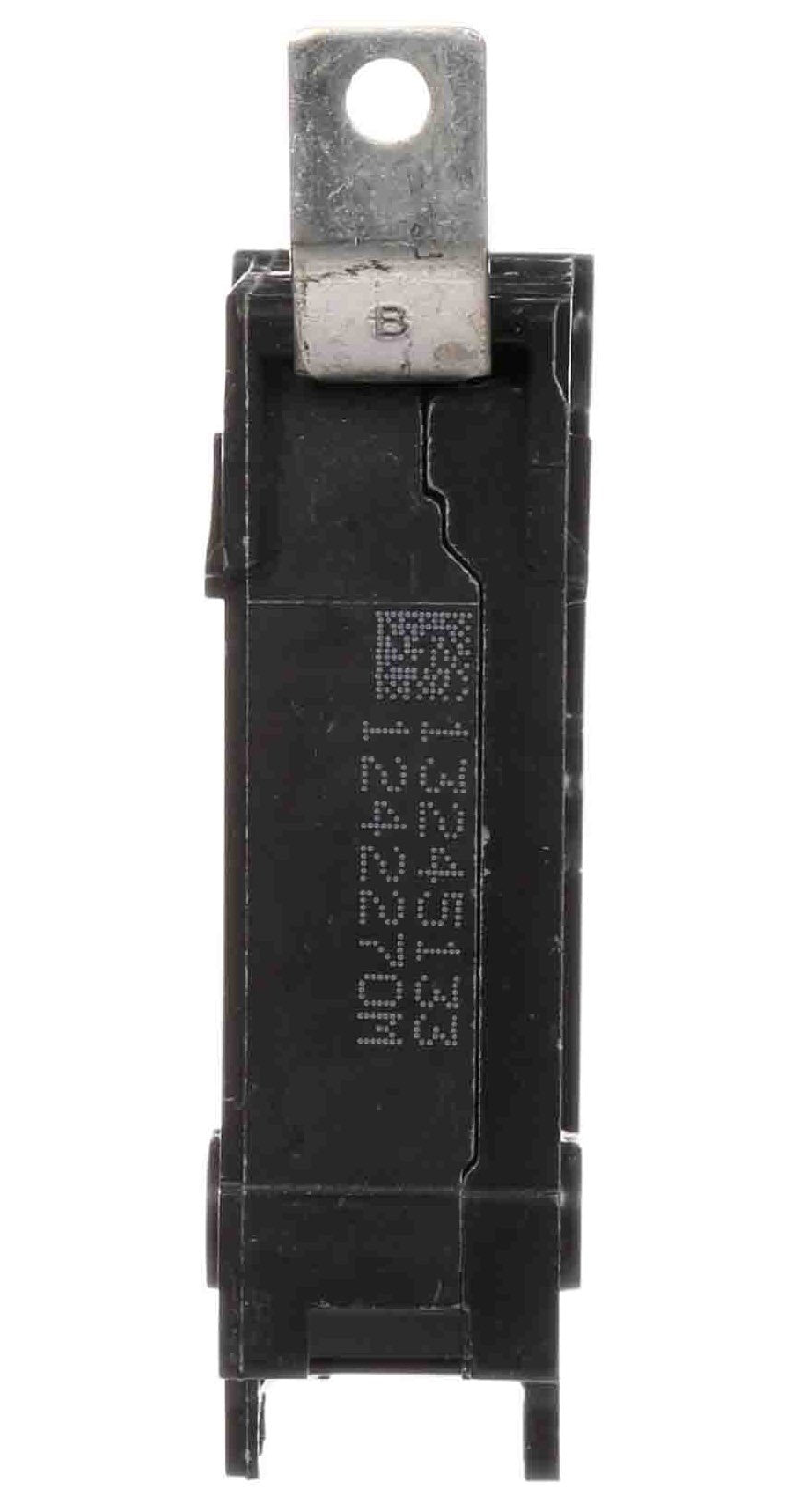

B150H is a Siemens 50 Amp 1 Pole molded case circuit breaker designed for bolt-on mounting with a 120/240 Volt rating.B150H features a thermal magnetic trip unit with a 22kA interrupt rating, suitable for use in Siemens BLH frame panelboards. It provides reliable overcurrent protection with load side lug terminals and complies with industry standards for safety and performance.
- Key Specifications
- Amperage: 50 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Mounting Type: Bolt-On
- Interrupt Rating: 22kA
- Frame/Series: BLH (125A frame)
- Trip Unit: Thermal Magnetic
- Terminal Connection: Lug
- Application: Siemens P1 Panelboards
- Compliance: OEM Siemens product
Specifications
- Part Number: B150H
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BLH
- Voltage : 120
- Amperage : 50
- Phase : 1
- Poles : 1
- AIC rating : 22kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BLH
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263857
- GTIN : 00783643263857
- Country of Origin : Mexico
- Dimensions : 3.937 x 2.756 x 0.787 inch
- Weight : 0.309
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
