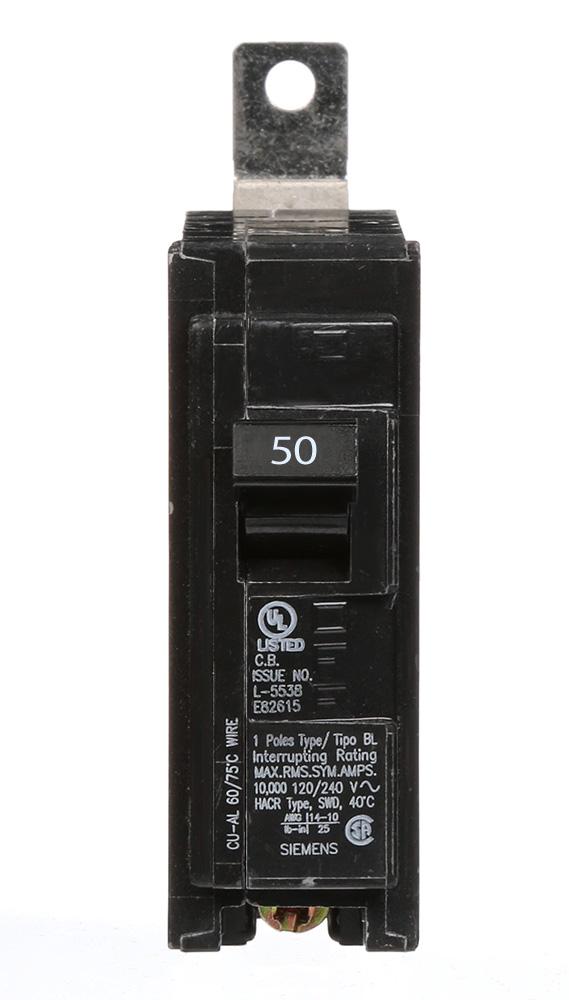

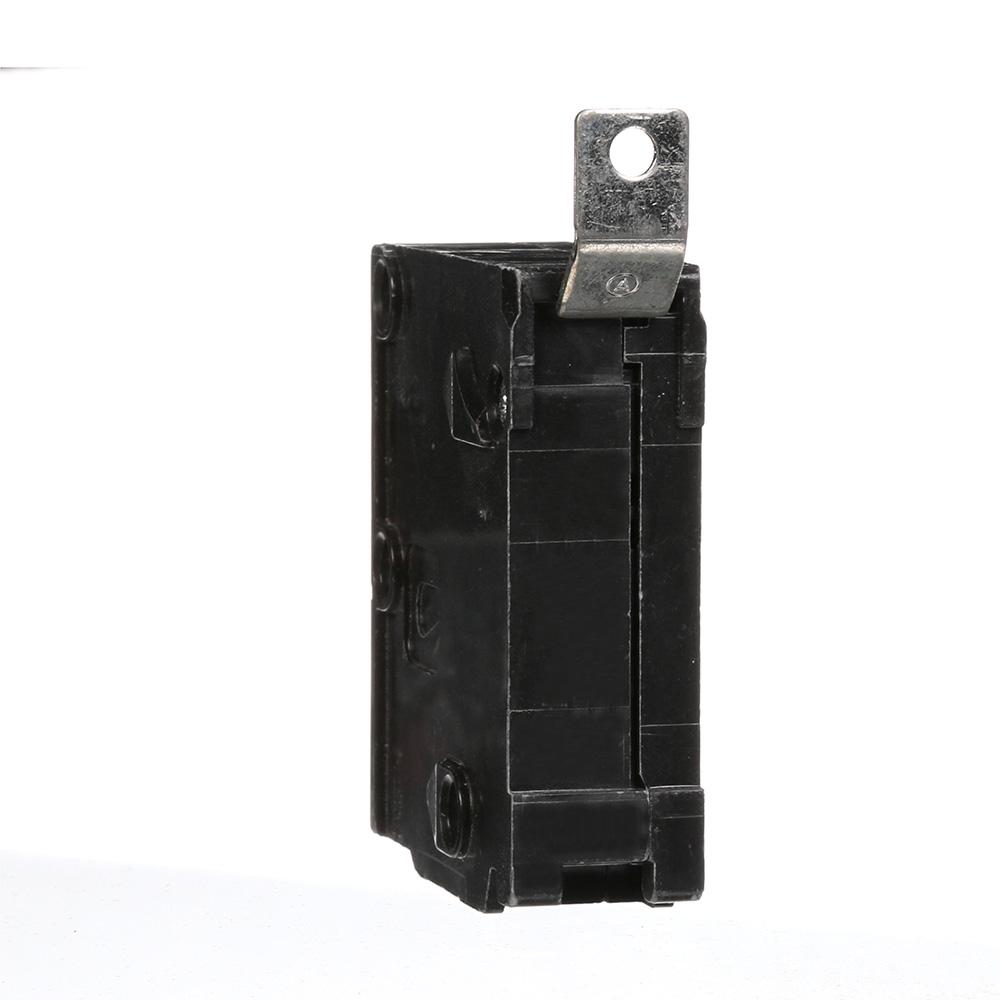

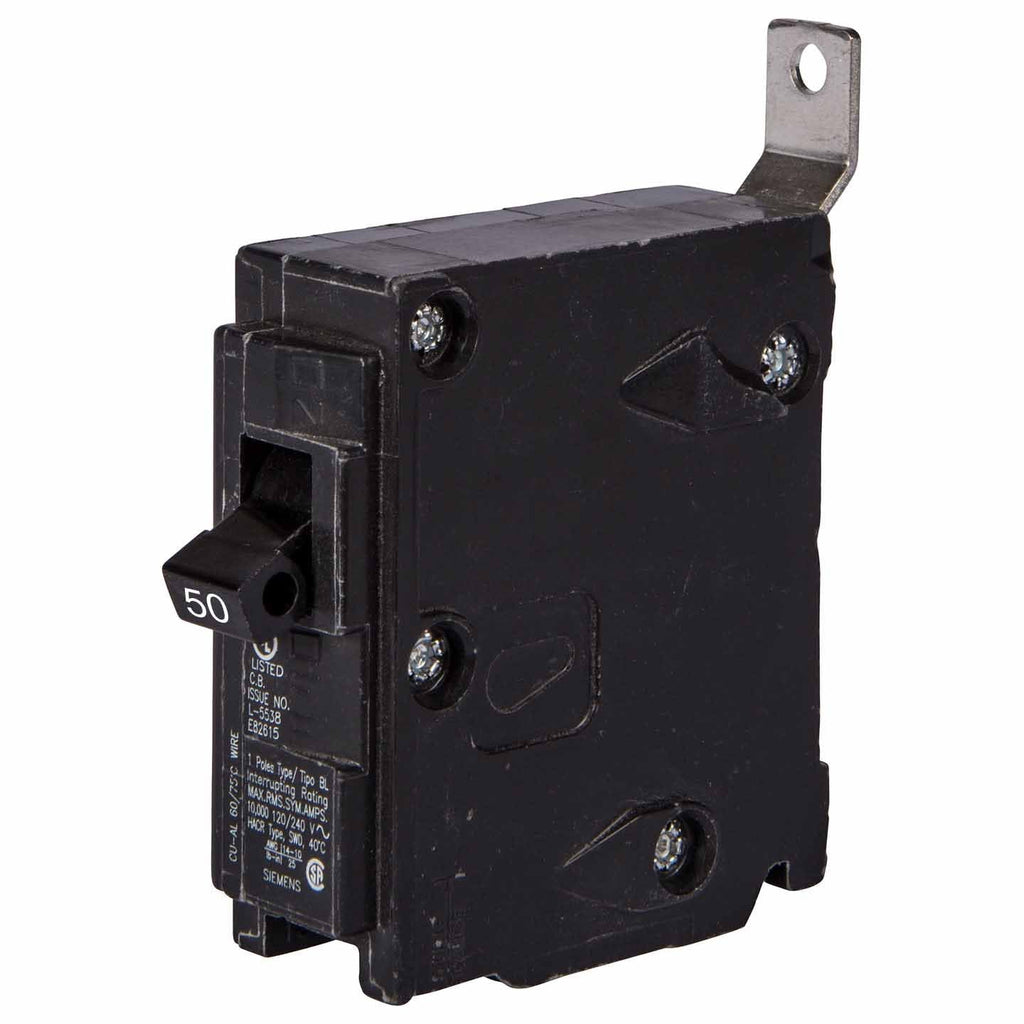

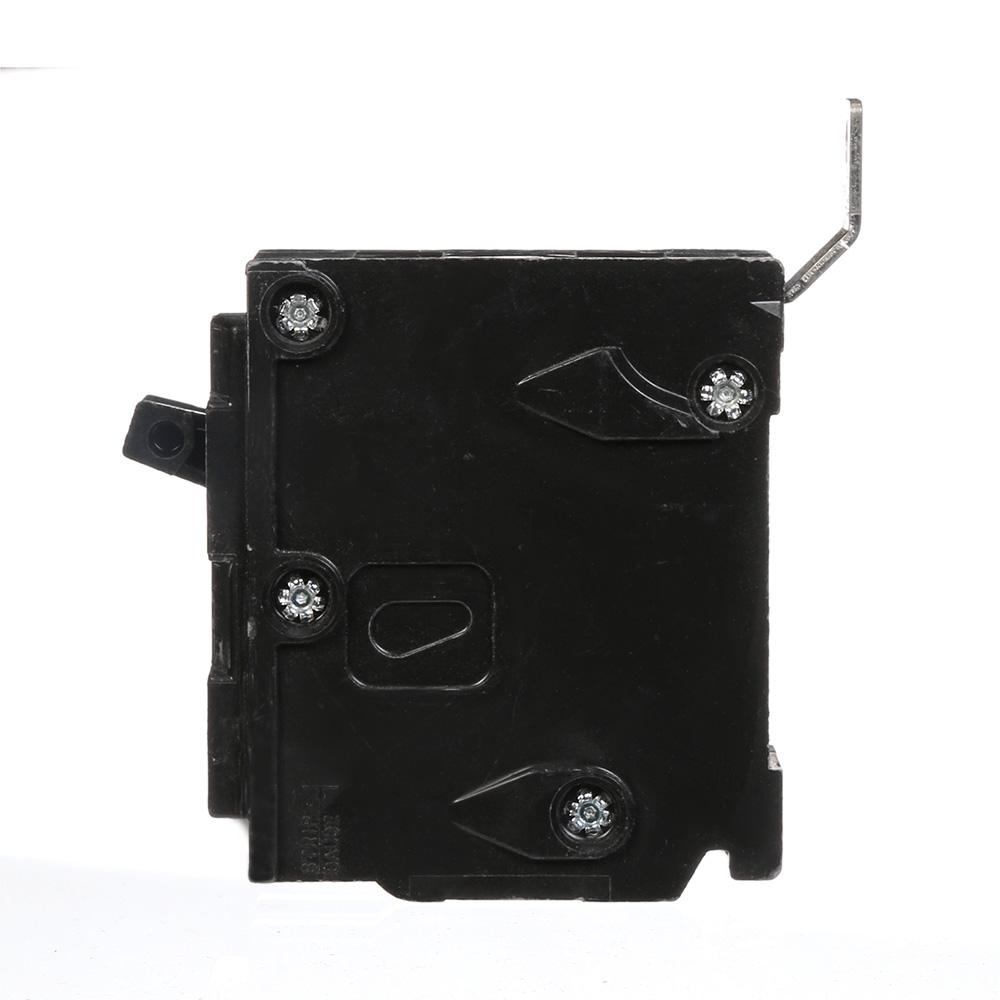

B150 - Siemens 50 Amp 120 Volt 1-Pole Bolt-On Circuit Breaker B/BL Series

B150

B150 is a Siemens 50 Amp 120 Volt 1-Pole bolt-on circuit breaker from the B/BL Series designed for panelboard mounting.This thermal magnetic molded case circuit breaker features a single pole, 50 Amp current rating, and 120 Volt voltage rating. It has a bolt-on mounting type and an interrupting rating of 10,000 Amps. The breaker is UL listed and CSA approved, ensuring reliable protection and compliance with safety standards.

Key Specifications
• Manufacturer: Siemens
• Series/Frame: B/BL Series
• Amperage: 50 Amps
• Voltage: 120 Volts
• Poles: 1 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 10,000 Amps
• Trip Unit: Thermal Magnetic
• Certifications: UL Listed, CSA Approved
• Phase: Single Phase
• Dimensions: Approx. 3.5" x 1" x 3"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B150
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 240
• Amperage : 50
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-On
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263482
• GTIN : 00783643263482
• Country of Origin : Mexico
• Dimensions : 2.571 x 1.00 x 2.89 inch
• Weight : 0.309 lb
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
