Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description
B145

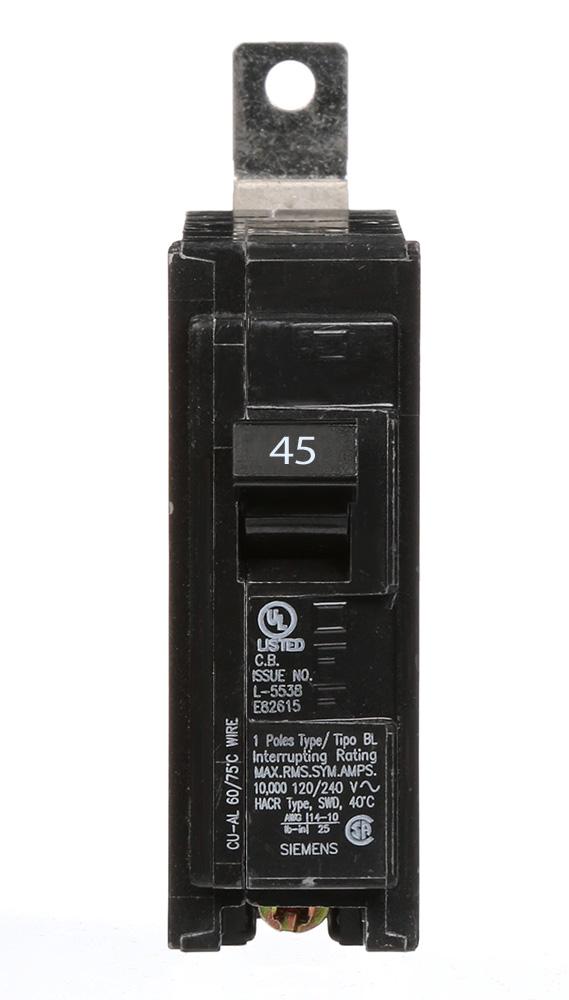

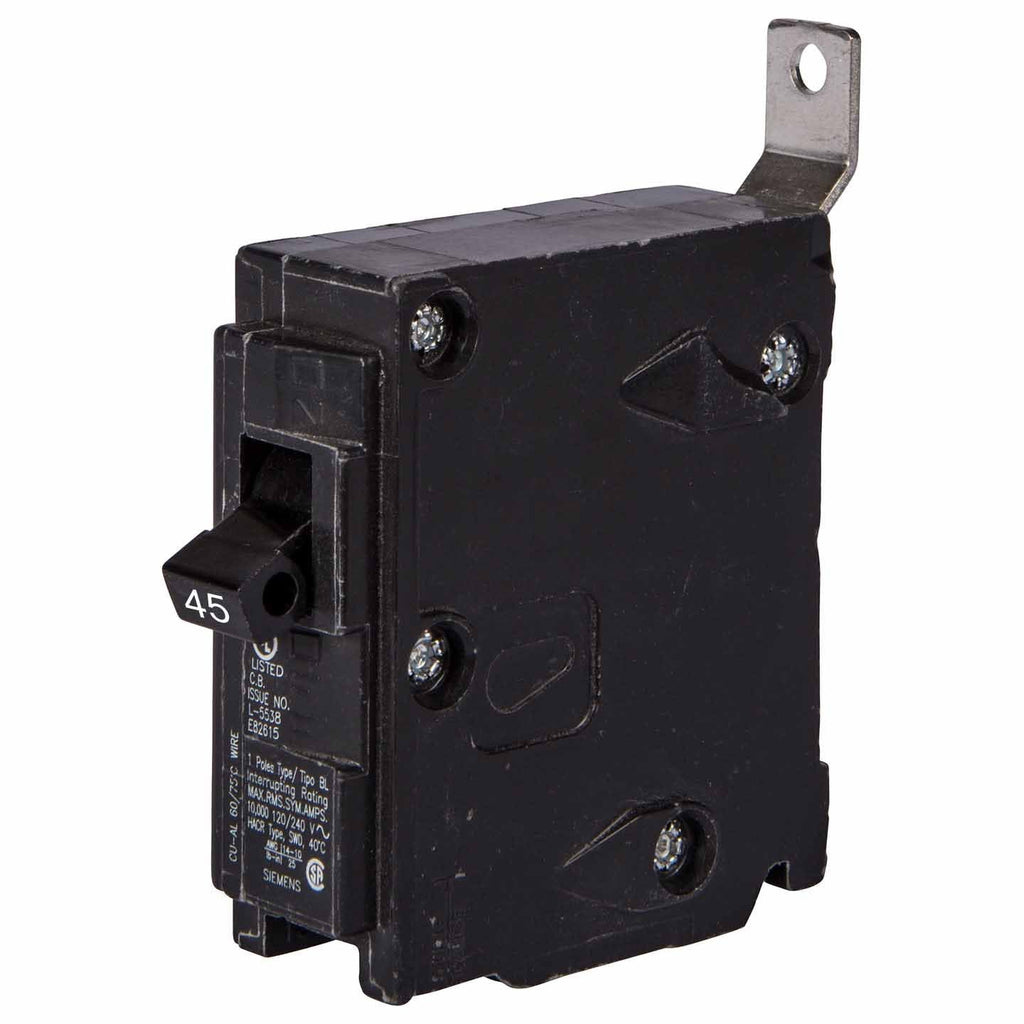

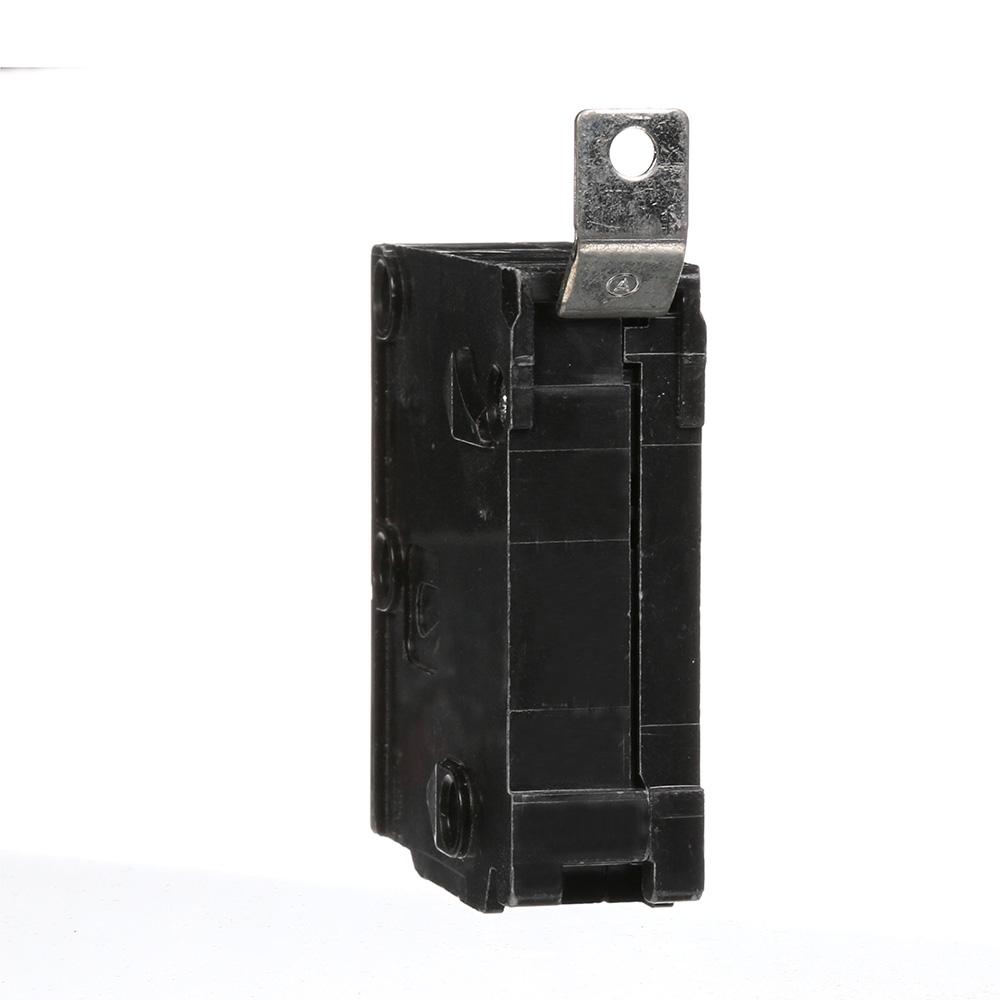

B145 is a Siemens 45 Amp, 120/240 Volt, 1 Pole molded case circuit breaker designed for reliable electrical protection.This Siemens B145 circuit breaker features a Type BL frame with a thermal magnetic trip unit, 10 kA interrupt rating, and bolt-on mounting. It is UL listed and suitable for single-phase applications requiring 45 amps at 120/240 VAC.
- Manufacturer: Siemens
- Part Number: B145
- Amperage: 45 Amps
- Voltage: 120/240 VAC
- Poles: 1
- Interrupt Rating: 10 kA
- Trip Unit: Thermal Magnetic
- Mounting Type: Bolt-On
- Series/Frame: Type BL
- Certifications: UL Listed, HACR Reverse Feed
Specifications
- Part Number: B145
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BL
- Voltage : 240
- Amperage : 45
- Phase : 1
- Poles : 1
- AIC rating : 10kA@240V
- Connection : Bolt-on
- Functions : LI - Long-Time and Instantaneous Trip
- Terminal Connection : Lug
- Frame Size : 125A/BL
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- MCM Size : Min. Wire Size 8 AWG Max. Wire Size 4 AWG (Al), 6 AWG (Cu)
- Breaker Type : Standard
- Protection : Thermal Magnetic
Product Data
- UPC : 783643263475
- GTIN : 00783643263475
- Country of Origin : Mexico
- Dimensions : 2.571 x 1.00 x 2.89 inch
- Weight : 0.309
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
