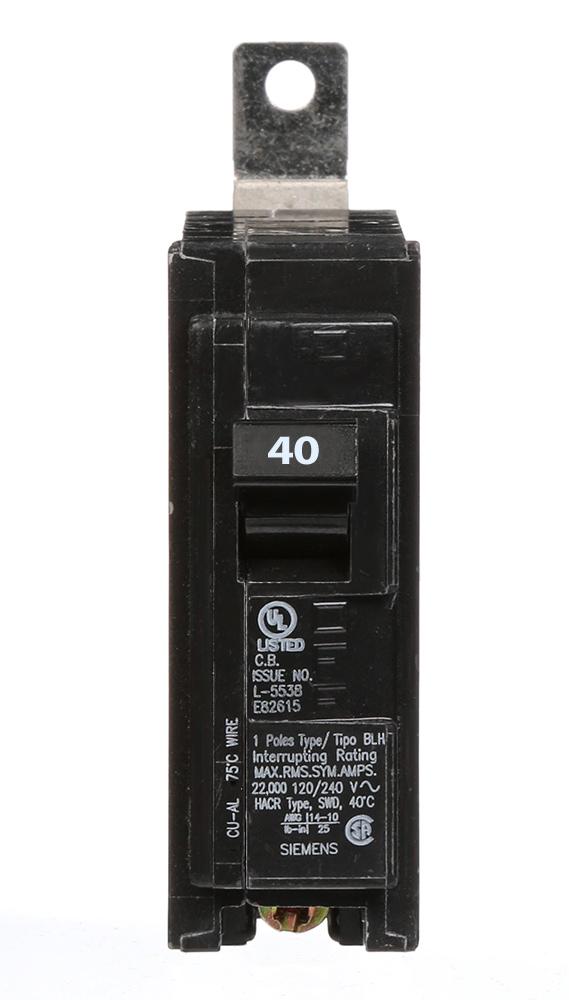

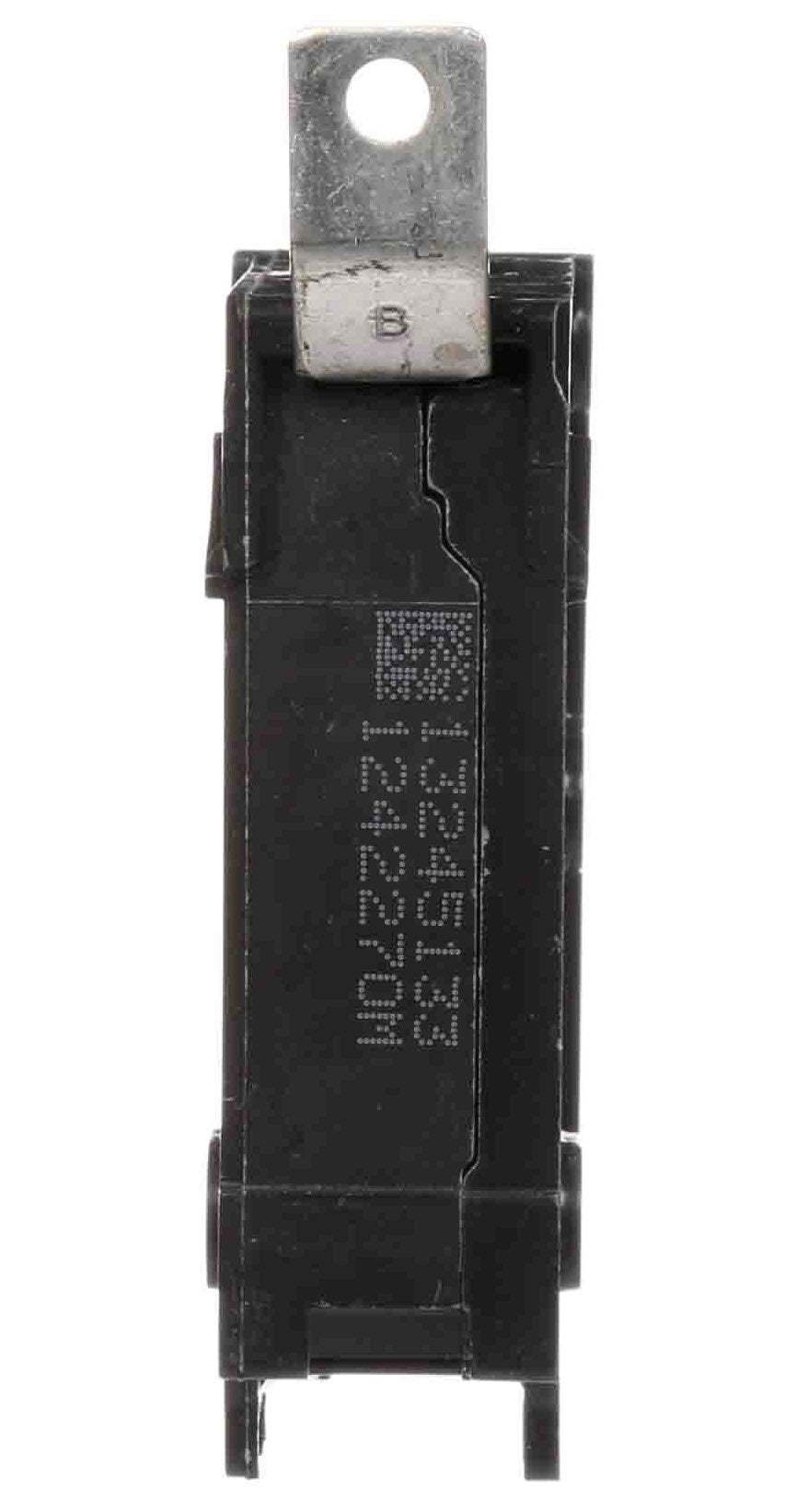

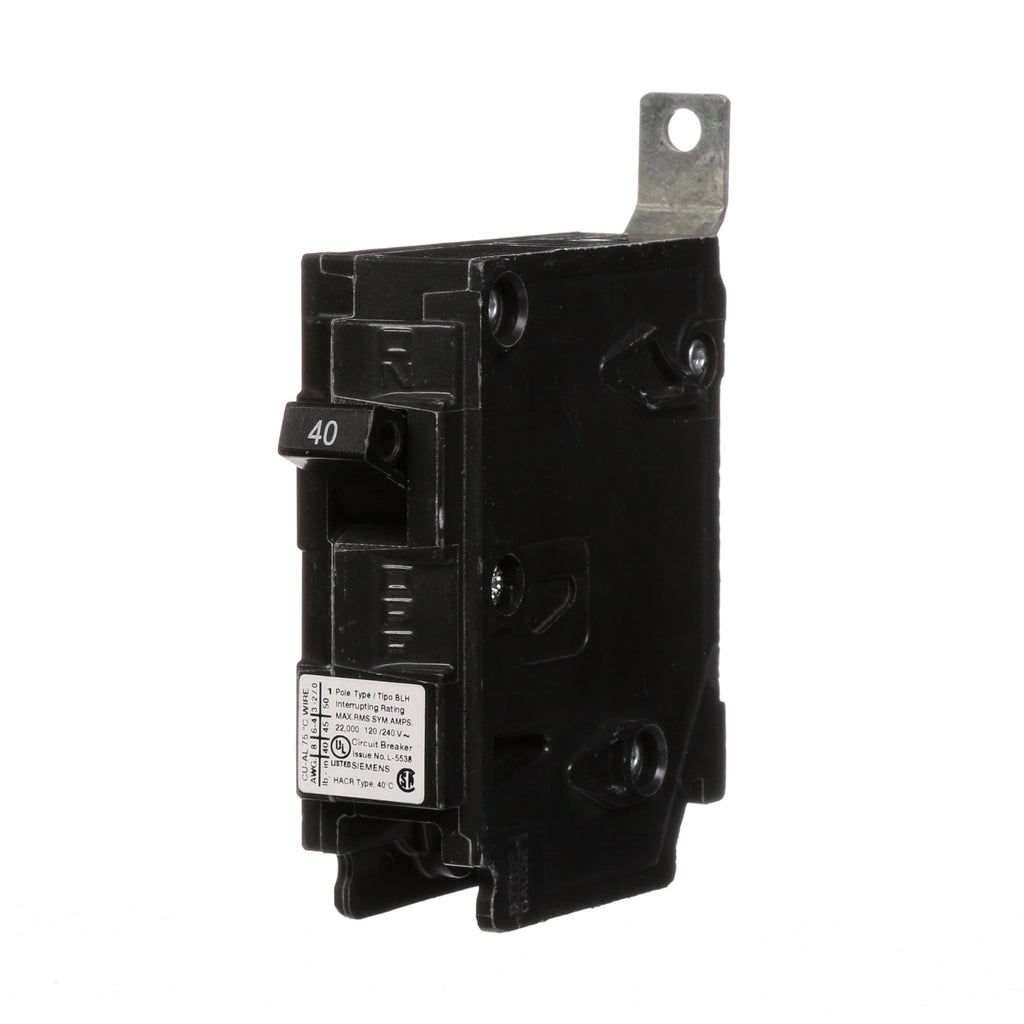

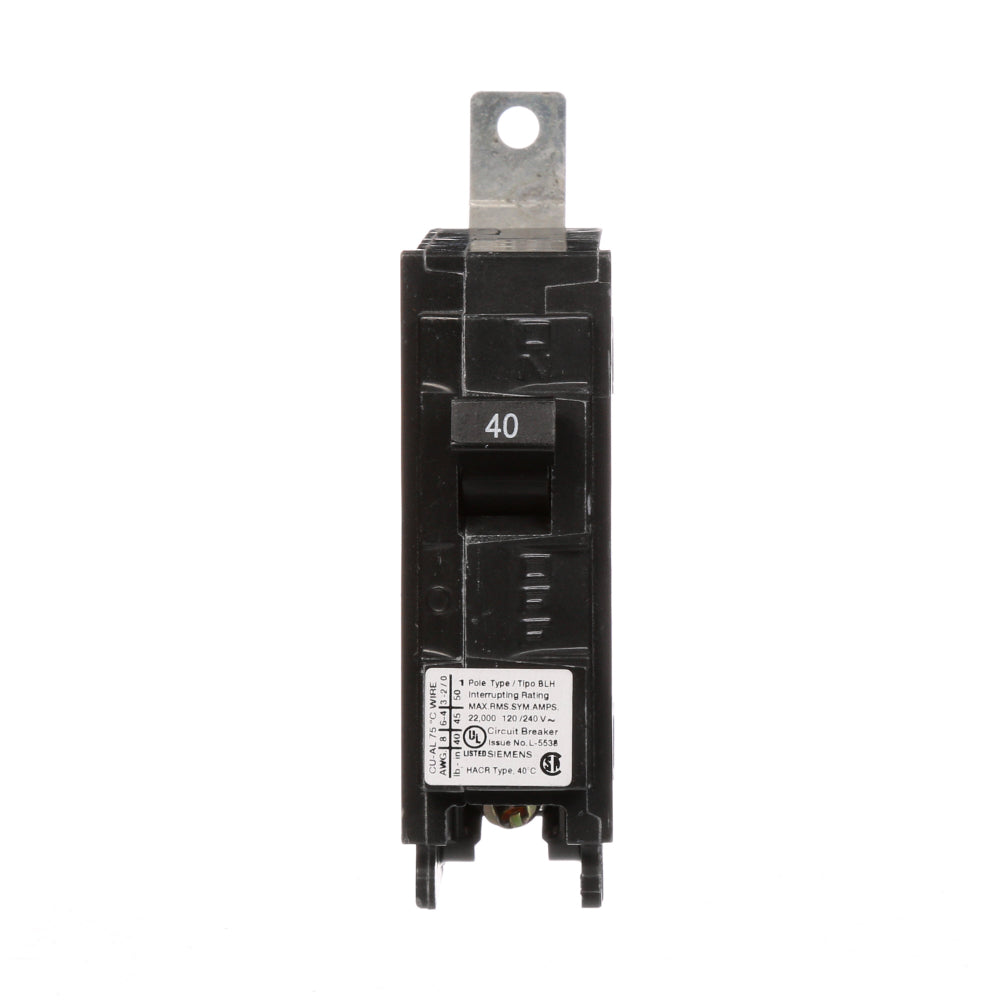

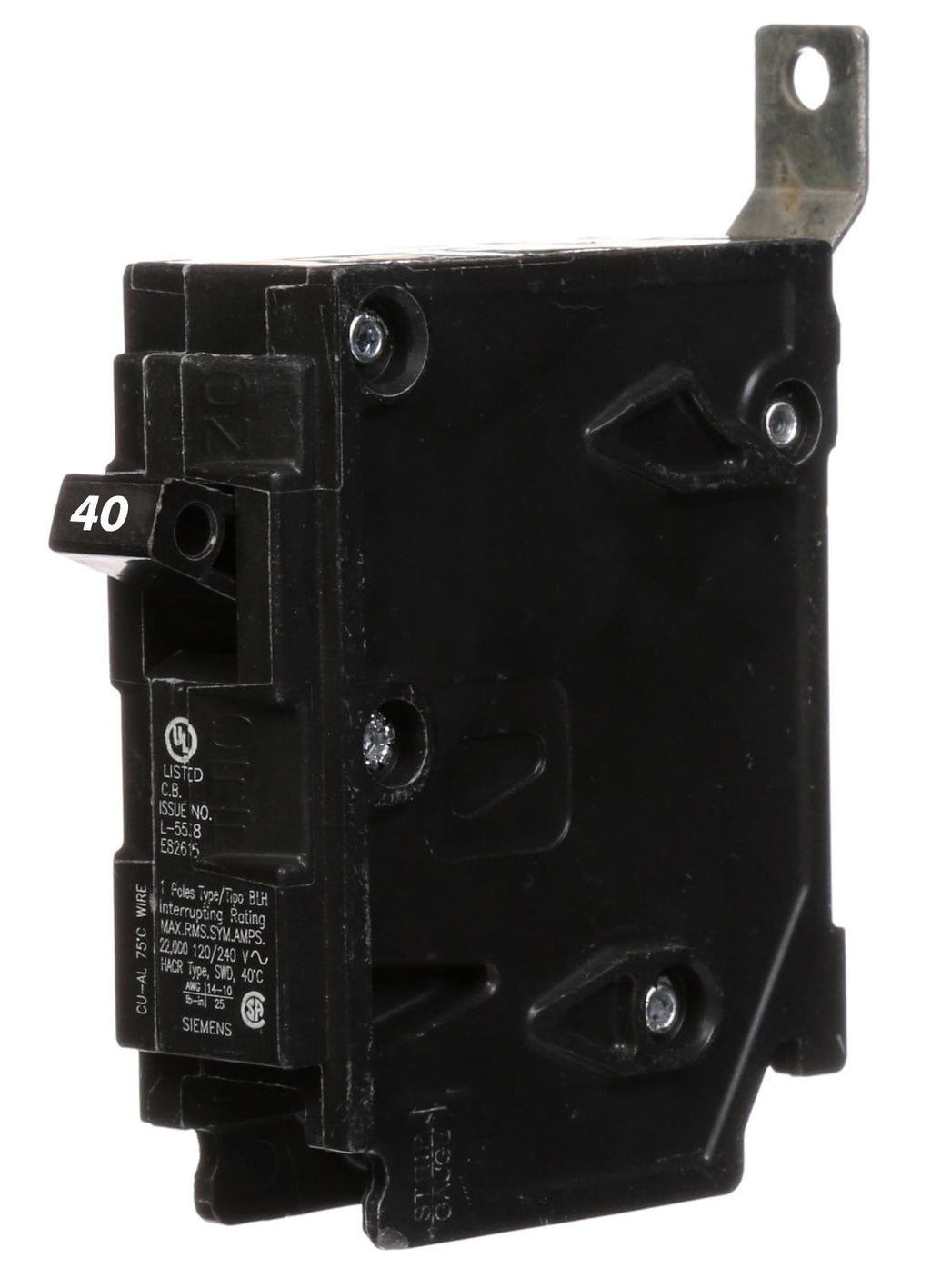

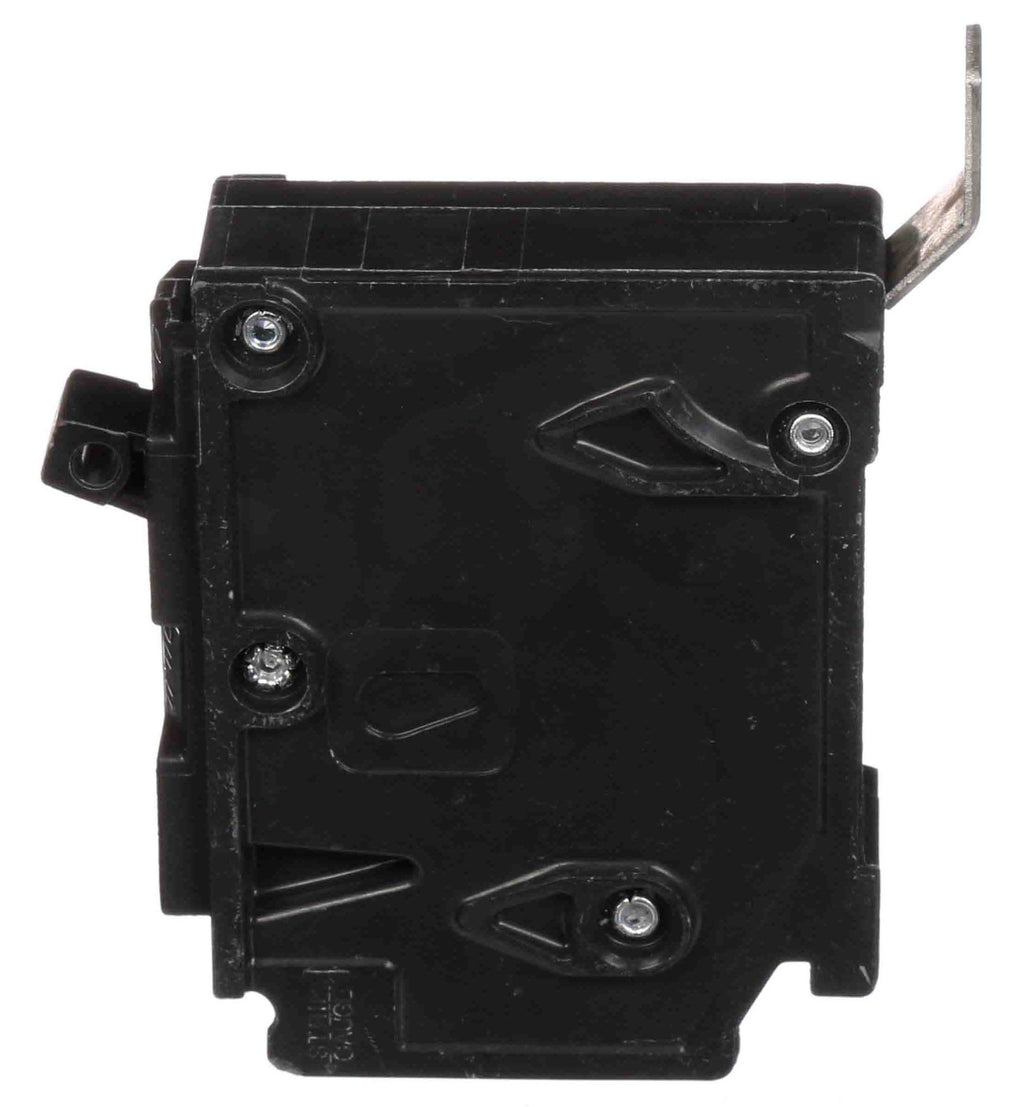

B140H - Siemens 40 Amp 120/240V 1 Pole Bolt-On Molded Case Circuit Breaker 22kA Interrupt Rating

B140H

B140H is a Siemens 1 Pole 40 Amp bolt-on molded case circuit breaker designed for 120/240 Volt applications.This circuit breaker features a thermal magnetic trip unit with a high interrupt rating of 22,000 Amps at 240 Volts, suitable for reliable protection in low voltage electrical systems. It is part of Siemens B Series frame and mounts via bolt-on installation.

• Amperage: 40 Amps
• Voltage: 120/240 VAC
• Poles: 1 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 22 kA at 240 VAC
• Trip Unit: Thermal Magnetic
• Series/Frame: Siemens B Series
• Certifications: UL Listed (implied by manufacturer standard)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B140H
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BLH
• Voltage : 120
• Amperage : 40
• Phase : 1
• Poles : 1
• AIC rating : 22kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BLH
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643263840
• GTIN : 00783643263840
• Country of Origin : Mexico
• Dimensions : 2.563 x 1.00 x 3.122 inch
• Weight : 0.309
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
