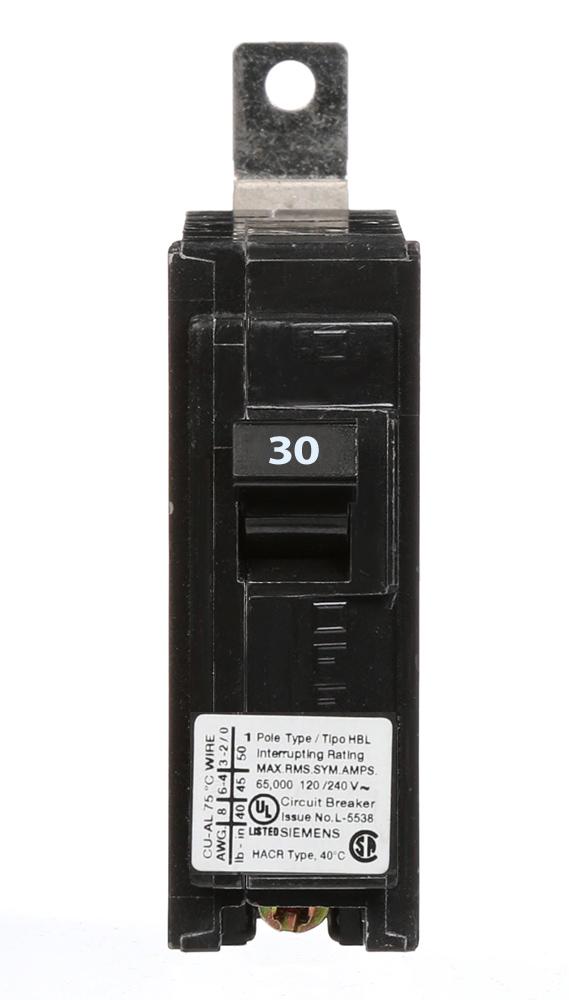

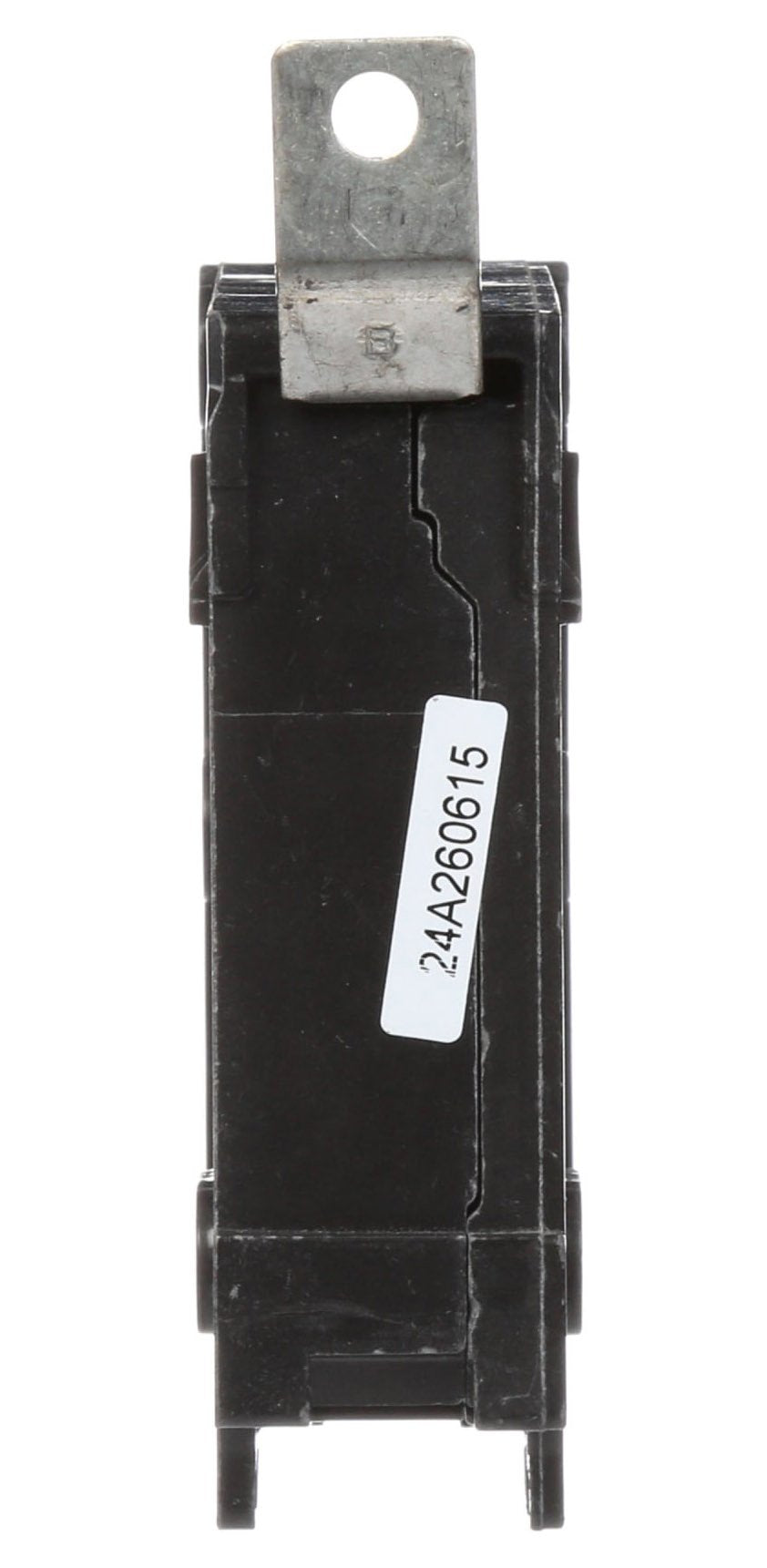

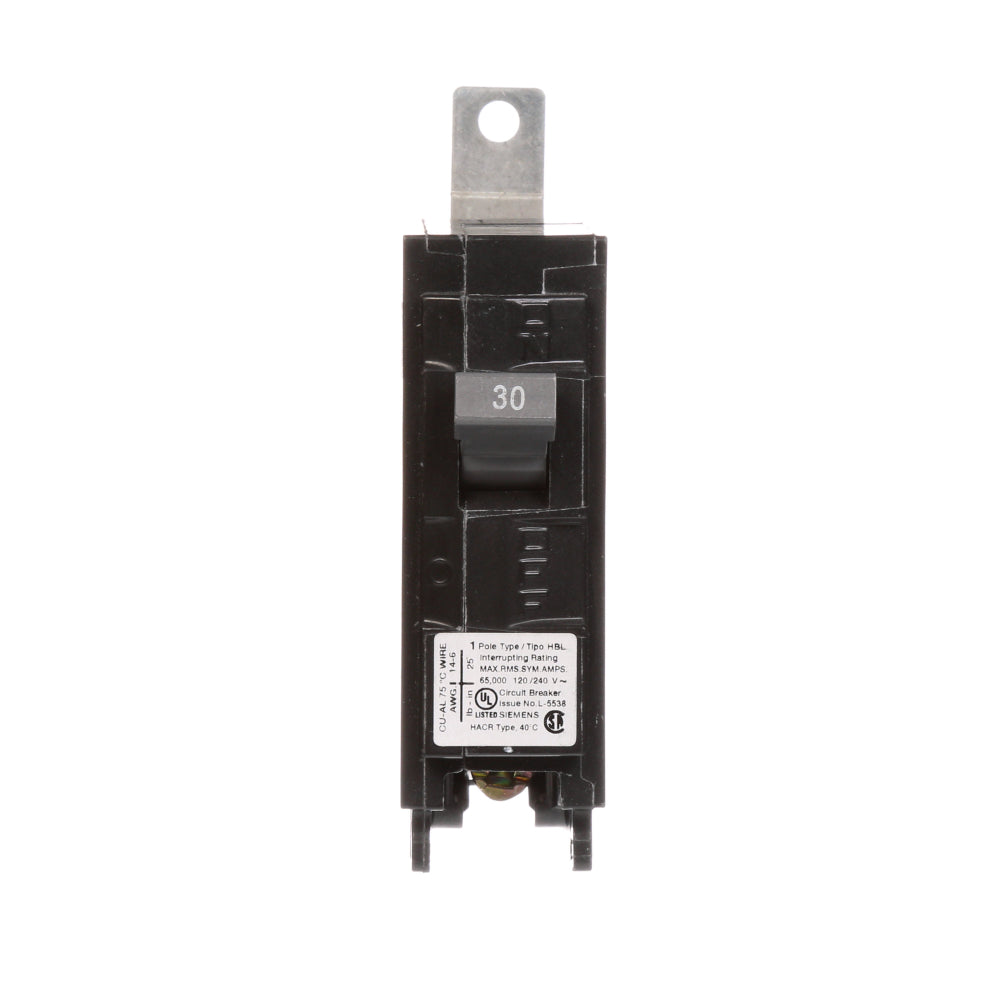

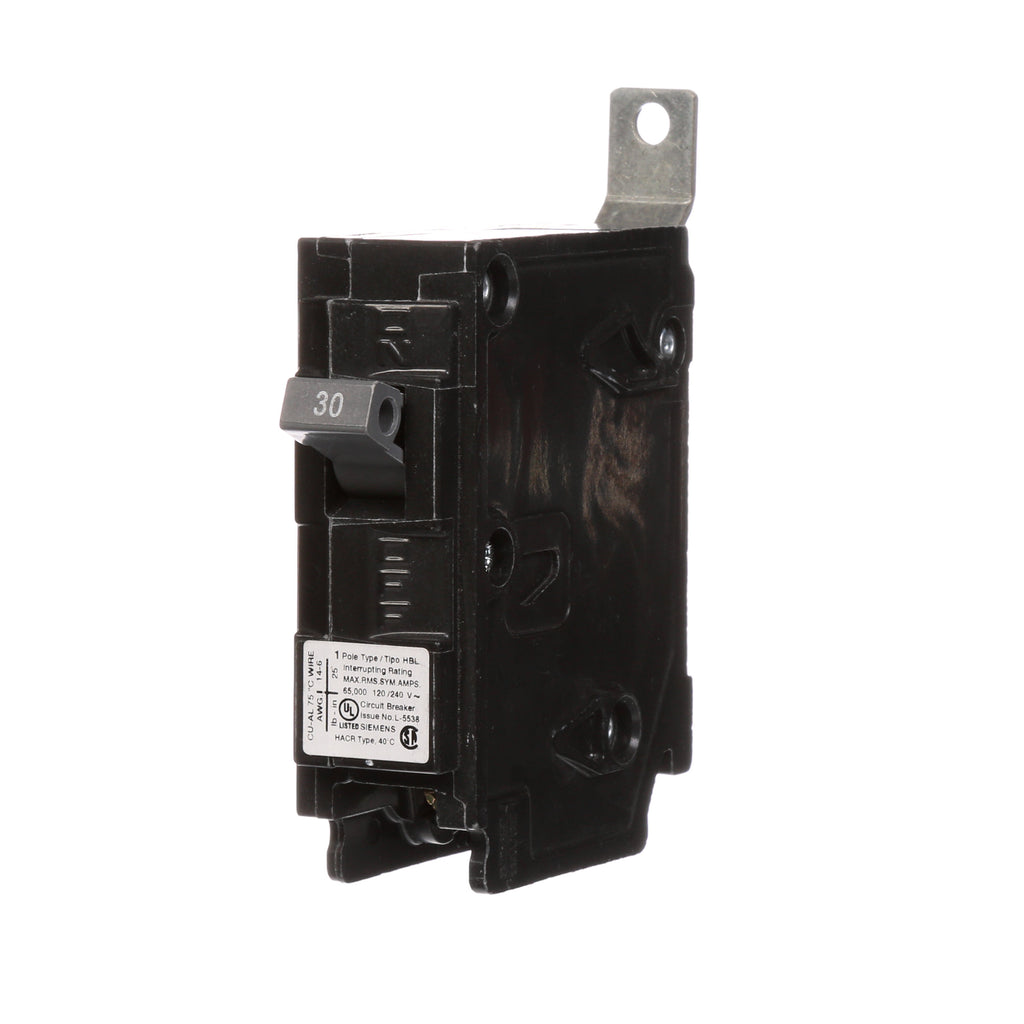

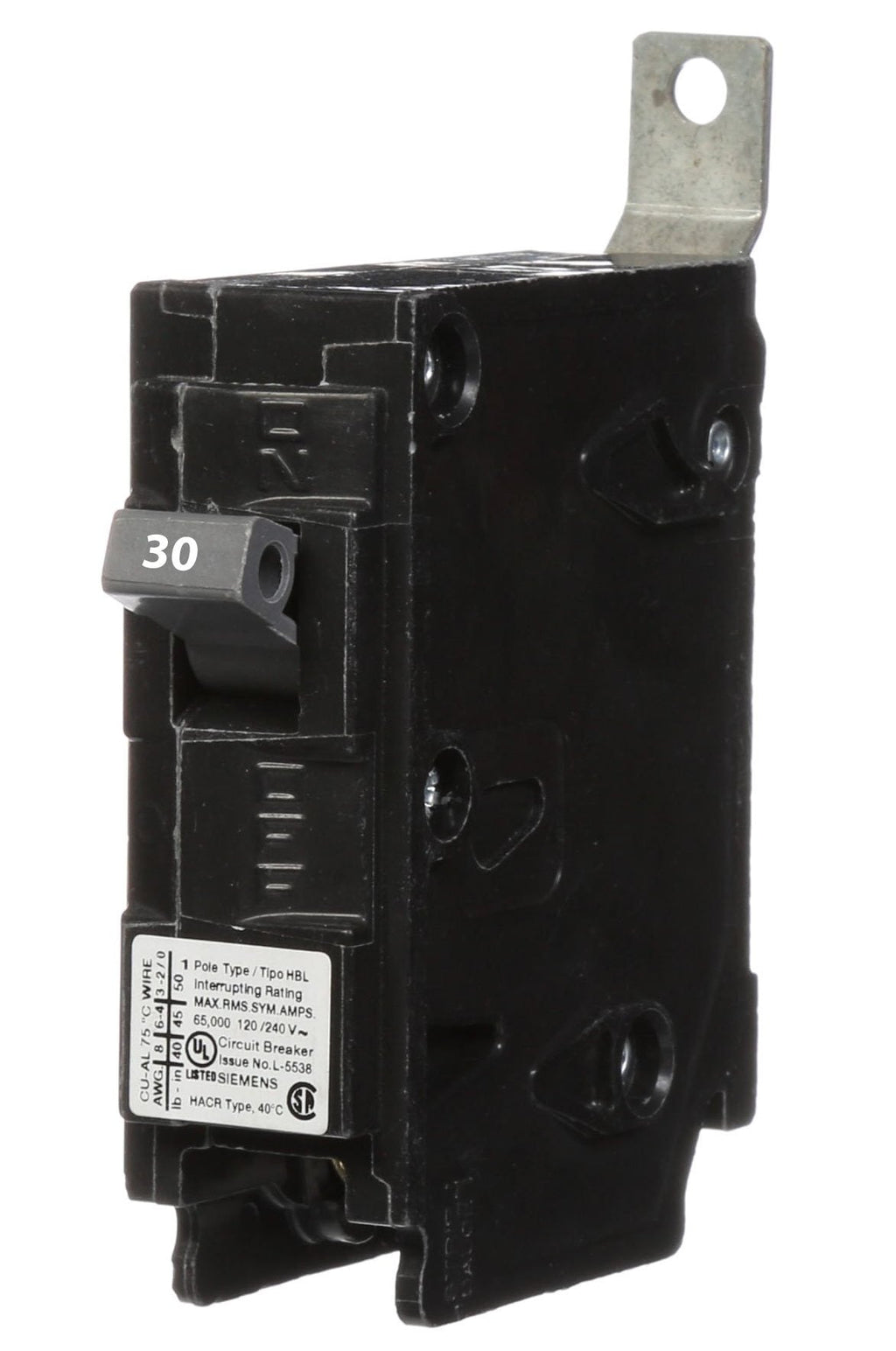

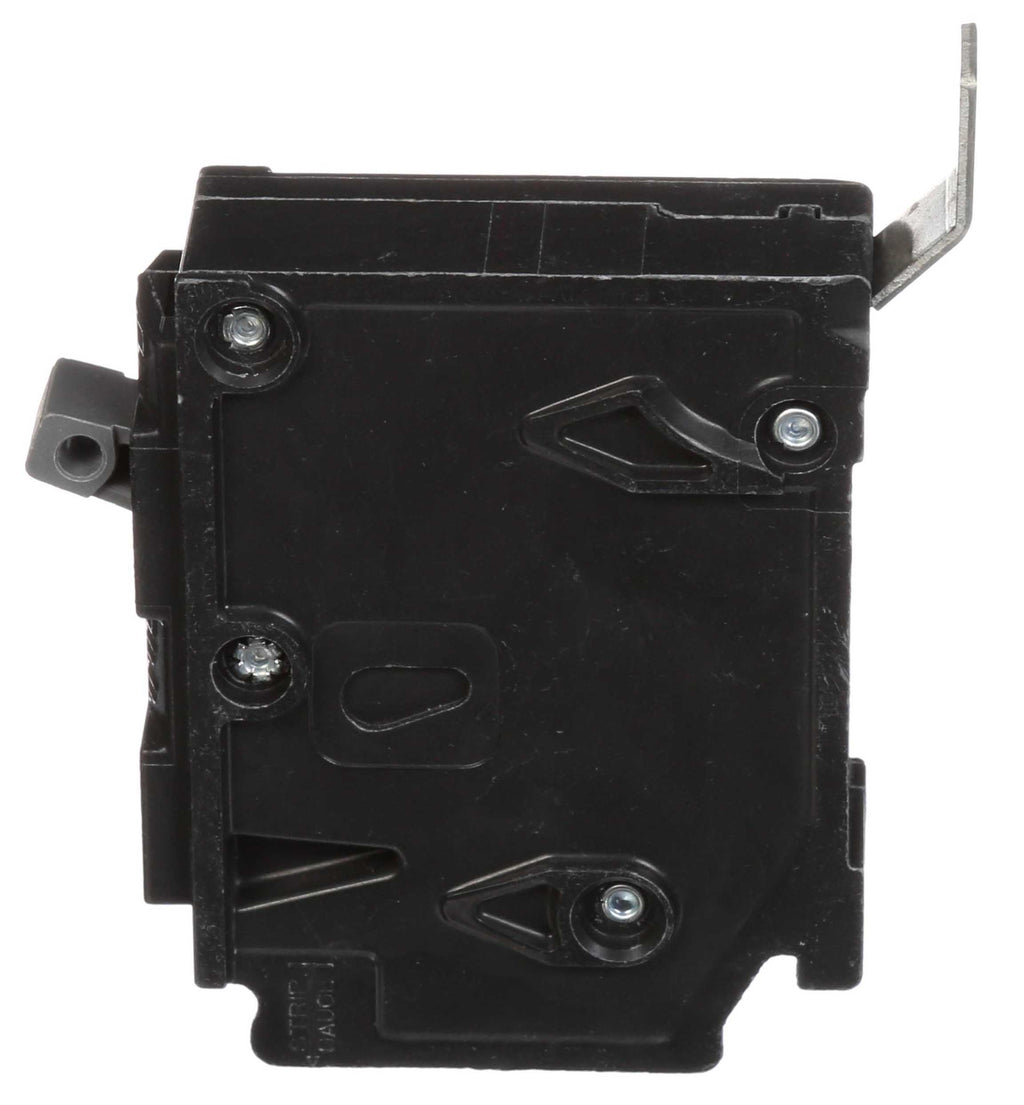

B130HH - Siemens 30 Amp 1 Pole 120/240V Bolt-On Molded Case Circuit Breaker Type BL 65kA Interrupt Rating

B130HH

B130HH is a Siemens 30 Amp 1 Pole molded case circuit breaker designed for panelboard mounting with bolt-on connection.This Siemens B130HH circuit breaker features a thermal magnetic trip unit, 120/240 Volt AC rating, and a 65kA interrupt rating. It belongs to the Type BL family with an HBL frame style, providing reliable circuit protection for electrical distribution systems. The breaker is UL 489 certified and designed for fast, secure bolt-on installation.

Key Specifications
• Amperage: 30 Amps
• Voltage Rating: 120/240 VAC
• Poles: 1 Pole
• Mounting Type: Bolt-On
• Interrupt Rating: 65 kAIC
• Trip Unit: Thermal Magnetic
• Frame/Series: HBL, Type BL
• Certification: UL 489
• Connection Type: Bolt-On
• Application: Electrical Distribution

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B130HH
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : HBL
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 65kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Standard
• Protection : Thermal Magnetic

Product Data

• UPC : 783643264106
• GTIN : 00783643264106
• Country of Origin : Mexico
• Dimensions : 2.563 x 1.00 x 3.122 inch
• Weight : 0.309
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
