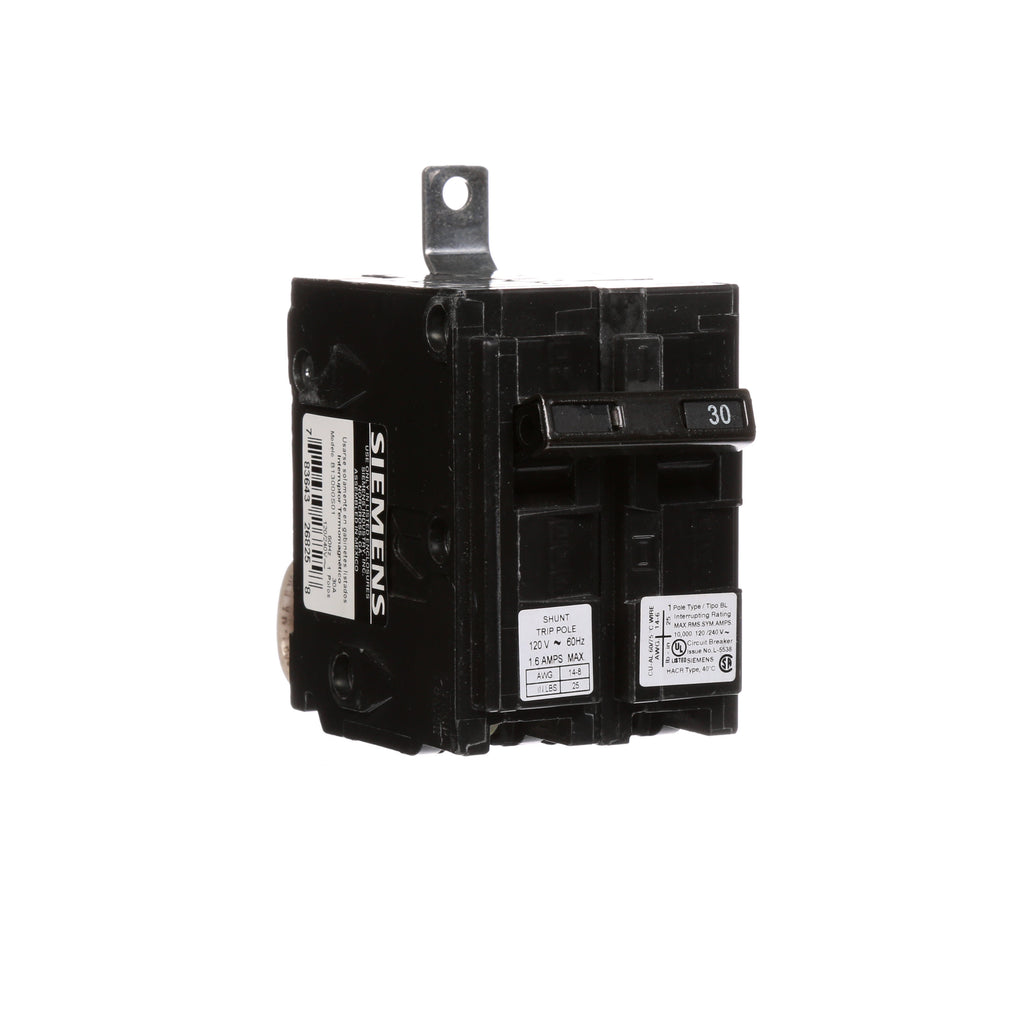

B13000S01 - Siemens 30 Amp 1-Pole 120/240VAC 10kA BL Series Shunt Trip Bolt-On Molded Case Circuit Breaker

B13000S01

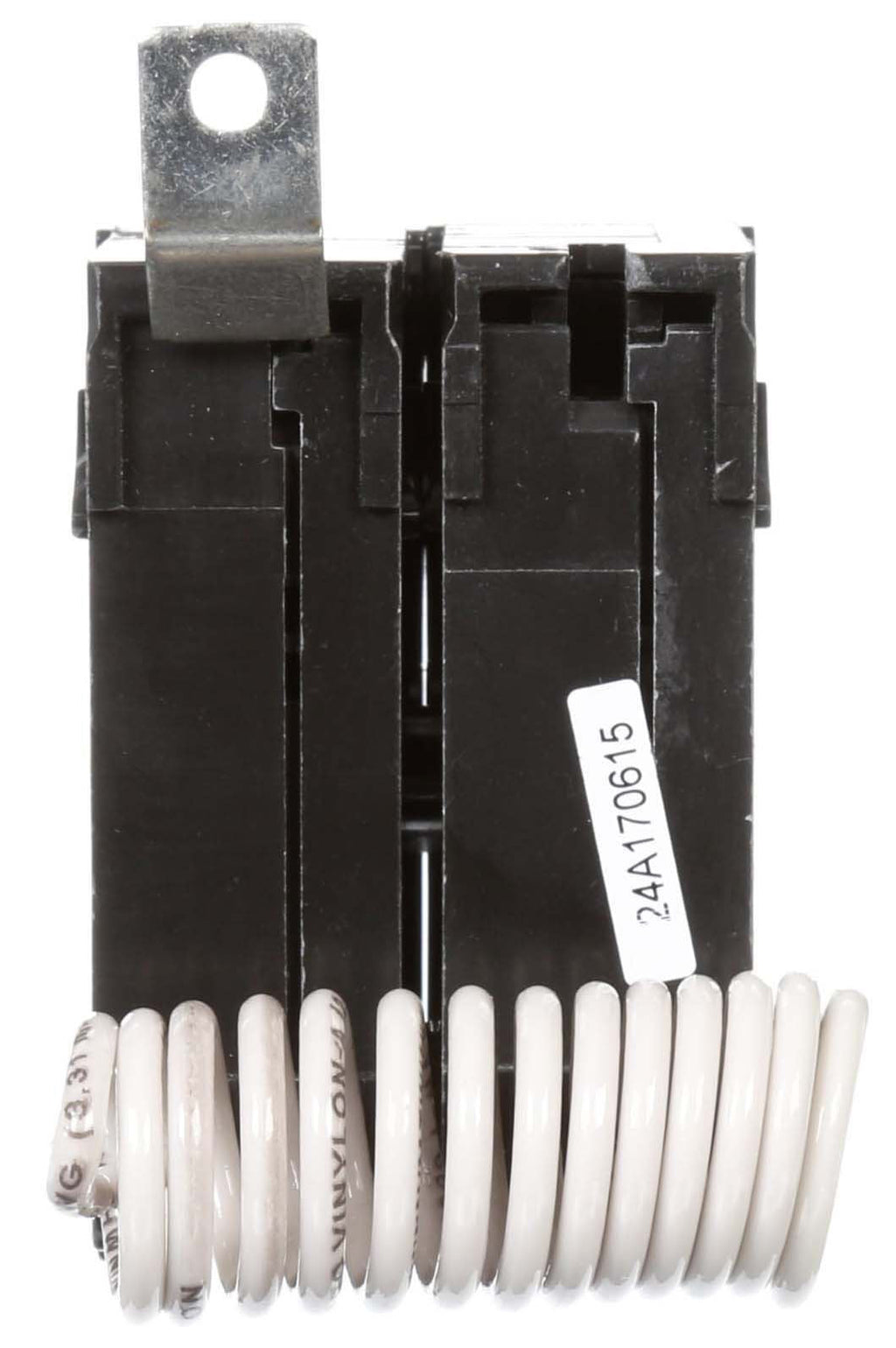

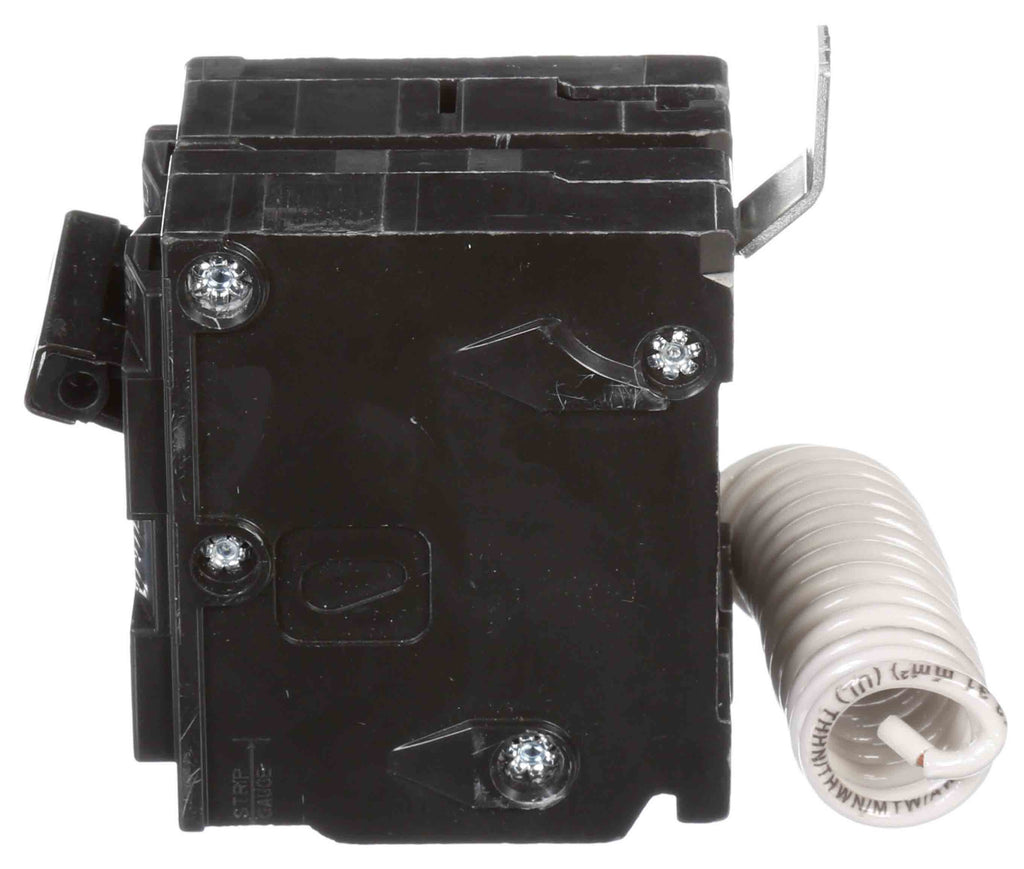

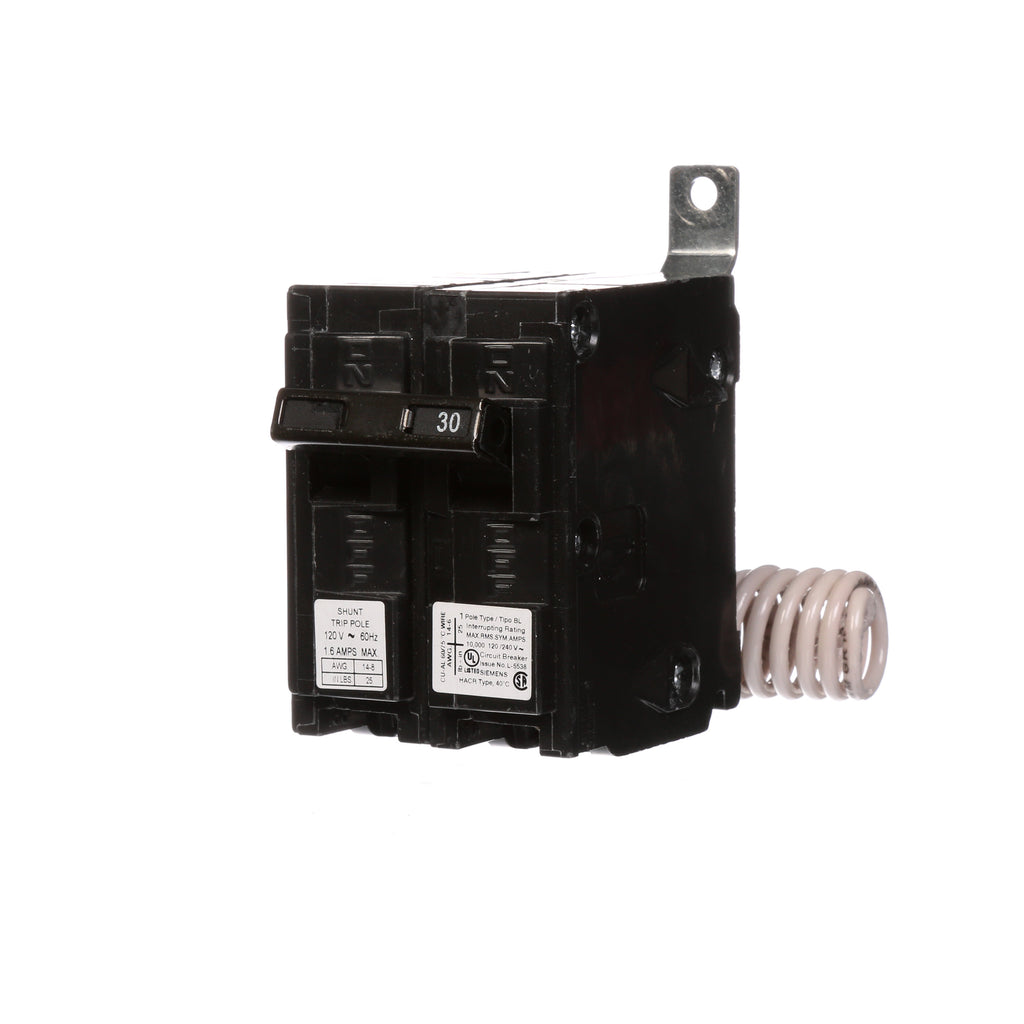

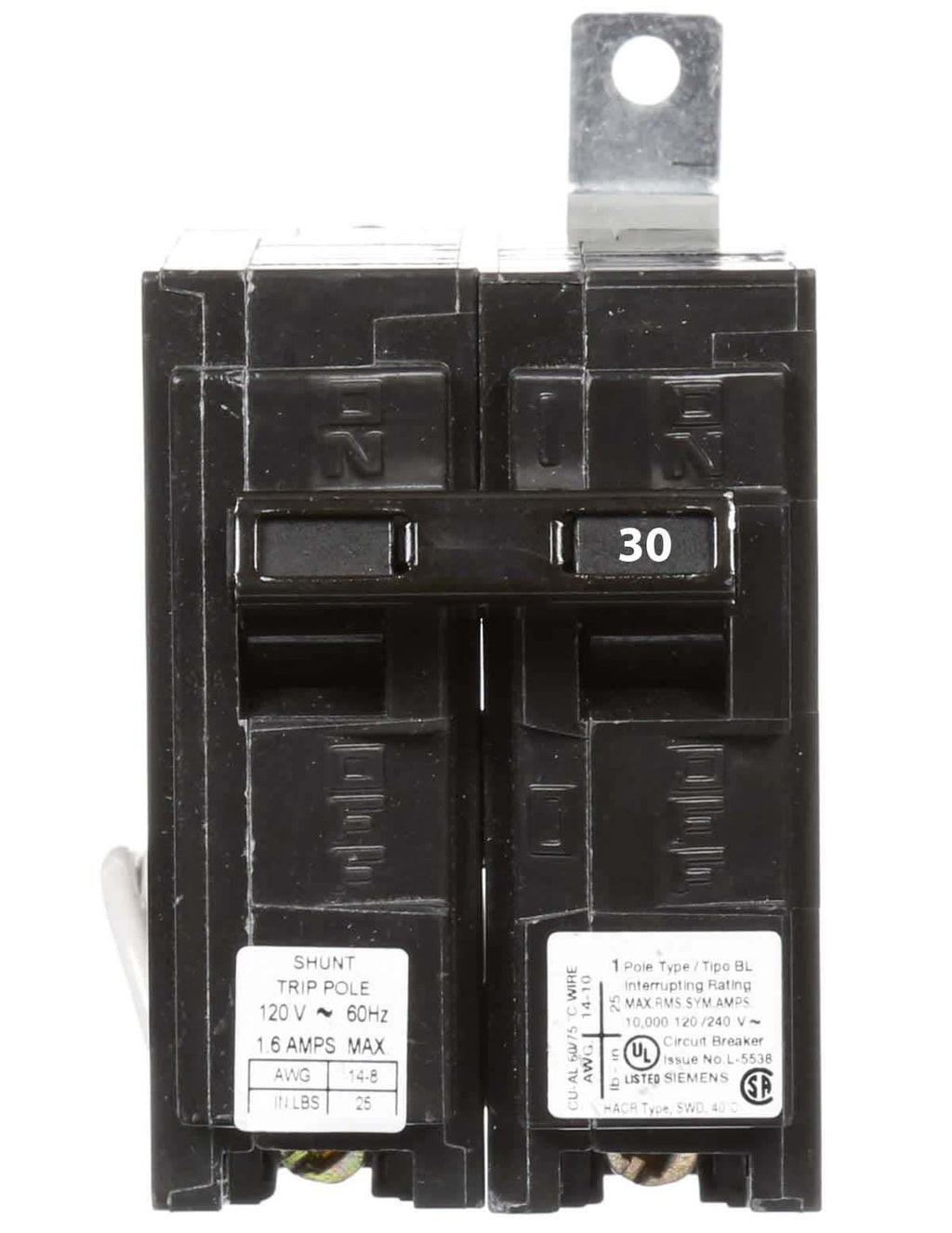

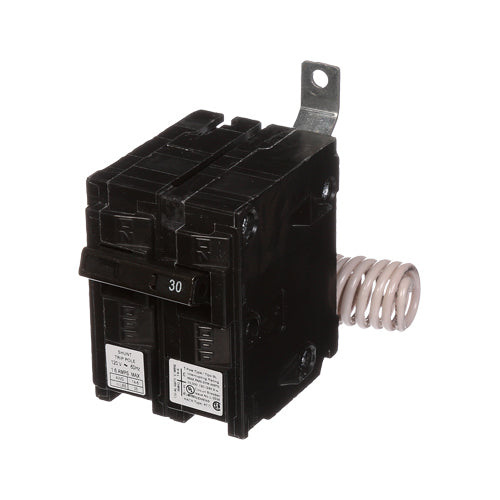

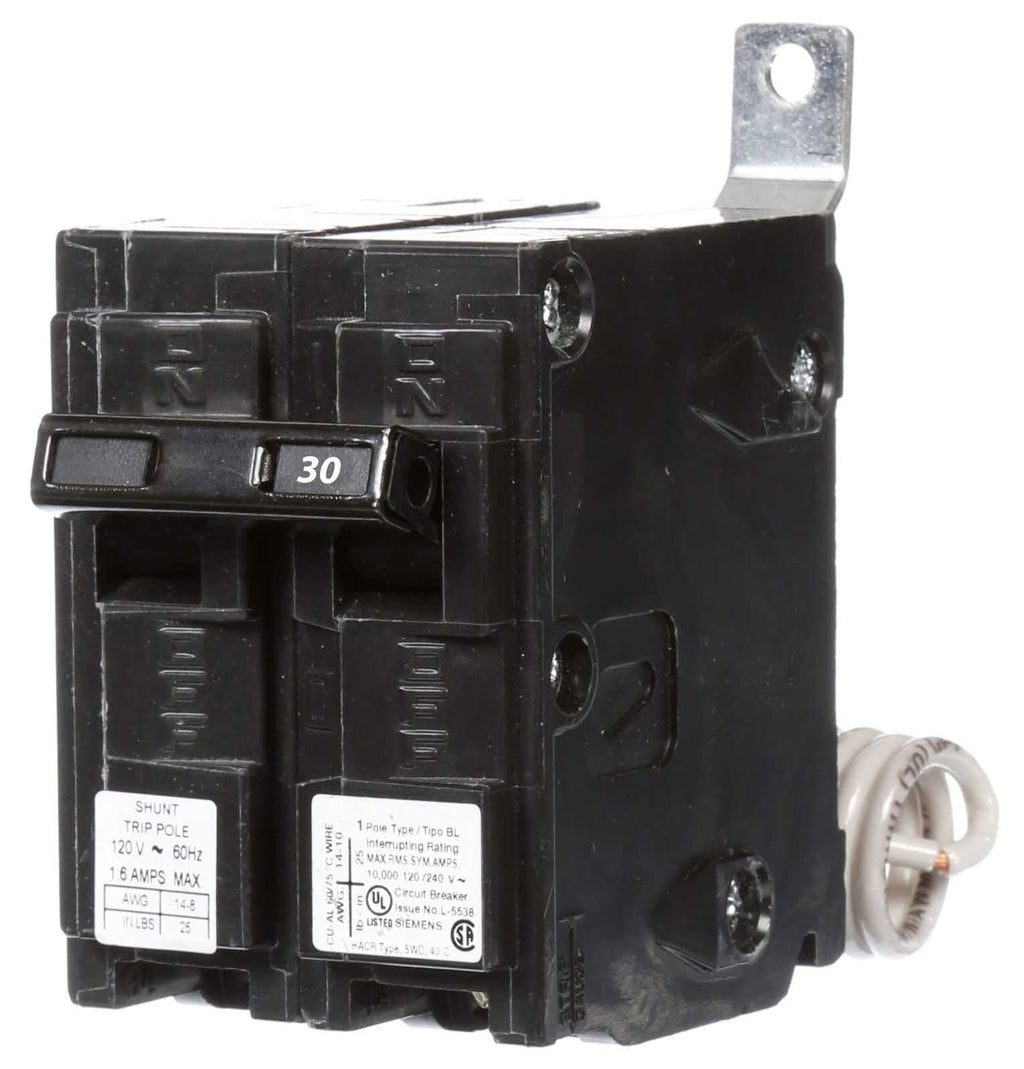

B13000S01 is a Siemens 1-pole, 30 amp molded case circuit breaker designed for reliable circuit protection in electrical distribution systems.

This thermal magnetic circuit breaker features a shunt trip mechanism, bolt-on mounting, and is part of the BL series. It is UL 489 listed for safety and compliance, offering robust performance for commercial and industrial applications.

Key Specifications
• Amperage: 30A
• Voltage: 120/240VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kA at 120/240VAC
• Series/Frame: BL
• Trip Unit: Thermal Magnetic
• Special Feature: Shunt Trip
• Certifications: UL 489
• Application: Electrical Distribution
• Product Type: Molded Case Circuit Breaker
• Weight: Approx. 0.88Ð0.94 lb

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B13000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 6 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268258
• GTIN : 00783643268258
• Country of Origin : Mexico
• Dimensions : 2.571 x 2.00 x 2.89 inch
• Weight : 0.309
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
