2 Year Warranty Guaranteed
All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.
Product Questions? Contact Us
Product Info
- Manufacturer:Siemens
- Sub-Category:Molded Case
Description

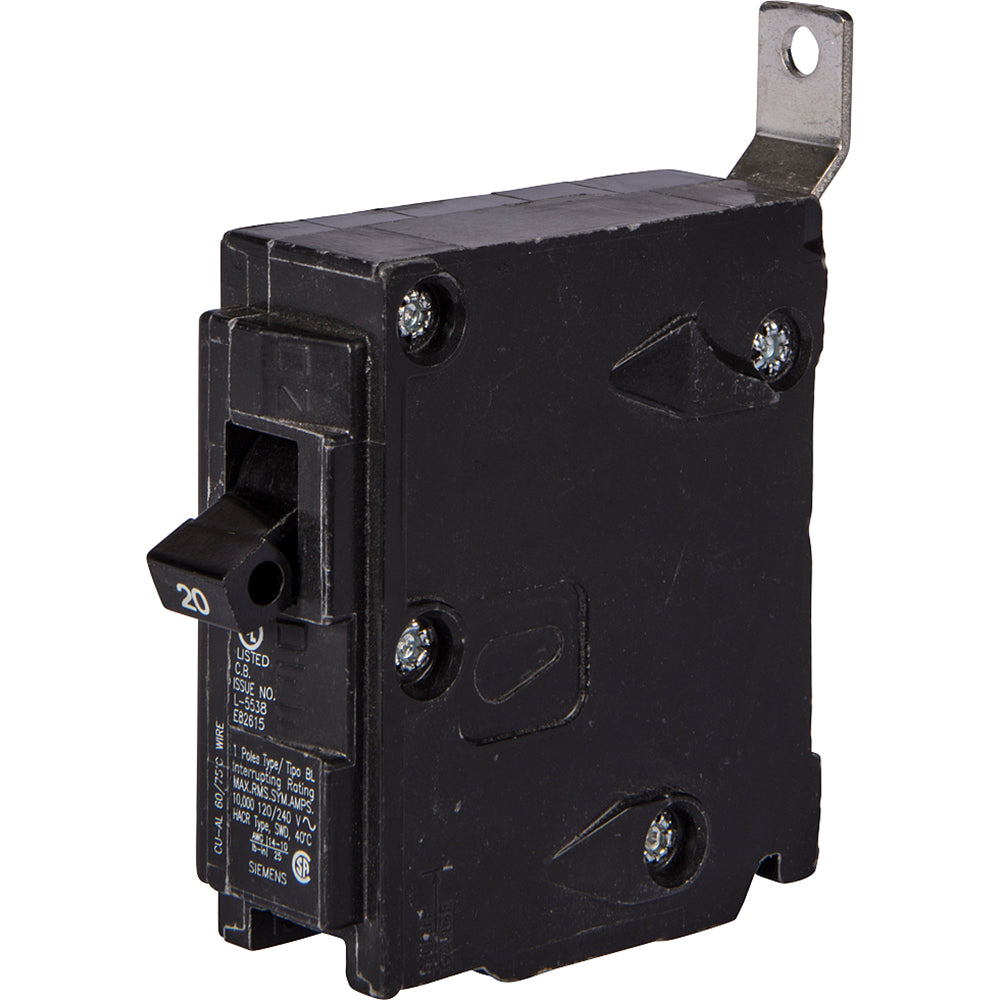

B120DFH
B120DFH is a 1-pole molded case dual function circuit breaker combining AFCI and GFCI protection for electrical distribution applications.
This thermal-magnetic circuit breaker features bolt-on connection and is rated for 120VAC service. The dual function design protects against both arc faults and ground faults in a single device, making it suitable for residential and commercial installations requiring comprehensive fault protection.
- Amperage Rating: 20A
- Voltage Rating: 120VAC
- Poles: 1
- Connection Type: Bolt-On
- Trip Unit: Thermal-Magnetic
- Function: AFCI/GFCI Combination
- Interrupt Rating: 22,000A
- Conductor Size: 14-8 AWG Copper, 12-8 AWG Aluminum
- Temperature Rating: 40 degrees C
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: B120DFH
- Manufacturer : Siemens
- Brand : Siemens
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : BL Series
- Type : BDFH
- Voltage : 120
- Amperage : 20
- Phase : 1
- Poles : 1
- AIC rating : 22kA@120V
- Connection : Bolt-On
- Functions : LI - Long-Time and Instantaneous
- Temp Rating : -13‰ÛÒ158 å¡F (-25‰ÛÒ70 å¡C)
- Protection : Thermal Magnetic
Product Data
- UPC : 887621817237
- GTIN : 00887621817237
- Country of Origin : Philippines
- Dimensions : 0.787 x 3.15 x 4.724 inch
- Weight : 0.243
- Panel Type : Siemens P1 Panelboards
- Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
- Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
