B12000S01 - Siemens 20 Amp 120/240V 1 Pole Bolt-On Molded Case Circuit Breaker, Type BL, Thermal Magnetic, 10kAIC

B12000S01

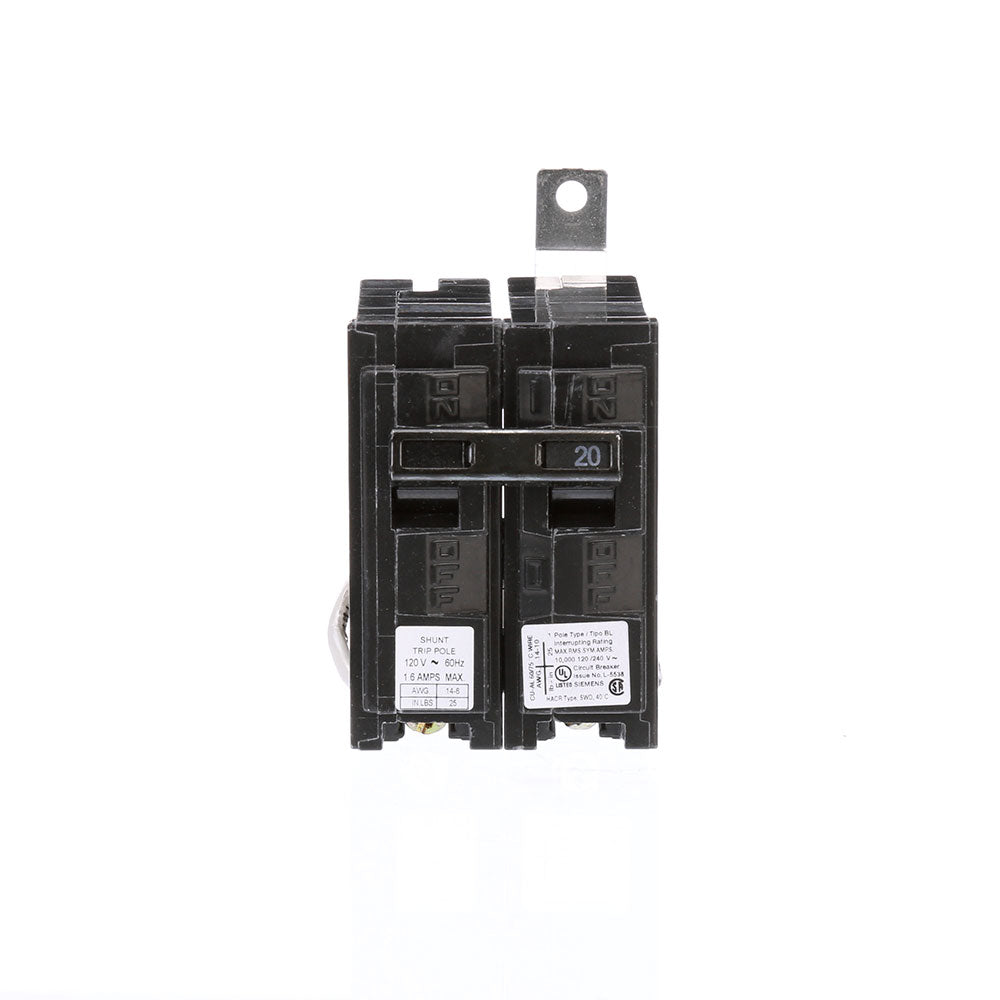

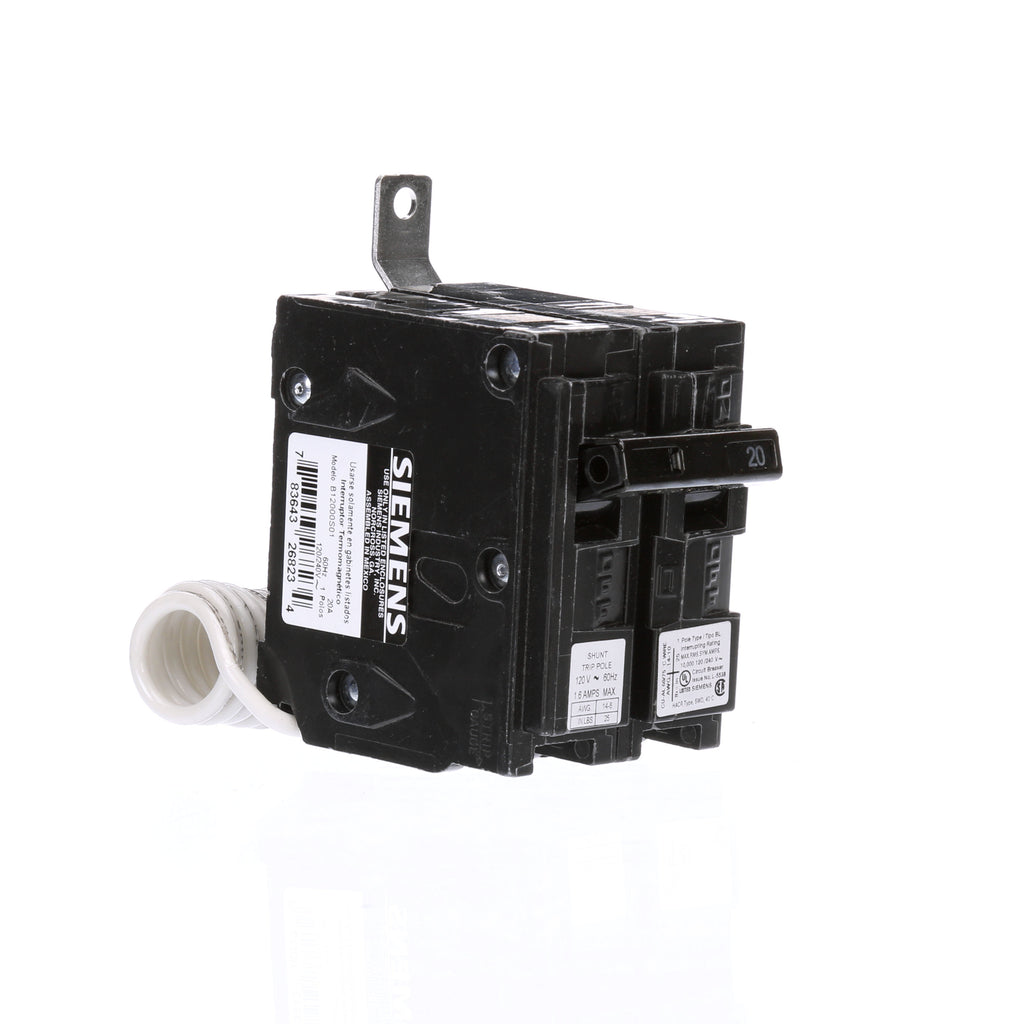

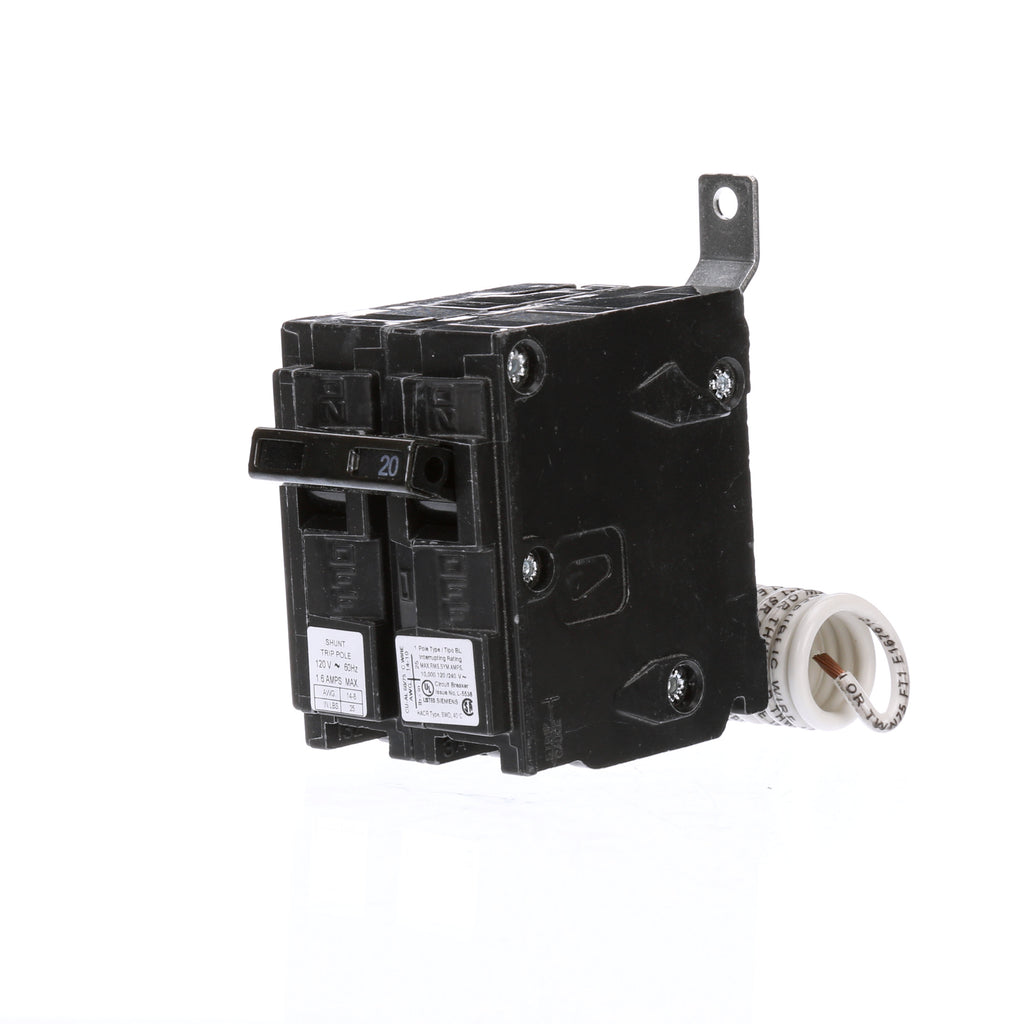

B12000S01 is a Siemens 1 Pole molded case circuit breaker with a 20 Amp rating and 120/240VAC voltage suitable for panelboard applications.This Type BL breaker features thermal magnetic protection with long-time and instantaneous trip functions, a bolt-on mounting type, and a 10kA interrupting rating at 120VAC. It is UL, CSA, and NOM certified and designed for use with P1 panelboards.

• Amperage: 20 Amp
• Voltage: 120/240 VAC
• Poles: 1
• Mounting Type: Bolt-On
• Interrupt Rating: 10kAIC at 120VAC
• Series/Frame: Type BL, Frame B
• Trip Unit: Thermal Magnetic with Long-Time and Instantaneous Trip
• Connection Type: Bolt-On
• Approvals: UL, CSA, NOM
• Actuator Type: Toggle
• Wire Size Range: 14-10 AWG (Cu), 12-10 AWG (Al)
• Dimensions: 5.5 in L x 4.4 in W x 3.8 in H

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: B12000S01
• Manufacturer : Siemens
• Brand : Siemens
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : BL Series
• Type : BL
• Voltage : 120
• Amperage : 20
• Phase : 1
• Poles : 1
• AIC rating : 10kA@240V
• Connection : Bolt-on
• Functions : LI - Long-Time and Instantaneous Trip
• Terminal Connection : Lug
• Frame Size : 125A/BL
• MCM Size : Min. Wire Size 12 AWG (Al), 14 AWG (Cu) Max. Wire Size 10 AWG
• Breaker Type : Shunt Trip
• Protection : Thermal Magnetic

Product Data

• UPC : 783643268234
• GTIN : 00783643268234
• Country of Origin : Mexico
• Dimensions : 2.571 x 2.00 x 2.89 inch
• Weight : 0.617
• Panel Type : Siemens P1 Panelboards
• Standards : CSA Certified, HACR Rated, NOM Certified, UL Listed
• Certification : CSA Certified, HACR Rated, NOM Certified, UL Listed
