Product Info
- Manufacturer:Westinghouse
- Sub-Category:Motor Starter
Description
B100W1B

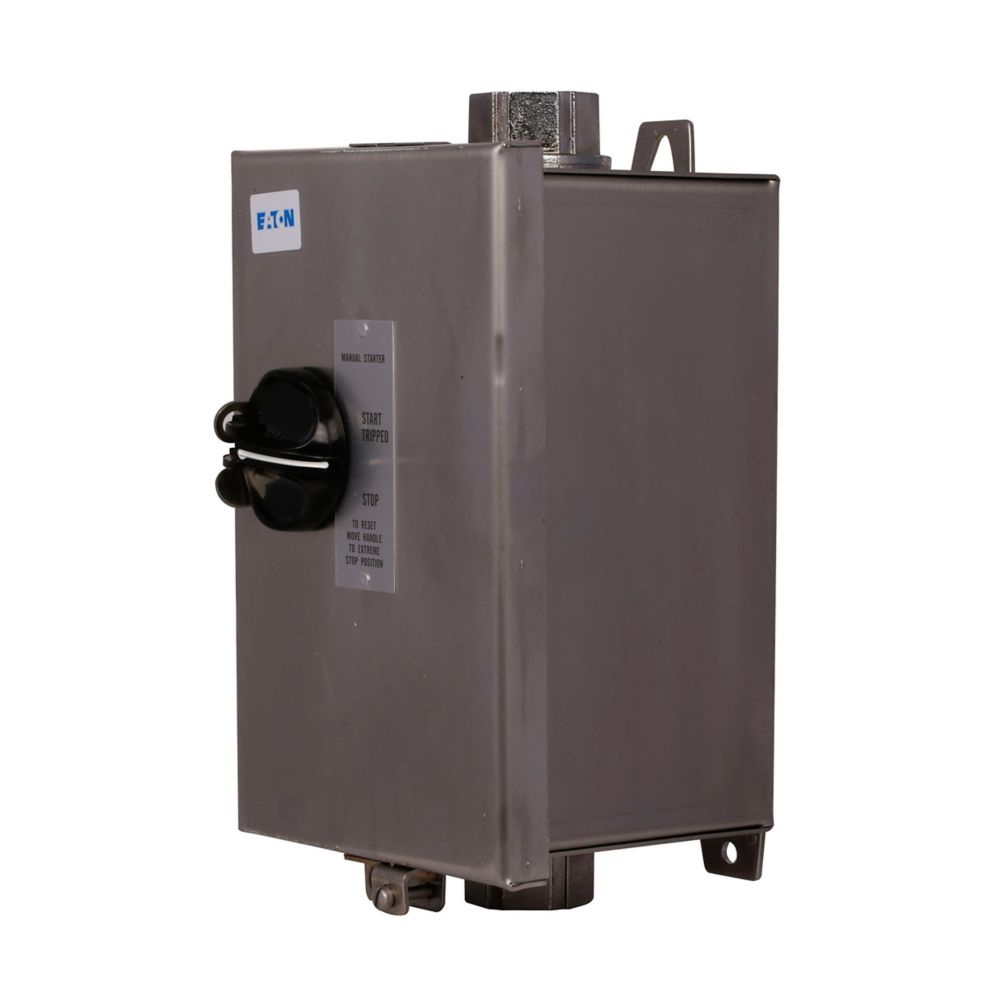

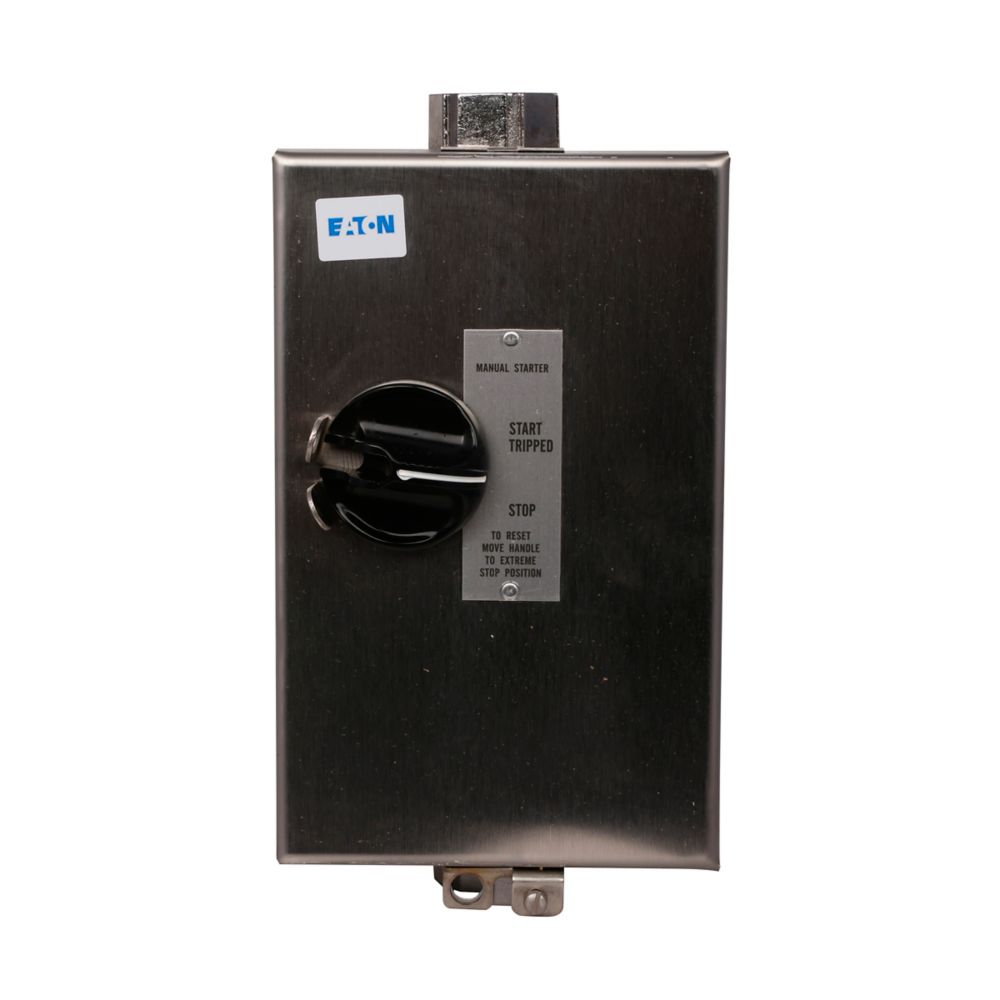

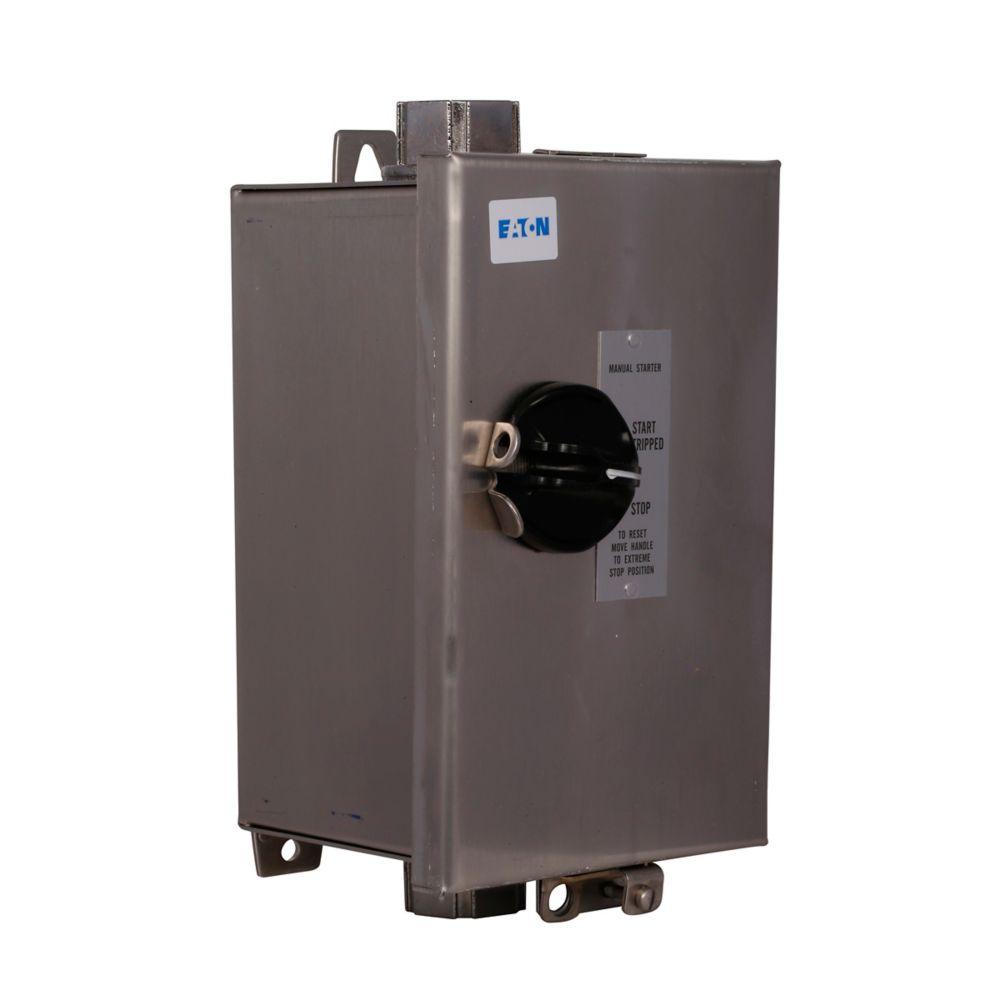

B100W1B is a Westinghouse manual motor starter designed for reliable motor control and overload protection in industrial applications.This 3-pole manual motor starter features a 27 ampere rating and Size M-1 frame, suitable for single-phase and three-phase motors. It supports motor protection up to 10 hp at 600 Vac and includes a bimetallic overload relay for precise trip unit operation. The unit is typically mounted in a NEMA 1 enclosure with toggle operation, providing straightforward manual control and wiring.
- Key Specifications
- Amperage: 27A
- Poles: 3
- Frame/Size: M-1
- Voltage Rating: Up to 600 Vac
- Interrupt Rating: Standard for manual motor starters
- Mounting Type: Panel mount
- Trip Unit: Bimetallic overload relay
- Enclosure Type: NEMA 1 (toggle operation)
- Motor HP Rating: Up to 10 hp at 600 Vac
- Application: Manual motor control and overload protection
- Part Number: B100W1B
- Manufacturer : Westinghouse
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Type B100
- Type : B100
- Voltage : 600
- Amperage : 45
- Phase : 1
- Poles : 3
- Coil Voltage Maximum : 240 VAC
- Nema Starter Size : 2
- UPC : 78667884791
- GTIN : 00786678847917
- Country of Origin : United States
- Dimensions : 5.75 in x 8.41 in x 2.17 in (Length/Depth x Height x Width)
- Weight : 1.12
- Certification : CSA Certified,UL Listed
Additional Information
Non-Reversing
