Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description
B1.30

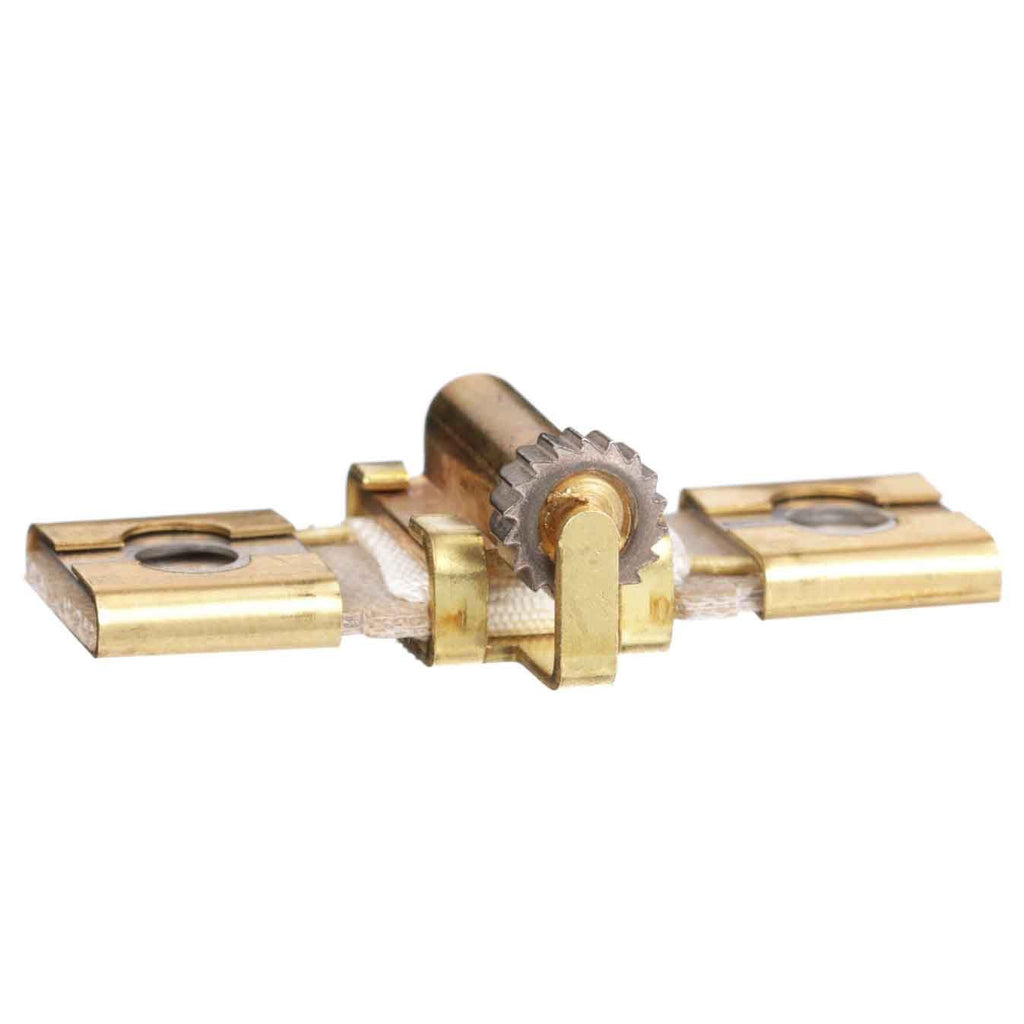

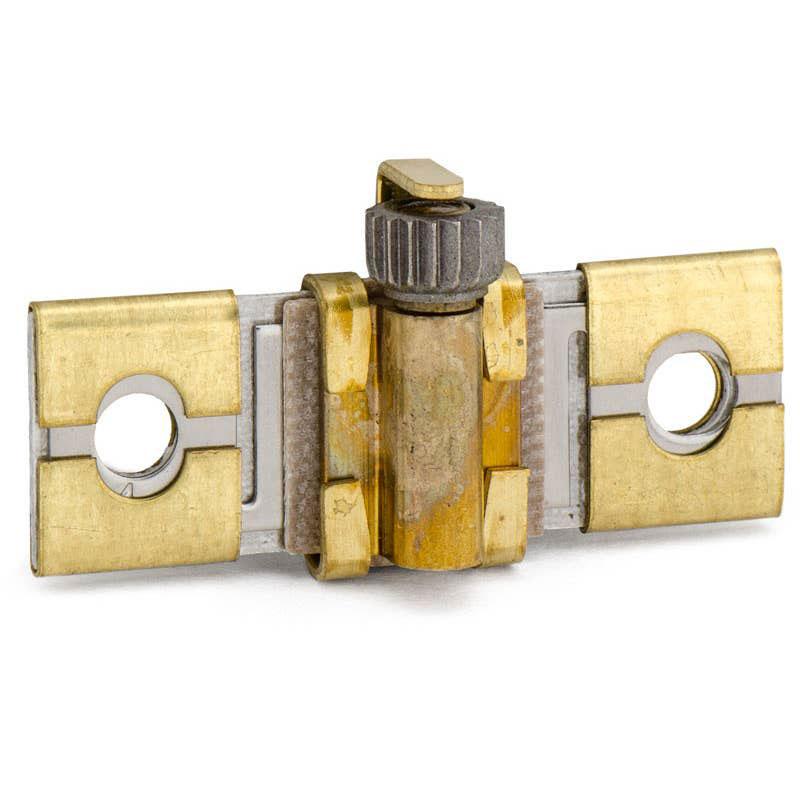

B1.30 is a Square D B Series thermal overload heater unit designed for motor control applications.
This plug-in mounting thermal unit features a melting alloy trip mechanism, standard trip type, and is rated for motors with full load amps between 0.88 and 1.15A. It is compatible with a variety of Square D overload relays and is suitable for use in NEMA Size 8 applications. The unit is rated for up to 600V and is designed for reliable protection of electric motors.
Key Specifications
- Part Number: B1.30
- Manufacturer: Square D (Schneider Electric)
- Series/Frame: B Series, NEMA Size 8
- Amperage: 0.88–1.15A (Full Load Amps)
- Voltage: 600V maximum
- Mounting Type: Plug-On
- Trip Unit: Melting Alloy, Standard Trip
- Motor Tripping Class: 20
- Certifications: Not specified in available data
- Interrupt Rating: Not specified in available data
- Poles: Not specified in available data
- UPC/GTIN: 785901587293
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: B1.30
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : B Series
- Type : B
- Full Load Amps : 0.88 to 1.15
Product Data
- UPC : 785901587293
- GTIN : 00785901587293
- Country of Origin : Mexico
- Dimensions : Length 7 in (177.80 mm) Width 0.81 in (20.57 mm) Height 0.22 in (5.59 mm)
- Weight : 0.05
- Certification : CE
