Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Heater Element
Description
B0.81

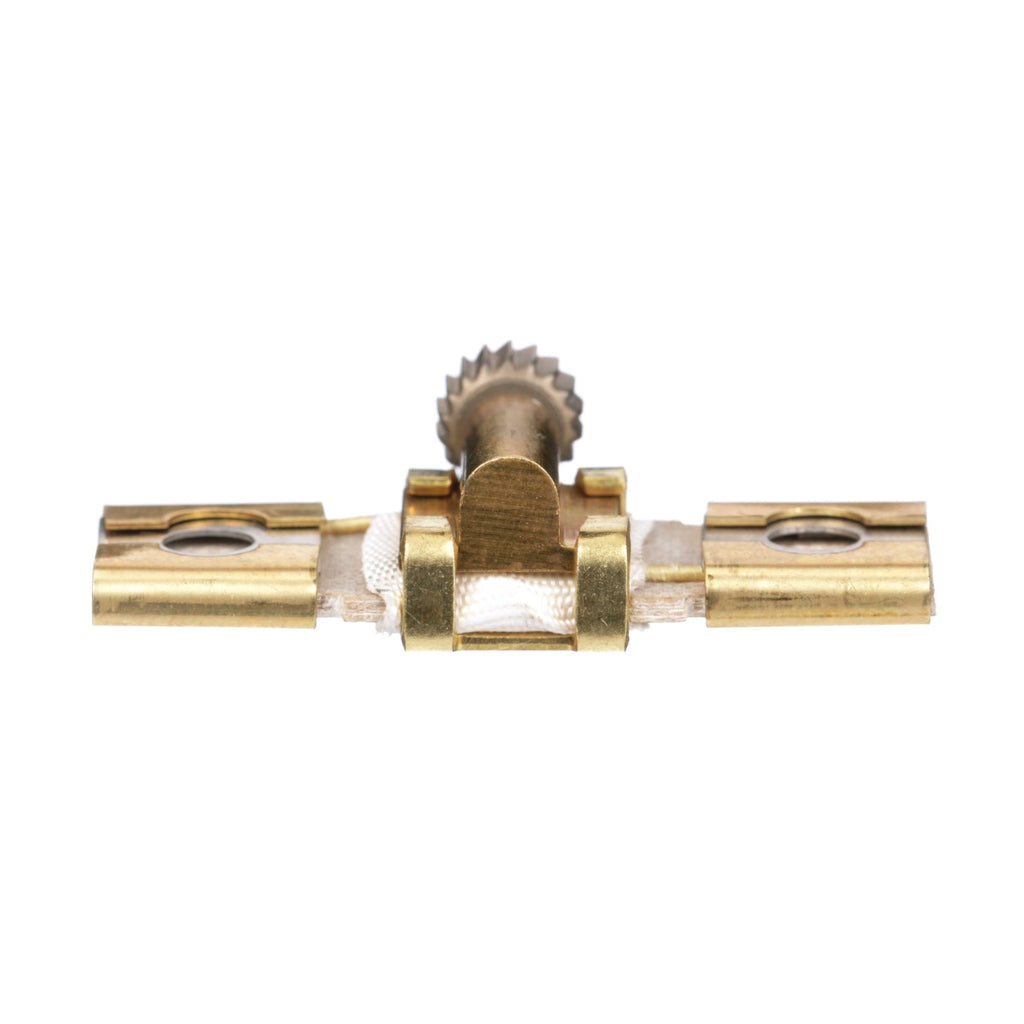

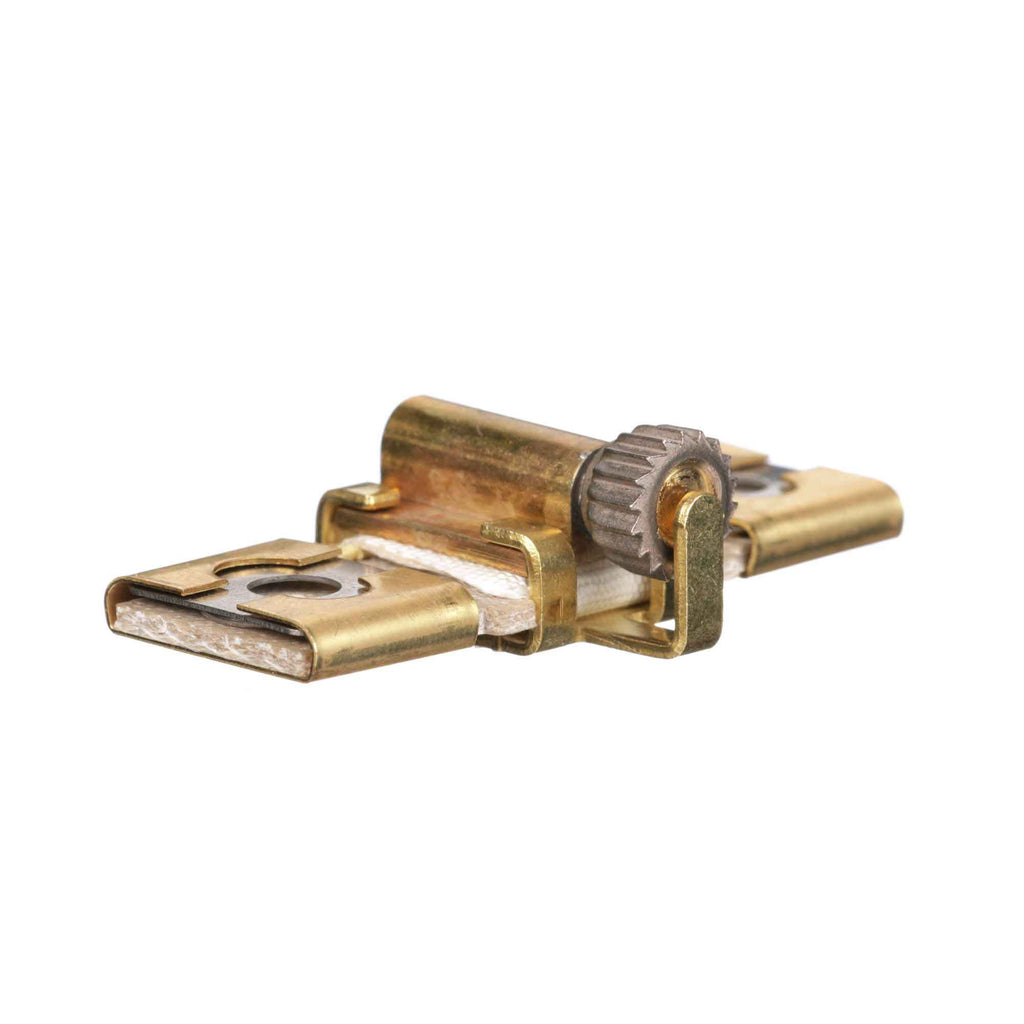

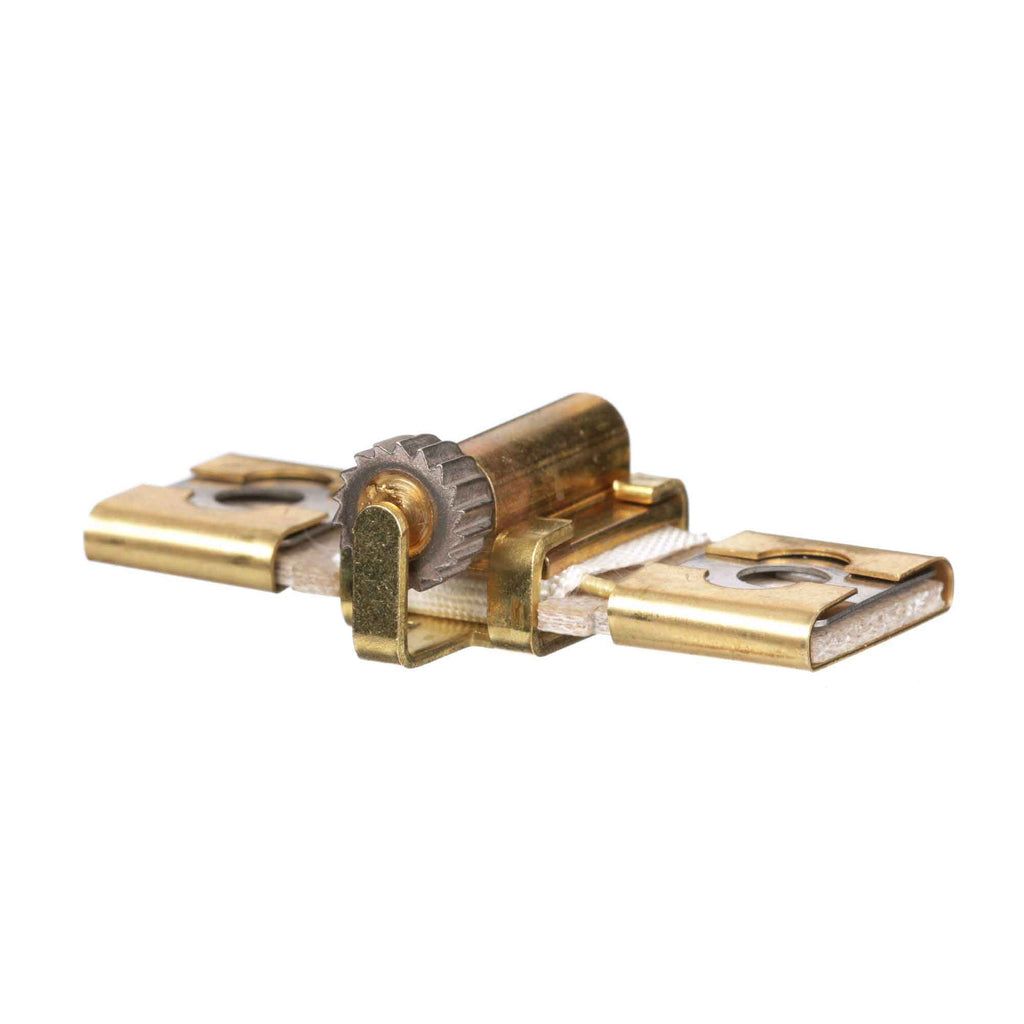

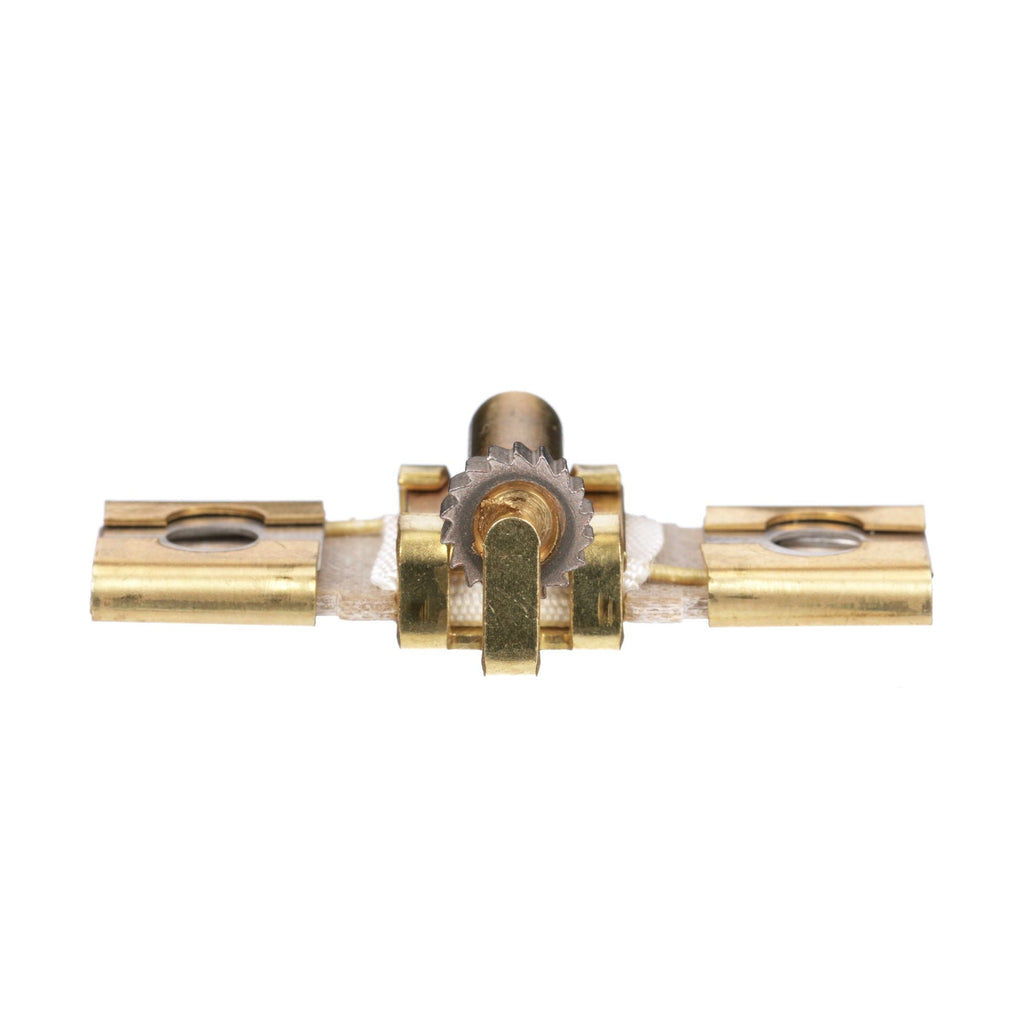

B0.81 is a Square D B Series thermal overload heater element designed for use in motor control applications. This heater element provides reliable protection for electric motors by monitoring current and tripping the circuit in the event of an overload. The B0.81 thermal unit is compatible with B Series motor starters and overload relays, featuring a plug-on mounting design for easy installation. It is constructed with a melting alloy thermal overload type and is rated for a motor tripping class of 20. The unit is suitable for use in systems up to 600V and is designed for single-phase or three-phase motor protection.
- Square D B Series
- Thermal Overload Heater Element
- Amperage: 0.6-0.66A
- Mounting Type: Plug-On
- Thermal Overload Type: Melting Alloy
- Motor Tripping Class: 20
- Maximum Voltage: 600V
- Compatible with B Series Motor Starters
- One Piece Construction
- For Use with Thermal Overload Relays
Specifications
- Part Number: B0.81
- Manufacturer : Schneider Electric
- Brand : Square D
- Category : Motor Control
- Item Subcategory : Heater Element
- Family : B Series
- Type : B
- Full Load Amp Minimum : 0.6
- Full Load Amp Maximum : 0.66
- Full Load Amps : 0.59 to 0.71
Product Data
- UPC : 785901587255
- GTIN : 00785901587255
- Country of Origin : Mexico

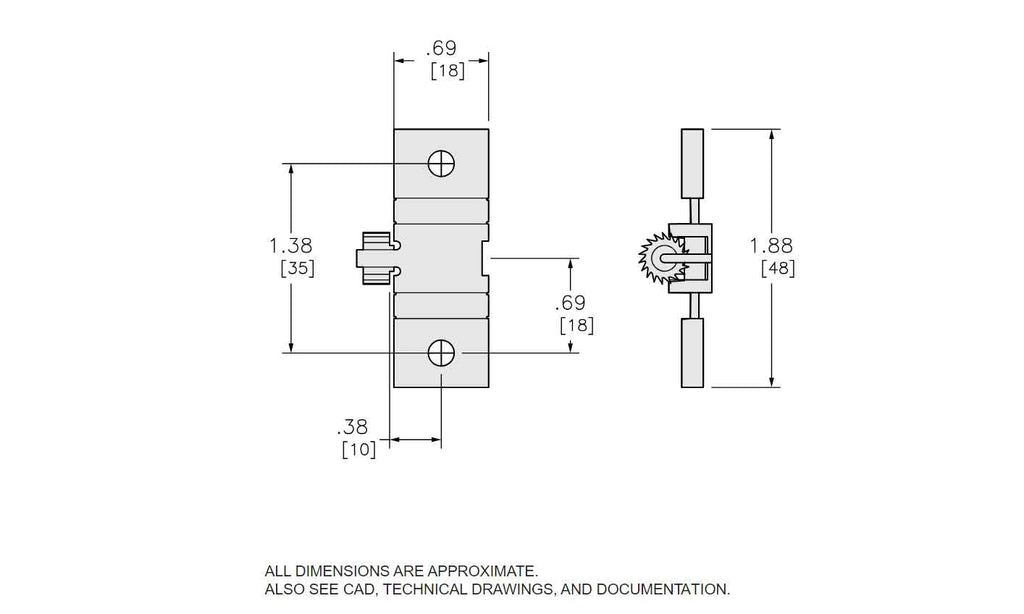

- Dimensions : Length 4 in (101.60 mm) Width 0.81 in (20.57 mm) Height 0.22 in (5.59 mm)
- Weight : 0.04
- Certification : CE
