Product Info
- Manufacturer:Square D
- Sub-Category:Disconnect
Description
AVO36080

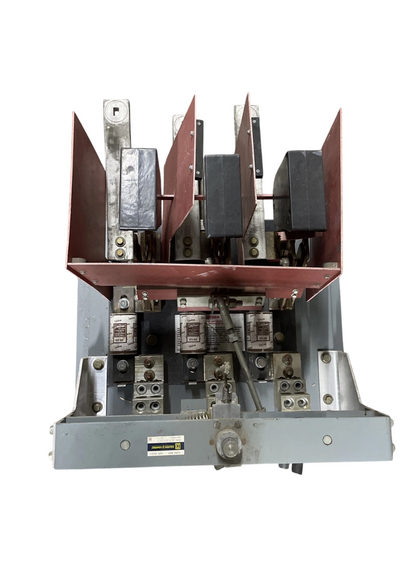

AVO36080 is a Square D AV Series fusible disconnect switch rated for 800 amperes at 600 volts AC, three-pole configuration, designed for industrial power distribution and motor control applications. This heavy-duty safety switch provides reliable load isolation and overcurrent protection in commercial and industrial electrical systems. The unit features a 200 kA AIC (Available Interrupting Current) rating at 600V, NEMA 1 enclosure rating, and is suitable for use with Class H or J fuses. The AVO36080 combines robust construction with straightforward operation, making it an essential component for main disconnect and branch circuit protection in three-phase power systems. Key Specifications
- Amperage: 800 Amp
- Voltage: 600 VAC
- Poles: 3 Pole
- Series: AV Type Disconnect Switch
- AIC Rating: 200 kA at 600V
- NEMA Rating: 1
- Fusible Switch Configuration
- Three Phase Application
Specifications
- Part Number: AVO36080
- Manufacturer : Square D
- Brand : Square D
- Category : Switch
- Item Subcategory : Disconnect
- Family : AV Series
- Type : AVO
- Voltage : 600
- Amperage : 800
- Phase : 3
- Poles : 3
- AIC rating : 200kA@600V
- Fuse Class : L
- Configuration : Single
- Switch Style : Fusible
- Nema Rating : 1
- Compatible Frames : PLP
Product Data
- Weight : 100
