Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Starter
Description
ATS01N212LU

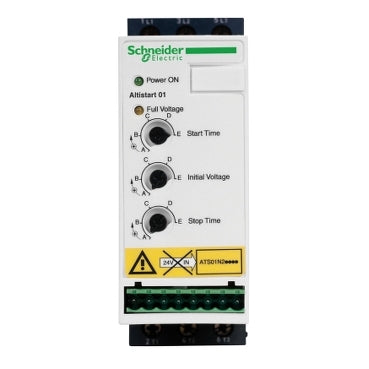

ATS01N212LU is a Schneider Electric Altistart 01 soft starter designed for smooth starting of 3-phase asynchronous motors up to 3kW at 200-240V and 12A. This compact unit is DIN rail mounted for easy installation in industrial control panels.Engineered for reliable motor control, the ATS01N212LU provides voltage ramp start for reduced mechanical stress and electrical surges. It features relay outputs and open collector logic for integration with control systems, making it suitable for a wide range of industrial applications.
- Soft starter for 3-phase asynchronous motors
- Rated for 12A continuous current
- Operating voltage: 200-240V AC
- Motor power: 3kW (3 hp) at 200-240V
- DIN rail mounting
- AC-53B utilization category
- Relay outputs: R1A, R1C NO
- Open collector logic LO1 end of starting signal
- 24V control voltage (6-30V range)
- 10mA at 6V for open collector logic
- Complies with EN/IEC 60947-4-2
- Compact design for industrial control panels
Specifications
- Part Number: ATS01N212LU
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Starter
- Family : Altistart 01
- Type : ATS01
- Voltage : 120
- Amperage : 12
- Phase : 3
- Poles : 3
Product Data
- UPC : 038911066725
- GTIN : 03389110667257
- Country of Origin : Denmark
- Dimensions : 4.9 in (124 mm) x 1.8 in (45 mm) x 5.2 in (131 mm) (Height x Width x Depth)
- Weight : 1.175
