Product Info
- Manufacturer:Gould
- Sub-Category:Low Voltage
Description

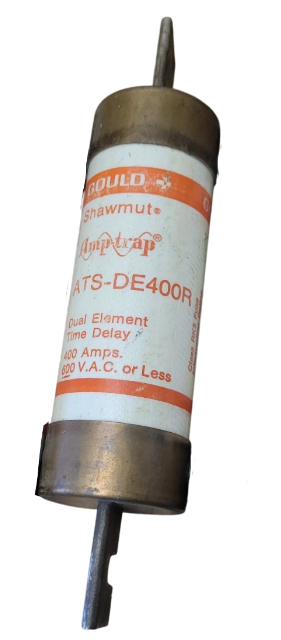

ATS-DE400R
ATS-DE400R is a Gould Amp-Trap dual element time delay current limiting fuse designed for low voltage power distribution applications. This Class RK5 fuse provides reliable overcurrent protection with time delay characteristics suitable for circuits with inrush currents. The dual element design allows it to distinguish between temporary overloads and sustained faults, making it ideal for motor circuits and other applications requiring coordinated protection. Key Specifications
- Part Number: ATS-DE400R
- Manufacturer: Gould
- Amperage Rating: 400A
- Voltage Rating: 600V AC
- Fuse Class: RK5
- Fuse Type: Dual Element Time Delay
- Current Limiting: Yes
- Interrupting Rating: 200kA at 600V
- Body Type: Blade
- Application: Low Voltage Power Distribution
Specifications
- Part Number: ATS-DE400R
- Manufacturer : Gould
- Brand : Gould
- Category : Fuse
- Item Subcategory : Low Voltage
- Family : Amp-Trap
- Type : ATS
- Voltage : 600
- Amperage : 400
- Connection : Blade
- Class Rating : RK-5
Product Data
- Weight : 4
