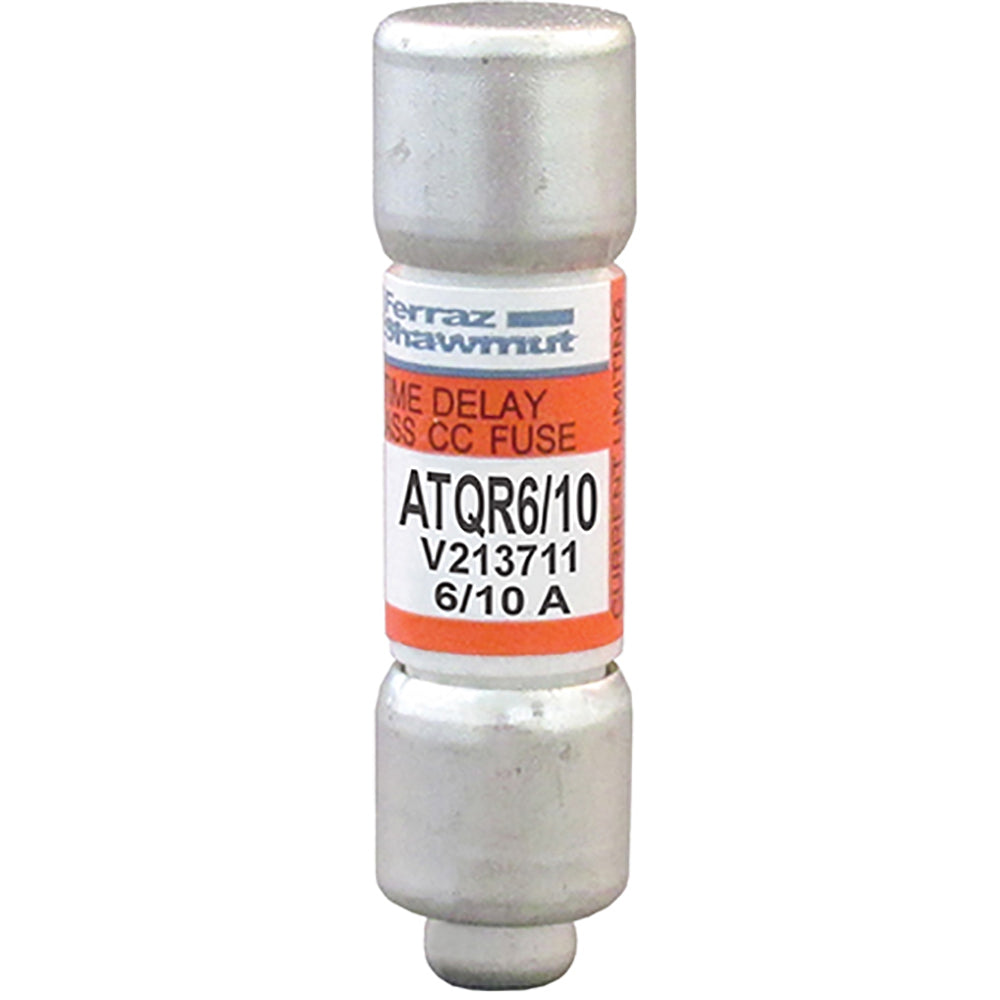

ATQR6/10 - Mersen Ferraz Shawmut 6/10A 600V Class CC Time-Delay Current Limiting Fuse

ATQR6/10

ATQR6/10 is a 6/10 amp, 600 volt AC Class CC time-delay current limiting fuse designed for control transformers and inductive loads.ATQR6/10 features a 1.5 inch length and 13/32 inch diameter, providing time-delay protection ideal for circuits with high inrush currents such as solenoids and lighting. It offers a 200kA interrupt rating at 600V AC and 100kA at 300V DC, meeting UL 248-4 and CSA C22.2 No. 248.4 certifications.

Key Specifications
• Amperage: 0.6 A (6/10 amp)
• Voltage Rating: 600 V AC, 300 V DC
• Fuse Class: CC
• Fuse Type: Time Delay, Current Limiting
• Interrupt Rating: 200kA AC, 100kA DC
• Dimensions: 13/32 inch diameter x 1-1/2 inch length
• Mounting Type: Rejection style for Class CC fuse holders
• Certifications: UL 248-4, CSA C22.2 No. 248.4
• Application: Control transformers, solenoids, inductive and general purpose loads

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: ATQR6/10
• Manufacturer : Mersen
• Brand : Mersen
• Category : Fuse
• Item Subcategory : Low Voltage Fuse
• Family : Amp-Trap 2000
• Type : ATQR
• Voltage : 600
• Amperage : 6
• AIC rating : 200kA@600V
• Diameter : 0.41
• Class Rating : CC
• Barrels : 1

Product Data

• UPC : 078200190634
• GTIN : 00782001906344
• Country of Origin : Mexico
• Dimensions : x 1-1/2 in x
• Weight : 0.02
• Certification : UL/CSA
